ELECTRIC COOKTOP

COS-244ECC

COS-304ECC

COS-365ECC

Installation Manual

Thank you for your purchase! We know that you have many brands and products

to choose from and we are honored to know that you have decided to take one of

our products into your home and hope that you enjoy it.

COSMO appliances are designed according to the strictest safety and performance

standards for the North American market. We follow the most advanced

manufacturing philosophy. Each appliance leaves the factory after thorough quality

inspection and testing. Our distributors and our service partners are ready to answer

any questions you may have regarding how to install, use and care for your products.

We hope that this manual will help you learn to use the product in the safest and

most effective manner.

If you have any questions or concerns, please contact the dealer from whom you

purchased it, or contact our Customer Support Team at 1-888-784-3108, or visit

cosmoappliances.com.

Please read the important safety instructions before using the appliance for your

own safety, and to reduce the risk of hazards such as injury, fire and electrical shock.

Please keep this manual for future use.

Once again, thank you!

THANK YOU FOR YOUR PURCHASE

TABLE OF CONTENTS

SAFETY & WARNINGS ................................................................4

INSTALLATION REQUIREMENTS ............................................5-11

Tools & Parts ....................................................................................5

Location Requirements .................................................................5

Product Specs: COS-244ECC ........................................................6

Product Specs: COS-304ECC ........................................................7

Product Specs: COS-366ECC ........................................................8

Cabinet Dimensions ......................................................................9

Electrical Requirements ..........................................................10-11

INSTALLATION INSTRUCTIONS ...........................................12-17

Prepare Cooktop for Installation ...............................................12

Install Cooktop .........................................................................12-13

Make Electrical Connection ...................................................14-16

Complete Installation ...................................................................17

WARRANTY & SERVICE .........................................................18-19

the gas flow for safety and ease of service.

national codes and ordinances.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE AND FOR

LOCAL ELECTRICAL INSPECTOR'S USE.

IMPORTANT

•Installation and service must be

performed by a qualified installer,

service agency, or gas supplier.

•Warranty service must be performed

by a Cosmo Appliances authorized

service partner.

•Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

•A ventilation hood is recommended

for use with the Cosmo Gas Cooktop.

•In Massachusetts: Installations and

repairs must be performed by a

qualified or licensed contractor,

plumber or gasfitter qualified or

licensed by the state, province, or

region where this appliance is being

installed. Only use gas shut-off valves

approved for use within the state,

province, or region where this

appliance is being installed. A flexible

gas connector, when used, must not

exceed 3 feet (0.9 meters).

All safety messages follow the safety alert symbol and one of the following

words:

DANGER!: You can be killed or seriously injured if you do not

immediately follow instructions.

WARNING!: You can be killed or seriously injured if you don't

follow instructions.

CAUTION!: Hazards or unsafe practices COULD result in minor

personal injury if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how

to reduce the chance of injury, and tell you what can happen if the

instructions are not followed.

Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can

kill or hurt you and others.

SAFETY & WARNINGS

use. Do not let clothing or other

flammable materials contact with

areas near surface burners until they

have had sufficient time to cool down.

WARNING! NEVER use this appliance as

a space heater to heat or warm the

room. Doing so may result in carbon

monoxide poisoning.

INSTALLATION REQUIREMENTS

TOOLS & PARTS

Gather the required tools and parts before starting installation. Read and follow the instructions

provided with any tools listed here.

Tools Required

1/4 inch (6.35 mm) Nut Driver

Pliers

Flat-head Screwdriver

Parts Included

Foam strip roll

Clamping brackets (x2)

Parts Required

A UL-listed -OR- CSA-approved connector for 1/2 inch (1.3 cm) diameter conduit

UL-listed wire connectors

Check local codes. Check existing electrical supply. See the “Electrical Requirements” section.

It is highly recommended that all electrical connections be made by a licensed, qualified

electrical installer.

LOCATION REQUIREMENTS

IMPORTANT!: Observe all governing codes and ordinances. When installing the cooktop,

use the minimum dimensions given.

To eliminate the risk of burns or fire by reaching over the heated surface units, cabinet

storage space located above the surface units should be avoided. If cabinet storage is

to be provided, the risk can be reduced by installing a range hood that projects

horizontally a minimum of 5" (12.7 cm) beyond the bottom of the cabinets.

The cooktop must be a specified cooktop that is approved to be installed either alone or

over an under-counter built-in oven. Check the cooktop base for an approved installation

label. If you do not find this label, contact your dealer to confirm that your cooktop is

approved.

The cooktop must be installed on a level countertop.

The cooktop should be installed away from strong draft areas, such as windows, doors,

fans, or strong heating vents.

The cooktop should be located for convenient use in the kitchen.

Use the countertop opening dimensions that are given with these Installation

Instructions. Given dimensions are minimum clearances.

A grounded electrical supply is required. See “Electrical Requirements”, Pages 10-11.

IMPORTANT!: To avoid damage, check with your builder or cabinet supplier to make sure

that the materials used will not discolor, delaminate or sustain other damage.

Tape Measure

Marker or Pencil

2 1/2 inch (6.4 cm) clamping screws (x2)

the gas flow for safety and ease of service.

national codes and ordinances.

INSTALLATION REQUIREMENTS

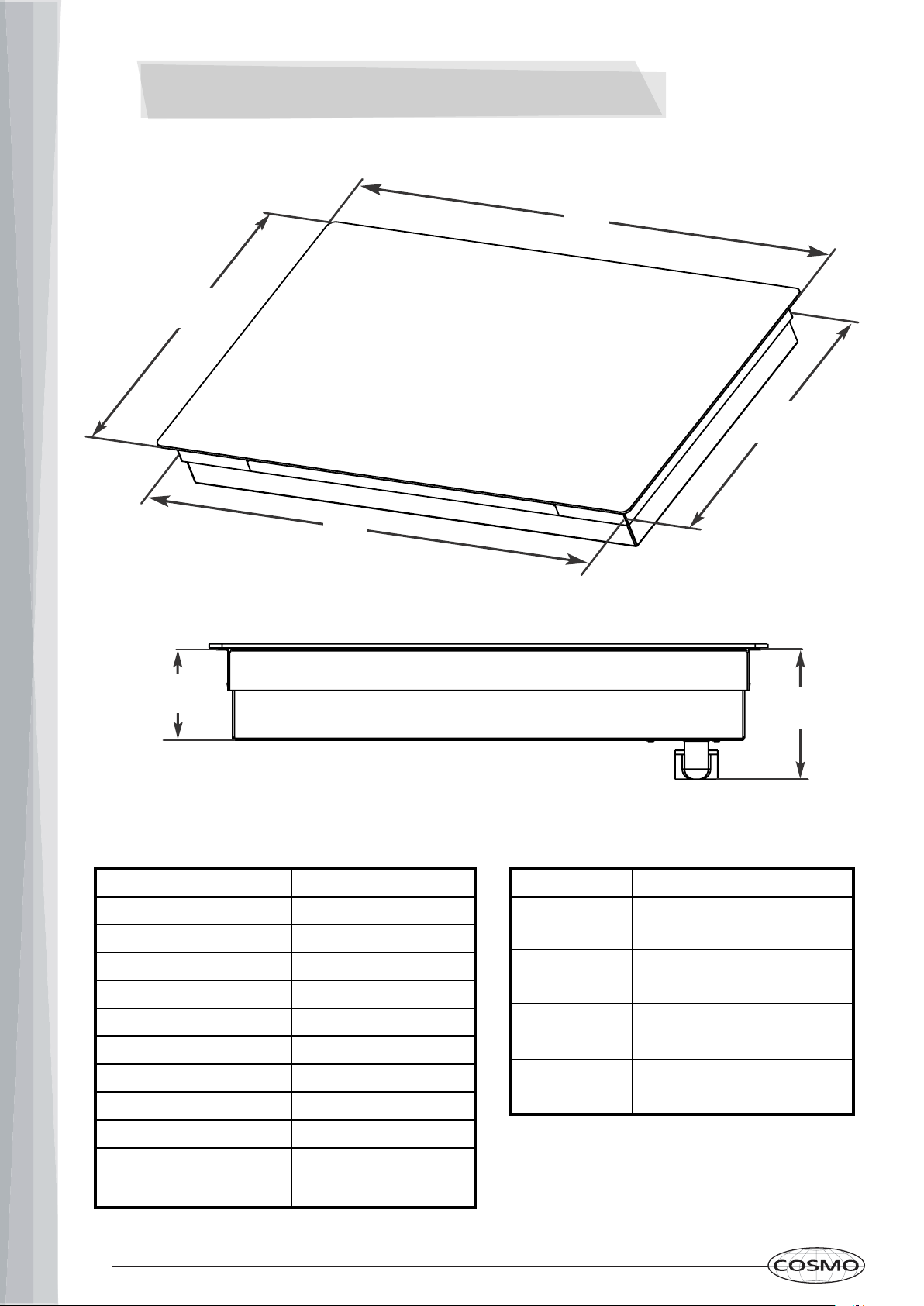

2"3.12"

21.5"

24"

19.12"

21.87"

TOP VIEW

SIDE VIEW

SKU

Rated Voltage

Rated Frequency

Rated Output Power

Net Weight

Glass Depth

Glass Width

Frame Depth

Frame Width

Cooktop Height

including conduit*

*Located at rear of cooktop, right side

COS-244ECC

240V

60Hz

5500W

20 lbs.

21.5 in. / 54.6 cm

24 in. / 61 cm

19.12 in. / 48.6 cm

21.87 in. / 55.6 cm

2.81 in. / 5.6 cm

3.75 in. / 9.5 cm

PRODUCT SPECIFICATIONS

BURNER SPECS

Right Front

Right Rear

Left Front

Single Zone, 5.9 in.,

1200W

Dual Zone, 9.3 / 5.5 in.,

2500W / 1200W

Single Zone, 5.9 in.,

1200W

Left Rear

Single Zone, 7.5 in.,

1800W

INSTALLATION REQUIREMENTS

21.5"

30"

27.8"

2.8"

19.1"

3.75"

TOP VIEW

SIDE VIEW

SKU

Rated Voltage

Rated Frequency

Rated Output Power

Net Weight

Glass Depth

Glass Width

Frame Depth

Frame Width

Cooktop Height

including conduit*

*Located at rear of cooktop, right side

COS-304ECC

240V

60Hz

6700W

23.59 lbs.

21.5 in. / 54.6 cm

30 in. / 76.2 cm

19.12 in. / 48.6 cm

27.81 in. / 70.6 cm

2.81 in. / 5.6 cm

3.75 in. / 9.5 cm

PRODUCT SPECIFICATIONS

BURNER SPECS

Right Front

Right Rear

Left Front

Single Zone, 5.9 in.,

1200W

Dual Zone, 7.5 / 4.7 in.,

1800W / 750W

Dual Zone, 9.3 / 5.5 in.,

2500W / 1200W

Single Zone, 5.9 in.,

1200W

Left Rear

The Hot Surface Indicator Light will glow as

long as any surface cooking area is too hot to

touch, even after the surface cooking area(s) is

turned off.

The Hot Surface Indicator Light will glow as

long as any surface cooking area is too hot to

touch, even after the surface cooking area(s) is

turned off.

INSTALLATION REQUIREMENTS

21.5"

36"

33.6"

2.8"

19.1"

3.75"

TOP VIEW

SIDE VIEW

SKU

Rated Voltage

Rated Frequency

Rated Output Power

Net Weight:

Glass Depth

Glass Width

Frame Depth

Frame Width

Cooktop Height

including conduit*

*Located at rear of cooktop, right side

COS-365ECC

240V

60Hz

8500W

28.22 lbs.

21.5 in. / 54.6 cm

36 in. / 91.4 cm

19.12 in. / 48.6 cm

33.68 in. / 85.6 cm

2.81 in. / 5.6 cm

3.75 in. / 9.5 cm

PRODUCT SPECIFICATIONS

BURNER SPECS

Right Front

Right Rear

Dual Zone, 9.3 / 5.5 in.,

2500W / 1200W

Left Front

Single Zone, 5.9 in.,

1200W

Single Zone, 7.5 in.,

1800W

Single Zone, 5.9 in.,

1200W

Left Rear

Middle

Dual Zone, 7.5 / 4.7 in.,

1800W / 750W

cook foods directly on the cooktop.

INSTALLATION REQUIREMENTS

CABINET DIMENSIONS

A.) 24" (61.0 cm) on 24" models; 30" (76.2 cm) on

30" models; 36" (91.4 cm) on 36" models

B.) Combustible area above countertop (shown by

dashed box above)

C.) 30" (76.2 cm) minimum clearance between top

of cooktop platform and bottom of uncovered wood

or metal cabinet (24" [61 cm] minimum clearance if

bottom of wood or metal cabinet is covered by not

less than ¹⁄₄" [0.6 cm] flame retardant millboard

covered with not less than No. 28 MSG sheet steel,

0.015" [0.04 cm] stainless steel, or 0.024" [0.06 cm]

aluminum or 0.020" [0.05 cm] copper)

D.) 13" (33 cm) recommended upper cabinet depth

E.) 2" (5.1 cm)

F.) 19 1/4" (49.0 cm) recommended cutout. Will fit

in cutout from 19 1/8"-19 5/16 (48.6- 49.0 cm)

G.) 18" (45.7 cm) minimum clearance from upper

cabinet to countertop within minimum horizontal

clearances to cooktop

H.) Junction box or outlet: 7" (17.8 cm) minimum

from top of countertop

I.) Junction box or outlet: 9" (23.0 cm) maximum

from right side of cabinet

J.) 22" (56.0 cm) recommended cutout on 24" (61.0

cm) models.

Will fit in cutout from 21 7/8"-22 1/8" (55.6-56.2 cm)

on 24" (61.0 cm) models.

27 15/16" (71.0 cm) recommended cutout on 30"

(76.2 cm) models. Will fit in cutout from 27 13/

16"-28" (70.6-71.2 cm) on 30" (76.2 cm) models.

33 7⁄8" (86.0 cm) recommended cutout on 36" (91.4

cm) models. Will fit in cutout from 33 11/16"-33 15/

16" (85.6-86.2 cm) on 36" (91.4 cm) models.

K.) 2" (5.1 cm) minimum distance to nearest left

and right side combustible surface above cooktop

L.) 2" (5.1 cm) minimum clearance between back

wall and countertop

IMPORTANT!:

If installing a range

hood or microwave

hood combination

above the cooktop,

follow the range

hood or microwave

hood combination

installation

instructions for

dimensional

clearances above

the cooktop surface.

ELECTRICAL REQUIREMENTS

If codes permit and a separate ground wire is used, it is recommended that a qualified

electrical installer determine that the ground path and wire gauge are in accordance with local

codes.

Check with a qualified electrical installer if you are not sure the cooktop is properly grounded.

Make sure that the electrical connection and wire size are adequate and in conformance with

the National Electrical Code, ANSI/NFPA 70-latest edition or CSA Standards C22.1-94,

Canadian Electrical Code, Part 1 and C22.2 No. O-M91-latest edition, and all local codes and

ordinances.

A copy of the above code standards can be obtained from the following:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

(Continued on next page)

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

INSTALLATION REQUIREMENTS

Disconnect power before servicing.

Use 8-Gauge copper wire.

Electrically ground the cooktop.

Failure to follow these instructions can result in

death, fire, or electrical shock.

WARNING!

ELECTRICAL

SHOCK HAZARD

Andere Handbücher für COS-244ECC

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Cosmo Kochfeld Handbücher

Cosmo

Cosmo ECC Series Bedienungsanleitung

Cosmo

Cosmo ECC Series Bedienungsanleitung

Cosmo

Cosmo COS-640STX-E Betriebsanleitung

Cosmo

Cosmo COS850SLTX-E Handbuch

Cosmo

Cosmo COS850SLTX-E Bedienungsanleitung

Cosmo

Cosmo COS-VA-S950M Handbuch

Cosmo

Cosmo COS-DIC304 Bedienungsanleitung

Cosmo

Cosmo COS-304TBECC Bedienungsanleitung

Cosmo

Cosmo COS-244ECC Bedienungsanleitung

Cosmo

Cosmo COS-GRT304 Bedienungsanleitung

Cosmo

Cosmo COS-GRT366 Bedienungsanleitung

Cosmo

Cosmo DIC DROP-IN COOKTOP Series Bedienungsanleitung

Cosmo

Cosmo COS-DIC304 Bedienungsanleitung

Cosmo

Cosmo GRT Series Bedienungsanleitung

Cosmo

Cosmo COS850SLTX-E Bedienungsanleitung

Cosmo

Cosmo COS-HZ5230 Bedienungsanleitung

Cosmo

Cosmo COS-GRT366 Bedienungsanleitung

Cosmo

Cosmo COS-DIC304 Bedienungsanleitung

Cosmo

Cosmo COS-244ECC Bedienungsanleitung

Beliebte Kochfeld Handbücher anderer Marken

Bonnet

Bonnet OPTIMUM 700 Betriebsanleitung

Jenn-Air

Jenn-Air JGCP430 Bedienungsanleitung

Frigidaire

Frigidaire FES367FCC Kurzanleitung

Ztove

Ztove EZ2 DUO Bedienungsanleitung

Kleenmaid

Kleenmaid cooking GCTK9011 Installationsanleitung

Casselin

Casselin CSASRE24 Bedienungsanleitung

Jenn-Air

Jenn-Air JGC2536EB00 Bedienungsanleitung

Waldorf

Waldorf RN8603E-B Bedienungsanleitung

Whirlpool

Whirlpool SMP658CNEIXL Bedienungsanleitung

Wolf

Wolf CI243C/B Bedienungsanleitung

Fulgor Milano

Fulgor Milano F5PGK305S1 Bedienungsanleitung

GE JP389 Bedienungsanleitung

Wells

Wells WV-2HFG Bedienungsanleitung

IKEA

IKEA Lagan HGA4K Bedienungsanleitung

Samsung

Samsung NA36N9755 Bedienungsanleitung

Miele

Miele KM 404 Bedienungsanleitung

Lacor

Lacor 69562 Technisches Datenblatt

Keating Of Chicago

Keating Of Chicago MG-2 Bedienungsanleitung
