WALL MOUNT
RANGE HOOD
This manual is made with 100 % recycled paper.
Electronic version of this manual is available at: www.cosmoappliances.com
COS-63175
COS-63190
COS-63175S
COS-63190S
COS-668WRC75
COS-668WRC90
COS-668WRCS75
COS-668WRCS90
Installation Guide
& User's Manual
COS-668A750
COS-668A900
COS-668AS750
COS-668AS900
1
SEE PAGE 13 FOR INSTRUCTIONS ON INSTALLING FILTERS
2
burned.
Always leave safety grills and filters in place. Without these
components, operating blowers could catch onto hair, fingers and loose
clothing. The manufacturer declines all responsibility in the event of failure to
observe the instructions given here for installation, maintenance and suitable
use of the product. The manufacturer further declines all responsibility for
injury due to negligence and the warranty of the unit automatically expires
due to improper maintenance.
3
4

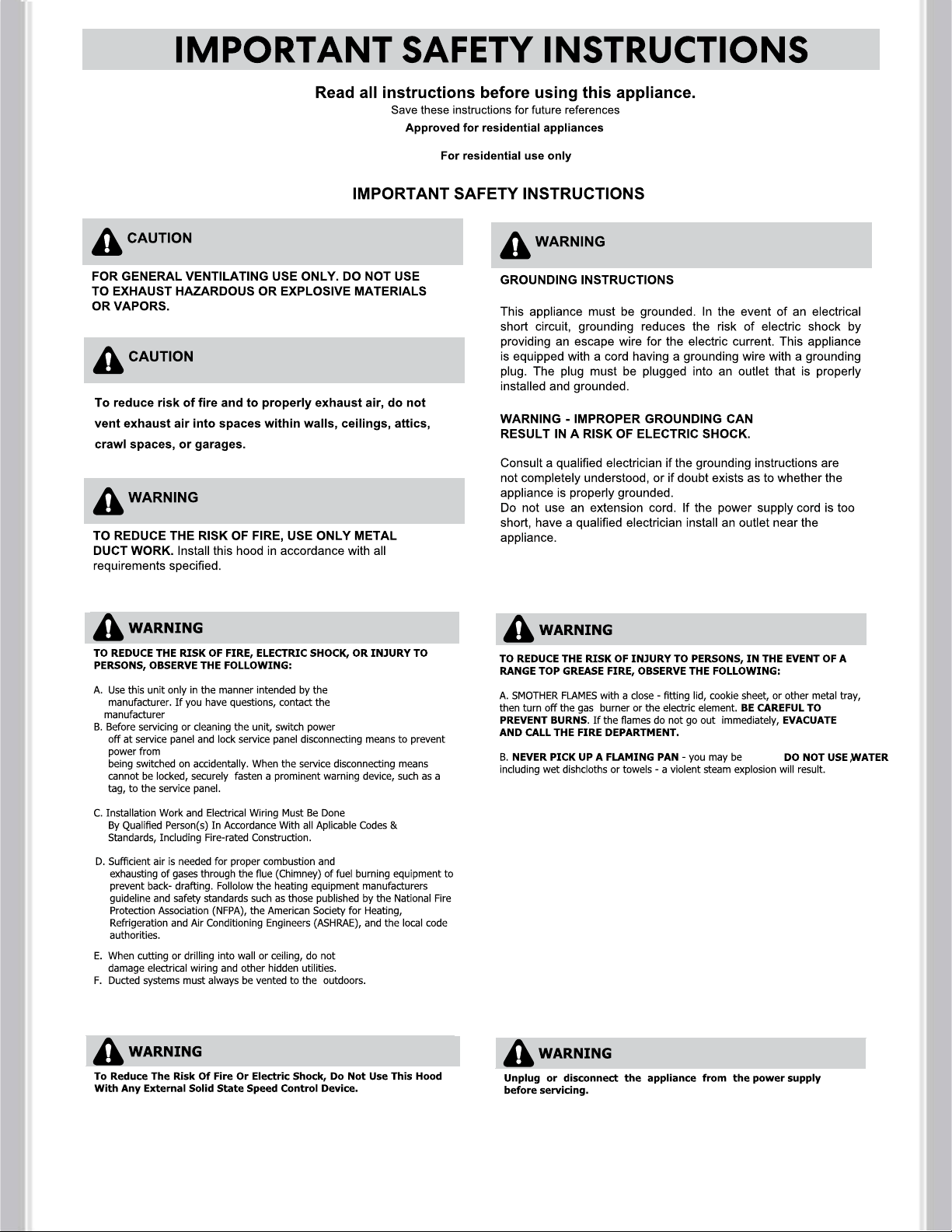

SAFETY INSTRUCTIONS _______________________________________ 3
PARTS DIAGRAM ___________________________________________ 5-6
INSTALLATION REQUIREMENTS ________________________________ 7
PARTS LIST _________________________________________________ 8
RANGE HOOD INSTALLATION _______________________________ 9-11
BAFFLE FILTER INSTALLATION ________________________________ 12
DUCTLESS CONVERSION FILTERS _____________________________ 13
INSTALLING THE OIL CUP _____________________________________ 14
PUSH BUTTON CONTROLS_____________________________________ 15
SOFT TOUCH CONTROLS ___________________________________ 16
MAINTENANCE ______________________________________________ 17
TROUBLESHOOTING _________________________________________ 18
WARRANTY & SERVICE _______________________________________ 19
21.5"-39.2"
18.5"
12.8"
7"
12.5"
7"
13.6"

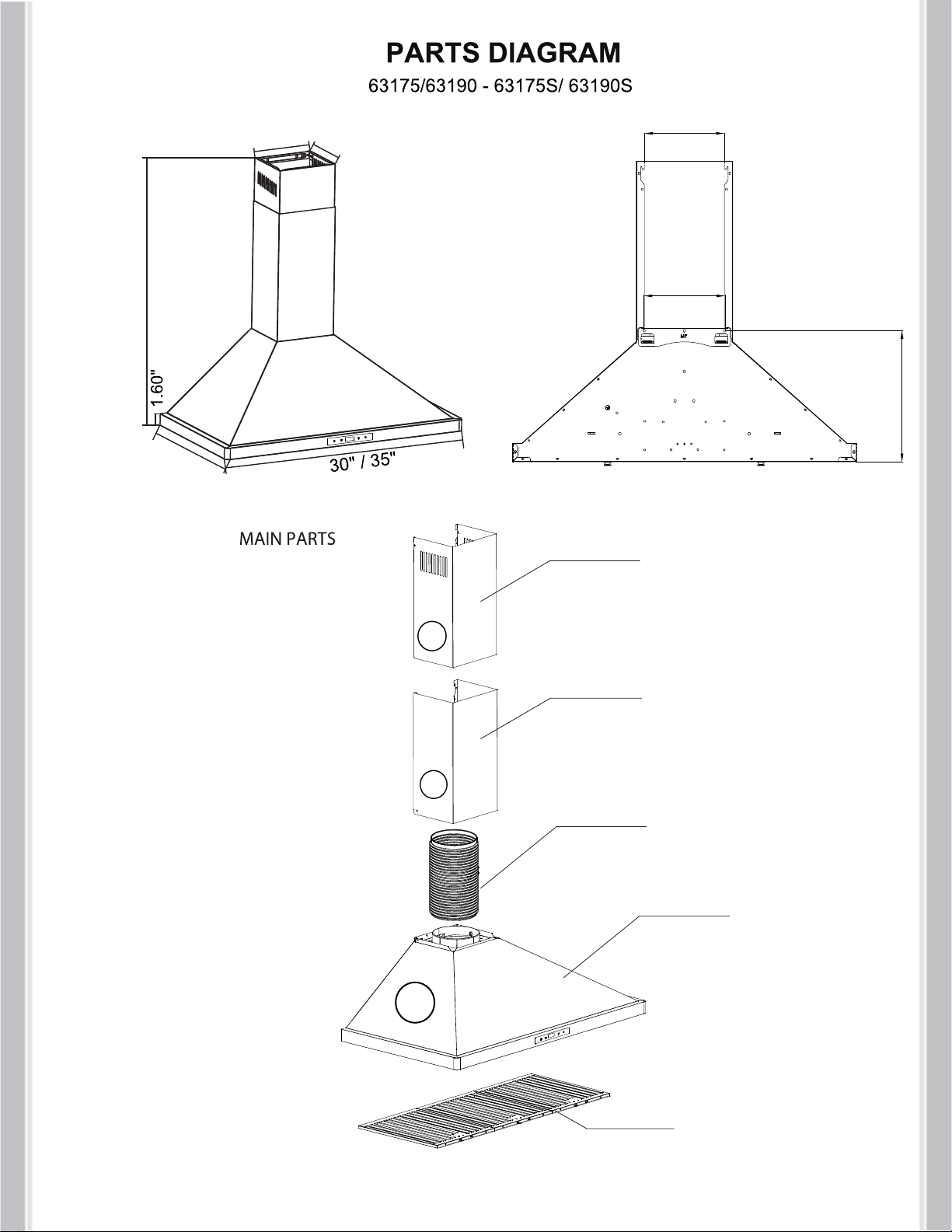

1. Top Chimney (Inner Chimney)
2. Bottom Chimney (Outer Chimney)
3. Exhaust Pipe
4. Core Unit
5. Tempered Glass
6. Grease Filters
(Units with Glass Visor)
B
A
C
5
11.1"
25.6"-39.4"
19.75"
6.75"
8.25"
6.81"
6.89"
11.18"
1. Top Chimney (Inner Chimney)
2. Bottom Chimney (Outer Chimney)
3. Exhaust Pipe
4. Core Unit
5. Grease Filters
A
B
C
6
1. Do not install the range hood near open doors and windows to avoid reduced
performance. (Fig.1)
2. Install the range hood directly above the cooktop. The optimal distance between the
cooktop and lower edge of the range hood is 24" to 36". (Fig.2) Install at the height
appropriate to your ceiling. Make sure the chimney reaches the ceiling. If your ceiling
leaves the hood a few inches higher or lower than 24" to 36" you can still install it without a
major loss of performance.
3. For optimal performance, do not over extend the exhaust tube and avoid unnecessary
bending. (Fig.3)
4. After hanging the unit on the wall, ensure the range hood is straight and leveled. (Fig.4)
5. The air outlet must be connected to chimney flumes or combustion gas ducts. Under no
circumstances should the air outlet be connected to ventilation ducts for rooms in which
fuel-burning appliances are installed.
24"-36"
7
G
Note: Hardware, number of screws, anchors and
accessories will vary based on product model.
(outer chimney)
(inner chimney)
8
E.
H.
A. 11 pcs 2/8" x 1 3/8" Plastic Anchors
B. 11 pcs 1/8" x 1 7/8" Screws (48mm)
C. 4 pcs 1/8" x 3/8" Screws (35mm)
D. Core Unit Bracket (Main Body)
E. Outer Chimney Cover Bracket
F. 6 in. Round Aluminum Duct
G. Oil Cup
H. Inner Chimney Cover Bracket

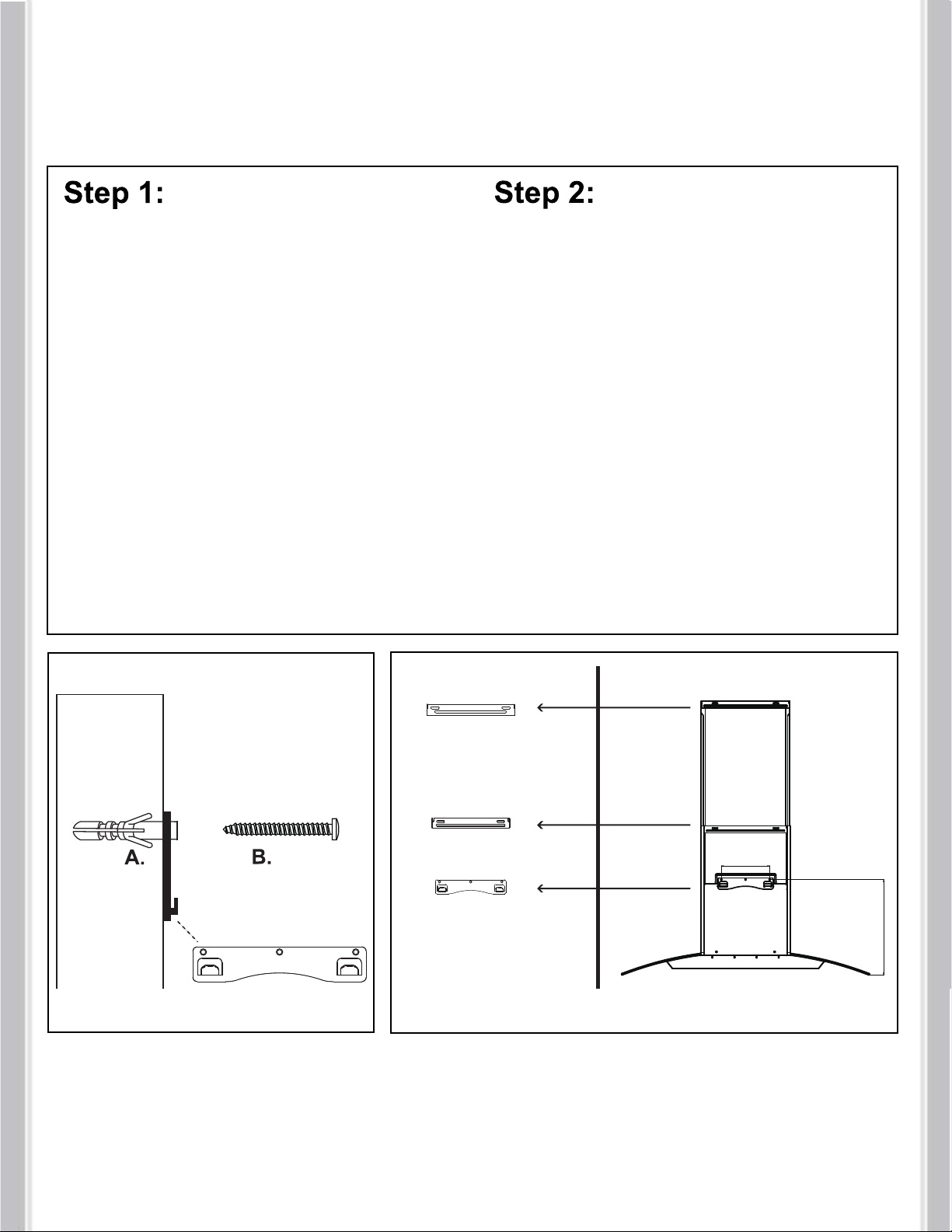

A. Find the Core Unit Bracket (D) that will hold
the back of the range hood. Mark the
locations on the wall with a pencil or marker.
B. Drill a 5/16" (8mm) hole at each marked
location.
C. Insert wall anchors into each hole, gently
tapping in place.
D. Take the Core Unit Bracket ( Part D) that
will hold the range hood and firmly tighten with
3 wood screws (Part B) into the anchors.
Secure range hood by hanging on bracket.
Place the range hood on the wall and mark the
position where you want to install.
A height of 24" to 36" from the cooktop is
recommended for optimalperformance. Install
atthe height appropriate foryour ceiling. You
mayinstall higher if needed. Make sure the
chimney can still reach the ceiling. If your
ceiling leaves thehood afew inches higher or
lower than 24" to 36"you canstill install it with-
outa major loss of performance.
There are 3 included brackets.
Start your measurements from the top down to
make sure the chimney reaches the ceiling with
no gap if desired.
* If you intend to run your ducting through the back wall behind
the hood, it is not necessary for the chimney to touch the ceiling.
WALL MOUNT RANGE HOOD INSTALLATION
Preparing Your Wall / Mounting Instructions
Wood Screw
Mounting Bracket
WALL
(Outer Chimney)
7"
13.6"
(Inner Chimney)
Core Body
9
D
H
E
