Craftsman 486.24539 Bedienungsanleitung

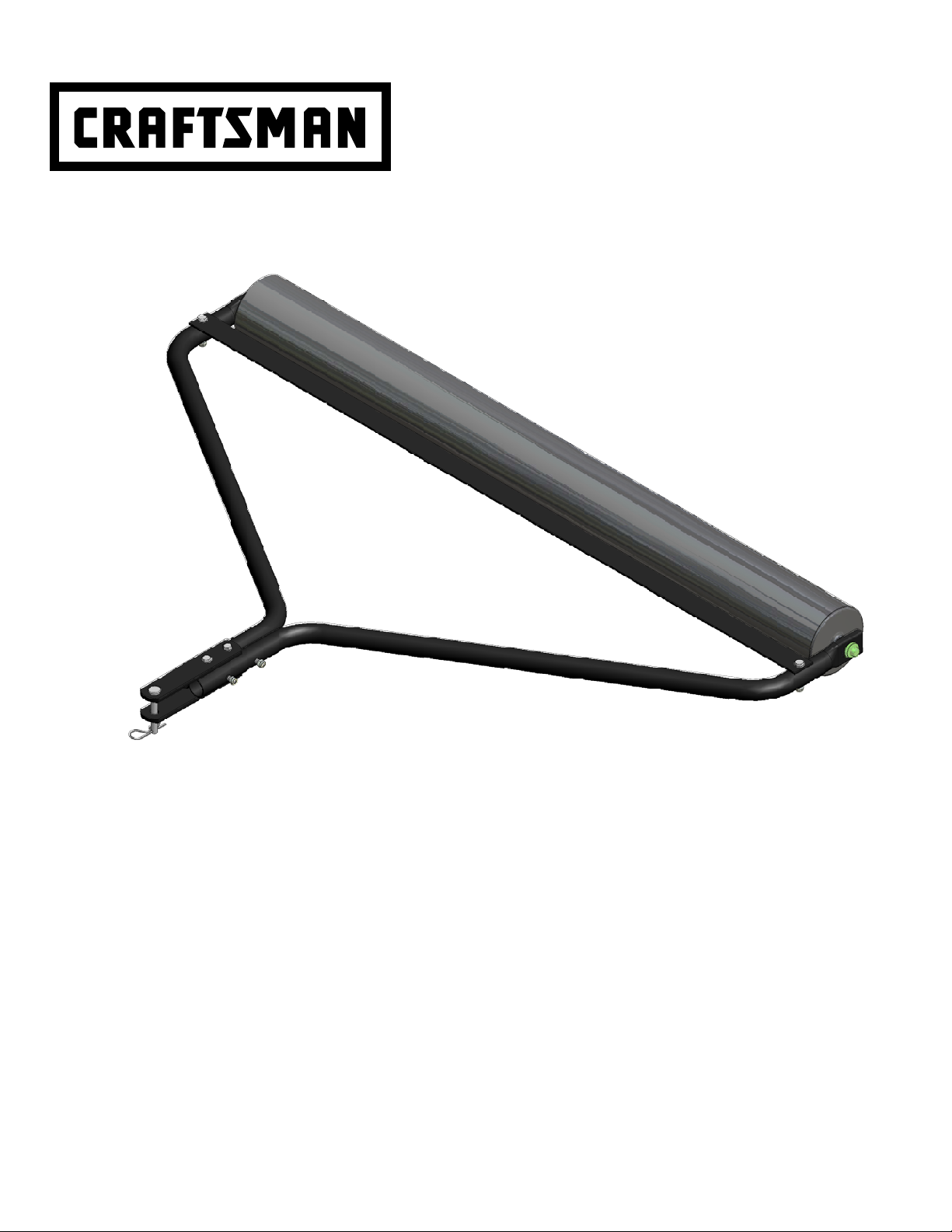

48" TOW LAWN FINISHER
Owner's Manual
Model No. 486.24539
CAUTION:
Before using this product,
read this manual and follow
all Safety Rules and
Operating Instructions.
IMPORTANT - READ THIS FIRST!!!
For Missing Parts or Assembly Questions
Please Call 1-866-576-8388
Mon.-Fri. 7am - 5pm CST.
FAX 217-728-2032 or email info@agri-fab.com
Missing parts will be sent UPS in 24 hours directly to your home.
• Safety
• Assembly
• Operation
• Maintenance
• Parts
FORM NO. 49577 (Rev. 3/05)
PRINTED IN U.S.A.
®
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
www.sears.com/craftsman

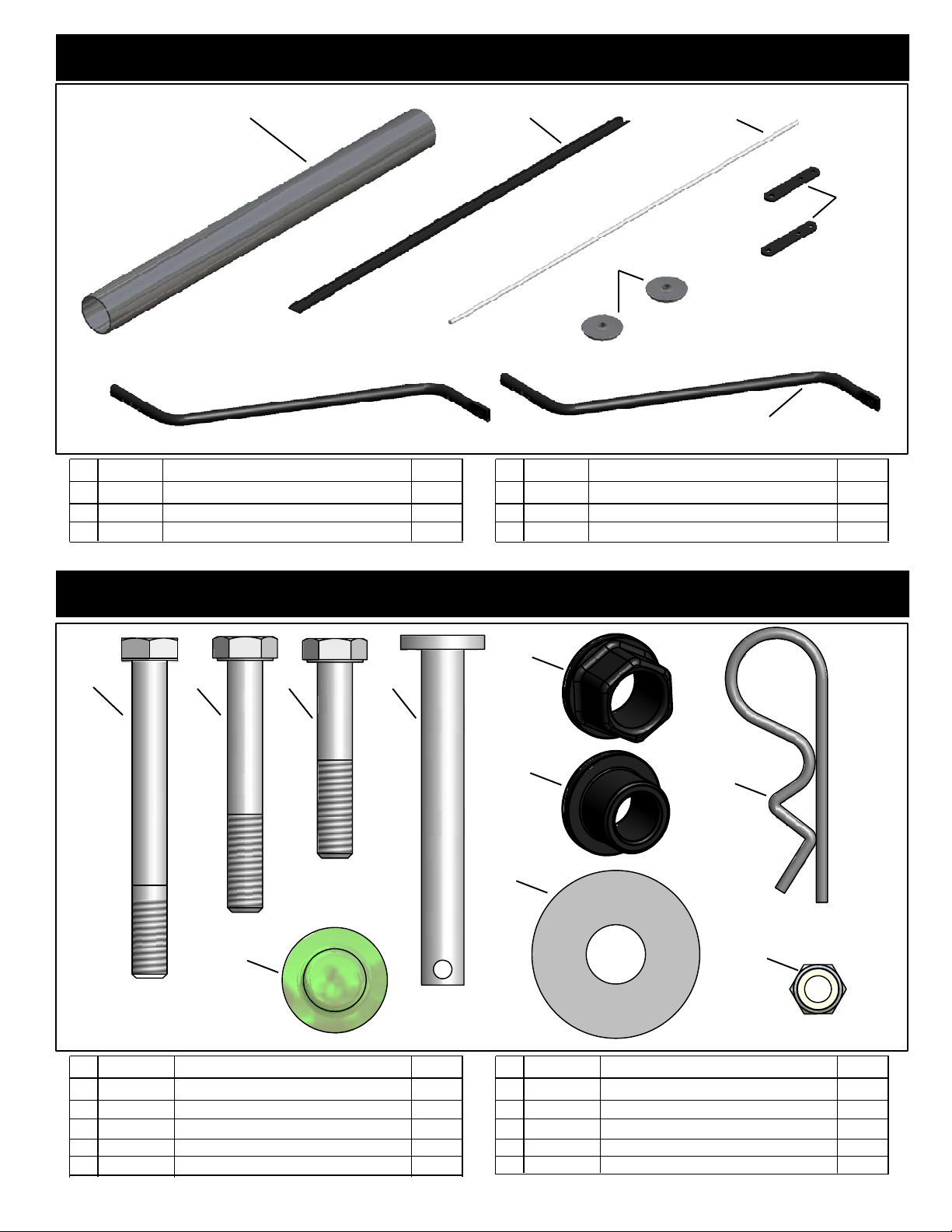

CARTON CONTENTS
HARDWARE CONTENTS
1 2 3
4
5
6
78 9 10
11
16
13
14
15
7
8
9
10
11
44292
43224
43084
47623
47963
BOLT, HEX 5/16 X 2-1/2"
BOLT, HEX 5/16 X 2-1/4"
BOLT, HEX 5/16 X 1-3/4"
PIN, HITCH
HEX FLANGE BEARING
2
2
2
1
2
# PART # DESCRIPTION QTY
12
13
14
15
16
44166
43343
47810
741-0248
R19172410 WASHER, 0.53" X 1.5"
PALNUT, 1/2"
HAIRPIN COTTER
NUT, HEX 5/16" NYLOCK
ROUND FLANGE BEARING
2
2
1
6
2
# PART # DESCRIPTION QTY
1
2
3
49574
25505
25506
STRIPER TUBE
SCRAPER BAR
STRIPER AXLE
1
1
1
# PART # DESCRIPTION QTY
4
5
6
24192
49575
49576
HITCH BRACKET
END CAP
HITCH TUBE
2
2
2
# PART # DESCRIPTION QTY
2
12
1
SAND FILL
FIGURE 1
FIGURE 3
FIGURE 4
FIGURE 2
3
5
16
12
11
6
13
6
78
4
5
2
9
15
13
3
11
12
16
15

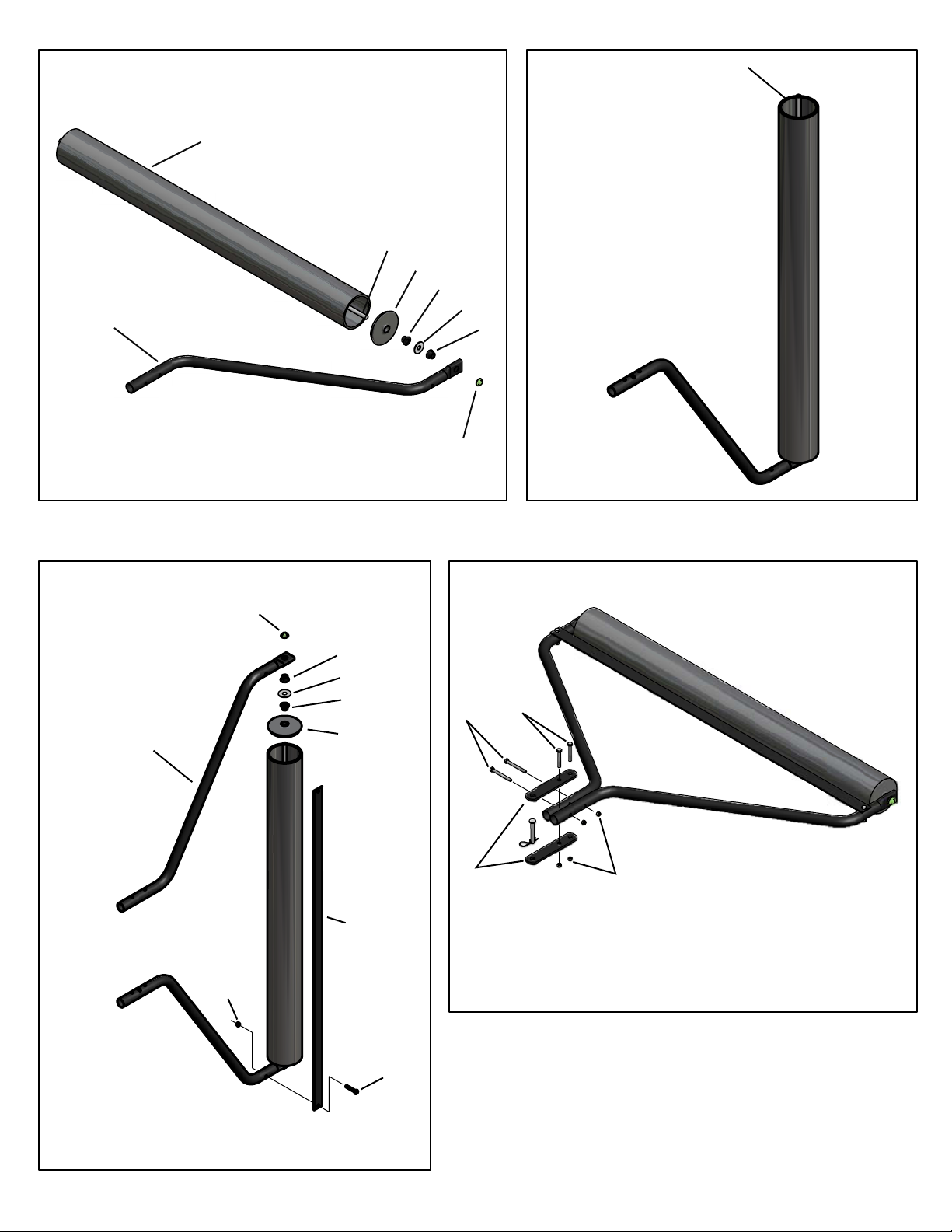

Insert one Round Flange Bearing(16) into the hole
in the End Cap(5), and insert End Cap(5) into one
end of the Striper Tube(1).
Slide the Axle(3) through the Round Flange
Bearing(16) leaving roughly 3" of axle outside the
End Cap. Place one Washer(12) over the end of
the axle.
Insert one Hex Flange Bearing(11) into the hole in
the Hitch Tube(6), and slide the Hitch Tube over
the axle. The bearing flange must face against the
washer.
Using a Hammer, tap one 1/2" Palnut(13) over the
end of the Axle(3), until it is fully seated.
1.
2.
3.
4.
Attach the Lawn Finisher behind any Lawn and Garden
tractor, with one Hitch Pin(10) and one Hairpin Cotter(14).
Tow in a "back and forth" manner across your yard, to
create the desired look. This unit can be towed while
mowing.
1.
2.
(See Figure 1)
*Refer to Illustrations on page 3.
Place the unit in an upright position and fill the
Striper Tube(1) with sand. Leave about 1" of
the tube un-filled.
5.
(See Figure 2)
With the unit still standing on end, insert one
Round Flange Bearing(16) into the hole in the
End Cap(5), and insert End Cap(5) over the axle,
until it is fully seated in the Striper Tube(1).
Place a Washer(12) over the end of the axle.
Insert one Hex Flange Bearing(11) into the hole in
the Hitch Tube(6) and slide the Hitch Tube over
the axle. The bearing flange must face against the
washer.
Using a Hammer, tap one 1/2" Palnut(13) over the
end of the Axle(3), until it is fully seated.
Carefully lay the unit down and place the Scraper
Bar (2) on top of the Hitch Tubes(6) and secure to
each end with one 5/16" x 1-3/4" Hex Bolt(9) and
one 5/16" Nylock Nut(15). Make sure both bolts
are tight.
6.
7.
8.
9.
10.
(See Figure 3)
Place two 5/16" x 2-1/2" Hex Bolts(7) through the Hitch Tubes,
and secure with two 5/16" Nylock Nuts(15).
DO NOT FULLY TIGHTEN THE NUTS AT THIS TIME.
Place two 5/16" x 2-1/4" Hex Bolts(8) through one of the
Hitch Brackets(4). From the top, slide the bolts between the
two Hitch Tubes, making sure the Bracket Bolts(8) are in
between the Tube Bolts(7).
Place the other Hitch Bracket(4) on the bottom of the Hitch
Tubes and secure with two 5/16" Nylock Nuts.
TIGHTEN ALL BOLTS.
11.
12.
13.
(See Figure 4)
ASSEMBLY
OPERATION
Roller Length
Roller Dia.
48"
4"
SPECIFICATIONS
Tools Needed:
(2) 1/2" Open End Wrench
(1) Hammer
4
13
11 12 16
5
3
1
5
16
12
11
13
15
15
6
7
7
9
a
bb
a
2
8
8
4
10
4
14 15
15
15
15 6
9

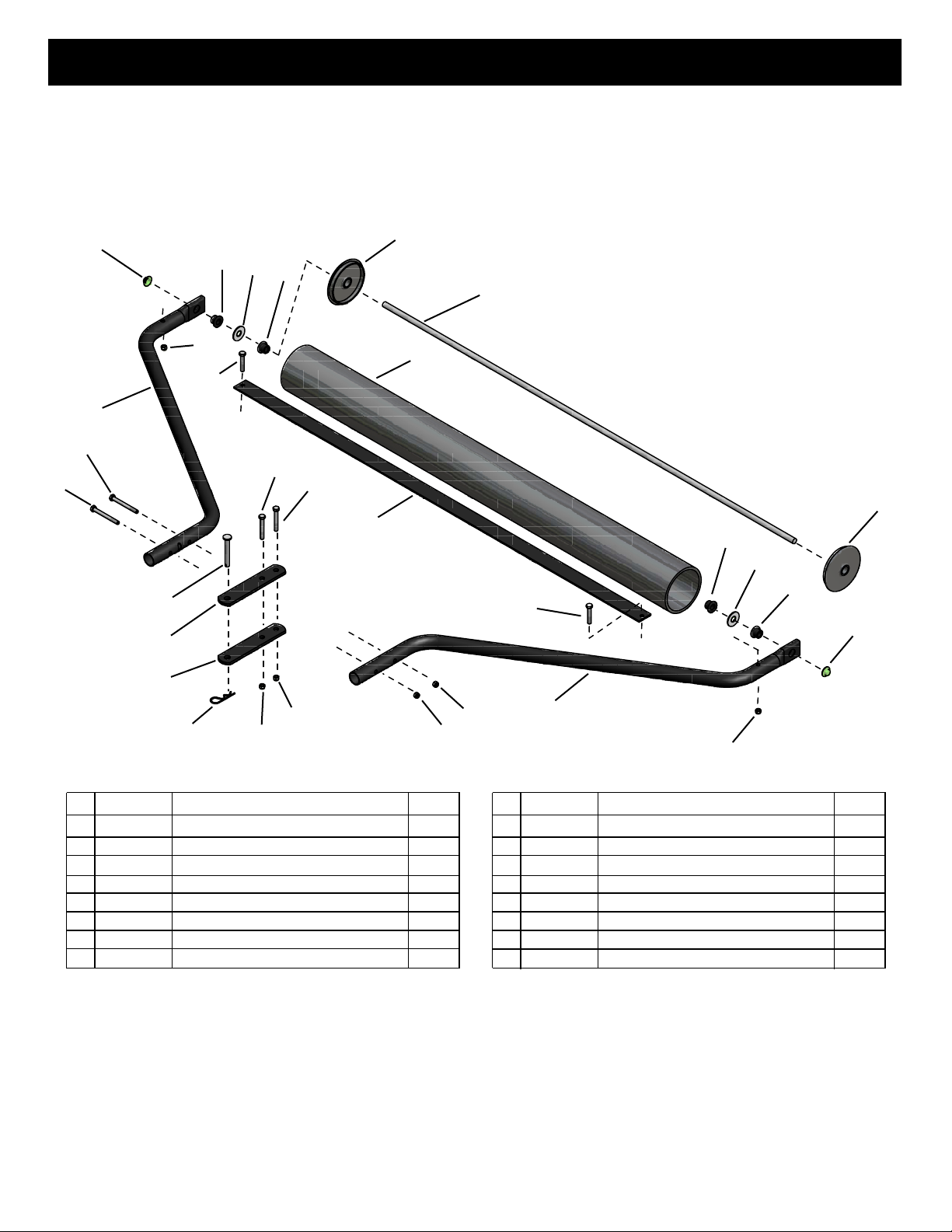

PARTS BREAKDOWN
1
2
3
4
5
6
7
8
49574
25505
25506
24192
49575
49576
44292
43224
R19172410
Striper Tube
Scraper Bar
Axle
Hitch Bracket
End Cap
Hitch Tube
Bolt, Hex 5/16" x 2-1/2"
Bolt, Hex 5/16" x 2-1/4"
1
1
1
2
2
2
2
2
# PART # DESCRIPTION QTY
9
10
11
12
13
14
15
16
43084
47623
47963
44166
43343
47810
741-0248
Bolt, Hex 5/16" x 1-3/4"
Pin, Hitch
Hex Flange Bearing
Washer, 0.53 x 1.5"
1/2" Palnut
Pin, Hairpin Cotter
Nut, Hex 5/16" Nylock
Round Flange Bearing
2
1
2
2
2
1
6
2
# PART # DESCRIPTION QTY
5
REPAIR PARTS FOR MODEL 486.24539
Get it fixed, at your home or ours!
For repair of major brand appliances in your own home…
no matter who made it, no matter who sold it!
1-800-4-MY-HOMESM Anytime, day or night
(1-800-469-4663)
www.sears.com
To bring in products such as vacuums, lawn equipment and electronics
for repair, call for the location of your nearest Sears Parts & Repair Center.
1-800-488-1222 Anytime, day or night
www.sears.com
For the replacement parts, accessories and owner’s manuals
that you need to do-it-yourself, call Sears PartsDirectSM !
1-800-366-PART 6 a.m. – 11 p.m. CST,
(1-800-366-7278) 7 days a week
www.sears.com/partsdirect
To purchase or inquire about a Sears Service Agreement:
1-800-827-6655
7 a.m. – 5 p.m. CST, Mon. – Sat.
Para pedir servicio de reparación a domicilio,
y para ordenar piezas con entrega a domicilio:
1-888-SU-HOGAR SM
(1-888-784-6427)
Au Canada pour service en français:
1-877-LE-FOYERSM
(1-877-533-6937)
© Sears, Roebuck and Co.
® Registered Trademark / ™Trademark of Sears, Roebuck and Co.
® Marca Registrada / ™Marca de Fábrica de Sears, Roebuck and Co.
