PARTS LIST

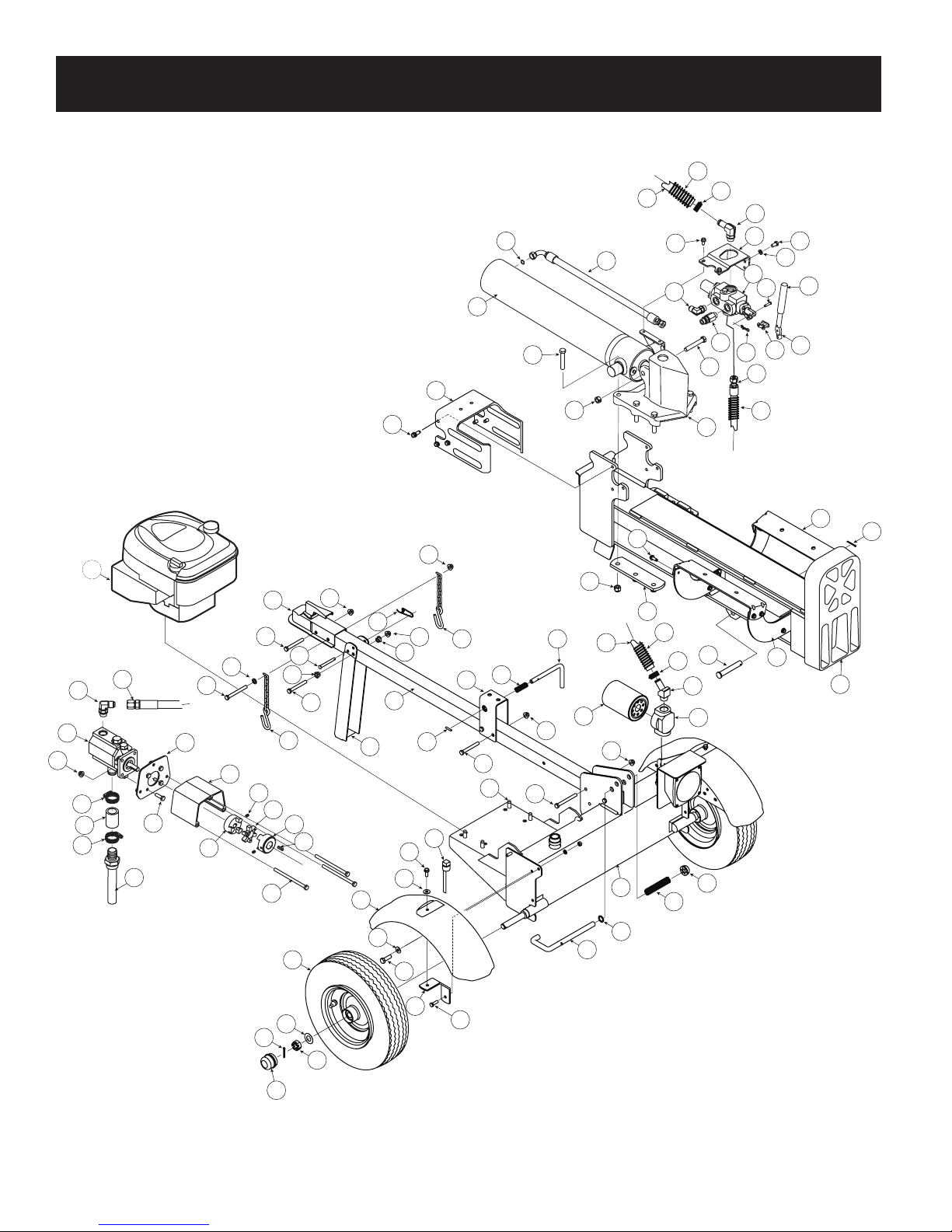

Craftsman Log Splitter Model 247.776411

PARTS LIST

Ref.

No.

Part No. Description

1. 918-04713 Hydraulic Cylinder

2. 727-04362 Hydraulic Tube

3. 710-1018 Hex Cap Screw, 1⁄2-20 x 2.75

4. 737-04320 90 Degree Solid Adapter

5. 718-04706P Control Valve

6. 737-04307 Return Elbow

7. 737-04309 Nipple Pipe, 1⁄2-14

8. 710-1806 Hex Cap Screw, 1⁄2-13 x 3.25

9. 719-04529 Wedge Assembly

10. 912-3058 Hex Lock Nut, 1⁄2-20

11. 710-0216 Hex Cap Screw, 3/8-16 x .75

12. 936-0169 Lock Washer, 3/8

13. 721- 04 411 O-Ring, .489 x 070

14. 936-0116 Flat Washer, .635 x.93 x.06

15. 712-3022 Hex Lock Nut, 1⁄2-13

16. 681-04112-0637 Beam Assembly

17. 710-3056 Hex Screw, 5⁄16-18 x 3.25

18. 710-04683 Self Tapping Screw, 3⁄8-16 x 1.0

19. 781-04426 Dislodger Bracket

20. 781-0790A-0637 Back Plate

21. 737-04308 Inlet Filter

22. 727-0443 Return Hose, 3⁄4 x 44

23. 726-0132 Hose Clamp, 5⁄8

24. 737-04267 Filter Housing

25. 723-0405 Oil Filter

26. 734-0873 Hub Cap

27. 714-0162 Cotter Pin

28. 712-0359 Slotted Nut, 3⁄4-16

29. 634-0186 Complete Wheel Assembly

30. 936-0351 Flat Washer, .760 x.500

31. 737-04323 Hydraulic Fitting

32. 710-0376 Hex Screw, 5⁄16-18 x 1.00

33. 737-0348A Vented Dipstick

34. 711- 05169 Clevis Pin

35. 747-04983 Lock Rod

36. 914-0470 Cotter Pin

37. 726-0214 Push Cap

38. 732-0583 Compression Spring

39. 781-04293-0637 Log Tray Bracket

40. 710-04484 Hex Washer Screw, 5⁄16-18 x .750

41. 712-04065 Flange Lock Nut, 3⁄8-16

42. 781-04179-0637 Log Tray

Ref.

No.

Part No. Description

43. 681-04131 Frame Assembly

44. 710-0521 Hex Bolt, 3⁄8-16 x 3

45. 719-0353 Coupling Shield

46. 914-0122 Square Key, 3⁄16” x .75

47. 718-04395 Coupling, .875

48. 712-04063 Flange Lock Nut, 5⁄16-18

49. 781-0097-0637 Rear Coupling Support Bracket

50. 781-1024A-0637 Fender Mounting Bracket

51. 727-04290 Hose

52. 918-04127 Gear Pump

53. 737-04321 45 Degree Elbow Fitting

54. 727-04288 High Pressure Hydraulic Hose

55. 781-04424 Tongue Assembly

56. 747-1261 Latch Rod

57. 781-1045 Latch

58. 932-3127 Compression Spring

59. 736-0371 Flat Washer

60. 711-04585 Clevis Pin

61. 710-3085 Hex Cap Screw, 3⁄8-16 x 3.50

62. 936-0185 Flat Washer, .375 x.738 x.063

63. 747-04539 Hydraulic Valve Control

64. 681-04030 Hitch Coupling Assembly

65. 713-0433A Chain

66. 731-2496A Fender

67. 911- 0813 Clevis Pin

68. 720-04088 Grip

69. 732-0194 Spring Pin

70. 781-04430 Jack Stand

71. 715-0120 Spiral Pin

72. 710-1842A Set Screws

73. 710-0602 Self-Tapping Screw, 5⁄16-18 x 1.00

74. 913-04036 Valve Handle Link

75. 714-04040 Cotter Pin, Bow Tie

76. 781-0526A Hose Guard, 44”

77. 781-0538A Hose Guard, 48”

78. 710-04683 Sems Screw, 3⁄8-16 x 1.00

79. 781-04418-0637 Outer Valve Bracket

80. 941-0475 Plastic Bushing, .380 ID

81. 718-04392 Coupling, .500

82. 735-04103 Spider Bushing

83. 126L02-0531-F1 Replacement Engine

Craftsman Log Splitter Model 247.776411

PARTS LIST

Briggs & Stratton Engine Model 126L02 For Craftsman Log Splitter Model 247.776411

307

337

635

383

910

585

684 287

525

524

842

847

523

741

146

32A

718

868

871

870

869

1330 REPAIR MANUAL

1058 OPERATOR’S MANUAL

306

584

PARTS LIST

Briggs & Stratton Engine Model 126L02 For Craftsman Log Splitter Model 247.776411

365

968

445

425

443

163

529

159

970

966

976

188

104

137

276 127

633

121 CARBURETOR OVERHAUL KIT

617

137

276

633

617

977 CARBURETOR

GASKET SET

163

134

613

300

222

125

134

133

109

633A

633

104

137

975

276

117

163

108

127

130

95 617

692

668

832

836

843

633A

276

118

PARTS LIST

Briggs & Stratton Engine Model 126L02 For Craftsman Log Splitter Model 247.776411

332

304

305

363

455

1036 EMISSIONS LABEL

456

459

689

597

608 65

592

190

670

957

972

1059

1211

1210

601

187

497

627 930

347

1005

PARTS LIST

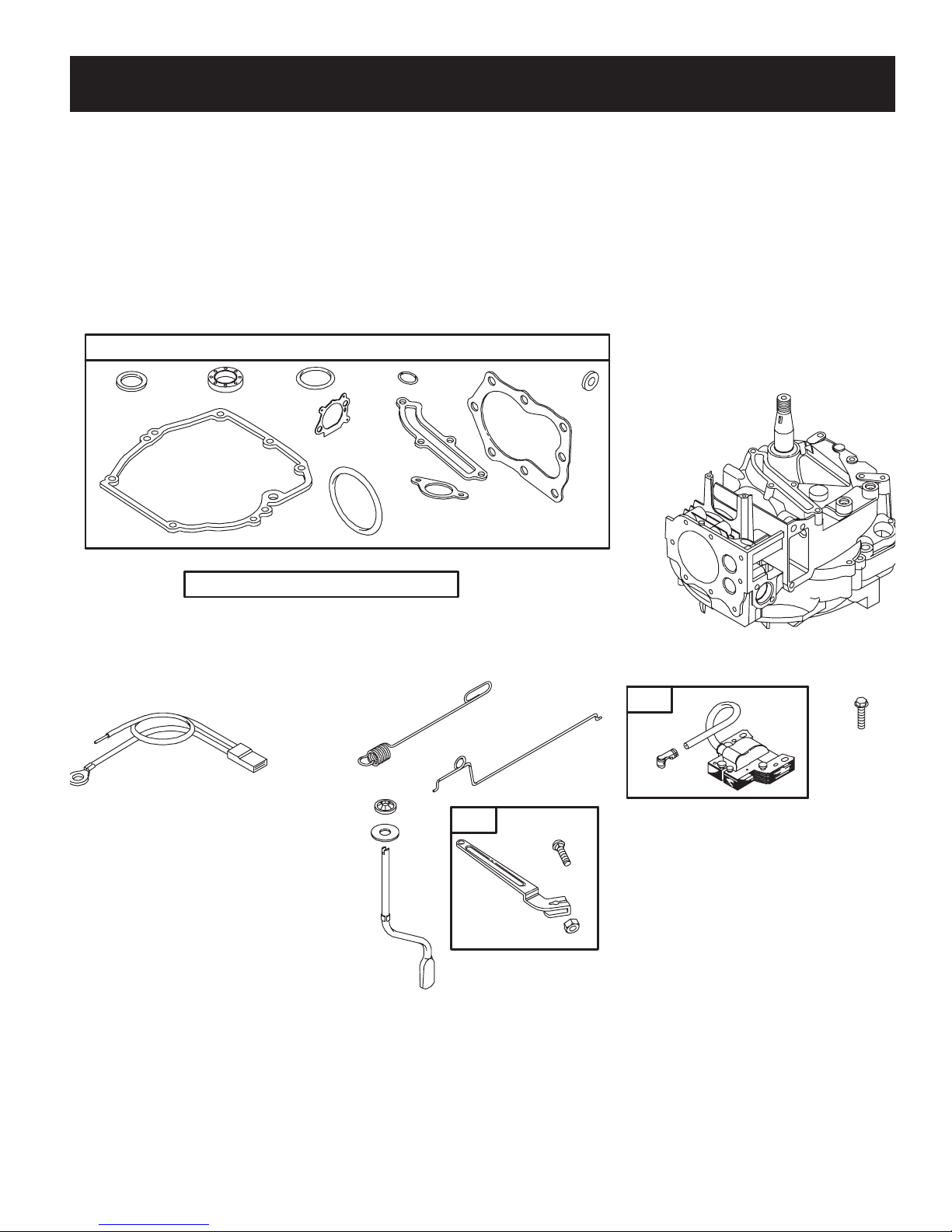

Briggs & Stratton Engine Model 126L02 For Craftsman Log Splitter Model 247.776411

334

851

333

202

209

356

562

505

227

616

404

615

358 ENGINE GASKET SET

320

585

163

524 668

842

617

1329 REPLACEMENT ENGINE

PARTS LIST

Briggs & Stratton Engine Model 126L02 For Craftsman Log Splitter Model 247.776411

Ref.No. PartNo. Description

1. BS-697322 Cylinder Assembly

2. BS-399269 Bushing/Seal Kit

3. BS-299819S † Oil Seal (Magneto Side)

4. BS-493279 Engine Sump

5. BS - 691160 Cylinder Head

7. BS-692249 † Cylinder Head Gasket

8. BS-695250 Breather Assembly

9. BS-699125 Breather Gasket

10. BS -691125 Screw (Breather Assembly)

11. BS-691781 Breather Tube

12. BS-692232 † Crankcase Gasket

13. BS-690912 Screw (Cylinder Head)

15. BS-691680 Oil Drain Plug

16. BS-691455 Crankshaft

20. BS-399781S † Oil Seal (PTO Side)

22. BS-691092 Screw (Engine Sump)

23. BS-691992 Flywheel

24. BS-222698S Flywheel Key

25. BS-791097 Piston Assembly (Standard)

—BS-791326 Piston Assembly (.020” Oversize)

26. BS-791098 Piston Ring Set(Standard)

—BS-791324 Piston Ring Set (.020” Oversize)

27. BS-691866 Piston Pin Lock

28. BS-499423 Piston pin

29. BS-499424 Connecting Rod

32. BS-691664 Screw (Connecting Rod)

32A. BS-695759 Screw (Connecting Rod)

33. BS-262651S Exhaust Valve

34. BS-262652S Intake Valve

35. BS-691270 Valve Spring (Intake)

36. BS-691270 Valve Spring (Exhaust)

37. BS-694086 Flywheel Guard

40. BS-692194 Valve Retainer

43. BS-691997 Governor/Oil Slinger

45. BS-690548 Valve Tappet

46. BS-691449 Camshaft

48. BS-792740 Short Block

50. BS-794305 Intake Manifold

51. BS-794306 † Intake Gasket

54. BS-691650 Screw (Intake Manifold)

55. BS-691421 Rewind Starter Housing

Ref.No. PartNo. Description

58. BS-697316 Starter Rope (Cut to Req’d Length)

60. BS-281434S Starter Rope Grip

65. BS-690837 Screw (Rewind Starter)

78. BS- 691108 Screw (Flywheel Guard)

81. BS-691740 Muffler Screw Lock

95. BS-691636 Screw (Throttle Valve)

97. BS-696565 Throttle Shaft

104. BS-691242 †† Float Hinge Pin

108. BS-691182 Choke Valve

109. BS-498593 Choke Shaft

117. BS-498981 Main Jet (Standard)

118. BS-498978 Main Jet (High Altitude)

121. BS-498260 Carburetor Overhaul Kit

125. BS-792253 Carburetor

127. BS-694468 †† Welch Plug

130. BS-696564 Throttle Valve

133. BS-398187 Carburetor Float

134. BS-398188 †† Needle/Seat Valve

137. BS-693981 ††* Float Bowl Gasket

163. BS-795629 †*†† Air Cleaner Gasket

187. BS-791891 Fuel Line (Cut to Required Length)

188. BS-693399 Screw (Control Bracket)

190. BS-690940 Screw (Fuel Tank)

202. BS-691829 Mechanical Governor Link

209. BS-691291 Governor Spring

222. BS-692982 Control Bracket

227. BS-690783 Governor Control Lever

240. BS-298090S Fuel Filter

276. BS-271716 ††* Sealing Washer

287. BS-690940 Screw (Dipstick Tube)

300. BS-692038 Muffler

304. BS-493294 Blower Housing

305. BS -691108 Screw (Blower Housing)

306. BS-690450 Cylinder Shield

307. BS-690345 Screw (Cylinder Shield)

332. 712-0318 Nut (Flywheel)

333. BS-695711 Magneto Armature

334. BS-691061 Screw (Armature Magneto)

337. 759-3338 Spark Plug

339. BS-794797 Tube/Connector Assembly

PARTS LIST

Briggs & Stratton Engine Model 126L02 For Craftsman Log Splitter Model 247.776411

Ref.No. PartNo. Description

347. BS-691396 Rocker Switch

356. BS-693010 Stop Wire

358. BS-794307 Engine Gasket Set

363. BS-19069 Flywheel Puller

365. BS-692524 Screw (Carburetor)

383. BS-89838S Spark Plug Wrench

404. BS-690272 Washer (Governor Crank)

425. BS-690670 Screw (Air Cleaner Cover)

443. BS-692523 Screw (Air Cleaner Primer Base)

445. BS-491588S Air Cleaner Cartridge Filter

455. BS-791960 Flywheel Cup

456. BS-692299 Pawl Friction Plate

459. BS-281505S Ratchet Pawl

497. BS-690664 Screw (Stopswitch)

505. BS-691251 Nut (Governor Control Lever)

523. BS-499621 Dipstick

524. BS-692296 † Dipstick Tube Seal

525. BS-495265 Dipstick Tube

529. BS-691923 Grommet

562. BS-92613 Bolt (Governor Control Lever)

564. BS-690351 Screw (Control Cover)

584. BS-697734 Breather Passage Cover

585. BS-691879 † Breather Passage Gasket

592. 712-0349 Nut (Rewind Starter)

597. BS-691696 Screw (Pawl Friction Plate)

601. BS-791850 Hose Clamp

604. BS-794794 Control Cover

608. BS-497680 Rewind Starter

613. BS-691340 Screw (Muffler)

615. BS-690340 Governor Shaft Retainer

616. BS-698801 Governor Crank

617. BS-270344S †*†† O-Ring Seal (Intake Manifold)

627. BS-792565 Stopswitch Bracket

633. BS-691321 ††* Choke/Throttle Shaft Seal

Ref.No. PartNo. Description

633A. BS-693867 ††* Choke/Throttle Shaft Seal

635. BS-66538S Spark Plug Boot

668. BS-493823 Spacer

670. BS-692294 Fuel Tank Spacer

684. BS-690345 Screw (Breather Passage Cover)

689. BS-691855 Friction Spring

692. BS-690579 Detent Spring

718. BS-690959 Locating Pin

741. BS-790345 Timing Gear

832. BS-499034 Muffler Guard

836. BS-690664 Screw (Muffler Guard)

842. BS-691031 † O-Ring Seal (Dipstick Tube)

843. BS-691895 Lever Sleeve

847. BS-692047 Dipstick/Tube Assembly

851. BS-493880S Spark Plug Terminal

868. BS-697338 Valve Seal

869. BS- 691155 Valve Seat (Intake)

870. BS-690380 Valve Seat (Exhaust)

871. BS-262001 Guide Bushing (Exhaust)

— BS-63709 Guide Bushing (Intake)

930. BS-691919 Rewind Guard

957. BS-794793 Fuel Tank Cap

966. BS-794798 Air Cleaner Primer Base

968. BS-692298 Air Cleaner Cover

972. BS-794792 Fuel Tank

975. BS-796611 Float Bowl

97 7. BS-498260 Carburetor Gasket Set

1005. BS-691346 Flywheel Fan

1036. BS-697457 Emission Label

1058. BS-MS3260 Owner’s Manual

1059. BS-692311 Screw/Washer Kit

1210. BS-498144 Pulley/Spring (Pulley) Assembly

1211. BS-498144 Pulley/Spring (Spring) Assembly

1330. 272147 Repair Manual

†Included in Engine Gasket Set, Key. No. 358

††Included in Carburetor Overhaul Kit, Key. No. 121

*Included in Carburetor Gasket Set, Key. No. 977

PARTS LIST

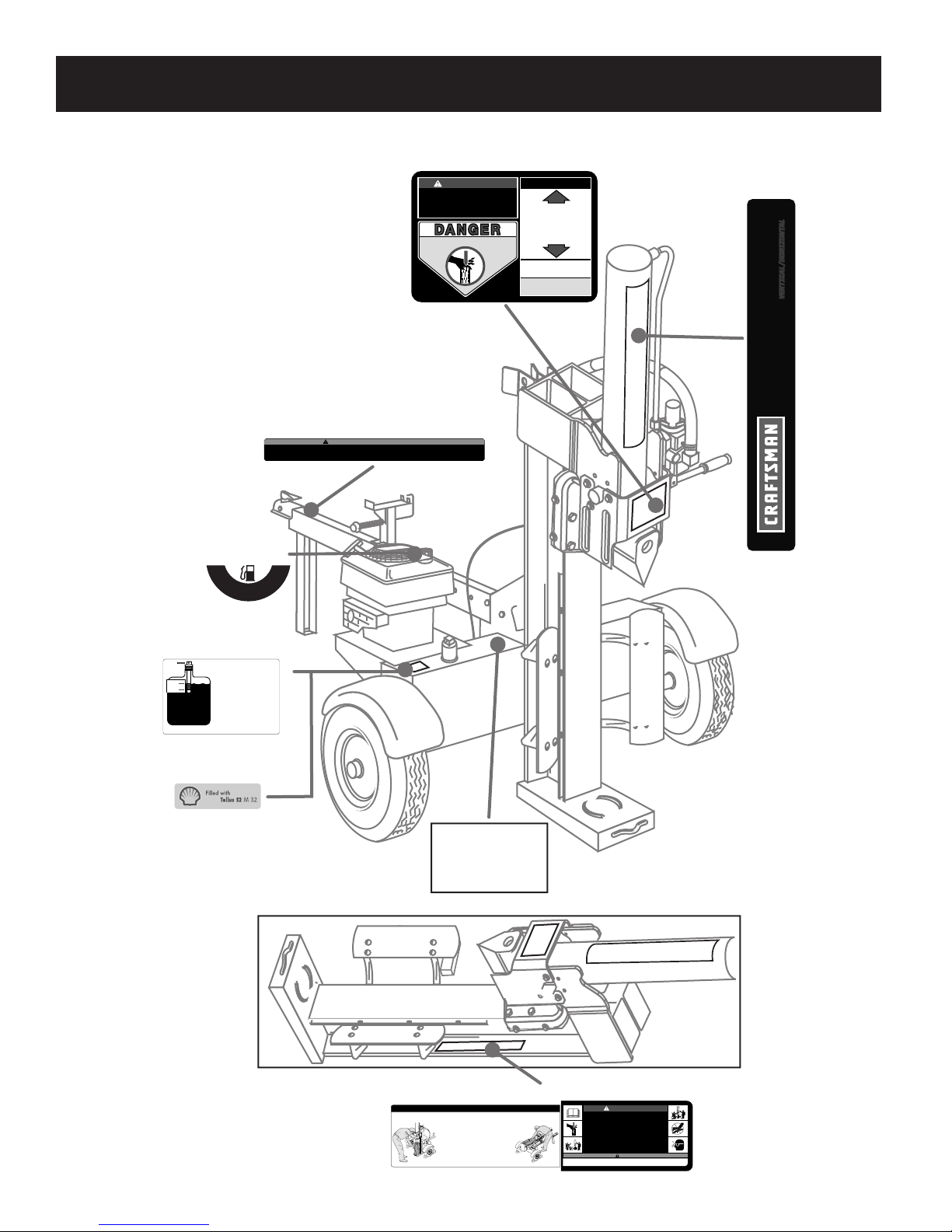

Craftsman Log Splitter Model 247.776411

Model Plate

777D16370

777S33682

777S33681

777I23426

777S33680

777X45191

VERTICAL / HORIZONTAL

LOG SPLITTER

NOT

DO NOT

USE E85 OR FUEL

CONTAINING MORE

THAN 10% ETHANOL

777X43688

KEEP HANDS and FEET AWAY

LOG DISLODGER

LUBRICATE BEAM BEFORE EACH

USE. REFER TO OPERATOR’S

MANUAL FOR DETAILS.

Fully retract wedge, lodged wood

will be automatically removed.

1. Do not use your hands to dislodge log from wedge.

2. Keep hands away from wedge, end plate, partially split

wood and moving parts.

3. If the wedge moves FORWARD with the control handle

released,STOP USE IMMEDIATELY, valve may be damaged.

DANGER

REVERSE

NEUTRAL

FORWARD

CONTROL VALV E

VERTICAL /HORIZONTAL

US TON

LOG SPLITTER

VERTICAL/HORIZONTAL

TOWING LOG SPLITTER

• Lock beam in horizontal position.

• Attach coupler to Class I or higher hitch with 2" ball.

Latch securely.

• If coupler adjustment is needed, refer to owner's manual.

WARNING

MOVING LOG SPLITTER BY HAND

• Lock beam in horizontal position.

• Lock jack stand in down position.

• Do not attempt to move log splitter up or down a

slope by hand.

• Raise jack stand and latch securely in full up position.

• Attach safety chains to tow vehicle.

• Do not tow faster than 45 mph.

• High speed may cause loss of control.

• Check local, state and federal requirements before

towing on any public road.

TO AVOID INJURY AND/OR PROPERTY DAMAGE

HYDRAULIC FLUID

Maintain fluid level within

the ranges specified on the

dipstick. DO NOT OVERFILL!

Check when fluid is cold and

with unit level. Never run below

this level. Pump will be ruined.

Change hydraulic fluid every 100

hours of use. Change hydraulic

filter every 50 hours of use. Use

only a 10 micron hydraulic filter.

Order Part Number Hydraulic Filter 723-0405

HYDRAULIC FLUID

ONLY

DEXRON III or

10 WEIGHT AW

min.

max.

DIP

STICK

Shell

PL-TS2M32

1. READ THE OPERATOR’S MANUAL

2. Place log splitter on flat dry solid ground and block wheels.

3. Lock in either the Horizontal or Vertical position.

4. Start engine, set throttle to maximum speed and allow

hydraulic fluid to warm up.

5. Place the log against the end plate.

6. Stabilize log with your left hand (as shown) on its side

opposite the beam, when needed. Remove your left hand

when wedge just contacts the log.

7. Move control handle FORWARD with your right hand to split

log. Release control handle to NEUTRAL to stop wedge.

8. Move control handle to REVERSE to fully retract the wedge

and dislodge the log.

OPERATOR'S INSTRUCTIONS

VERTICAL HORIZONTAL

WARNING

DANGER

1. Read operator's manual.

2. Keep hands away from wedge, end plate, partly split wood and moving parts.

3. Stabilize log on its side opposite the beam, never on ends between log and

wedge or log and end plate.

4. Only one operator permitted. Adult who loads and stabilizes log must be

person operating the control handle

5. Keep bystanders, helpers and children at least 10 feet away.

6. Never check for leaks with your hands. High pressure fluid can escape through a

pin hole leak and cause serious injury by puncturing the skin and causing blood poisoning.

7. Operate the log splitter on flat, dry, solid ground and block wheels.

Wearprotective work gloves, safety shoes and safety glasses, watch your footing.

9. Never operate under the influence of alcohol or drugs.

10. Do not refuel a hot or running engine.

Operation Of This Equipment May Create Sparks That Can Start Fires Around Dry Vegetation. A Spark Arrestor May Be Required.

The Operator Should Contact Local Fire Agencies For Laws Or Regulations Relating To Fire Prevention Requirements.

Andere Handbücher für 247.776411

Inhaltsverzeichnis

Andere Craftsman Holzspalter Handbücher

Craftsman

Craftsman 675 Series Bedienungsanleitung

Craftsman

Craftsman 247.77641 Bedienungsanleitung

Craftsman

Craftsman 247.34625 Bedienungsanleitung

Craftsman

Craftsman 247.77640 Bedienungsanleitung

Craftsman

Craftsman 247.287751 Bedienungsanleitung

Craftsman

Craftsman 247.776411 Bedienungsanleitung

Craftsman

Craftsman 24BF570L099 Bedienungsanleitung

Craftsman

Craftsman 247.77640 Bedienungsanleitung

Craftsman

Craftsman 675 Series Bedienungsanleitung

Craftsman

Craftsman 247.794520 Bedienungsanleitung

Craftsman

Craftsman 247.77641 Bedienungsanleitung

Craftsman

Craftsman 247.794500 Bedienungsanleitung

Craftsman

Craftsman 247.28775 Bedienungsanleitung

Craftsman

Craftsman 247.34625 Bedienungsanleitung

Craftsman

Craftsman 247.79452 Bedienungsanleitung

Craftsman

Craftsman 675 Series Bedienungsanleitung

Craftsman

Craftsman 247.77466.1 Bedienungsanleitung

Craftsman

Craftsman 486.2454 Bedienungsanleitung

Craftsman

Craftsman 247.794510 Bedienungsanleitung

Craftsman

Craftsman 675 Series Bedienungsanleitung

Craftsman

Craftsman 247.77661 Bedienungsanleitung

Craftsman

Craftsman 247.774500 Bedienungsanleitung

Craftsman

Craftsman 675 Series 247.77640 Bedienungsanleitung

Craftsman

Craftsman Craftsman 247.7764 Bedienungsanleitung

Beliebte Holzspalter Handbücher anderer Marken

Bell

Bell Pickpine VS S9 Gebrauchsanweisung

ATIKA

ATIKA ASP 5 N-UG Betriebsanleitung

Posch

Posch Schälprofi 500 Bedienungsanleitung

Champion

Champion 91520 Handbuch

Fieldmann

Fieldmann FZLS 1008V-E Bedienungsanleitung

Scheppach

Scheppach OX 3-1000 Montageanleitung

Swisher

Swisher 21200 Bedienungsanleitung

Elem Garden Technic

Elem Garden Technic FBHT65-22TCH Bedienungsanleitung

Champion Power Equipment

Champion Power Equipment 90720 Handbuch

Boss Industrial

Boss Industrial ES5T20 Bedienungsanleitung

Villager

Villager LSP 12 T Bedienungsanleitung

MTD

MTD 242-642A Bedienungsanleitung

Rok

Rok 150-51-50255 Bedienungsanleitung

Hakki Pilke

Hakki Pilke Raven Bedienungsanleitung

Swisher

Swisher LSRB11534 Bedienungsanleitung

Hyundai

Hyundai HYLS7TE Bedienungsanleitung

Scheppach

Scheppach HL1500M Benutzerhandbuch

Zipper Mowers

Zipper Mowers ZI-HS5TN Bedienungsanleitung
