Craig INTERCEPTOR Bedienungsanleitung

INTERCEPTOR

Capture incredible

aerial photos and videos!

FCC INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules.These limits are designed to provide

residential protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not Installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception. which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on the circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

FCC WARNING:

The equipment may generate or use radio frequency energy. Changes or modifications to

this equipment may cause harmful interference unless the modifications are expressly

approved in the instruction manual. Modifications not authorized by the manufacturer may

void user’s authority to operate this device.

GENERAL WARNINGS:

1. Important Instructions:

This product is suitable for 14 years old and above. Please read the instruction

manual before you play with this product.

2. Make sure the unit always within the Radio Frequency control range. Otherwise,

the unit will out of control and may crash.

3. Safety Instructions:

Keep away from the objects and crowds.

The unit is flying at high speed; keep it away from crowds, buildings, high voltage

wires, etc.

Do not operate this unit in bad weather.

Keep away from water and rain.

The unit has electronic and mechanical parts which may be damaged by water.

Keep away from the working unit.

The blades are turning in high speed, always keep away from it.

LOCATION OF CONTROLS:

Main Unit:

1. Camera

2. Micro SD Card Slot

3. Built-in Battery

4. Blades

5. Decorative LED Lights

6. DC IN Jack

Remote Control:

1. Left Joystick

2. Right Joystick

3. Video/Photo Shutter Button

4. Roll Button

5. Crab Trimmer

6. Left/Right Trimmer

7. Power ON-OFF Switch

8. Speed Adjust Button

9. Forward/Backward Trimmer

10. Antenna

11. Power On Indicator

12. Headless Button

13. One Key Return Button

PREPARATIONS:

Recharging the built-in battery in the unit.

The unit has a built-in DC 3.7V Li-ion rechargeable battery, recharge it before first time

use or when it is consumed as follow:

1. Connected the small plug from the supplied USB Charging Cable to the battery on

the unit.

2. Connected the full size USB Plug from the supplied USB Charging Cable to any

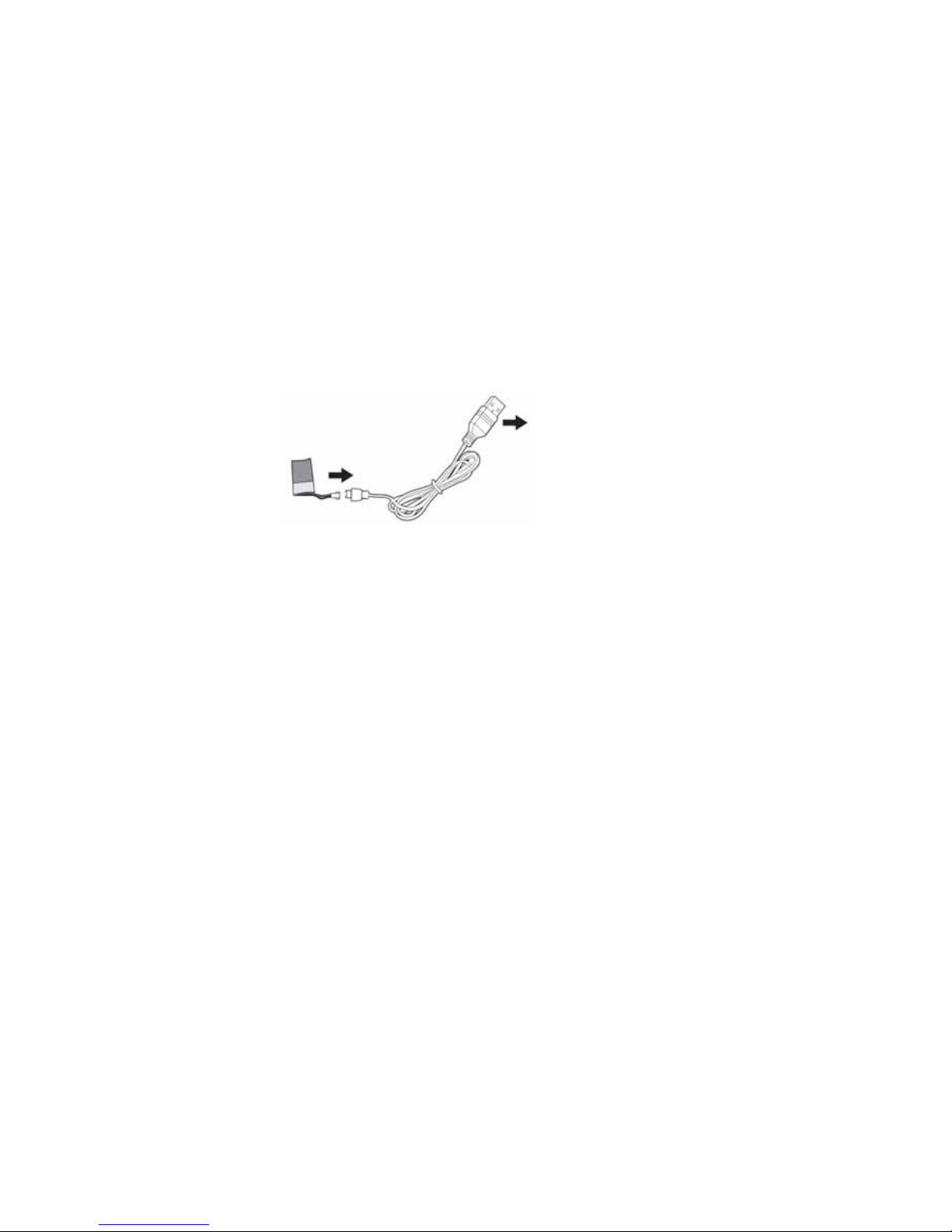

Computer or USB Charger having DC 5V output as the figure below:

3. During charging, the Charging Indicator in the full size USB Plug of the supplied USB

Charging Cable will illuminate . When finished charging, it will turned off .

Notes: Your battery will last longer if you follow these simple guidelines for charging for

and storing.

A. For normal charging, it need approx. 50 minutes.

B. Recharge and store the device within the temperature range of 5°C~35°C

(40°F~95°F).

C. Do not overcharge (longer than 24 hours). Excessive charging or discharging may

shorten the battery’s life.

D. Battery life naturally shortens slowly over time.

Connect to any Computer or

USB Charger

(Computer and USB Charger

not included)

Install or replace the batteries of Remote Control:

The Remote Control is using six (6) AA size batteries (Not included), install or replace

when it is consumed as below:

1. Unsecure the screw from the battery door.

2. Press the tab on the battery door then lift it up as the Fig. 1 below.

3. Install six (6) AA size batteries into the battery compartment as the polarity marking

inside.( For longest playing time, Alkaline batteries are recommended.)

4. Close the battery door as the Fig. 2 below and secure the screw on it.

BATTERY PRECAUTIONS:

Follow these precautions when using a battery in this device:

1. Using only the size and type of battery specified.

2. Be sure to follow the correct polarity when installing the battery as indicated in the

battery compartment. A reversed battery may cause damage to device.

3. Do not mix different types of batteries together (e.g. Carbon-zinc, Alkaline) or old

batteries with fresh ones.

4. If the batteries in the device are consumed or the device is not to be used for a long

period of time, remove the batteries to prevent damage or injury from possible battery

leakage.

5. Do not try to recharge the battery after fully charged, it can overheat and rupture.

(Follow battery manufacturer's instructions.)

6. Do not dispose of battery in fire. Battery may explodes or leak.

7. Clean the battery contacts and also those of the device prior to battery installation.

Fig. 1 Fig. 2

Micro SD Card Installation:

The unit is support to take photos/videos then record in a Micro SD Card (not supplied).

Insert a Micro SD Card into the Micro SD Card Slot with contact fingers face to blades side

as the figures follow:

Notes:

A. Insert the class 4 (or up) Micro SD Card (Up to 32GB) into the Micro SD Card Slot

with contact fingers face to blades side. When inserting the storage card, make sure

the direction you selected is correct. Never insert violently to avoid damaging the card

or the unit. If it doesn’t work, please check if the direction is correct.

B. To take out the card, press the card until a “Click” sound is heard then pull out the

card.

C. Before insert or replace the storage card, make sure the unit is in powered off mode

(The built-in battery had not connection)

D. When the card is first time use, or it has been used in other device. Format it through

the computer.

(Important: After format, all record in the memory card will be erased. Upload the

record to any computer before format.)

OPERATIONS:

1. Insert the Micro SD Card to the unit as previous procedures.

2. Recharge the built-in battery as previous procedures.

3. Connect the connection plug from the built-in battery to the DC IN Jack on the unit as

the figure below. The Decorative Lights on the unit will illuminate and blink.

4. Place the unit on a horizontal place.

5. Install the batteries into the Remote Control as the previous procedures. Slide the

Power ON-OFF Switch upward to power on the Remote Control. The Power On

Indicator will illuminate and blink.

6. Push the Left Joystick upward and then push it downward immediately to pairing the

Remote Control to the unit. The Power On Indicator on the Remote Control and the

Decorative Lights on the unit will stop blinking. Then:

Push the Left Joystick upward to rising.

Push the Left Joystick downward to reduce the height or landing.

Push the Left Joystick to left to turns the unit counterclockwise.

Push the Left Joystick to right to turns the unit clockwise.

Push the Right Joystick upward to fly to forward.

Push the Right Joystick downward to fly to backward.

Push the Right Joystick to left to fly to left.

Push the Right Joystick to right to fly to right.

Press the Photo/Video Shutter Button once to capture a photo.

Press and hold the Photo/Video Shutter Button approximate 2 seconds to start video

recording, press again to stop recording.

Press the Roll Button to let the unit to roll.

zPress the upper or lower side of the Crab Trimmer repeatedly to fine tune the

Joystick’s control of Crab.

zPress the upper or lower side of the Left/Right Trimmer repeatedly to fine tune the

Joystick’s control of Left/Right .

zPress the upper or lower side of the Forward/Backward Trimmer repeatedly to fine

tune the Joystick’s control of Forward/Backward.

zPress the upper or lower side of the Speed Adjust Trimmer to adjust the moving

speed of the unit as desire.

zWhatever the direction of the unit. When pressed the Headless Button then:

a) Push the Right Joystick Upward to fly to front.

b) Push the Right Joystick Downward to fly to back.

c) Push the Right Joystick to right to fly to right.

d) Push the Right Joystick to left to fly to left.

zDuring flying, press one key return button to fly to backward.

7. To power off the unit, push the Left Joystick to downward. Wait until the blade stop

turning. Disconnect the plug from battery to DC IN Jack on the unit.

8. To power off the Remote Control, slide the Power ON-OFF Switch to downward. The

Power On Indicator will not light.

Replacement of Blades:

When the blade was damaged or deformed, replace it by the supplied same color spare

blade. Otherwise, the motion of unit will become abnormal.

For example, used the supplied black blade to replace the damaged/deformed black

blade in same location.

TROUBLE SHOOTING:

SYMPTOM: POSSIBLE CAUSE POSSIBLE SOULTION

Remote Control not

functioning

The batteries consume. Replace by new batteries.

Batteries wrong installed. Reinstall the batteries as the polarity

marking inside the battery compartment.

The unit not workable

The built-in battery had not

connected to the unit.

Connect the built-in battery to the unit as

the “OPERATION” section point 3 on page

The built-in battery consume. Recharge the built-in battery as the

“PREPARATION” section on page 4.

The unit had not paired to the

Remote Control.

Pair the unit to the Remote Control as

“OPERATION” section point 4-6 on page 7.

The blade still running

after landing The unit had not shut off,

Push the Left Joystick to downward. Wait

until the blades stop turning. Disconnect the

plug from battery to DC IN Jack on the unit.

Control abnormal or

motion unstable

One (or more than one) blades

deformed or damaged.

Check and replace the deformed/damaged

blade(s) by new one.

The unit can not

moving straightly or

auto turning

Adjust the motion by:

Speed Trimmer; Crab Trimmer; Left/Right

Trimmer and/or Forward/Backward

Trimmer.

General Specification:

Power Source:

Unit:...................................Built-in DC 3.7V, 550mAh (2.035WH) Li-ion rechargeable

battery. Recharge by DC 5V from any Computer or USB Charger

with the supplier USB Charging Cable (Computer and USB Charger

not included).

Remote Control:.......................................DC 9V, 6 x AA Size Batteries (Not Included).

Effective range of Radio Control:..............Up to 100 feet in open area

Radio Frequency:......................................2.4GHz

Sensor of Camera:....................................300k Pixels

Capture Modes:

Photo: 640 x 480 pixels in JEPG

Video: 640 x 480 pixels, 30 fps in AVI

Accessories:

1xUser’sManual

1 x Remote Control

1 x USB Charging Cable (For charging only)

4xSpareBlades

1 x Screwdriver

The specifications and accessories are subject to change without notice.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Craig Quadcopter Handbücher

Craig

Craig CRT728C Bedienungsanleitung

Beliebte Quadcopter Handbücher anderer Marken

dji

dji MAVIC 2 PRO Bedienungsanleitung

Autel Robotics

Autel Robotics EVO II Dual 640T Bedienungsanleitung

Carson

Carson X4 NANO Bedienungsanleitung

Attop

Attop W80 Bedienungsanleitung

Alias

Alias 6608 Bedienungsanleitung

Reely

Reely Drone Copter 2-in-1 Bedienungsanleitung

Hubsan

Hubsan FPV X4 H107D Bedienungsanleitung

Falcon

Falcon S2-210 Bedienungsanleitung

Kaiser Baas

Kaiser Baas KBA15007 Bedienungsanleitung

Denver Electronics

Denver Electronics DCH-261 Bedienungsanleitung

Odyssey

Odyssey TURBO RUNNER Bedienungsanleitung

IMAGINARIUM

IMAGINARIUM droni stream Bedienungsanleitung

Hubsan

Hubsan X4 Pro FPV Bedienungsanleitung

AR.Drone

AR.Drone Parrot VSM Bedienungsanleitung

Walkera

Walkera QR X900 Bedienungsanleitung

dji

dji Phantom 2 Vision + Bedienungsanleitung

HobbyZone

HobbyZone Zugo Bedienungsanleitung

dji

dji PHANTOM 3 4K Bedienungsanleitung
