Creality Sonic Pad Bedienungsanleitung
Creality Sonic Pad
User Manual
V4.0
SHENZHEN CREALITY 3D TECHNOLOGY CO., LTD.
Thank you for choosing our prodcuts. For the better experiecne,
please read the entire instruction before operating the product. Our
teams will always be ready to provide you the best service. Please con-
tact us by phone or email provided at the end of this document if you
encounter any problem with our product.
In addition, you can visit our official website at www.creality.com to
find relevant software/hardware information, contact details, opera-
tion, and warranty instructions.
Catalogue
01. Product Description
02. Packing list
03. Interface and button description
04. Operation Precautions
05. First use
06. Daily use
07. Connect multiple printers
08. System upgrade
09. Advanced options
10. Time lapse video
11. Slicing software displays previews and thumbnails
12. Adaptation of other printers
13. The use of WEB operation terminal
14. SSH account
15. FAQ
01
01
02
03
03
08
12
13
14
20
22
24
28
29
29
When the Creality Sonic Pad is connected to the FDM printer via a
USB cable, it becomes the core system of the printer.
Hardware Specifications
1. Product Description
CPU
RAM
ROM
USB 2.0 interface
Screen resolution & size
Wi-Fi protocol
LAN interface
Gsensor interface
Power interface
Input voltage
T800
2GB
8GB
4
1024x600 & 7 Inch
IEEE 802.11b/g/n
100M
PS/2
DC 2.5
12V
2. Packing list
01
1. Creality Sonic Pad x1
2. 12V power adapter (including adapter) x1
3. G-sensor data cable x1
4. G-sensor x1
5. USB cable x1
6. USB drive x1
7. MicroUSB to MiniUSB connector x1
8. MicroUSB to Type-C connector x1
9. Instructions x1
10. Screw Pack x1
M3*8 self-tapping screw X2
M3*8 machine screw X2
M3*6 machine screw X2
3. Interface and button description
Reset
G-sensor interface
Speaker
Lan interface
USB 3
USB 4
12V power interface
02
System status light
Power indicator
Power button
M3 mounting holes
USB 1
M3 mounting
holes
USB 2
1. Please use the product strictly in accordance with this manual to
avoid personal injury and property damage.
2. Do not place the machine near any heat source or flammable or
explosive objects. We suggest placing it in a well -ventilated, low-dust
environment.
3. Please use the power adapter that comes with the machine to
prevent damage to the machine.
4. Do not place this product in a vibration or unstable environ-
ment.
5. Please power off to clean the product regularly.
6. Users should comply with the laws and regulations of the corre-
sponding countries and regions where the equipment is located
(used), abide by professional ethics, pay attention to safety obligations,
and strictly prohibit the use of our products or equipment for any
illegal purposes. Creality will not be responsible for any violators' legal
liability under any circustance.
4. Operation Precautions
1. Device connection
1.1 Connect the Creality Sonic Pad to the AC110V/220V power supply
using the power adapter.
5. First use
03
LANCAMDC
USB
SENSOR
1.2 Connect the Creality Sonic Pad USB1 port to your printer (use the correct
adapter if necessary) with a USB cable. (The first printer must be connected
to the USB1 port of the Sonic pad, otherwise it will not connect).
2. Boot Settings
After the connection is completed, press the power button of the
Creality Sonic Pad to enter the boot-up operation (follow the order of
the guide instructions to configure the product).
2.1 Startup screen 2.2 Select language
2.3 Select region 2.4.1 Network settings (optional)
LANCAMDC
USB
SENSOR
USB 1
04
2.4.3 The network connection is
completed(optional)
2.4.2 Add a network(optional)
2.5 Privacy setting, click next after
reading and agree by selecting the
checkbox
2.6 Device Rename
2.7 Printer firmware flashing (upgrade via SD/TF card)
2.7.1 Select printer model(users need to open up the printer to check the mother-
board chip model.
2.7.2 Taking the model Ender-3 S1 as an example, after selecting the model, you
will enter the flashing guide page. Please prepare a card reader and memory card
for the printer flashing.
05
2.7.3 Write the firmware to the SD/TF card, then insert the SD/TF card into the
printer, click Next step.
2.7.4 After the printer is powered on, the Creality Sonic Pad will automatically
connect to the printer. (the firmware in SD/TF will be automatically flashed after
the printer is powered on)
2.7.5 After the printer firmware is flashed, click Restart.

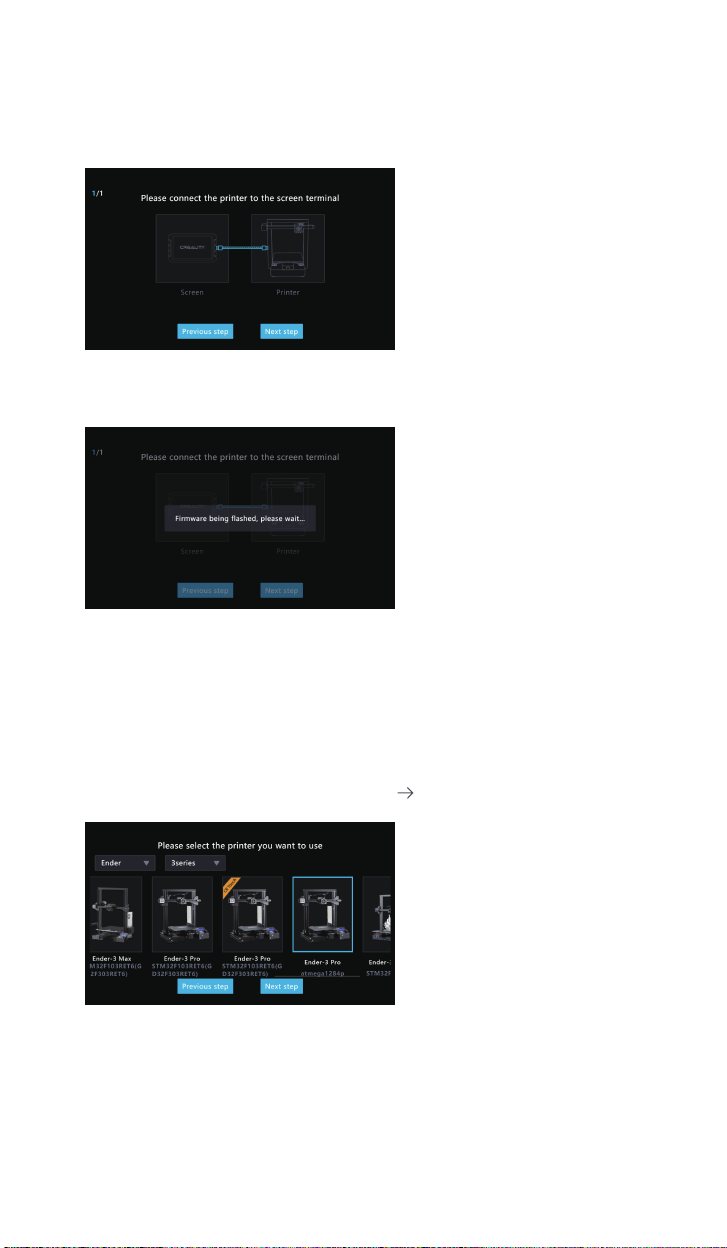

2.8 Printer firmware flashing (upgrade via USB cable)
2.8.1 Select the printer (motherboards with chips such as atmega 2560 cannot be
upgraded via SD/TF card)
06
2.8.2 Take the CR10 V3 as an example. After selecting the model to enter the
flashing guide page. Please connect the printer to the screen terminal with a USB
cable.
2.8.3 After clicking Next step, the Creality Sonic Pad will start flashing the firmware
to the printer and wait for the flashing to complete.
2.9 Printer firmware flashing (update BootLoader)
Pleasenotethat if theprinterwithatmega1284pchipcannotsuccessfullyflash
thefirmware,youneedtoupdatetheBootLoaderofthemotherboardfirst,and
then flash the firmware. For the BootLoader update tutorial, please check the
officialwebsite.
https://www.creality.com/pages/download Ecosystem
07
