Creative CLE Bedienungsanleitung

English

Your Player At A Glance

Press and hold for two seconds to turn your player on or off. Press to start,

pause, or continue playback.

Press to scroll left in Menu view. Press and hold to move back within the current

track.

Press to scroll right in Menu view. Press and hold to move forward within the

current track.

Press to increase volume level and display the Volume Level indicator.

Press to decrease volume level and display the Volume Level indicator.

Press to access the Menu view. Press to select and confirm Menu options.

Earphone jack

USB port

Liquid Crystal Display (LCD)

CLE_Multi.book Page 1 Friday, August 13, 2004 12:31 PM

Using the Player Buttons

Select

In this document, we will use the term "Select", to mean that you should press the Previous

and Next buttons to scroll through options, and then select the option by pressing the

Menu/Select button.

Selecting menu options

You can use the Previous and Next buttons to scroll within menus. For example, if you are

in Menu view:

1. Press the Previous and Next buttons to scroll left and right in the menu.

2. Press the Menu/Select button to select the menu item.

Press the Previous

button to scroll left Press the Next

button to scroll right Press the Menu/Select

button to select an option

From the Menu screen to the Play Mode Options screen

CLE_Multi.book Page 2 Friday, August 13, 2004 12:31 PM

Getting Started

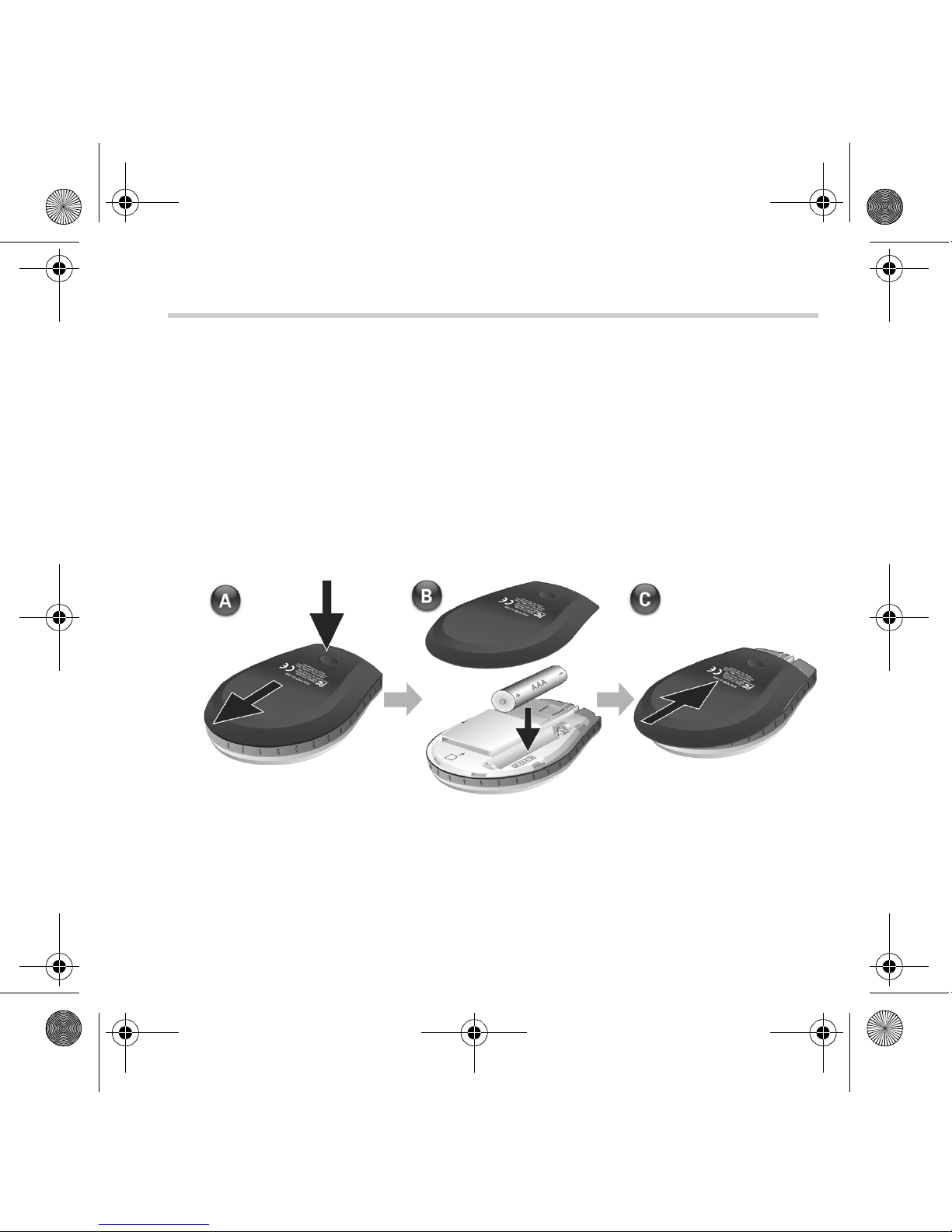

11 Inserting the Battery

1. Press the battery compartment release button on the back of your player.

2. Slide the battery compartment cover back as far as you can and lift it away from the

player.

3. Insert a new alkaline battery into your player. If you are also inserting a media card, go

to Step 3 on p 4.

4. Replace the battery compartment cover.

CLE_Multi.book Page 3 Friday, August 13, 2004 12:31 PM

22 Inserting a Media Card (optional)

1. Press the battery compartment release button on the back of your player.

2. Slide the battery compartment cover back as far as you can and lift it away from the

player.

3. Insert a media card as shown in the diagram below.

4. Replace the battery compartment cover.

CLE_Multi.book Page 4 Friday, August 13, 2004 12:31 PM

3Setting up Your Computer

1. Ensure that your player is NOT connected to your computer.

2. Insert the MuVo C100 CD into your CD-ROM or CD-ROM/DVD-ROM drive. Your

CD should start automatically. If it does not, follow the steps below:

i. Start Windows Explorer.

ii. On the left pane, click the My Computer icon.

iii. Right-click the CD-ROM/DVD-ROM drive icon, and then click AutoPlay.

3. Follow the instructions on the screen to complete the installation. Creative

MediaSource™ and Windows 98 SE drivers (only if applicable) will be installed on your

computer.

4. If prompted, restart your computer.

4Selecting Your Player’s Menu Language

1. Press and hold the Play/Pause button for two seconds to turn on your player.

2. Press the Menu/Select button.

3. Select the Settings icon .

A list of options is displayed.

4. Select the Language icon , and then select a language.

• Windows 98 SE users must set up the software in order for Windows 98 SE to

recognize the device.

• To set up the software, Windows XP and Windows 2000 users must log in as the

computer administrator. For more information, refer to your operating system’s

online Help.

CLE_Multi.book Page 5 Friday, August 13, 2004 12:31 PM

5Transferring Music and Data

1. Connect your player to your computer’s USB port using the supplied USB cable.

2. Launch Windows Explorer on your computer. Your player is recognized as a

Removable Disk in Windows Explorer.

3. Transfer MP3, WMA, or any data files to your player using the drag-and-drop method.

4. After the transfer is complete, make sure you stop your player properly before

disconnecting it from your computer. For more information on disconnecting your

player, see “Files/tracks are corrupted when transferred to the player.” on page 9.

CLE_Multi.book Page 6 Friday, August 13, 2004 12:31 PM

Some Basic Functions

Playing a track

1. Press the Menu/Select button.

The main menu is displayed.

2. Select the Music icon .

3. Select a track you want to play. The track is played back automatically.

Using the Stopwatch

1. From the main menu, select the Music icon or FM Radio icon .

2. In Music or FM Radio mode, press the Menu/Select button.

3. Select the Stopwatch icon .

The Lap Timing view is displayed by default.

4. Press the Play/Pause button to start the stopwatch function.

5. Press the Play/Pause button again to pause the stopwatch.

6. Press the Previous button to reset the stopwatch.

Using the Countdown timer

1. In Music or FM Radio mode, press the Menu/Select button.

2. Select the Countdown icon .

The Countdown view is displayed.

3. Press the Menu/Select button and select the Time Setting icon to set the

amount of time that you want to count down.

4. Select the hours, minutes, and seconds.

5. Change the time value using the Previous and Next buttons.

CLE_Multi.book Page 7 Friday, August 13, 2004 12:31 PM

6. Press the Menu/Select button to confirm the countdown time.

7. Select the check mark to confirm the countdown time and return to the Countdown

view.

To start the countdown

1. Press the Play/Pause button to start the countdown timer.

The Countdown animation starts.

Once the countdown has ended, the timer resets to 00:00:00.

For more information, read the User’s Guide on the Installation CD.

Go to d:\manual\<language>\manual.chm (replace d:\ with the drive letter of your CD-ROM/

DVD-ROM drive, and <language> with the language the document is in).

CLE_Multi.book Page 8 Friday, August 13, 2004 12:31 PM

Frequently Asked Questions

Where can I get official information on all MuVo products?

Visit www.creative.com for updates and downloads relating to all MuVo products,

Creative’s digital audio players and accessories.

After playing a sequence of tracks, the player skips a track.

The player will only play valid formats (MP3 or WMA with DRM). Other types of files will

be skipped.

Files/tracks are corrupted when transferred to the player.

The transfer may have been interrupted. Before disconnecting your player from your

computer, make sure that you stop your player properly first.

To stop your player in Windows XP, WIndows 2000 or Windows Me

•ClicktheSafely Remove Hardware icon on the Taskbar, click Safely remove

USB Mass Storage Device, and disconnect your player when you are prompted to do

so.

To stop your player in Windows 98 SE

1. Right-click on the Removable Drive and select Eject.

2. Make sure that the icon below appears on the LCD screen for at least five seconds

before disconnecting your player.

CLE_Multi.book Page 9 Friday, August 13, 2004 12:31 PM

The player turns off immediately after it is turned on.

Your battery may be depleted. For more information on replacing a battery, see “Inserting

the Battery” on page 3.

Can I use the player for portable data storage?

Yes, you can. For more details, see “Transferring Music and Data” on page 6.

I have to change the battery quite often. Is there anything I can do to make it

last longer?

Some operations consume more battery power:

• a long backlight timeout setting. A shorter timeout conserves battery power.

• a high contrast setting. Position the player so that you can read the display without using

a high contrast setting.

• too much use of previous/next.

• turning the player on and off too many times.

•playbackofWMAfiles

Can I jog with my player?

Yes. Your player is shock-resistant and water-resistant. As long as you do not expose your

player to heavy rain, or do not drop it, it will function during normal exercise activities.

Can I swim with my player?

No. Your player is water-resistant but not waterproof. Do not immerse it in water or

participate in water sports with it as it may permanently damage your player.

CLE_Multi.book Page 10 Friday, August 13, 2004 12:31 PM
