creAtive

Z E N

Training Guide

Document Prepared at School Technology Services

Written by Alex Harris.

2008.

Introduction

PLEASE INSTALL SOFTWARE BEFORE CONNECTING TO PC! Or so it says on the packaging

before you even open your new Creative Zen! From the creators of one of the most successful

sound boards for your computer (the SoundBlaster series) comes a new way to listen to your

music. Okay, not so new, but definitely more budget friendly than the iPod.™ Get ready to rock

your way to enlightenment with the Creative Zen™!

What’s in the box?

1x Creative Zen™ Media Player

1x Pair of Earbud Headphones

1x USB Cord

1x 3.5mm to 3.5mm Stereo mini plug

1x Wrist Strap

1x Software CD

1x Carrying Case

Install the software FIRST!

Do not connect the Creative Zen into your computer without installing the software first. This is

written on the box, on the player, and throughout the manuals.

While I’m not entirely sure what will happen if you do plug it in without the software –I’m sure

it will make things a little more difficult later. Best to follow the directions and install the

software first.

Once all of the software is installed and ready, locate the USB cord that came with the Zen and

plug it into the computer!

Ready… Set… Ooh!

Ready to play with your new Creative Zen right out of the box!? Haha, too bad!

As it turns out, the Creative Zen has a built in rechargeable battery pack, and guess what, it

doesn’t come charged! Plug the USB cord into the Zen, then into your computer to begin the

charge. After you plug into the USB, slide the power switch on then look at the OLED Screen on

the front of the player. Did it say CREATIVE Zen for a second before flashing off? If it didn’t you

might not have it plugged into a USB 2.0 bus. Take it out and plug it into another USB port,

then try again.

Now that that is done, right click on your computer’s desktop and go to Properties, then Screen

Saver. At the bottom of the properties window, you’ll see a button that says Power. Hit it.

Make sure that you’re Power Schemes setting is Always On. You’re Zen might not charge if

your computer is running on batteries, and it’s power settings aren’t Always on!

Now we wait…

…still waiting…

The Zen’s batteries should charge fairly quickly. You can probably use it for a little bit after only

30 minutes. However for the best results let it charge for at least four hours, or better yet,

overnight!

Once you’ve charged up the Zen, it’s time for some action.

Face-Off!

The Zen has a very simple interface. A Play Button, a Back Button, and a Joystick. On the side

you’ll notice an Power/Locking Slide that you use to turn the Zen on, off, and lock the interface

(so you can’t accidentally hit buttons while it’s in your pocket).

On the opposite side, you’ll find the Volume Controls, indicated by a plus and minus, and a

Record Button so you can use the Zen to make personal recordings.

And lastly on the top you’ll find the USB, headphones, line-in (for an external microphone), and

an opening for the built in microphone.

Slide the power switch down to turn your player on. Later on, when you’re ready to shut the

Zen down, slide the power switch down and hold it down until the Zen begins to power-off.

Zen and the Art of Media Synchronization

Whenever you add music, pictures, video, or media in general to a

portable media player, you are enjoying a process called Synchronizing.

To put it more simply, to get your music from your computer to your

player, you need to sync it first.

This can be done via the Sync Tab in Windows Media Player. But since

you’ve just installed all that software, why not try it out?

Go to Start > All Programs > Creative > Creative Sync Manager or click on the Sync Manager

Icon in the taskbar (near the clock).

This is the Sync Manager. A nifty

program that allows you to sync media

files to your player quickly and easily.

When you first start it, you’ll see that

you have two choices: Customize, and

Default.

Default searches your entire My

Documents folder and syncs everything.

This will take a long time, and way too

much space on your Zen’s hard drive!

For now, let’s go with Customize!

After hitting next, you’ll be asked what kind of media you want to sync. You can choose from

Audio, Video, Pictures, and Organizer Data. Let’s just stick with Audio for now.

Sync Manager will find you’re My Music folder

automatically. I recommend keeping it on this folder!!

However, if you want to specify a specific folder, you can

hit browse, find your folder, and then hit OK.

BEFORE you go on, notice the checkbox that says Include

tracks that do not have ID3 tags. Depending on what

you’re syncing, you might need this…

You see, whenever you “Rip” a CD, it creates a unique

folder automatically and names all of the music tracks

inside. Almost all CDs come with encoded ID3 tags which

store the song title, artist, copyright info, etc.

Sometimes, CDs do not have this ID3 tag

encoded into the tracks. And when you try to

rip it, it will go to a folder called Unknown Artist.

Even though you might have renamed them all,

these tracks will still not have an ID3 tag until

you create it specifically.

So, if you have any music that ripped into an

Unknown Artist folder, or any music that you

acquired by less-than-ethical means (burns,

torrents, P2P software, etc.) then you

need to check the box that says “Include tracks that do not have ID3 tags.” If all of your music

was acquired legally, and you ripped it without any problems, then don’t worry about it!

Automatic or Manual…

After hitting next you are taken to a screen that gives you a choice, Automatic or Manual

Synchronization. Pick Manual to avoid confusion for now. If you pick automatic your Zen will

start syncing every time you plug it in! And we don’t really want that.

After that, you are taken to a review screen where you can confirm all of the folders and

checkboxes are correct. If they are, check the box at the bottom of the screen that says

Synchronize Now and then hit Finish!

Again?

Interestingly enough, you can’t run the manager again! At least not the way you just saw it.

That’s why it’s recommended you keep the My Music folder as the default! However, if you

pointed to another folder, you are far from out of luck!

With your Zen plugged in, go to My Computer and then look for a black Zen icon that

says Zen V Series Media Explorer.

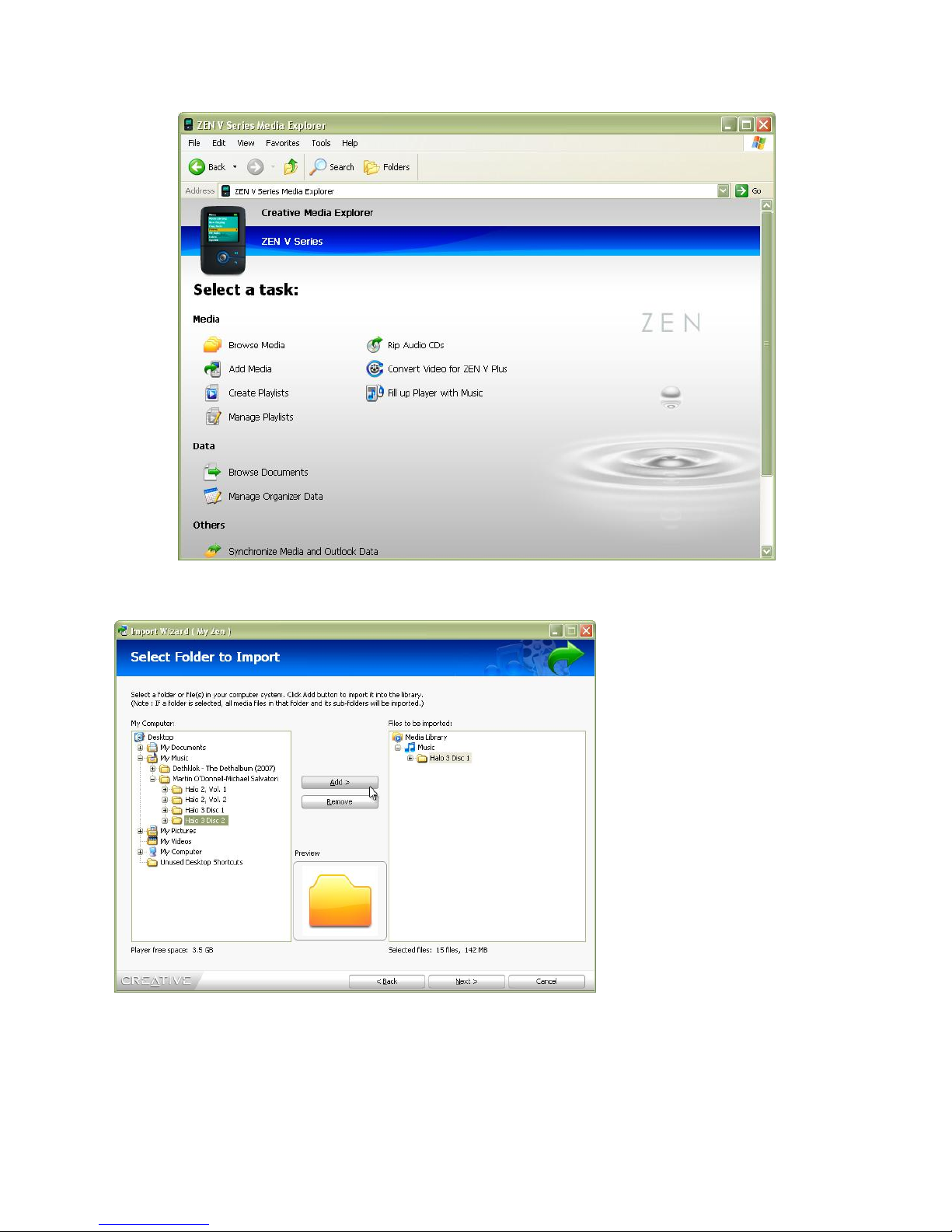

Voila! This opens up the Media Explorer tool. From here you can drag and drop your

media, Rip CDs (that means copy music from them) and even convert video files so

that you can play them on your Zen!

Click on the Add Media button.

This opens up the Import

Wizard.

This tool makes syncing

anything to your Zen

extremely easy! Simply

select the file, group, or

folder and then hit Add.

Once you’ve added

everything you want, hit the

Next button and then watch

as your files are all Sync’d

automatically! No messy

menus, no annoying wizards.

Just drag, drop, sync!

More to Explore…

The Media Explorer tool comes with several other useful tools...

Rip Audio CD’s

Say you just bought a new CD, and you want to get the music from it, onto the Zen. You can’t

just drag and drop! You have to RIP the CD first.

To do this, go back into your Media Explorer and hit the button that says Rip Audio CDs.

You will be asked if you want to register with Gracenote. YOU DO! Keep hitting Okay and Next

until it goes away. Don’t worry, it’s harmless – and it makes ripping a lot easier!

Once Gracenote has been

registered, you’ll be taken to the

Creative Audio CD Ripper tool.

If you didn’t register with

Gracenote, all of the fields here

will just say “Track 1, 2, etc.”

instead of the actual song titles.

Not necessarily a bad thing, but it

will be annoying when you don’t

know what you’re listening to,

and all you see on the Zen screen

is Track 5.

Creative products can only create

Windows Media Audio files!

They can’t create MP3s without

purchasing a 10$ add-on online.

Ironically, if you want to rip to MP3 files, you’ll need to use Windows Media Player! Although

the automatic ID3 tagging are a bit more complex there, and won’t be explained in this guide.

Adding Video

Your Zen comes with an Organic Light Emitting Diode (OLED) Screen that is able to display

video. This can be anything from commercials, music videos, maybe even full length movies (if

you can compress them enough)!

ALL VIDEO MUST BE CONVERTED BEFORE YOU PUT IT ON YOUR ZEN!

Yes, all of your video must be converted into a proprietary format just for the Zen before you

can actually watch it on the Zen. It seems to work best with Windows Media files (WMVs). If

you’re lucky you might get an AVI to work out for you. I could never get Quicktime MOVs to

convert properly.

That being said, the process of conversion is extremely simple! Hit the Convert Video for Zen V

Plus button in the Media Explorer and then simply add the file. After that hit Next and you’re in

business.

Create/Manage Playlists

After you’ve sync’d some music to your

Zen, you can go back and create

customized playlists. Only like six songs

out of the albums you sync’d? Make a

playlist and you can listen to them without

having to navigate through the albums.

To make one, hit the Create Playlists

button in the Media Explorer. Then add

your music.

Hit OK when you’re done!

Manage Playlists lets you edit a list you

have already made. NOTE: You have to

create a list before you can manage one!

Organizer Data?

The Zen has an Outlook-like calendar function to remind you when to do things. It might be

useful… maybe.If you decide to use it, hit the Manage Organizer Data button in the Media

Explorer. You can create, edit, or delete events in here, just like in Outlook.

Voice Recording

One of the unique features of the Zen is it’s voice recording capabilities. To record your voice

hit the Record Button (tiny red circle) on the side of your Zen. It will automatically start

recording after that.

For reference, the microphone is that tiny hole at the top of the device. You’ll notice is has a

picture of a mic underneath it.

Hit the Back Button to stop recording.

All of your Recordings are stored in the Recordings Folder. Hit the Back Button until you get to

the main menu, then scroll down until you see the Music Library folder –open it, and then go

down to the Recordings Folder. Your file will be named as the date and time when it was

recorded.

Video Killed the Radio Star

But you can still listen to FM Radio on the Zen! Hit the Back Button until you’re at the Main

Menu, then scroll down to FM Radio. You can set up to 32 preset stations. For now, just pick

one and start scanning.

Your headphone cord acts as your antenna. Move it around until you get the best signal. You

may not be able to listen to some channels clearly. It generally helps if your cord is stretched

out, and not overlapping itself. Hence, radio will work best if you’re standing, and the Zen is in

your pocket! It’s not perfect, but it’s better than nothing, right? You could always watch your

videos!

Advanced Tactics

Media Creation

VIDEO

As long as you have a .wmv file you can use the Video Converter to create a Zen-

compatible movie. If you have an avi file you can open up Windows Movie Maker and

convert it to a wmv easily! Just Import it, drag it to the timeline, and then Save Movie

File.

AUDIO

Audacity is great for recording and editing sound and music. If you have it, and the

lame.dll codec (available on the Audacity website) you can make Mp3s for your zen!

If you have another microphone that has a 3.5mm miniplug on it, you can plug that into

the LINE IN port on the top of your Zen, and record your voice from that instead. These

can include desktop mics, all the way to SM-57s with adapters! The built in mic will

work fine for most purposes, hoever.

Button Trouble?

Can you not figure out what the buttons do? The Play/Pause Button starts and stops a song.

You could also think of it as an Enter button.

The Button that looks like a left-turn arrow is the Back Button. It will take you back one step in

the Zen’s menu’s. Keep pressing back to get to the Main Menu again.

The Joystick functions as a directional pad, a play button, and a back button. Use it in Menus to

move up and down and press left or right to go back or forward respectively. Easy!

In the end…

Now that you know how to use your new Zen, go and put some music on it, and start enjoying!

Make sure you follow the ethics guidelines though!

Andere Handbücher für ZEN

Inhaltsverzeichnis

Andere Creative MP3-Player Handbücher

Creative

Creative ZEN Zen Mozaic 4GB Bedienungsanleitung

Creative

Creative ZEN Touch Bedienungsanleitung

Creative

Creative Sound Blaster Audigy 2 Platinum eX Bedienungsanleitung

Creative

Creative ZEN ZEN Micro 5GB Bedienungsanleitung

Creative

Creative ZEN X-Fi with Wireless LAN Bedienungsanleitung

Creative

Creative ZEN Mozaic EZ100 Bedienungsanleitung

Creative

Creative TRAVELSOUND I80 Bedienungsanleitung

Creative

Creative Muvo Micro N200 Bedienungsanleitung

Creative

Creative ZEN Style M300 Bedienungsanleitung

Creative

Creative ZEN X-Fi3 8 GB Bedienungsanleitung

Creative

Creative MuVo V100 Bedienungsanleitung

Creative

Creative ZEN MICROPHOTO Bedienungsanleitung

Creative

Creative ZEN Zen X-Fi 16GB Bedienungsanleitung

Creative

Creative ZEN Zen Vision Bedienungsanleitung

Creative

Creative MuVo V100 Bedienungsanleitung

Creative

Creative MuVo_2_QSG Bedienungsanleitung

Creative

Creative NOMAD Zen XTRA Bedienungsanleitung

Creative

Creative MuVo Slim Bedienungsanleitung

Creative

Creative NOMAD Jukebox Bedienungsanleitung

Creative

Creative CLE Bedienungsanleitung

Creative

Creative Zen Stone Plus Bedienerhandbuch

Creative

Creative Zen Stone plus Bedienungsanleitung

Creative

Creative NOMAD IIC Bedienungsanleitung

Creative

Creative ZEN SLEEK PHOTO - Bedienungsanleitung

Beliebte MP3-Player Handbücher anderer Marken

Blaupunkt

Blaupunkt Compact Drive MP3 Bedienungsanleitung

Memorex

Memorex MMP9008 - 8GB USB 2.0 Bedienungsanleitung

Meizu Electronic Technology

Meizu Electronic Technology E5 Bedienungsanleitung

Naxa

Naxa NMV-173NX Bedienungsanleitung

Philips

Philips PSA250 Bedienungsanleitung

Zipy

Zipy go! Waving Bedienungsanleitung

Sylvania

Sylvania SMPK4068 Bedienungsanleitung

Sony

Sony NW-MS7 - Memory Stick Walkman Bedienungsanleitung

Irradio

Irradio RF-42UC Bedienungsanleitung

NABAIJI

NABAIJI SWIM MUSIC 100 Bedienungsanleitung

Laser

Laser MP3-A9-4GB Bedienungsanleitung

Samsung

Samsung YP-T7F Bedienungsanleitung

Savant

Savant SMS-1001-00 Kurzanleitung

Trevi

Trevi XP 71 BT Bedienungsanleitung

AGPtek

AGPtek C2 Bedienungsanleitung

MobiBlu

MobiBlu DAH-1500i Bedienungsanleitung

Denver

Denver MPS-201 Bedienungsanleitung

Steren

Steren MP3-002 Bedienungsanleitung
