The Crestron® Flex Wall Mount UC Video Conference System for

Microsoft Teams Rooms (UC-B140-T) delivers a powerful, professional

solution for knowledge workers who want the Microsoft Teams software

experience in small to midsize meeting and conference rooms.

MinimumRequirements

lA video display, connected to the UC-ENGINE-SD

lA Microsoft Teams or Skype® for Business software account

lAn environment running Microsoft Exchange Server® software (2013

SP1 or later for on-premises installation or Microsoft 365™ software

for Cloud) for scheduling and/or Skype for Business 2015

(on-premises installation or Microsoft 365 software for Cloud)

lHDMI® cable to connect an HDMI source*

* Crestron recommends using Crestron cables only. For optimum

performance, Crestron offers the UC-B-ACCY KIT which includes the

required hookup cables.

View the Crestron Flex Pre-Deployment Checklist to help plan your

Crestron Flex installation.

In the Box

UC-BRKT-100-SD-ASSY, UC Engine Bracket Assembly

1 UC-BRKT-100-ASSY (6511033)

1 Power cord

Mounting Hardware

UC-SB1-CAM-FLEX, UC Video Conference Smart Soundbar

1 UC-SB1-CAM-FLEX (6511046)

1 Power Cord

1 USBCable

Mounting Hardware

TSW-1060-B-S, 10.1 in. Touch Screen, Black

1 TSW-1060-B-S (6507651)

1 Security Latch (4525305)

Mounting Hardware

TSW-1060-TTK-B-S, Tabletop Kit for Touch Screen, Black

1 TSW-1060-TTK-B-S (6507729)

1 Template

Mounting Hardware

Accessory Box

1 PWE-4803RU, PoEInjector (6502429)

2 CBL-CAT5E-7, CAT5e cable, RJ-45-to-RJ-45, Black,

7 ft (2.1 m) (6509924)

1 CBL-USBC-HD-9, USB 3.0 to HDMI Converter cable,

9 ft (2.7 m) (6510718)

UC-B140-T QuickStart

Crestron® Flex Wall Mount UC Video Conference System for Microsoft Teams® Software

Overview

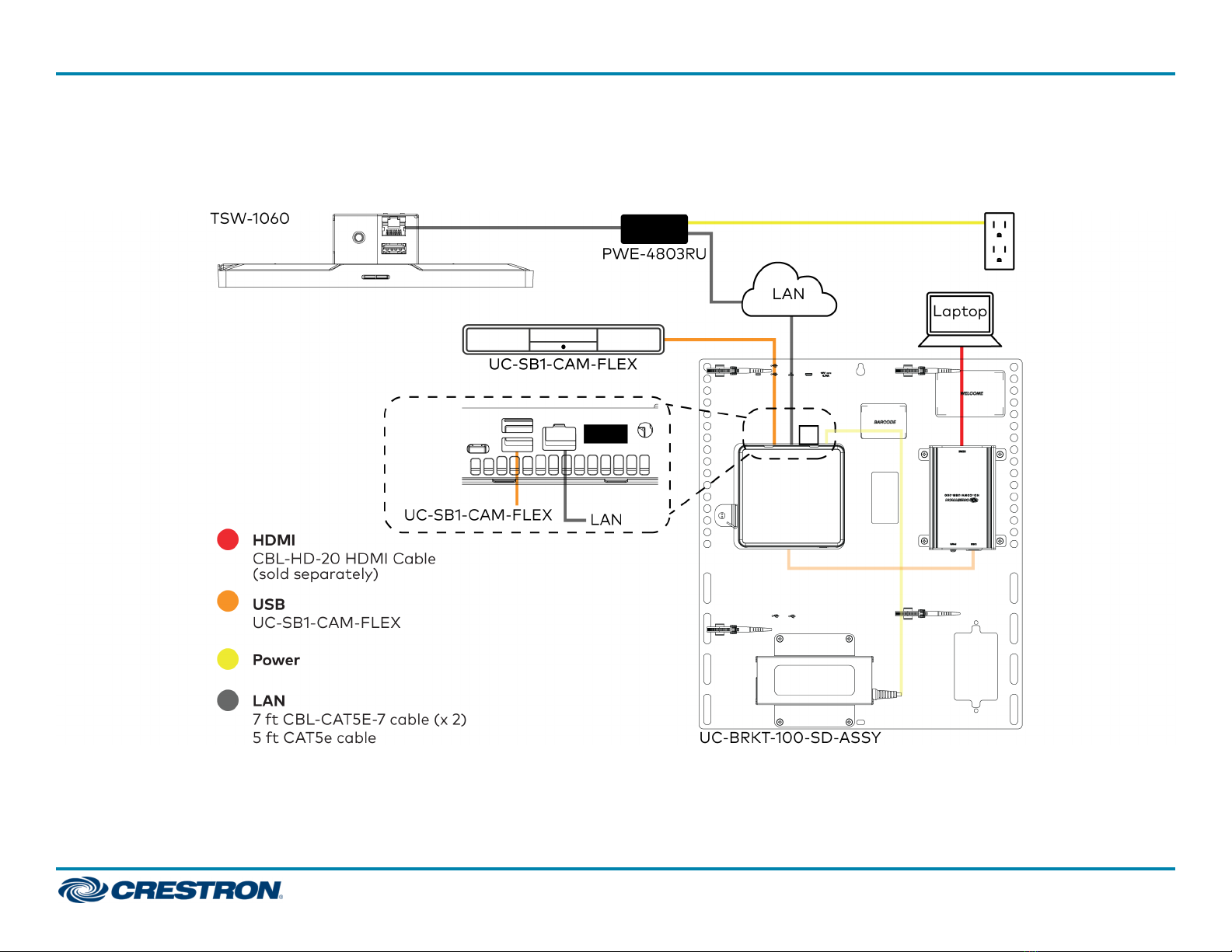

The following diagram illustrates system connections.

UC-B140-T QuickStart

Crestron® Flex Wall Mount UC Video Conference System for Microsoft Teams® Software

Connect

1. Remove the connector covers prior to making UC-ENGINE-SD

connections on the UC-BRKT-100-SD-ASSY bracket assembly.

UC-B140-T QuickStart

Crestron® Flex Wall Mount UC Video Conference System for Microsoft Teams® Software

2. Make connections to the TSW-1060-B-S touch screen and

UC-BRKT-100-SD-ASSY bracket assembly as shown in the following

illustration.

UC-B140-T QuickStart

Crestron® Flex Wall Mount UC Video Conference System for Microsoft Teams® Software

3. Connect the display device to the UC-ENGINE-SD as shown below.

UC-B140-T QuickStart

Crestron® Flex Wall Mount UC Video Conference System for Microsoft Teams® Software

4. Bundle the cables with the integrated cable tie wraps. The cable tie

wraps are reusable.

UC-B140-T QuickStart

Crestron® Flex Wall Mount UC Video Conference System for Microsoft Teams® Software

Complete the Installation

After completing UC-ENGINE-SD connections, secure the connector

covers using a #1 Phillips head screwdriver to replace the screws.

NOTE: For additional security, replace the screws with the spanner

screws included with the bracket assembly. A 1/4 in. bit is also supplied

with the bracket assembly to install the spanner screws.

UC-B140-T QuickStart

Crestron® Flex Wall Mount UC Video Conference System for Microsoft Teams® Software

Configure

Apply Power

Press the power button on the bottom of the UC-ENGINE-SD and apply

power to all of the other devices in the system.

Configure the TouchScreen

1. Tap Touch Here to Enable a Specific Application on the bottom of the

TSW-1060-B-S touch screen. A list of applications is displayed.

2. Tap Teams Video, and then tap Confirm. The TSW-1060-B-S touch

screen will reboot.

3. On a computer, open a web browser to the IP address of the TSW-

1060-B-S touch screen. Log in and navigate to Settings >Applications.

NOTES:

lThe TSW-1060-B-S touch screen (via the PW-4803RU) and

computer must be on the same network switch and VLAN.

lA login with administrative rights for the TSW-1060-B-S

touch screen is required.

4. Enter the following information in the appropriate fields:

lTeams Video PC Address: Enter the IP address or hostname of

the UC-ENGINE.

NOTE: The hostname is printed on a label affixed to the

UC-ENGINE (mounted on the UC-BRKT-100-ASSY bracket

assembly).

lTeams Video PC Port: By default, port number 49500 is used. If

a different port number has been configured on the

UC-ENGINE, enter that port number instead.

lTeams Video Username: Enter the login username for the

UC-ENGINE. (The default username is “admin”.)

lTeams Video Password: Enter the login password for the

UC-ENGINE. (The default password is “sfb”.)

5. Click Save Changes.

For more information, refer to the TSW-560/TSW-760/TSW-1060

Supplemental Guide (Doc. 7927) at www.crestron.com/manuals.

Configure the System

Use the TSW-1060-B-S and your Microsoft Teams or Skype account

credentials to configure the UC-ENGINE. Refer to the Crestron Flex UC

Video Conference Systems (Doc. 8360) at www.crestron.com/manuals.

UC-B140-T QuickStart

Crestron® Flex Wall Mount UC Video Conference System for Microsoft Teams® Software

Visit the Product Page

Scan the QR code to visit the product page.

UC-B140-T

www.crestron.com/model/6511038

Additional Information

Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron, the Crestron logo, DigitalMedia, and Crestron XiOCloud are either

trademarks or registered trademarks of Crestron Electronics, Inc. in the United States

and/or other countries. HDMI and the HDMI logo are either trademarks or registered

trademarks of HDMI Licensing LLC in the United States and/or other countries.

Microsoft 365, Microsoft Exchange Server, Microsoft Teams, and Skype are either

trademarks or registered trademarks of Microsoft Corporation in the United States

and/or other countries. Other trademarks, registered trademarks, and trade names

may be used in this document to refer to either the entities claiming the marks and

names or their products. Crestron disclaims any proprietary interest in the marks and

names of others. Crestron is not responsible for errors in typography or photography.

Doc ID 8463E

02/21/20
