Crestron CH-DIM4-D9

Dimmer Control Interface (DIN Rail)

Operation Guide

CH-DIM4-D9 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Contents

Description 3

Functional Description…………………………………………………….3

Usage……………………………………………………………………….3

Technical data……………………………………………………………..4

Front View………………………………………………………………….4

Setup 5

Example wiring diagram…………………………………………………..5

Cresnet connections………………………………………………………6

Cresnet ID…………………………………………………………….……7

Programming 8

Configuration Manager........................................................................8

Programming Manager..................................................................... 9

Example Program............................................................................. 9

Problem Solving 10

Troubleshooting.................................................................................10

Futher Inquiries..................................................................................11

CH-DIM4-D9 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Description

Figure 1: CH-DIM4-D9

Functional Description

The CH-DIM4-D9 is an analog output interface for control of fluorescent dimmable

ballasts. 4 Cut-off relay’s are implemented to cut the 230V feed to the load if the analog

output is <1VDC. This is to prevent the Fluorescent light from flickering (Figure 1).

•4 analog outputs 0-10VDC or 1-10VDC for control of Electronic ballasts.

•Each analog output can handle a max output current of 25mA; all 4 outputs together

maximum 100mA (per output +-/ 25 ballast’s).

•Analog Outputs are each settable to Sink (1-10V) or Source (0-10V)

•4 relays for Cut-off purpose to prevent the load of flickering, each rated

250VAC/16Amp (cut off value can be programmed).

•Red led feedback per Cut-off relay.

•1 override input (dry contact) or dipswitch that triggers all outputs to 10VDC for

testing or emergency reasons

•Cresnet unit with rotary switches for NET-ID settings.

•DIN rail mountable

CH-DIM4-D9 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Technical data

Dimensions : 160 x 90 x 58 mm ( L x B x H )

DIN norm : 9 Modules 160 mm, DIN43880

Cut-out size electrical cabinet : 160 mm x 45 mm (L x H)

Weight : 350 g

Color : Enclosure, grey RAL7035 , front black

Material : Self-extinguishing NORYL

Mounting : DIN rail DIN EN 50022

Connectors Ouputs : Mini Phoenix 3.5mm 5 Pole

Connectors Cresnet : Mini Phoenix 3.5mm 4 Pole (2 pieces)

Connectors Override : Mini Phoenix 3.5mm 2 Pole

Connectors Relay : Phoenix 0.2 to 4mm2 cable section

Addressing Cresnet : 2 Rotary switches

Power : 24 VDC, Cresnet

Current consumption : max. 170 mA

Cresnet Power factor : 5W

Crestron Device Library : CNLDAB-4A

Outputs : 4 channels SINK (1-10V) or

SOURCE (0-10V).

Relays : 4 Cut-off outputs with 1 contact each

max. 250VAC / 16A.

(For resistive loads) with VDR 385V

Status : 1 blue LED for Power status

1 Green LED for Cresnet status

4redLED’sforrelaystatus

Test / Override : Via a dry contact or a dip switch all the

outputs are placed to 10VDC (100%)

Includes : Interface with 2x 4, 1x 5 and 1x 2 Pole

Mini-Phoenix connectors.

Front view

Figure 2: Front view CH-DIM4-D9

CH-DIM4-D9 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Setup

Example wiring diagram

Figure 3: Connection diagram CH-DIM4-D9

CH-DIM4-D9 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Cresnet Connections

Note: Before making any connections, CRESTRON recommends that all power is off

and the installer reviews the latest revision of the network interconnection drawing

(DOC5411i).

Refer to figure 4 and connect the CH-DIM4-D9 to the Cresnet network via a Cresnet

network cable (CRESNET cable). This cable is not supplied with the CH-AO12-D5 but can

be obtained from Crestron International.

Figure 4: CH-DIM4-D9 Cresnet Hook-up

CH-DIM4-D9 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Cresnet ID

Every equipment and user interface within the network requires a unique identity code

(NET ID). These codes are recognized by a two-digit hexadecimal number from 03 to FE.

The NET ID of each unit must match an ID code specified in the Simpl Windows program.

Use the following method to change NET ID of the CH-DIM4-D9

1. Locate the two miniature rotary switches labeled HIGH and LOW on the

bottom face (refer to figure 5). The HIGH rotary switch represents the

most-significant digit or number of the ID CODE and the LOW rotary

switch represents the least-significant digit or number of the ID CODE.

Each 16-position rotary hexadecimal switch can be set to a value ranging

between 0 and F.

2. Use a small screwdriver and rotate the arrow in the center of the rotary

switch marked HI to the position of the most-significant digit or letter of the

unit's ID CODE.

3. Use a small screwdriver and rotate the arrow in the center of the rotary

switch marked LO to the position of the least-significant digit or letter of

the unit's ID CODE.

Figure 5: Rotary switches for NET-ID

CH-DIM4-D9 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Programming

The next subsections describe a sample SIMPL Windows program that utilizes a

CH-DIM4-D9. It provides a description of how to actually create the SIMPL Windows

program.

NOTE: The following descriptions assume that the reader has knowledge of SIMPL

Windows. If not, please refer to the extensive help information provided with the software.

Minimal software requirements

SIMPL Windows 2.01.06

Ops. for CNX: 5.12.63X/W

Ops. for “2” series: C2-1014.cuz

*check website www.crestron.com for latest OPS and software versions*

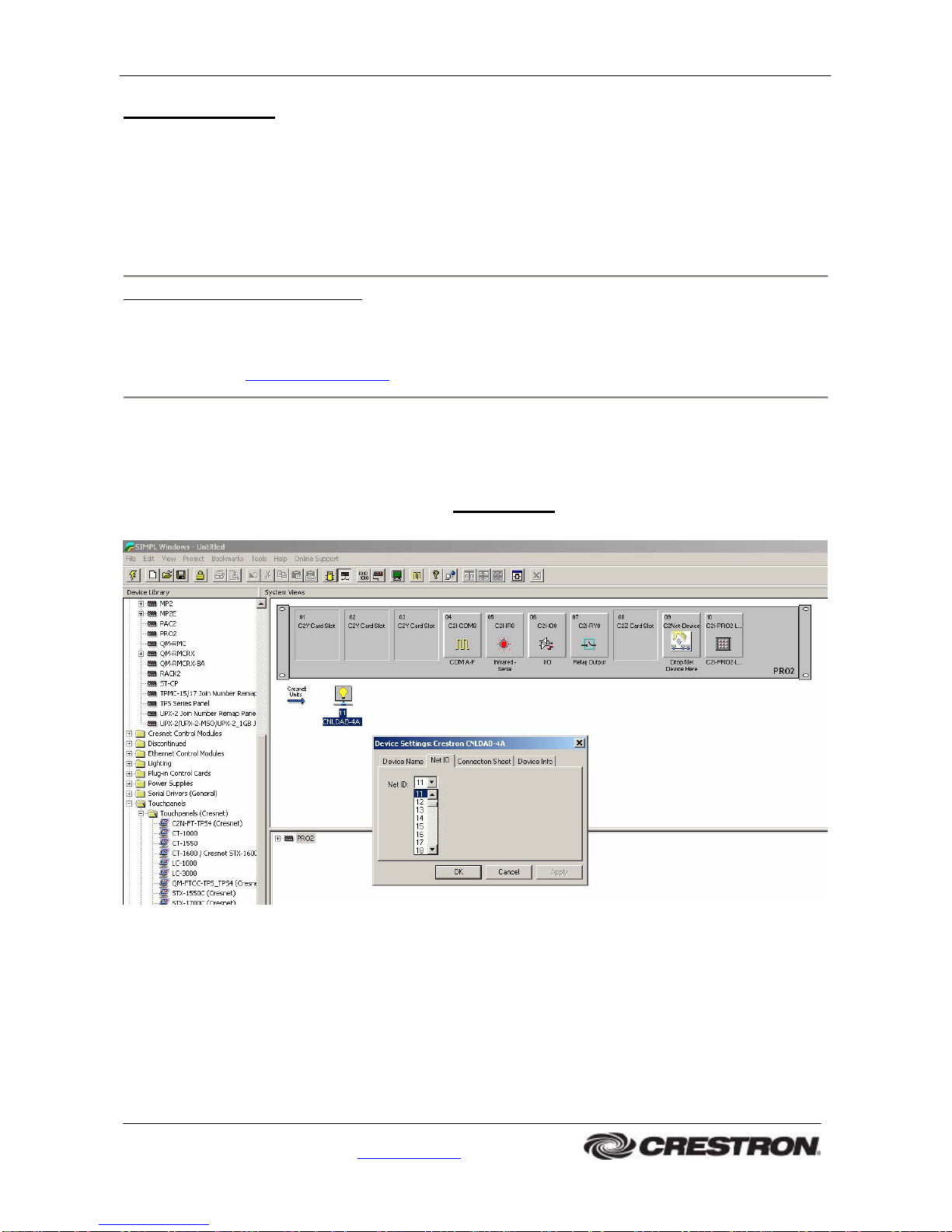

Configuration manager

A CH-DIM4-D9 needs to be defined as a CNLDAB-4A in Simpl Windows (Figure 6).

Figure 6: Hardware configuration CNLDAB-4A

CH-DIM4-D9 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Programming manager

The CNLDAB-4A symbol has 8 analog inputs (Figure 7). The top four signals correspond

with the four analog outputs. The other four analog inputs correspond with the cut-off

settings. If the Cut off relays are not programmed the relay’s will automatically open when

the matching analog output is <1V.

Figure 7: CNLDAB-4A

Example Program

Control four Analog Outputs and Cut-off Relays

This example illustrates how sliders on a touch panel control the four analog outputs of the

CH-DIM4-D9. The Analog Initialize symbol sets the value on which the four relays should

do the cut-off, in this case on 4 different values.

Figure 8: Slider control of Channel 1

Figure 8: CH-DIM4-D9 program example.

CH-DIM4-D9 Product Manual

Crestron International • 2 Oude Keerbergsebaan • 2820 Rijmenam • Belgium

Tel: +32 15 50 99 50 • [email protected] • www.crestron-int.be

Problem Solving

Troubleshooting

Table 1 Provides corrective action for possible trouble situations.

If further assistance is required, please contact a Crestron Technical Support

representative or submit your question on the Crestron True Blue On Line Service

(www.crestron.com)

Table 1: Troubleshooting Guide

TROUBLE POSSIBLE CAUSE(S) CORRECTIVE ACTION

CH-DIM4-D9 does not

function DIM4-D9 is not

communicating to the

network.

Enter Viewport in SIMPL

Windows. Press the F4 key

to poll the network. Verify

network connection to

DIM4-D9 (it will report as a

CNLDAB-4A).

Crestron swirl on the

front is not lighting up

(blue).

CH-DIM4-D9 is not receiving

24V power at the NET

connector.

Verify “CRESNET

Connections” on page 6.

Confirm power is supplied to

the unit.

Cuttoff relays are

always closed, outputs

are always set to

10VDC (100%)

The manual override is

bridged or dipswitch is placed

to ON (Up).

Verify that the manual

override is not bridged and

that the dipswitch is placed

to the OFF position (Down)

Relayoutput 1-4 LED

does not illuminate

when control system

sends commands

Cuttoff 1-4 not driven by

proper signals, NET-ID is

wrong.

Verify that the proper SIMPL

symbols/signals are used to

drive these Channels. Verify

NET-ID on CH-DIM4-D9

CH-DIM4-D9 is not

responding to network

poll

Incorrect network wiring Verify correct wirings to the

network connectors (see

page 6).
