Lutron Interface 1

Description.................................................................................................................................1

Functional Description ................................................................................................1

Physical Description....................................................................................................1

Leading Specifications...............................................................................................................5

Setup ..........................................................................................................................................5

Identity Code ............................................................................................................... 5

Dip Switch Settings for GRAFIK Eye Use .................................................................7

Preparation for Use...................................................................................................... 9

Programming ............................................................................................................. 10

Problem Solving ......................................................................................................................16

Troubleshooting ........................................................................................................16

Further Inquiries........................................................................................................16

Syntax........................................................................................................................16

Return and Warranty Policies.................................................................................................. 17

Merchandise Returns / Repair Service ......................................................................17

CRESTRON Limited Warranty ................................................................................17

Appendix: GRAFIK Eye Commands ......................................................................................18

Format for Commands............................................................................................... 18

GRX-AV-RS232 Command List ..............................................................................18

GRX-AV-RS232/ATC Command List .....................................................................22

Operations Guide - Doc. 5694 Contents •i

CRESTRON

Lutron Interface

Description

Functional Description

There are two CRESTRON Lutron Interface configurations available: ST-LT and

STI-LT. Configuration differences depend on which power pack is supplied. The

ST-LT includes a power pack for a 120V AC supply and the STI-LT includes a

power pack for 220V AC. For purposes of this Operations Guide, the term ST-LT is

used for either configuration.

The ST-LT is a device that permits the CRESTRON CRESNET II System or

SmarTouch STS to interface with a Lutron GRAFIK Eye Lighting System. Future

ST-LT production models shall permit an interface with the Lutron Homeworks

System. If the ST-LT is part of the CRESNET II System, use of the supplied power

pack is optional.

Physical Description

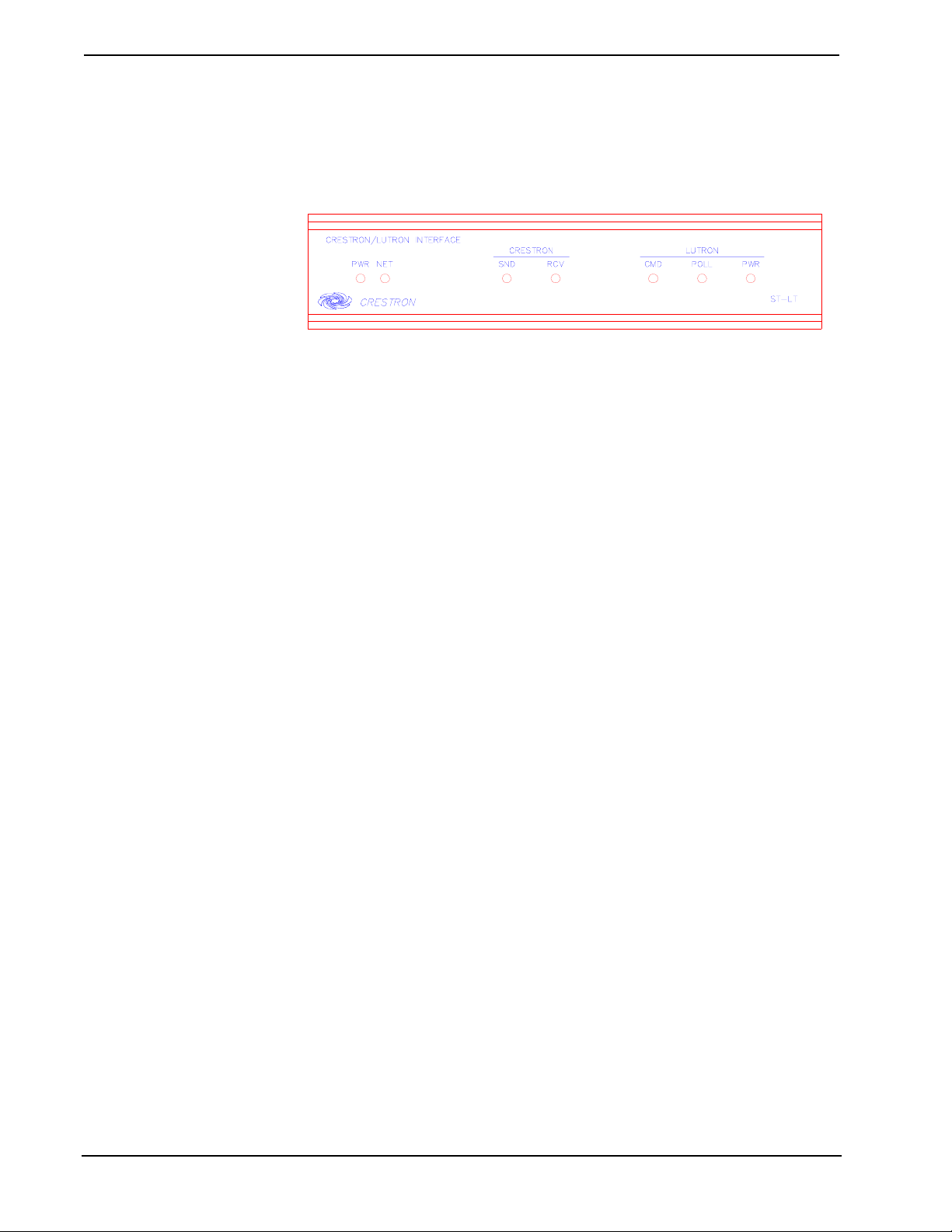

The ST-LT is housed in a black enclosure with silk-screened labels on the front and

rear panels. On the front of the unit there are seven LEDs for indicating the unit’s

current status. All connections are made on the back of the unit. Refer to the physical

views shown after this paragraph. There are four rubber feet on the base of the unit

for stability and to prevent slippage.

Operations Guide - Doc. 5694 Lutron Interface •1

CRESTRON

ST-LT Physical Views

ST-LT Ports

A number of ports are provided on the back of the ST-LT. Each has a silk-screened

label. Refer to illustration and descriptions below.

ST-LT Ports

12 VDC .5 A

This DC power socket connector is used to supply external power via the supplied

500 mA power pack (1000 mA power pack for the STI-LT). If the ST-LT is part of

the CRESNET II System, use of the supplied power pack is optional.

2 •Lutron Interface Operations Guide - Doc. 5694

CRESTRON

NET

These two 6-pin, 6-position RJ11 modular jacks are used to connect the ST-LT

module to either the SmarTouch STS or CRESNET II remote control system. When

the module is part of the CRESNET II system, power is provided via the NET

connection; the supplied power pack need not be attached. Two NET ports are

available so that network units can be daisy-chained together. Review the latest

revision of the Network Modular Cable Requirements (Doc. 5682).

NOTE: Most 4-conductor phone cables are wired in a crisscross fashion and are not

compatible with CRESTRON equipment.

If the power pack is attached when the ST-LT is part of the CRESNET II system,

power is drawn from the power pack. The module does not load the network power,

but the network power remains chained for additional network devices that are

connected.

RS-232

This 9-pin (DB9) connector is a Lutron compatible RS-232 interface for connections

to a PC running Lutron configuration and control software. This connector is

equivalent to Lutron’s GRX-AV-RS232.

ST-LT Pinout (RS-232)

PIN DESCRIPTION

1n/c

2TXD

3RXD

4n/c

5GND

6n/c

7CTS

8RTS

9n/c

A standard DB9 male to DB9 female straight-through cable may be used to connect

the RS-232 port of the ST-LT to a PC. This port is activated through the program

running on the control system. Refer to “Programming” on page 10 for more details.

LUTRON MUX LINK

This 4-pin connector connects to the Lutron Mux Link Network. The Lutron’s

network line (refer to the following table) is not compatible with the CRESTRON

network line; do not connect to each other.

Description of Lutron Network Lines

LUTRON DESCRIPTION

MUX* DATA- Line

MUX DATA+ Line

+V Voltage Line

COM Ground

Operations Guide - Doc. 5694 Lutron Interface •3

CRESTRON

ST-LT Indicators

There are seven LED indicators located on the front panel of the ST-LT. Refer to

illustration and descriptions below.

ST-LT Indicators

PWR (Power)

This LED illuminates when 12 volts (from power packs) or 24 volts DC (from

network) is supplied to the ST-LT.

NET

This LED remains illuminated when communication between either the SmarTouch

STS or CRESNET II remote control system and the ST-LT is established.

Illumination indicates that the SIMPL program currently loaded has a network

device defined at the same ID as the ST-LT.

CRESTRON SND

This LED flashes when the ST-LT sends a command to the Lutron Mux Link

Network.

CRESTRON RCV

This LED flashes when the ST-LT receives a command from the Lutron Mux Link

Network.

LUTRON CMD

This LED illuminates when the Lutron Mux Link Network receives a command

from the CRESNET II System via the ST-LT. Once the command is completed, the

LED extinguishes.

LUTRON POLL

This LED illuminates when Lutron Mux Link polling occurs.

LUTRON PWR

This LED illuminates when voltage is supplied from the Lutron Mux Link Network.

4 •Lutron Interface Operations Guide - Doc. 5694

CRESTRON

Leading Specifications

The table below provides a summary of leading specifications for the ST-LT

module. Dimensions and weight are approximations rounded to the nearest

thousandth unit.

Leading Specifications of the ST-LT

SPECIFICATION DETAILS

Power Requirements 12 or 24 VDC

Power Factor 2.5 Watts

CRESNET II Workshop Version 5.24 or later

SIMPL Compiler 3.18.04 or later

CRESNET II Operating System 3.17.31 or later

SmarTouch Operating System Any

STS VisionToolsTM for Windows (STS/VTW) Version 10.7 or later

STS Database Version 10.7.100.02 or later

Dimensions & Weight Height: 1.700 in (4.318 cm)

Width: 7.066 in (17.948 cm)

Depth: 6.322 in (16.058 cm)

Weight: 2.100 lb (0.953 kg)

As of the date of manufacture, the unit has been tested and found to comply with

specifications for CE marking.

Setup

Identity Code

Every equipment and user interface within the CRESNET II requires a unique

identity code (NET ID). These codes are recognized by a two-digit hexadecimal

number from 03 to FE. The NET ID of each unit must match an ID CODE specified

in the “NET.ID” statement of the CRESNET II SIMPL-I program in order for the

device to be addressed properly. The NET ID of each ST-LT has been factory set to

1C, but may be changed from the PC via STS/VTW software or the CRESNET II

Workshop.

Change NET ID via STS/VTW Software

Attach the ST-LT to SmarTouch STS or CRESNET II system (verify that the

STS/VTW software is running) and complete the following steps to change the NET

ID.

1. Disconnect all network devices from the CRESNET II network or

modular devices from the STS system, except for the one ST-LT that

needs to have its NET ID code changed.

2. Select ViewPort from the Tools pull-down menu to open the “Crestron

Performance Viewport” dialog box.

3. Select Set Network ID from the Options pull-down menu. The software

checks the baud rate and then opens the “Set Network ID” dialog box.

Operations Guide - Doc. 5694 Lutron Interface •5

CRESTRON

4. Notice the list of current network devices in the dialog box. Highlight

the ST-LT.

5. The factory set NET ID of the ST-LT (1C) appears in the dialog box.

Use the scroll arrow to assign the new NET ID.

6. When the newly assigned NET ID appears, select the Set ID button to

initiate the change.

7. The software responds with a successful message to confirm the new

NET ID.

8. To verify this procedure, select Report Network Devices from the

Options pull-down menu. Confirm that the ST-LT has the new NET ID

code.

9. Reconnect other network or modular devices that were disconnected in

step 1.

Change NET ID via CRESNET II Workshop (Workshop v5.20

or later and OPS version 3.16.11 or higher required)

Attach ST-LT to CRESNET II system (verify that the workshop is open and

running) and complete the following steps to change the NET ID.

1. Disconnect all network devices from the CRESNET II network or

modular devices from the STS system, except for the one ST-LT that

needs to have its NET ID code changed.

2. Highlight performance Viewport from the UTILITIES MENU of the

CRESNET II Workshop.

3. Depress the key combination ALT-I. The Workshop responds with the

screen shown below and requests the old NET ID code for the ST-LT

Changing the NET ID - ST-LT Workshop Screens (1 of 3)

4. Enter the old NET ID code (in two-digit hexadecimal format) and

depress ENTER. The Workshop responds with the screen shown after

this step and requests a new NET ID code for the ST-LT.

6 •Lutron Interface Operations Guide - Doc. 5694
