Crestron ULTIMATE IC6-W-T-EACH Bedienungsanleitung

The Crestron® Ultimate speakers ULTIMATE IC6-W-T-EACH and

ULTIMATE IC8-W-T-EACH made by Origin Acoustics deliver the pinnacle

of performance for demanding residential installations. Select

materials, top shelf components and a high-end appearance underscore

the design behind each model. The result is a complete line of in-ceiling

speakers suitable for installation in luxury residential applications,

restaurants, retail spaces, universities, and office buildings.

In the Box

1 Ultimate 2-Way In-ceiling Speaker (6511842 or 6511843)

 

Additional Items

1 Bayonet Ring

1 Cutout Template

1 Grille

Installation

Prepare the Mounting Hole

Before finalizing the speaker location, check to make sure there are no

fixtures, pipes, air ducts, joists, or other possible obstructions. If

applicable, use a good quality stud finder to locate joists. If there are no

obstructions, use the supplied template to trace an outline of the

mounting hole.

To identify obstructions, do the following:

lUse a drywall saw to cut a small hole at a 45° angle. An angle cut

simplifies repair since the removed piece can be reinserted to help

plug the hole.

lUse a piece of stiff wire, bent into an L shape, with one end long

enough to explore an area equal to the size of the speaker. Insert the

wire into the hole, make sure it rotates freely in a complete circle and

that there is sufficient depth.

If there are no obstructions, use the supplied template to trace outlines

of the mounting hole on the ceiling. Cut the final mounting hole at a 90°

angle to the ceiling.

NOTE: Unless otherwise indicated in this guide, the procedures for

installing the Crestron Ultimate speakers ULTIMATE IC6-W-T-EACH

and ULTIMATE IC8-W-T-EACH are same.

ULTIMATE IC6-W-T-EACH and ULTIMATE IC8-W-T-EACH QuickStart

Ultimate 2-Way In-Ceiling Speakers, White Textured, Single

Paint the Speaker Grille

Painting the speaker grille should be done prior to mounting.

1. Carefully remove the thin cloth on the underside of the grille, and set

it aside for re-installation.

2. Lightly spray paint the front of the grille from a distance. Be careful

not to plug any of the holes.

3. Once the paint is dry, put the cloth back on the underside of the grille.

Install the Bayonet Ring

The bayonet ring features a metal lock to ensure the correct installation

of the loudspeaker. Out of the box, the lock will be in its closed position.

1. Open the lock tab to its unlocked position to remove the speaker

from the ring.

2. Push the metal release tabs on the inside of the rails and pull the clips

to the top of the rails.

NOTE: Out of the box, the clips are positioned at top of rails.

3. Insert the bayonet ring into the hole in the ceiling by gently bending

the rails inward.

NOTES:

lEnsure the bayonet ring rails are properly bent and inserted into

the ceiling hole to avoid damaging the bayonet ring rails.

lThe length of the bayonet ring rails can be adjusted by breaking

them off to match the depth of the mounting hole. Ensure the

clips are tightened before you do so.

4. Reach inside the bayonet ring and pull the clips down so that the

bayonet ring is firmly in place, but not too tight. If the bayonet ring

needs to be removed, reach inside and push the release tabs to reset

the clips and the bayonet ring can now be taken out.

ULTIMATE IC6-W-T-EACH and ULTIMATE IC8-W-T-EACH QuickStart

Ultimate 2-Way In-Ceiling Speakers, White Textured, Single

Install the Speaker Cable

Run the speaker cable (not included) from the audio source to the

speaker location, observing all appropriate local codes. Strip the ends of

the speaker cable approximately 0.25 in. to 0.50 in. (~6 mm to ~12 mm)

and twist the strands.

Connect the Speaker Cable

Connect the speaker cable (not included) to the spring terminals by

pressing the top of the terminals down and inserting the exposed

strands into the hole. Make sure that the positive wire is attached to the

red connection, and the negative wire is attached to the black

connection.

Mount/Remove the Speaker

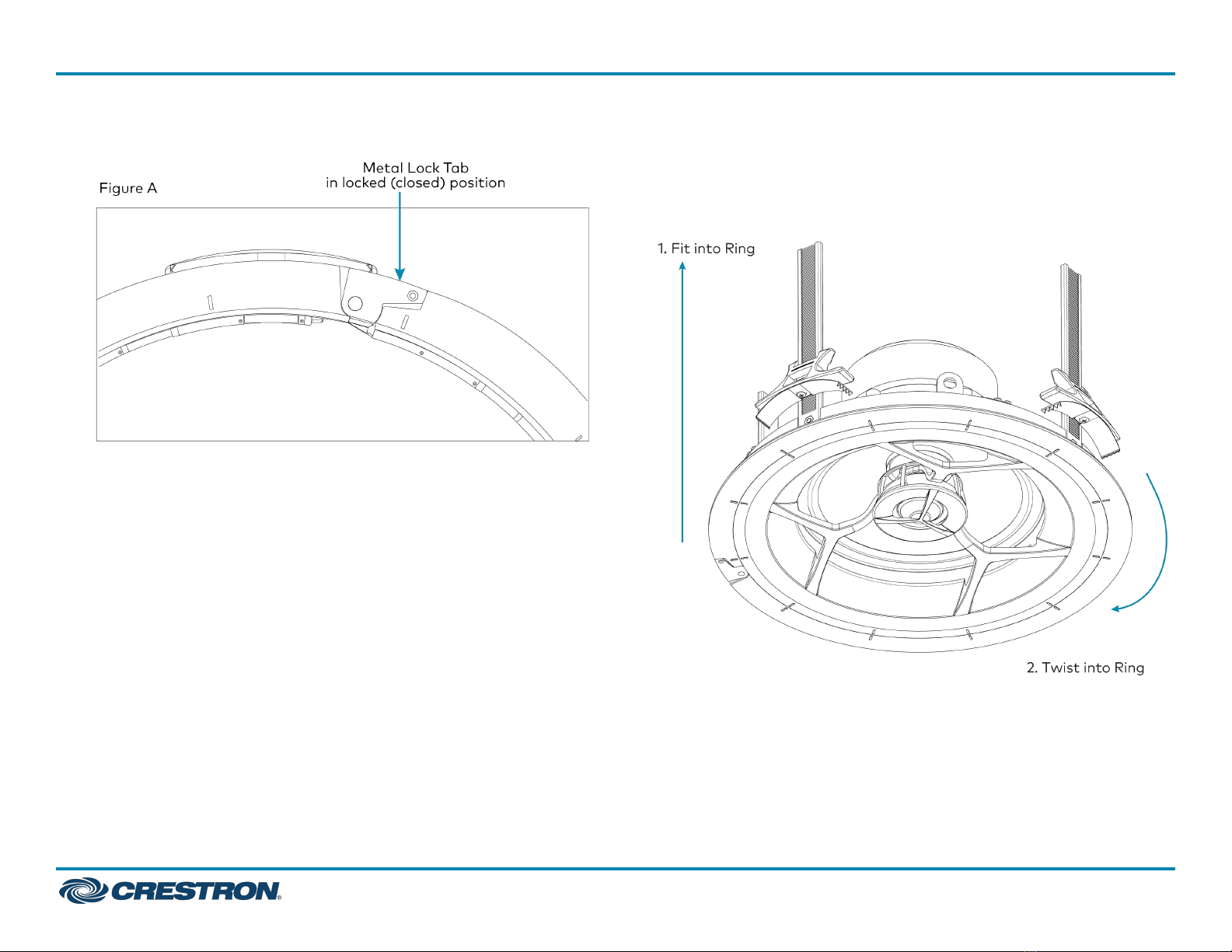

1. Fit the speaker into the bayonet ring. Then twist the speaker about 15

degrees clockwise into place. When the speaker is properly seated,

the indicators on the ring and the speaker line up.

NOTE: The indicators must line up to ensure the speaker is properly

seated. The speaker must be properly seated, or the metal lock tab

will not lock.

ULTIMATE IC6-W-T-EACH and ULTIMATE IC8-W-T-EACH QuickStart

Ultimate 2-Way In-Ceiling Speakers, White Textured, Single

2. Push the metal lock tab to its locked (closed) position (see Figure A). ULTIMATE IC6-W-T-EACH

ULTIMATE IC6-W-T-EACH and ULTIMATE IC8-W-T-EACH QuickStart

Ultimate 2-Way In-Ceiling Speakers, White Textured, Single

ULTIMATE IC8-W-T-EACH 3. To uninstall the speaker, pull the metal lock tab to its unlocked (open)

position (see Figure B) and twist the speaker counterclockwise.

ULTIMATE IC6-W-T-EACH and ULTIMATE IC8-W-T-EACH QuickStart

Ultimate 2-Way In-Ceiling Speakers, White Textured, Single

Visit the Product Page

Scan the QR code to visit the product page.

ULTIMATE IC6-W-T-EACH

https://www.crestron.com/model/6511842



ULTIMATE IC8-W-T-EACH

https://www.crestron.com/model/6511843



Additional Information



Original Instructions

The U.S. English version of this document is the original instructions.

All other languages are a translation of the original instructions.

Regulatory Model: M202046006

Crestron product development software is licensed to Crestron dealers and Crestron

Service Providers (CSPs) under a limited nonexclusive, nontransferable Software

Development Tools License Agreement. Crestron product operating system software is

licensed to Crestron dealers, CSPs, and end-users under a separate End-User License

Agreement. Both of these Agreements can be found on the Crestron website at

www.crestron.com/legal/software_license_agreement.

The product warranty can be found at www.crestron.com/warranty.

The specific patents that cover Crestron products are listed at

www.crestron.com/legal/patents.

Certain Crestron products contain open source software. For specific information, visit

www.crestron.com/opensource.

Crestron and the Crestron logo are either trademarks or registered trademarks of

Crestron Electronics, Inc. in the United States and/or other countries. Origin Acoustics is

either a trademark or registered trademark of Origin Acoustics, Inc. in the United States

and/or other countries. Other trademarks, registered trademarks, and trade names may

be used in this document to refer to either the entities claiming the marks and names or

their products. Crestron disclaims any proprietary interest in the marks and names of

others. Crestron is not responsible for errors in typography or photography.



Doc. 9036A

06/29/21

ULTIMATE IC6-W-T-EACH and ULTIMATE IC8-W-T-EACH QuickStart

Ultimate 2-Way In-Ceiling Speakers, White Textured, Single
