Crestron CEN-SWPOE-16 Bedienungsanleitung

Crestron CEN-SWPOE-16

16-Port Managed PoE Switch

Operations Guide

The specific patents that cover Crestron products are listed at patents.crestron.com.

Crestron, the Crestron logo, Crestron Studio, Crestron Toolbox, and DigitalMedia 8G are either trademarks or registered trademarks of Crestron

Electronics, Inc. in the United States and/or other countries. UL and the UL logo, are either trademarks or registered trademarks of Underwriters

Laboratories, Inc. in the United States and/or other countries. Other trademarks, registered tramemarks and trade names may be used in this document

to refer to either the entities claiming the marks and names or their products. Crestron disclaims any proprietary interest in the marks and names of

others Crestron is not responsible for errors in typography or photography.

This document was written by the Technical Publications department at Crestron.

Regulatory Compliance

This product is Listed to applicable UL Standards and requirements by Underwriters Laboratories Inc.

As of the date of manufacture, the CEN-SWPOE-16 has been tested and found to comply with specifications

for CE marking and standards per EMC and Radiocommunications Compliance Labelling.

Federal Communications Commission (FCC) Compliance Statement

CAUTION: Changes or modifications not expressly approved by the manufacturer responsible for

compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or television reception,

which can be determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

•Reorient or relocate the receiving antenna

•Increase the separation between the equipment and receiver

•Connect the equipment into an outlet on a circuit different from that to which the receiver is connected

•Consult the dealer or an experienced radio/TV technician for help

Industry Canada (IC) Compliance Statement

CAN ICES-3(B)/NMB-3(B)

Crestron CEN-SWPOE-16 16-Port Managed PoE Switch

Operations Guide – DOC. 7408B Contents

•

Contents

16-Port Managed PoE Switch: CEN-SWPOE-16 1

Introduction ............................................................................................................................... 1

Features and Functions ................................................................................................1

Specifications ..............................................................................................................2

Physical Description....................................................................................................3

Setup .......................................................................................................................................... 6

Network Wiring........................................................................................................... 6

CAT5 Wiring............................................................................................................... 6

Installation ................................................................................................................... 6

Hardware Hookup ....................................................................................................... 9

Configuration........................................................................................................................... 10

Accessing the Configuration Utility .......................................................................... 10

Navigating the Configuration Utility......................................................................... 13

Problem Solving ...................................................................................................................... 21

Troubleshooting......................................................................................................... 21

Reference Documents................................................................................................ 21

Further Inquiries ........................................................................................................ 21

Future Updates .......................................................................................................... 21

Appendix: Fast Ethernet and Gigabit Ethernet ....................................................................... 22

About Fast Ethernet................................................................................................... 22

About Gigabit Ethernet.............................................................................................. 22

Return and Warranty Policies .................................................................................................. 23

Merchandise Returns / Repair Service ...................................................................... 23

Crestron Limited Warranty........................................................................................ 23

Crestron CEN-SWPOE-16 16-Port Managed PoE Switch

Operations Guide – DOC. 7408B 16-Port Managed PoE Switch: CEN-SWPOE-16

•

•Rack-mount 16-port managed 10/100 Ethernet switch

•All ports support 1000BASE-T Gigabit Ethernet

•Provides full PoE (802.3at Type 1) on all ports simultaneously

•Also supports PoE+ (802.3at Type 2) powered devices

•Provides up to 34.2 watts per port, 255 watts total

•PoE switchable per port via a control system

•Auto-negotiating and auto MDI/MDIX

•Layer 2 managed switching functionality

16-Port Managed PoE Switch:

CEN-SWPOE-16

Introduction

The CEN-SWPOE-16 offers control system networking made easy, providing

Crestron®guaranteed performance and reliability for a complete Ethernet network of

touch screens, control processors, servers, and other devices in a single-space rack

mount package. All 16 ports are gigabit capable to ensure maximum bandwidth for

multimedia and critical control data. All ports are located on the rear of the unit

while the front panel provides clear indication of each port’s status, providing an

ideal form factor for use in a typical 19” AV equipment rack. Customizable front

panel labeling makes it easy to designate each port with a friendly, descriptive name.

Power over Ethernet (PoE) is furnished simultaneously across all 16 ports, providing

a centralized power source for numerous PoE powered devices and eliminating the

need for cumbersome power supplies and extra wiring. The CEN-SWPOE-16

provides full PoE (802.3at Type 1) from all 16 ports simultaneously. It also supports

PoE+ (802.3at Type 2) from any port, delivering a maximum of 34.2 watts per port

up to a total of 255 watts for all ports. PoE at each port can be switched on and off

via a Crestron control system allowing equipment to be shut down to save power

when not needed.

Advanced configuration of the CEN-SWPOE-16 is enabled through an intuitive Web

browser interface. Port mirroring capability allows for monitoring and

troubleshooting.

Features and Functions

(Continued on following page)

16-Port Managed PoE Switch Crestron CEN-SWPOE-16

•

16-Port Managed PoE Switch: CEN-SWPOE-16 Operations Guide – DOC. 7408B

•Port configuration settings for speed and duplex

•LLDP (Link Layer Discovery Protocol) support

•Port mirroring capability

•32 Gbps switching fabric (non-blocking)

•Configured via simple-to-use Web browser interface

•Customizable front panel labeling

•AV friendly, single-space rack-mount design

Features and Functions

(Continued)

Specifications

Specifications for the CEN-SWPOE-16 are listed in the following table.

CEN-SWPOE-16 Specifications

SPECIFICATION DETAILS

Ethernet

Ports (16) 10/100/1000BASE-T auto-sensing

Gigabit Ethernet with PoE

Network Standards IEEE 802.3, 802.3u, 802.3ab, 802.3bc,

802.3af, 802.3at

Transmission Method Store-and-Forward

Mac Addresses Up to 4 k addresses

Switch Fabric 32 Gbps non-blocking

Power Requirements 3.5-1.6 amps @ 100-240 Vac,

50/60 Hz 1, 2

Environmental

Installation Location Indoor use only

Temperature 32° to 104° F (0° to 40° C)3

Humidity 10% to 90% RH (non-condensing)

Heat Dissipation 171 Btu/h

Enclosure

Chassis Metal, black finish, fan cooled, vented sides

Faceplate Metal, black finish with polycarbonate label

overlay

Mounting Freestanding or 1U 19-inch rack

mountable4, 5 (adhesive feet and rack ears

included)

Dimensions

Height 1.73 in (44 mm)

Width 17.28 in (439 mm)

19.00 in (483 mm) with ears

Depth 10.06 in (256 mm)

Weight 6.4 lb (2.9 kg)

(Continued on following page)

Crestron CEN-SWPOE-16 16-Port Managed PoE Switch

Operations Guide – DOC. 7408B 16-Port Managed PoE Switch: CEN-SWPOE-16

•

CEN-SWPOE-16 Specifications (Continued)

SPECIFICATION DETAILS

Available Accessories

CBL-CAT5E-P-50

Ethernet LAN Cable, Plenum, 50 ft

DM-CBL-8G-NP-SP500

DigitalMedia 8G™ Cable, non-plenum

DM-CBL-8G-P-SP500 DigitalMedia 8G Cable, plenum

DM-8G-CONN-100

DigitalMedia 8G Cable Connector,

100-Pack

DM-8G-CRIMP

Crimping Tool for DM-8G-CONN

MP-WP183-[A,B,W]

Media Presentation Wall Plate – Ethernet

MPI-WP183-[120,122] Media Presentation Wall Plate –

International Version – Ethernet

1. Consideration should be given to the connection of the equipment to the supply circuit and the effect

that overloading of the circuits might have on over current protection and supply wiring. Appropriate

consideration of equipment nameplate ratings should be used when addressing this concern.

2. Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be

given to supply connections other than direct connections to the branch circuit (for example, use of

power strips).

3. If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack

environment may be greater than room ambient temperature. Therefore, consideration should be given

to installing the equipment in an environment compatible with the maximum ambient temperature

specified by the manufacturer.

4. Installation of the equipment in a rack should be such that the amount of air flow required for safe

operation of the equipment is not compromised.

5. Mounting of the equipment in the rack should be such that a hazardous condition is not achieved due

to uneven mechanical loading.

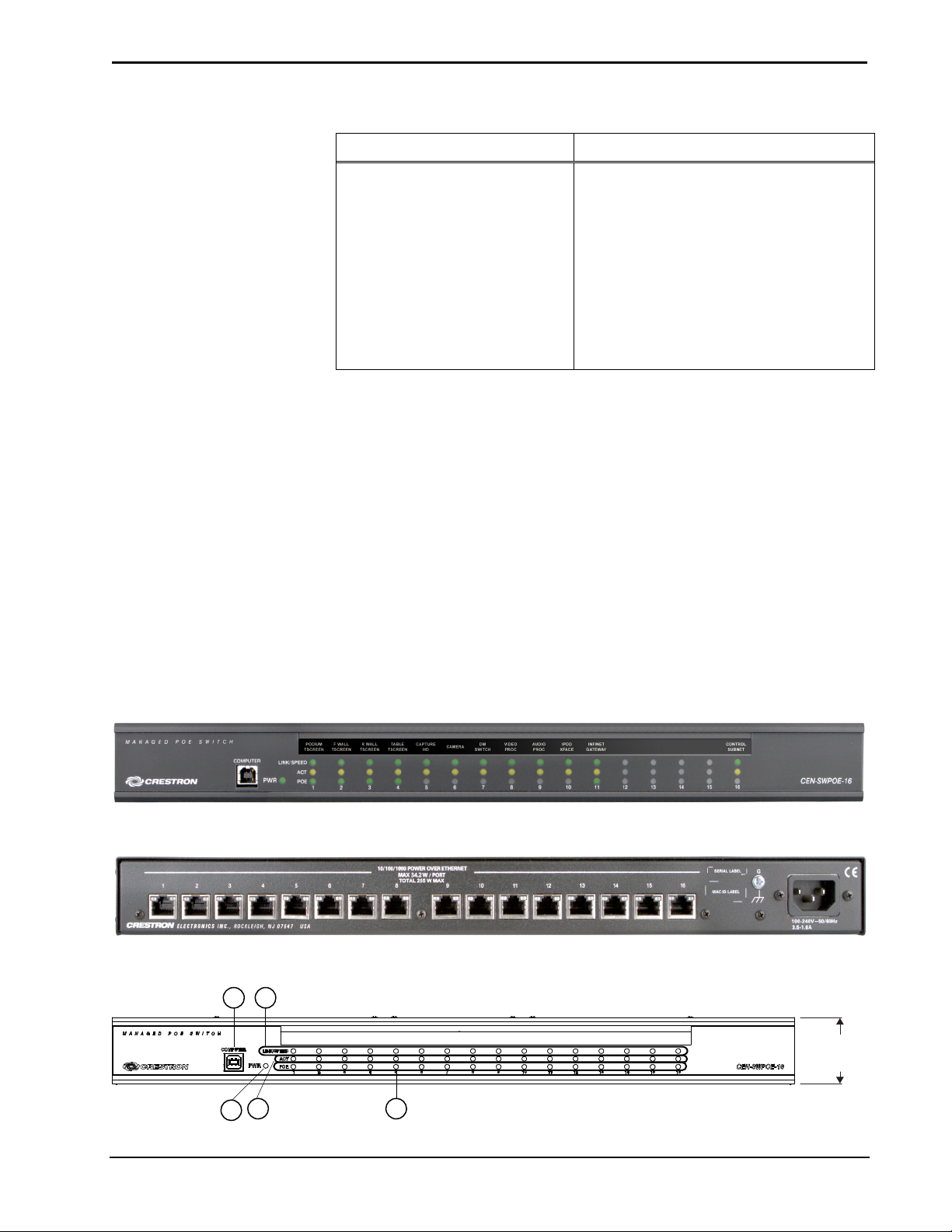

Physical Description

This section provides information on the connections, controls and indicators

available on the CEN-SWPOE-16.

CEN-SWPOE-16 Physical View (Front View)

CEN-SWPOE-16 Physical View (Rear View)

CEN-SWPOE-16 Overall Dimensions (Front View)

1 2

1.70 in

(44 mm)

16-Port Managed PoE Switch Crestron CEN-SWPOE-16

•

16-Port Managed PoE Switch: CEN-SWPOE-16 Operations Guide – DOC. 7408B

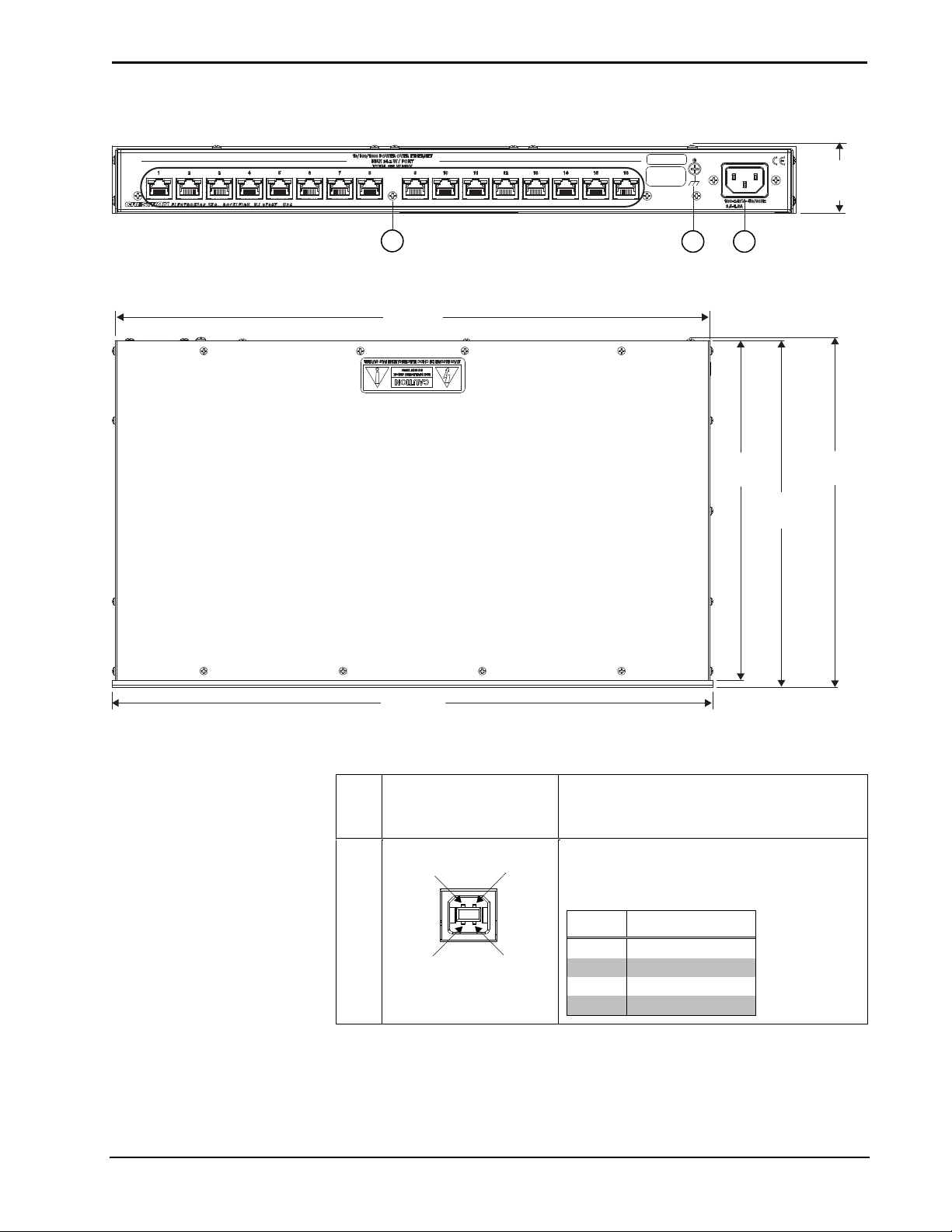

CEN-SWPOE-16 (Rear View)

1.73 in

(44 mm)

CEN-SWPOE-16 Overall Dimensions (Top View)

17.11 in

(435 mm)

17.28 in

(439 mm)

10.06 in

(256 mm)

9.97 in

(254 mm)

9.78 in

(249 mm)

Connectors, Controls & Indicators

# CONNECTORS,

CONTROLS &

INDICATORS

DESCRIPTION

1 COMPUTER

Pin 4 Pin 3

Pin 2Pin 1

(1) USB Type B female;

USB computer console port (6 ft cable

included);

For setup only

PIN DESCRIPTION

1 +5 Vdc

2 Data -

3 Data +

4 Ground

(Continued on following page)

Crestron CEN-SWPOE-16 16-Port Managed PoE Switch

Operations Guide – DOC. 7408B 16-Port Managed PoE Switch: CEN-SWPOE-16

•

Connectors, Controls & Indicators (Continued)

# CONNECTORS,

CONTROLS &

INDICATORS

DESCRIPTION

2 LINK/SPEED (1 – 16)

LEDs

(16) Green/yellow dual-color LEDs, indicate

Ethernet link status and speed for each

corresponding port. Yellow indicates a 1000

Mbps connection, green indicates a 100

Mbps connection, and off indicates a 10

Mbps connection

3 PWR LED (1) Green LED, indicates operating power

supplied via main power input

4 ACT (1 – 16)

LEDs

(16) Blinking yellow LEDs, indicate Ethernet

activity for each corresponding port

5 POE (1 – 16)

LEDs

(16) Green LEDs, indicate PoE is active and

a PoE powered device is connected to each

corresponding port

6 10/100/1000 POWER

OVER ETHERNET*

(1 – 16)

LED LED

Pin 8Pin 1

(16) 8-wire RJ-45, female;

10/100/1000BASE-T Ethernet ports and PoE

Power Sourcing Equipment (PSE) outputs;

Support IEEE 802.3at Type 1 PoE, Class 0-3

(15.4 W) power sourcing at all ports

simultaneously;

Support IEEE 802.3at Type 2 PoE+, Class 4

(34.2 W) power sourcing from any ports up to

the maximum specified power capabilities;

Maximum 34.2 watts per port, 255 watts total

Left green/amber dual-color LEDs indicate

Ethernet link status and speed for each

corresponding port;

Right amber LEDs indicate Ethernet activity

for each corresponding port

PIN SIGNAL PIN SIGNAL

1 BI_DA+ 5 BI_DC-

2 BI_DA- 6 BI_DB-

BI_DB+

BI_DD+

4 BI_DC+ 8 BI_DD-

7 G (1) 6-32 screw, chassis ground lug

8 100-240V~50/60Hz

3.5-1.6A

(1) IEC C14 male chassis plug, main power

input;

Mates with removable power cord, included

* Ethernet interfaces connected to these ports are for intra-building use only and should not be

connected to lines that run outside of the building in which the PoE switch is located.

16-Port Managed PoE Switch Crestron CEN-SWPOE-16

•

16-Port Managed PoE Switch: CEN-SWPOE-16 Operations Guide – DOC. 7408B

Setup

Network Wiring

When wiring the Ethernet network, consider the following:

•Use Crestron Certified Wire.

•Use Crestron power supplies for Crestron equipment.

•Provide sufficient power to the system.

CAUTION: Insufficient power can lead to unpredictable results or damage

to the equipment. Please use the Crestron Power Calculator to help calculate

how much power is needed for the system (www.crestron.com/calculators).

CAT5 Wiring

Category 5 (CAT5) wiring is a twisted pair cable designed for Ethernet networks.

These networks operate at speeds of up to 1000 megabits per second (Mbps) using

the 1000BASE-T standard. For more information refer to “Appendix: Fast Ethernet

and Gigabit Ethernet” on page 22.

For additional information, refer to the latest version of the Crestron CAT5 Wiring

Reference Guide (Doc. 6137), which is available from the Crestron Web site

(www.crestron.com/manuals).

Installation

NOTE:If power needs to be removed from this product, the power cord must be

disconnected; therefore, the socket-outlet must be installed near the equipment and

must be easily accessible.

Ventilation The CEN-SWPOE-16 should be used in a well-ventilated area. The venting holes

should not be obstructed under any circumstances.

To prevent overheating, do not operate this product in an area that exceeds the

environmental temperature range listed in the table of specifications. Consider using

forced air ventilation and/or incrementing the spacing between units to reduce

overheating. Consideration must be given if installed in a closed or multi-unit rack

assembly since the operating ambient temperature of the environment may be greater

than the room ambient temperature. Contact with thermal insulating materials should

be avoided on all sides of the unit.

NOTE: Installation of the equipment in a rack should be such that the amount of air

flow required for safe operation of the equipment is not compromised.

Rack Mounting The CEN-SWPOE-16 can be mounted in a rack or stacked with other equipment.

Two “ears” are provided with the CEN-SWPOE-16 so that the unit can be rack

mounted. These ears must be installed prior to mounting. Complete the following

procedure to attach the ears to the unit. The only tool required is a #1 or #2 Phillips

screwdriver.

Andere Handbücher für CEN-SWPOE-16

Inhaltsverzeichnis

Andere Crestron Schalten Handbücher

Crestron

Crestron DigitalMedia DM-MD64X64 Bedienungsanleitung

Crestron

Crestron GREEN LIGHT GLPX-HSW-FT Bedienungsanleitung

Crestron

Crestron QM-WMC Anleitung zur Verwendung

Crestron

Crestron DM NVX Director DM-NVX-DIR Series Bedienungsanleitung

Crestron

Crestron Prodigy P-LSWEX Bedienungsanleitung

Crestron

Crestron DigitalMedia DM-MD8X8-CPU3 Bedienungsanleitung

Crestron

Crestron CLW-DIM1 Bedienungsanleitung

Crestron

Crestron HDI-TX-301-C-2G-E Maßzeichnung

Crestron

Crestron ZUM-FLOOR-HUB Maßzeichnung

Crestron

Crestron DM NVX Series Bedienungsanleitung

Crestron

Crestron CLW-SLVS1W Bedienungsanleitung

Crestron

Crestron HD-TX-201-C-2G-E Maßzeichnung

Crestron

Crestron DigitalMedia XiO Director DM-XIO-DIR-ENT Bedienungsanleitung

Crestron

Crestron C2N-MMS Bedienungsanleitung

Crestron

Crestron Green Light GL-IPAC-SW8 Bedienungsanleitung

Crestron

Crestron DigitalMedia DM-MD64X64 Maßzeichnung

Crestron

Crestron 8x8 DigitalMedia DM-MD8X8 Bedienungsanleitung

Crestron

Crestron 8x8 DigitalMedia DM-MD8X8 Bedienungsanleitung

Crestron

Crestron CNX-PVID8x3 Bedienungsanleitung

Crestron

Crestron DigitalMedia DM-MD8X8-CPU3 Bedienungsanleitung

Crestron

Crestron DM Lite HD(I)-MD Series Betriebsanleitung

Crestron

Crestron CNX-PVID8x4 Bedienungsanleitung

Crestron

Crestron CLX-4HSW4 Bedienungsanleitung

Crestron

Crestron CLW-SLVS1 Bedienungsanleitung

Beliebte Schalten Handbücher anderer Marken

URC

URC Total Control MFS-8 Bedienungsanleitung

Azbil

Azbil HPQ-D11 Bedienungsanleitung

Sony

Sony DFS-900M Bedienungsanleitung

SICK

SICK i17S Bedienungsanleitung

F&F

F&F SZR-277 Bedienungsanleitung

Shure

Shure UAMS/BK Bedienungsanleitung

Dräger

Dräger X-zone Switch Off Bedienungsanleitung

Asco

Asco Joucomatic 349 Series Bedienungsanleitung

BT Mini Hub Bedienungsanleitung

D-Link

D-Link DES-1226G Bedienungsanleitung

Johnson Controls

Johnson Controls FS80-C Bedienungsanleitung

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Bedienungsanleitung

MicroNet

MicroNet SP1200A Bedienungsanleitung

Ruijie

Ruijie RG-PF2920 Series Installations- und Betriebsanleitung

Altinex

Altinex DA1914SX Bedienungsanleitung

MiLAN

MiLAN MIL-SM2401M Bedienungsanleitung

RJM

RJM MASTERMIND PBC/6X Bedienungsanleitung

Atlas

Atlas MMK-KVM8 Bedienungsanleitung
