TSW-750
7” Touch Screen
crestron.com |800.237.2041
>Ultra clean, modern appearance
>Thin profile and small footprint
>Affordable and easy to install
>7” widescreen active-matrix color display
>800 x 480 WVGA display resolution
>Capacitive touch screen technology
>Smart Graphics™support[1]
>High-performance H.264 streaming video
>Rava™SIP intercom and phone technology
>Customizable audio feedback
>Built-in microphone and speakers
>5 soft-touch capacitive buttons
>Single-wire Ethernet connectivity
>PoE network powered
>Standard electrical wall box mounting[4]
>Additional wall mounting options available[2]
>Available tabletop and swivel mount options[2]
>Available in smooth black or white finish
Advanced Touch Screen Control
A Crestron®touch screen offers an ideal user-interface for controlling
all the technology in your home, boardroom, classroom, courtroom, or
command center. Touch screens do away with piles of remote controls,
cluttered wall switches, and cryptic computer screens, simplifying and
enhancing the way you use technology. For controlling audio, video,
lighting, shades, HVAC, security, and other systems, Crestron touch screens
are fully-customizable with easy-to-use controls and icons, true feedback
and real-time status display, live streaming video, and advanced navigation
of digital media servers, tuners, and other devices.
With its clean, contemporary design highlighted by edge-to-edge glass and
stunning color graphics, the Crestron TSW-750 touch screen makes an
elegant statement on any wall, tabletop or lectern. Perfectly at home in the
most contemporary residence or modern office building, its high-tech good
looks underline its power for simplifying everyday tasks and functions
throughout any facility.
The TSW-750 delivers the ultimate touch screen experience in an
unobtrusive, space-saving design featuring a brilliant 7 inch capacitive
touch screen display and 5 soft-touch buttons. PoE connectivity and a
range of mounting options make installation a breeze for both new and
retrofit applications. Additional features include high-performance H.264
video, audio feedback, Rava™SIP Intercom, and advanced
Smart Graphics™.
Smart Graphics™[1]
Crestron touch screens use Smart Graphics to deliver the ultimate
user experience and the ultimate value by enabling the creation of
dynamically rich user interfaces with incredible efficiency and unparalleled
functionality. Using Smart Graphics, programmers can swiftly integrate
fluid gesture-driven controls, animated feedback, metadata, embedded
apps, and full-motion video for a deeply engaging and ultra-intuitive touch
screen experience.
Crestron Smart Graphics include the following enhancements:
•Cool-looking graphical buttons, sliders, knobs, and gauges are intuitive
and fun to use.
•Kinetic effects enhance the feeling of realism with lists and toolbars
that scroll with momentum at the flick of a fingertip.
•Drag-and-drop objects snap into place offering an easy way to
switch sources.
•Dashboard widgets personalize the touch screen with clocks, weather,
news, and other information.
•Customizable themes allow a completely different look and feel for
every user, event, or season.
•Fully-developed SmartObjects™enable sophisticated control over
complex devices with minimal programming.
Soft-Touch Buttons
The TSW-750 includes five soft-touch capacitive buttons for quick access
to commonly used functions. The buttons are pre-labeled with icons for
“Power”, “Home”, “Lights”, “Up”, and “Down” functions. Each button is
programmable via the control system for custom functionality.
Streaming Video
High-performance streaming video capability makes it possible to view
security cameras and other video sources right on the touch screen. Native
support for H.264 and MJPEG formats allows the TSW-750 to display live
streaming video from an IP camera, a streaming server (Crestron
CEN-NVS200 or similar[2]), a DigitalMedia™switcher, or a Capture HD®
system. Video is delivered to the touch screen over Ethernet, eliminating
the need for any extra video wiring.
TSW-750 7” Touch Screen
crestron.com |800.237.2041
Rava™SIP Intercom
Rava SIP Intercom Technology enables hands-free VoIP communication
between any two Rava-enabled Crestron touch screens. Rava works
over Ethernet, supporting 2-way intercom, video intercom[3], and paging
without any special wiring. VoIP phone capability is also possible through
integration with an SIP-compatible IP phone system or SIP server, allowing
hands-free telephone functionality complete with speed-dialing, caller ID,
custom ringers, and other enhancements. Built-in echo cancellation affords
true-duplex performance for clear, seamless voice communication using
the TSW-750’s integrated microphone and speakers.
Audio Feedback
Customized audio files can be loaded to add another dimension to the
touch screen graphics using personalized sounds, button feedback, and
voice prompts.
Single-Wire Connectivity
A simple Ethernet LAN connection is all that is required to wire the
TSW-750, containing all control, video, intercom, and power signals within
a single wire.
Power over Ethernet
Using PoE technology, the TSW-750 gets its operating power right through
the LAN wiring. PoE (Power over Ethernet) eliminates the need for a local
power supply or any dedicated power wiring. A PoE Injector
(PWE-4803RU[2]) simply connects in line with the LAN cable at a
convenient location. Crestron PoE switches (CEN-SW-POE-5,
CEN-SWPOE-16, or CEN-SWPOE-24[2]) may also be used to provide a
total networking solution with built-in PoE.
Simple, Versatile Mounting
Using the bracket provided, the TSW-750 installs easily over a 2-gang or
3-gang electrical box, or a 2-gang European electrical box. It can also be
attached directly to drywall and other surfaces over the front of a 2-3/8”
H x 3-3/8” W (60mm H x 86mm W) cutout. When installed, it protrudes
just 1/2 inch from the mounting surface and is magnetically adhered to its
mounting bracket, eliminating any visible screws for an ultra
clean appearance.[4]
Crestron also offers the TSW-UMB Universal Mounting Bracket[2],
which provides a post-construction wall mounting solution that can
accommodate a variety of current and future Crestron devices including
the TSW-750. The TSW-UMB makes it easy to change devices at any time
without having to cut or patch the wall, or order any additional mounting
hardware. For a pre-construction mounting solution, the TSW-UMB can
be used along with a TSW-UMB-PMK Pre-Construction Mounting Kit[2].
Masonry and concrete applications can be accommodated using the
TSW-UMB along with a TSW-550-BBI back box[2].
Replacing an older Crestron touch screen with a new TSW-750 can be
made simple using a TSW-RMB Retrofit Mounting Bracket. A variety of
adapter brackets are available to enable easy installation of the TSW-750
right over the existing back box, mounting kit, or cut-out.

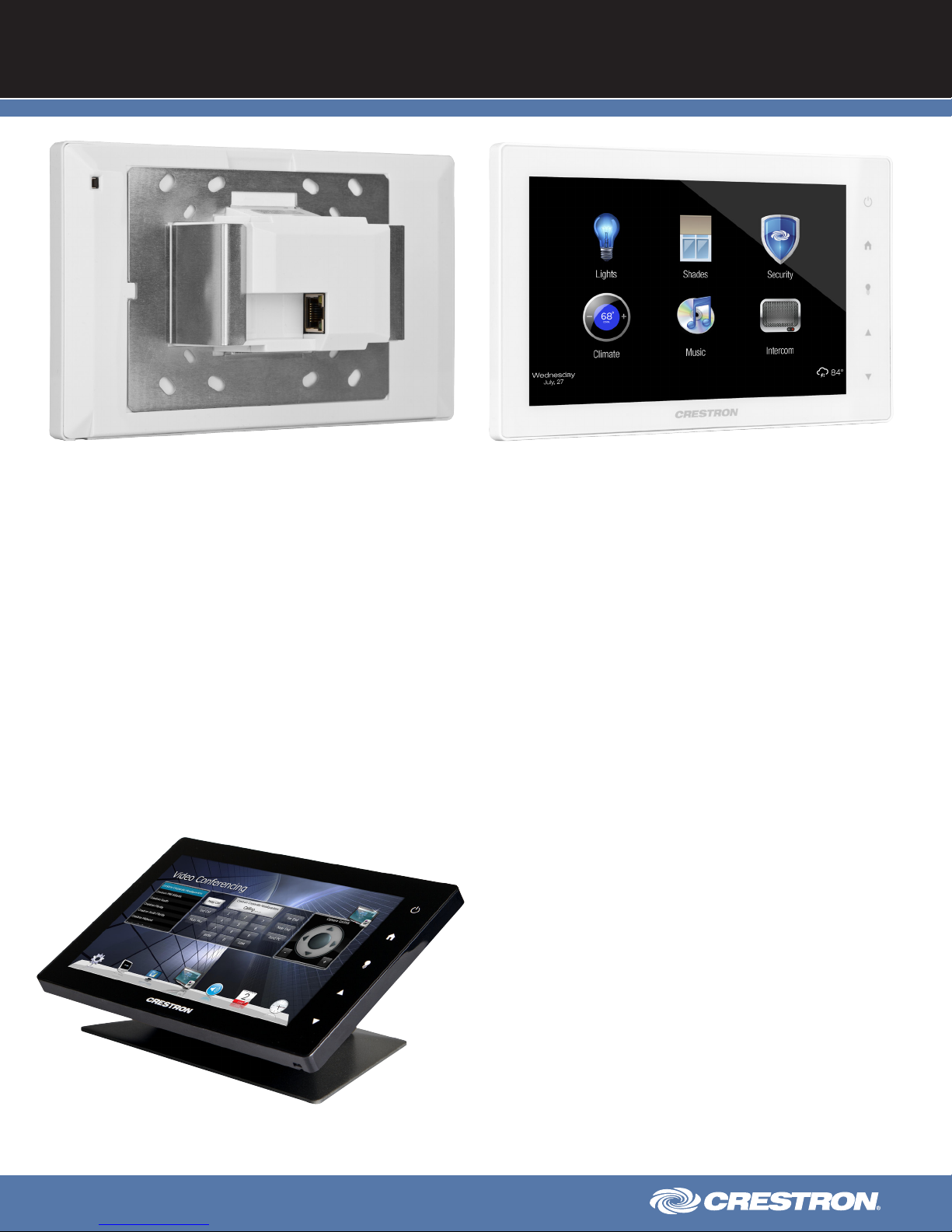

TSW-750-W-S –Rear and Front Views
TSW-750-B-S with TSW-750-TTK TableTop Mounting Kit
TSW-750 7” Touch Screen
crestron.com |800.237.2041
TableTop Option
Using the optional TableTop Kit (TSW-750-TTK[2]), the TSW-750 becomes
a stylish, freestanding touch screen that fits perfectly on a table, desk, or
countertop. It can even be permanently attached to the surface using the
optional Swivel Mount Kit (TSW-550/750/1050-SMK[2]).
SPECIFICATIONS
Touch Screen Display
Display Type: TFT Active matrix color LCD
Size: 7 inch (178 mm) diagonal
Aspect Ratio: 15:9 WVGA
Resolution: 800 x 480 pixels
Brightness: 300 nits (cd/m²)
Contrast: 350:1
Color Depth: 18-bit, 262k colors
Illumination: Edgelit LED
Viewing Angle: ±70° horizontal, ±65° vertical
Touch Screen: Projected Capacitive
Buttons
Hard Keys: (5) Projected capacitive pushbuttons, programmable,
pre-labeled with icons for “Power”, “Home”, “Lights”, “Up”, and “Down”
Reset: (1) Miniature pushbutton on rear panel for hardware reset
Memory
LPDDR2 RAM: 1 GB
Flash: 4 GB
Maximum Project Size: 512 MB
Graphics Engine
Supports Smart Graphics™[1]
Communications
Ethernet: 10/100 Mbps, auto-switching, auto-negotiating, auto-discovery,
full/half duplex, DHCP, IEEE 802.3af and 802.3at Type 1 compliant
Video
Streaming Formats: H.264 (MPEG-4 part 10 AVC), MJPEG
Audio
Features: Built-in microphone and speakers, Rava™SIP Intercom
Audio Feedback Formats: MP3
Connectors
LAN PoE: (1) 8-wire RJ45 with 2 LED indicators;
10Base-T/100Base-TX Ethernet port, Power over Ethernet compliant;
Green and yellow LEDs indicate Ethernet port status
Power Requirements
Power over Ethernet: IEEE 802.3af (802.3at Type 1) Class 3 PoE Powered
Device
Environmental
Temperature: 32° to 112°F (0° to 45°C)
Humidity: 10% to 90% RH (non-condensing)
Heat Dissipation: 44 BTU/hr
Enclosure
Construction: Plastic, smooth black or white finish
Mounting: Surface mount over a 2 or 3-gang electrical box, 2-Gang
European (DIN 49073) electrical box, or 2-3/8” H x 3-3/8” W (60mm H x
86mm W) cutout[4]; additional wall mount and tabletop options available
separately

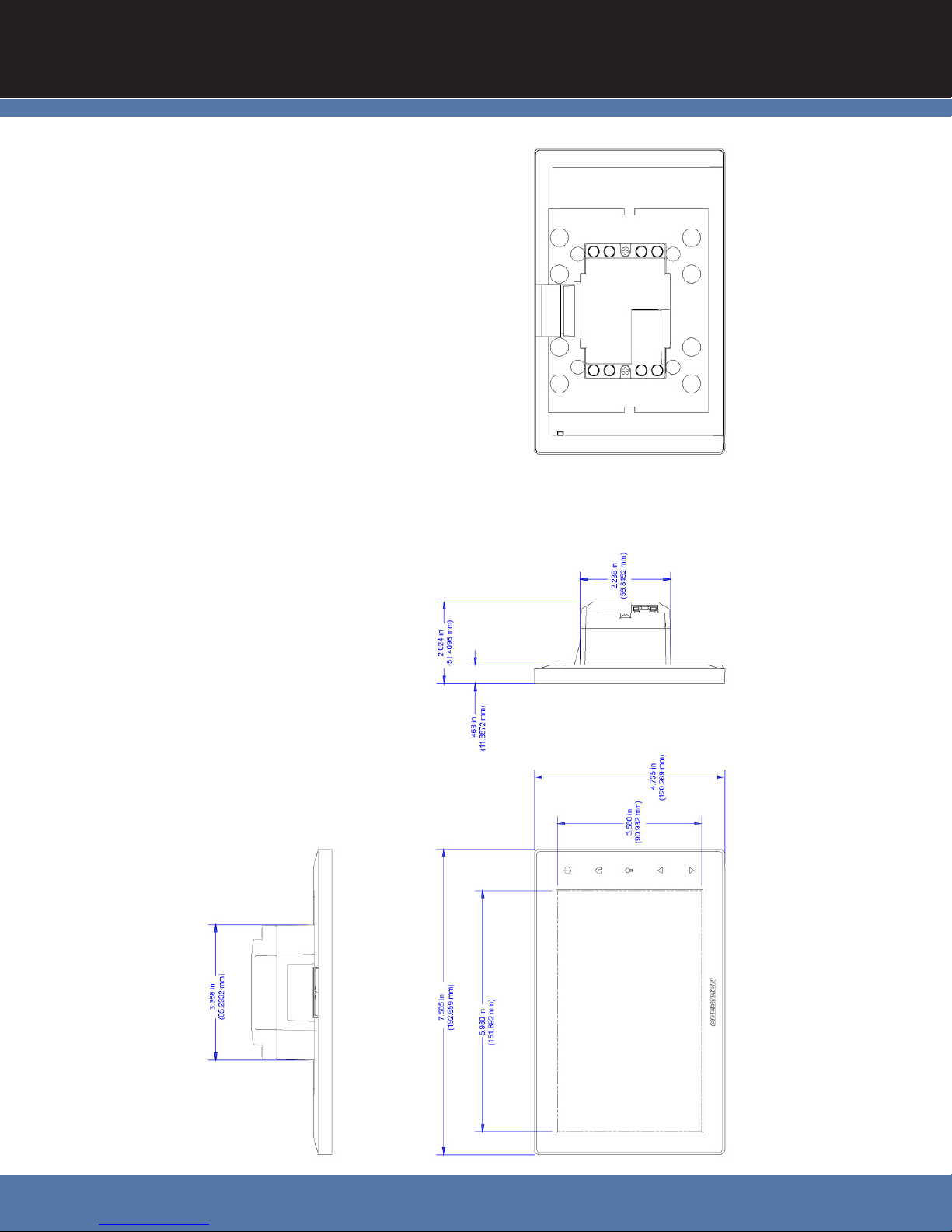

Dimensions
Height: 4.74 in (121 mm)
Width: 7.59 in (193 mm)
Depth: 2.03 in (52 mm)
Weight
14.1 oz (400 g)
MODELS & ACCESSORIES
Available Models
TSW-750-B-S: 7” Touch Screen, Black Smooth
TSW-750-W-S: 7” Touch Screen, White Smooth
Available Accessories
TSW-750-TTK: TableTop Kit for TSW-750 [specify color]
TSW-550/750/1050-SMK: Swivel Mount Kit for TSW-750-TTK
TSW-UMB: Universal Mounting Bracket
TSW-UMB-PMK: Pre-Construction Mounting Kit for TSW-UMB
TSW-550-BBI: Wall Mount Back Box for TSW-UMB – International Version
TSW-RMB: Retrofit Mounting Brackets
PWE-4803RU: PoE Injector
CEN-SW-POE-5: 5-Port PoE Switch
CEN-SWPOE-16: 16-Port Managed PoE Switch
CEN-NVS200: Network Video Streamer
SW-VMK-WIN: TouchPoint®Virtual Mouse & Keyboard Software for
Windows®
Notes:
1. Supports Smart Graphics only. Not compatible with “traditional” UI projects.
2. Item(s) sold separately.
3. H.264 compatible IP camera required.
4. For proper positioning of the touch screen unit, the electrical box or cut-out must be positioned
approximately 1/4” to the right of center, and 1/10” above center.
TSW-750 7” Touch Screen
Crestron Electronics, Inc. 15 Volvo Drive |Rockleigh, NJ 07647
Tel: 800.237.2041 / 201.767.3400 |Fax: 201.767.1903
www.crestron.com
All brand names, product names and trademarks are the property of their respective owners.
©2013 Crestron Electronics, Inc.
Specifications subject to change without notice. Revised 12/03/13
This product may be purchased from an authorized Crestron dealer. To find a dealer, please
contact the Crestron sales representative for your area. A list of sales representatives is available
online at www.crestron.com/salesreps or by calling 800-237-2041.
The specific patents that cover Crestron products are listed online at: patents.crestron.com.
Crestron, the Crestron logo, Capture HD, DigitalMedia, Rava, Smart Graphics, SmartObjects, and
TouchPoint are either trademarks or registered trademarks of Crestron Electronics, Inc. in the
United States and/or other countries. Windows is either a trademark or registered trademark of
Microsoft Corporation in the United States and/or other countries. Other trademarks, registered
trademarks, and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Crestron disclaims any proprietary interest in the marks
and names of others. Crestron is not responsible for errors in typography or photography.
Specifications are subject to change without notice. ©2013 Crestron Electronics, Inc.
Andere Handbücher für TSW-750
2
Inhaltsverzeichnis
Andere Crestron Tablette Handbücher
