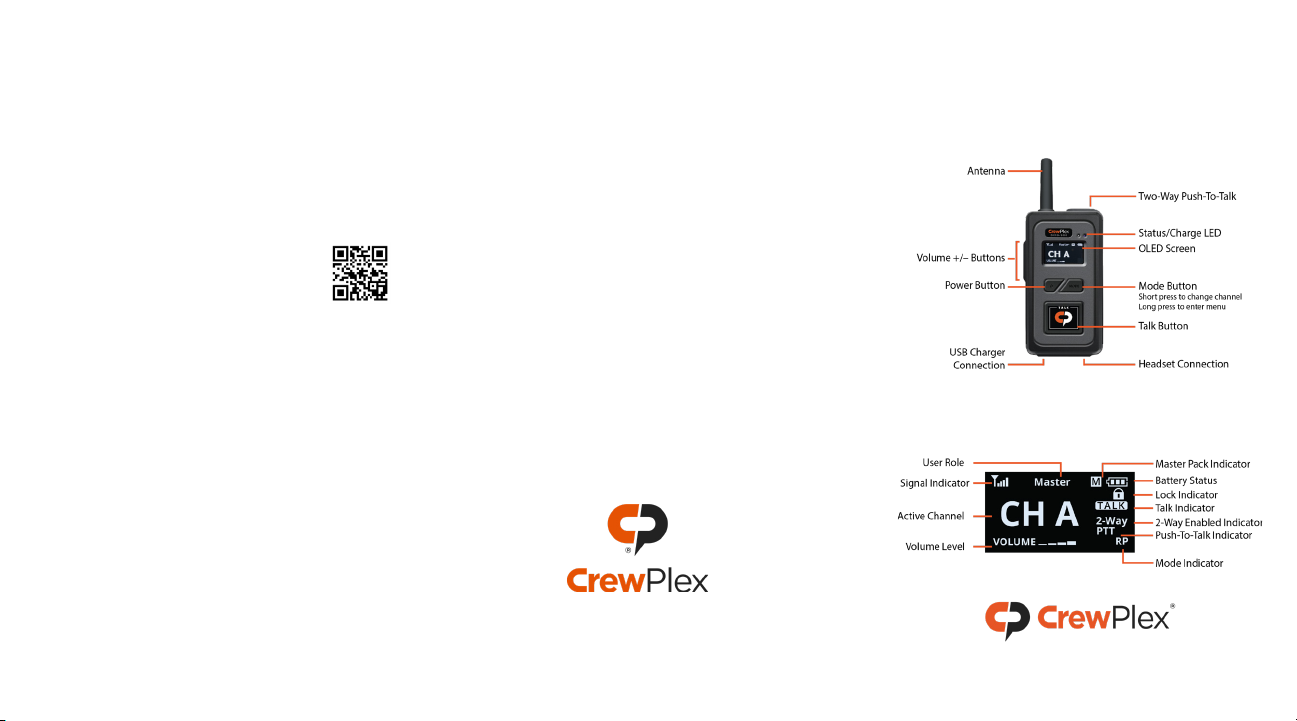

OPERATION
• LED Modes - Blue (double blink) when logged in. Blue (single
blink) when logged out. Red when battery charging in
progress. (LED turns o when charging is complete.)
• Lock - To toggle between Lock and Unlock, press and hold
the Talk and Mode buttons simultaneously for 3 seconds. A
lock icon appears on the OLED when locked.
• Volume Up and Down - Use the +and −buttons to control
the headset volume. “Volume” and a stair-step indicator
display the beltpack’s current volume setting on the OLED.
You will hear a beep in your connected headset volume is
changed. You will hear a dierent, higher-pitched beep when
maximum volume is reached.
• Talk - Use the Talk button to enable or disable talk for the
device. “TALK” appears on the OLED when enabled.
»Latch talking: A single, short press of the button.
»Momentary talking: Press and hold the button for 2
seconds or longer; talk will remain on until the button
is released.
»Shared users (“S” ID) utilize momentary talking. Only
one Shared user can talk at a time.
• Mode - Short-press the Mode button to toggle between the
channels enabled on the beltpack. Long-press the Mode
button to access the menu.
• Two-Way Push-to-Talk - If you have a two-way radio
connected to the master pack, you may use this button to
activate Talk for the two-way radio from any pack on the
system. See the DR10-900 Manual for more information about
connecting a two-way radio.
Multiple DR10 Systems
Each separate DR10 system should use the same Group and
Security Code for all beltpacks in that system. CrewPlex
recommends that systems operating in proximity to one
another set their Groups to be at least ten (10) values apart.
For example, if one system is using Group 03, another system
nearby should use Group 13.
SETUP
1. Attach the beltpack antenna. It is reverse threaded; screw
counter-clockwise.
2. Connect a headset to the beltpack. Press firmly until it clicks
to make sure the headset connector is seated properly.
3. Power on. Press and hold the Power button for 2 seconds,
until the screen turns on.
4. Access the menu. Press and hold the Mode button for 3
seconds, until the screen changes to <Setting Mode>. Short-
press Mode to scroll through the settings, and then scroll
through setting options using Volume +/−. Press and hold
Mode to save your selections and exit the menu.
a. Select a Group. Select a group number from 00–51.
IMPORTANT: Beltpacks must have the same group
number to communicate.
b. Select an ID. Select a unique ID number.
• Repeater* Mode ID options: M, 01–08, S, or L.
• Roam Mode ID options: M, SM, 02–09, S, or L.
• Standard Mode ID options: M, 01–09, S, or L.
• One beltpack must always use the “M” ID and serve as
the master beltpack for proper system function. An “M”
indicator designates the master beltpack on its OLED.
(For Roam Mode, one beltpack must use the “SM” ID as well.)
• Listen-only beltpacks must use the “L” ID. You may
duplicate ID “L” on multiple beltpacks.
• Shared beltpacks must use the “S” ID. You may
duplicate ID “S” on multiple beltpacks, but only one
shared beltpack may talk at a time.
• When using “S” IDs, the last full-duplex ID cannot be
used (“08” in Repeater mode and “09” in the Standard
or Roam).
c. Confirm beltpack’s Security Code. All beltpacks must
use the same security code to work together as a
system.
*Repeater mode is the default setting. See the DR10-900 Manual for
information about modes.
Battery
• Battery life: Approx. 12 hours
• Charge time from empty: Approx. 3.5 hours (USB port
connection) or approx. 6.5 hours (drop-in charger)
• Charging LED on beltpack will illuminate red while charging
and will turn o when charging complete.
• Beltpack may be used while charging, but doing so may
lengthen charge time.
Menu Options
Aside from Group and User ID, the following settings are
adjustable from the beltpack menu.
*Channel B not available in Roam Mode.
Recommended Settings by Headset
Menu Setting Default Options
Side Tone O On, O
Mic Gain 1 1–8
Channel A On On, O
Channel B* On On, O
Security Code 0000 Alpha-numeric
Headset Type
Recommended Setting
Mic Gain
SmartBoom LITE and PRO 1
CrewPlex Hard Hat Headset 6
CrewPlex Hard Had LITE Headset
4
CrewPlex In-Ear Headset 7
For more information visit
www.crewplex.com
QUICK START GUIDE
DR10-900
CUSTOMER SUPPORT
CrewPlex oers technical support via phone and email from
07:00 to 19:00 Central Time (UTC−06:00), Monday through
Friday.
+1.334.321.1400
customer.support@crewplex.com
Visit www.crewplex.com for product support references and
helpful documentation.
Additional Documentation
This is a quick start guide. For additional
information, visit our support website. (Scan
this QR code with your mobile device to
navigate there quickly.)
COPYRIGHT © 2022 CrewPlex, LLC. All rights reserved. CrewPlex® and
SmartBoom® are trademarks of CoachComm, LLC. All other trademark
references in this document are property of their respective owners.
Document Reference: D0000590_C
IN THIS BOX
WHAT’S INCLUDED WITH DR10-900?
• BeltPack
• Li-Ion Battery (Installed during shipment)
• USB Charging Cable
• BeltPack Antenna (Attach to beltpack prior to operation.)
• Quick Start Guide
• Product Registration Card
ACCESSORIES
OPTIONAL ACCESSORIES
• CAC-USB5-CHG: CrewPlex 5-Port USB Charger
• CAC-CPDR-5CASE: IP-67-rated Hard Travel Case
• CAC-CP-SFTCASE: CrewPlex Soft Travel Case
• CPBT-DRC-55: CrewPlex Drop-In Charger for 5 DR10
BeltPacks and 5 Rechargeable Li-Ion Batteries
• Selection of compatible headsets (see DR10 Manual for more
details)
™
