Croydex DG400341 Bedienungsanleitung

Please follow these fixing and care instructions to ensure that your product is

fitted safely and that it retains its high quality finish. Please retain this leaflet for

future reference.

This instruction leaflet applies to the following products;

DG400341 - Standard Bath Plug Converta

DG400441 - Standard Basin Plug Converta

Fixing Pack/Contents

A. Converta Plug x1

B. Round Base

C. Rubber Ring

D. Securing Clip x3

S&H 062 R01

Standard Bath Converta

Grey

Black

Round Base Colour Small Ring Medium Ring Large Ring

Blue Grey

Black WhiteGreen

Standard Basin Converta

Black

Grey

Round Base Colour Small Ring Medium Ring Large Ring

Blue Black

Blue BlackGreen

Green

1. Before starting the installation, use the tables below and choose the most secure combination of Round

Base and Rubber Ring to fit your waste. The ideal combination will be to create a tight fit inside the waste

and to be flush with the surface of the waste.

Not Required

2. Once you have selected

the most suitable

combination of Round Base

and Rubber Ring using the

table in Step 1, place the

Round Base into the waste

and align at least one of the

ribs to match up with a rung

on the waste.

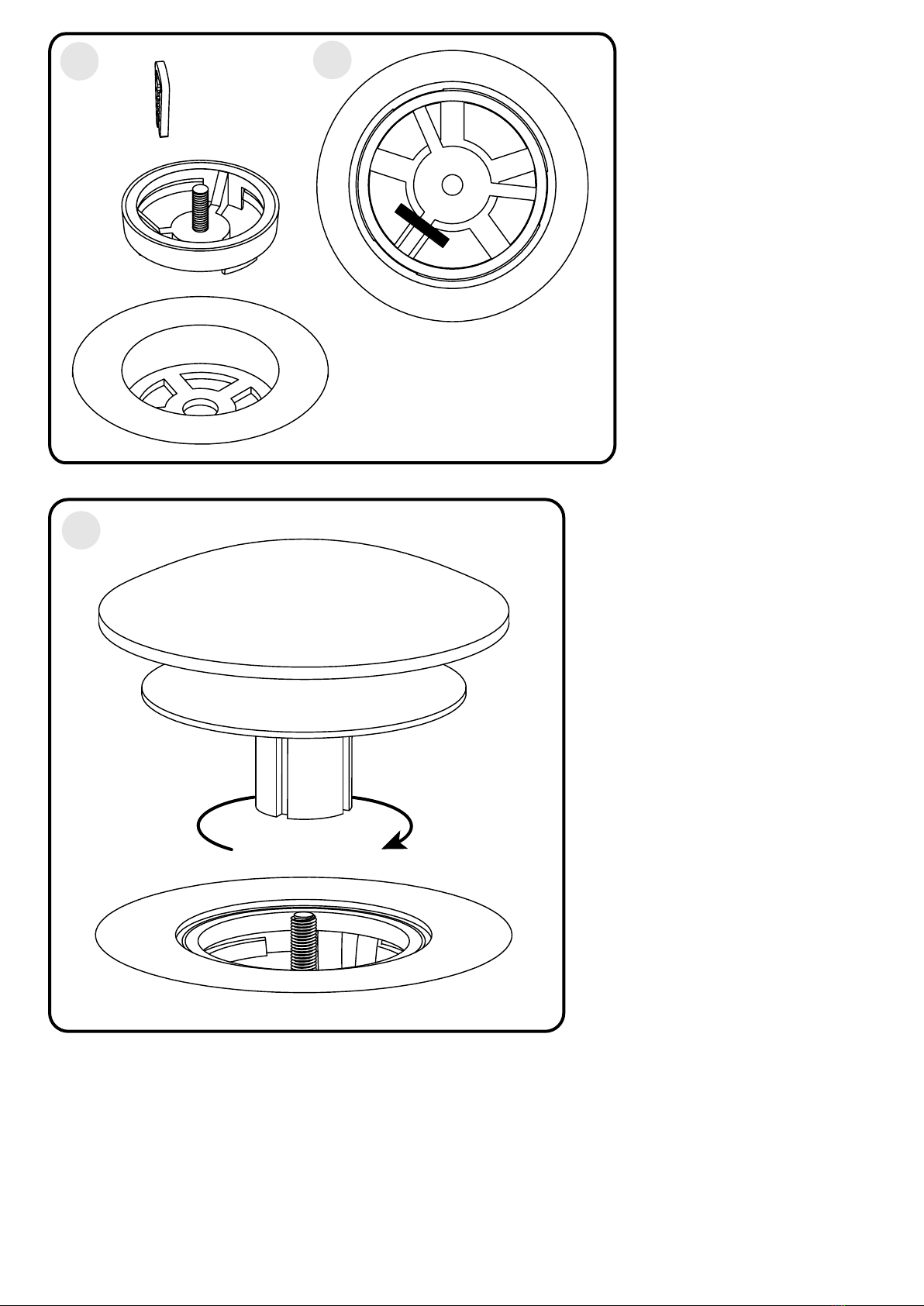

In Fig 2a you can see an

example of the alignment

which is required. Once the

rungs are aligned push on a

Securing Clip to lock the

Round Base in position.

33. Fully screw the Converta Plug

onto the Round Base. Click the plug

a few times to test if the spring is

working. Then fill up your basin or

bath and test if the plug is working

effectively.

Note

If the plug doesn’t seal you may

have to try a different Rubber Ring

or alternatively you can unscrew

the plug slightly.
