Cub Cadet Timing Deck Striper/Roller Bedienungsanleitung

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

Printed In USA

Op e r a t O r ’sMa n u a l

Safe Operation Practices • Set-Up • Operation • Maintenance • Service • Troubleshooting • Warranty

WARNING

READ AND FOLLOW ALL SAFETY RULES AND INSTRUCTIONS IN THIS MANUAL

BEFORE ATTEMPTING TO OPERATE THIS MACHINE.

FAILURE TO COMPLY WITH THESE INSTRUCTIONS MAY RESULT IN PERSONAL INJURY.

42” Timing Deck Striper/Roller

Form No. 769-03885

(February 19, 2008)

Contents of Carton

One 42” Timing Deck Striper/Roller• One Operator’s Manual•

Assembly

NOTE: On older model decks the holes used to attach the Striper/

Roller to the mowing deck will have to be drilled in order to

install the attachment.

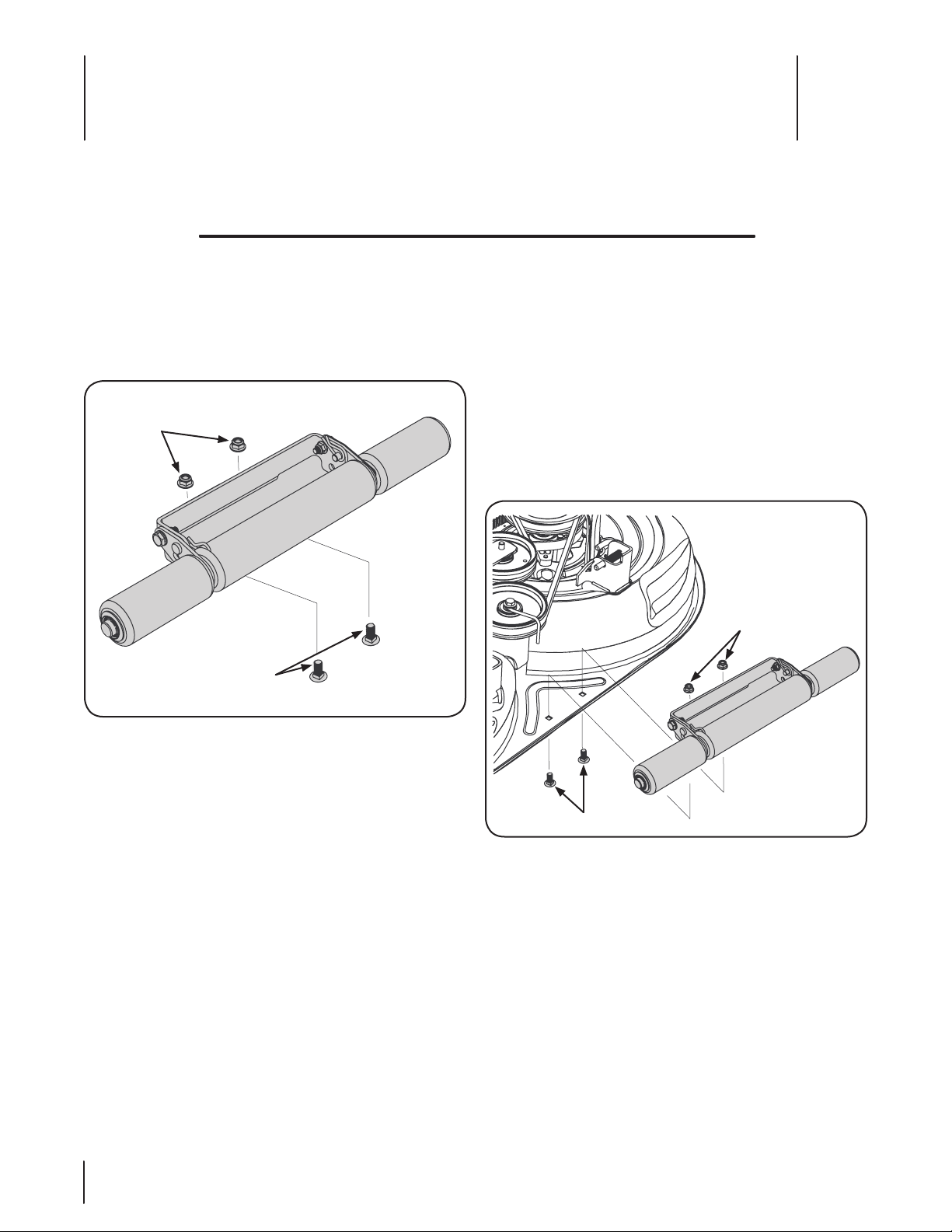

Remove the attached carriage bolts and flange nuts from1.

the mounting bracket. See Fig. 1-1.

NOTE: If it is neccessary to drill the holes to attach the

Striper/Roller continue on to step 2, if not skip to step 5.

On the back center of the deck, lay the bracket on a spot on2.

the deck that will not interfere with any of the belts, blades,

etc. under the deck.

When you have the bracket positioned properly use a3.

marker to mark the location of the two holes in the bracket

onto the deck.

Use a4. ⁄” drill bit to drill the previously marked holes.

NOTE: The deck is made of strong metal so be careful to

maintain a strong grip on the drill to ensure a clean hole

and avoid damage to the deck.

With the carriage bolts and flange nuts removed earlier,5.

attach the Striper/Roller to the deck and tighten securely.

See Fig. 1-2.

Carriage Bolts

Flange Nuts

Figure 1-1

Flange Nuts

Carriage Bolts

Figure 1-2

Assembly & Set-Up 3

2

Set-Up

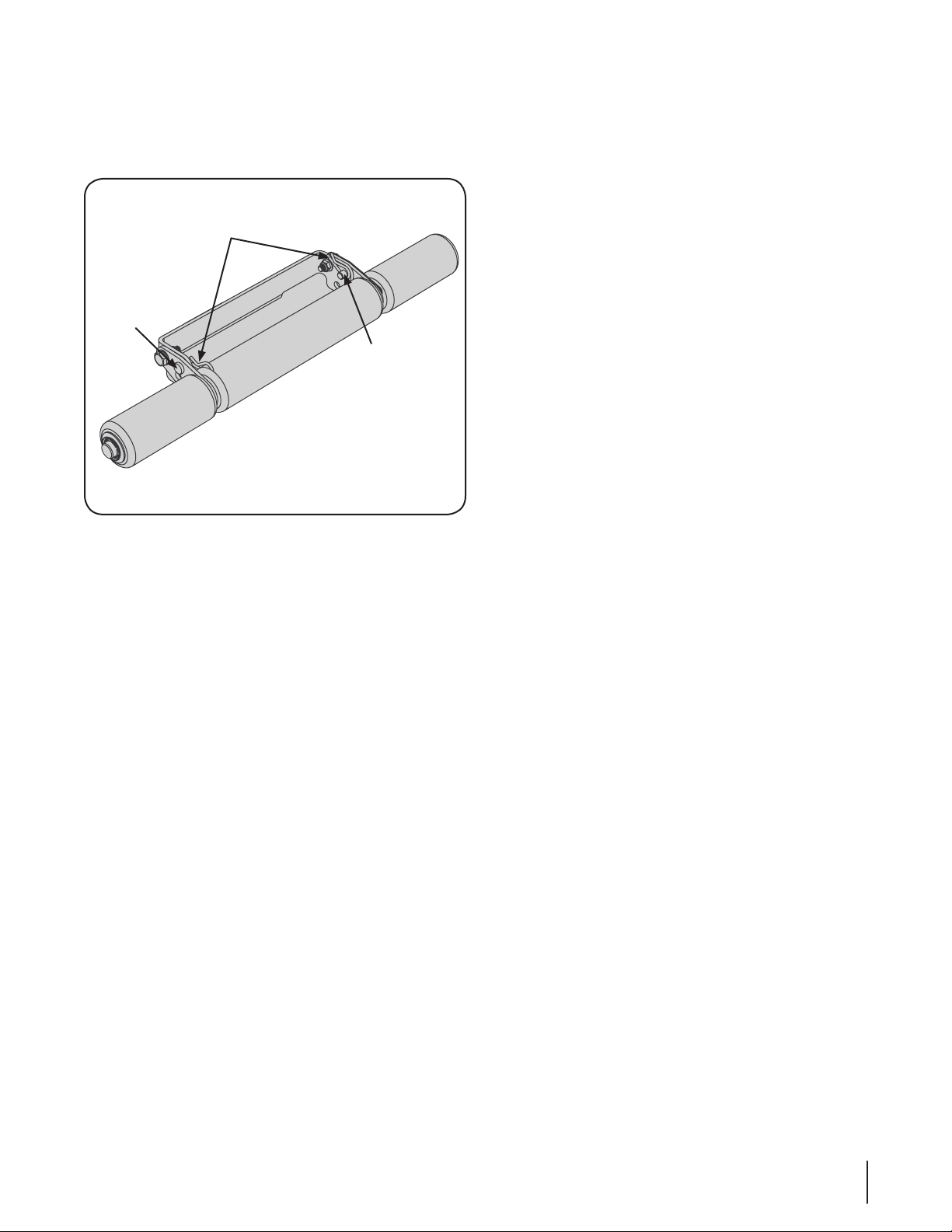

The roller can be adjusted to two different heights.

Remove the cotter pins and clevis pins from each side of1.

the Striper/Roller. See Fig. 1-3.

Move the adjustment bracket to the desired height and2.

replace the cotter pin and clevis pin to lock into place.

Cotter Pin

Clevis Pin

Clevis Pin

Figure 1-3

3se c t i O n 2 — as s e M b l y & se t -up

8

5

7

2

10

11

9

14

3

1

14

12

10

2

5

8

7

4

3

64

13

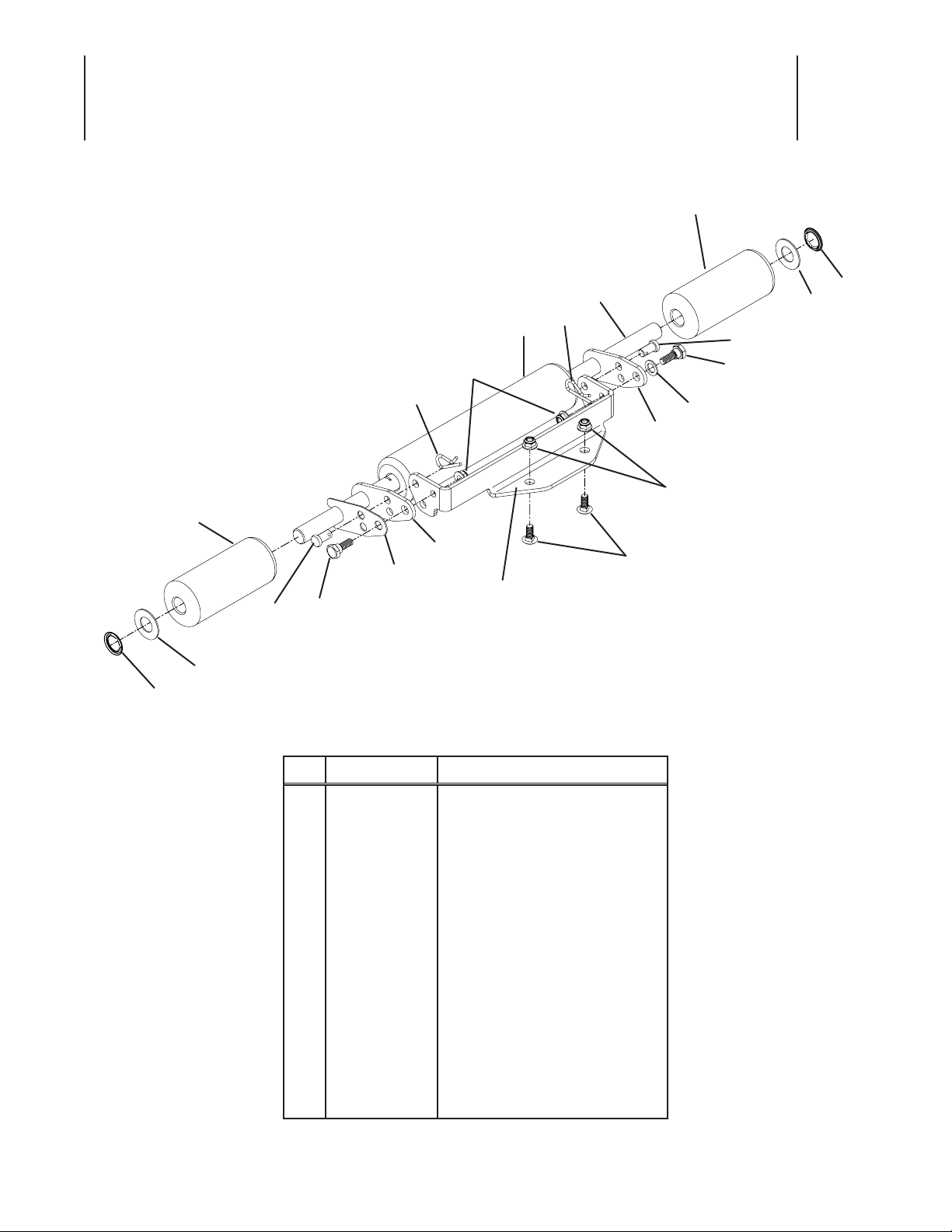

Ref. Part Number Description

1. 710-0451 Carriage Bolt, ⁄-18 x .750

2. 711-1421 Clevis Pin, ⁄ x .750

3. 712-04063 Flange Lock Nut, ⁄-18

4. 714-0149B Cotter Pin

5. 726-04035 Push Nut, ⁄

6. 731-0335 Deck Roller

7. 731-06365 Deck Roller, 2.25 x 5.25

8. 736-0188 Flat Washer, .76 x 1.49 x .06

9. 736-3024 Flat Washer, .469 x .750 x .06

10. 738-0296 Shoulder Screw, .437 x .268 x ⁄-18

11. 747-04915 Roller Rod, .75 x 22.875

12. 783-05916 Anti-Rot Rod Plate

13 783-05918 Roller Bracket

14. 783-05923 Roller Plate Adjustment

Illustrated Parts List 2

4

Notes

5

6nO t e s

7nO t e s

CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019

G

E

N

U

I

N

E

F

A

C

T

O

R

Y

P

A

R

T

S

To order replacement parts, call a Customer Support Representative at (800) 965-4CUB.

Locate your nearest Cub Cadet dealer at (877) 282-8684

or visit www.cubcadet.com to find the nearest Cub Cadet dealer in your area.
