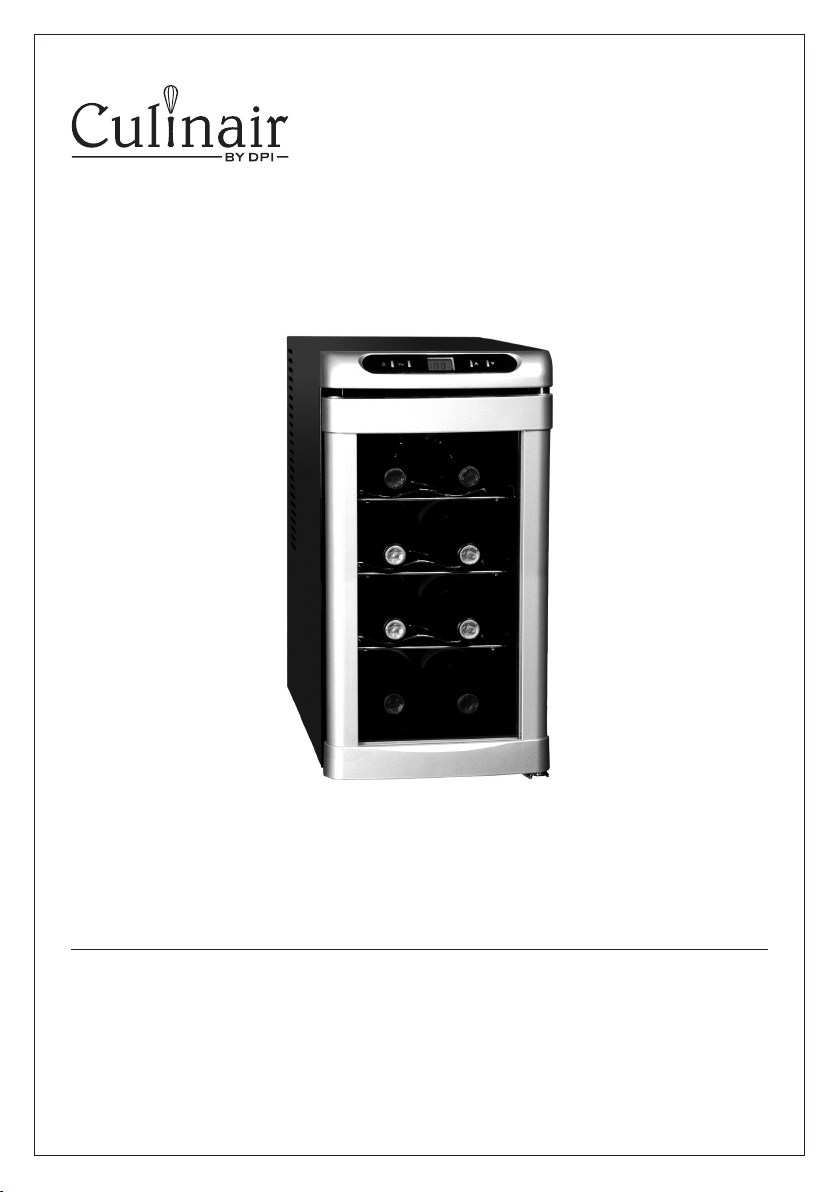

Culinair AW80S Bedienungsanleitung
USER’S GUIDE
V:0931-0527-11
For the most up-to-date version of this User’s Guide, go to www.culinairbydpi.com
AW80S
8 Bottle Wine Cooler
Culinair2
General Safety Precautions
• After removing the wine cooler
from the package, make sure it
is in good condition. If the wine
cooler does not appear to be in
good condition, do not use it and
contact an authorized service
center.
• Plastic bags, nails, etc. Should be
kept out of the reach of children.
• Read the user’s guide carefully and
check that the rating data on the
rating nameplate corresponds to
your power supply.
• This wine cooler can only be
used in the way in which it was
designed. The manufacturer is not
responsible for any damage due to
improper use or repairs made by
unqualied personnel.
• Before cleaning the refrigerator,
make sure it is unplugged. Never
clean the unit with an acid
preparation, medical, dilution,
gasoline, oil or any other kind of
chemical substance that could
damage the refrigerator.
• Repair should only be made by
authorized service centers.
• To reduce the risk of re, replace
only with same type fuse.
• Free standing installation only.
• Do not use extension cords.
• DANGER: Risk of child entrapment.
Before discarding your old wine
cooler, you must do the following:
1. Remove the door.
2. Leave the shelves in place, so
that children may not easily
climb inside.
• Pour réduire les risques
d`incendie,utilisez un fusible de
rechange de mème type
• Installation non encastrée
seulement
• N`utilisez pas de prolongateur
• Avant de jeter votre réfrigérateur
hors d’usage, nous vous
conseillons de démonter la porte
et de laisser les clayettes en place.
Ces précautions éviteront qu’un
jeune enfant puisse sauter à
l’intérieur et qu’ensuite il ne puisse
pas s’en extraire.
General Caution
Attention
Customer Support: 1-888-999-4215 Culinair 3
Technical Data
Volume 25 liters, 8 bottles
Dimensions (W•H•D) 10.25”•19.5”•19.75”
Weight (lbs) 17.5
Power Consumption 0.5 KW•H/24H
Ideal Ambient Temperature <77˚F / <25˚C
Temperature Range 46˚F - 65˚F / 8˚C - 18˚C
Rated Voltage AC 110V
Rated Frequency 60Hz
Input Power 70W
Culinair4
• 8 bottle/25 liter capacity
• State-of-the-art thermoelectric
technology
• Glass door
• Soft interior lighting
• Temperature controller
• Adjustable feet for leveling
• Adjustable shelving
• No vibration keeps bottle sediment
undisturbed
• Ultra quiet
• Internal fan for air circulation
• Environmentally friendly
• Flush back design
8 Bottle Wine Cooler
Features
Customer Support: 1-888-999-4215 Culinair 5
TABLE OF CONTENTS
General Safety Precautions . . . . . 2
• General
• Caution
• Attention
Technical Data . . . . . . . . 3
8 Bottle Wine Cooler . . . . . . 4
• Features
• Included
Introduction . . . . . . . . 6
Setup . . . . . . . . . . 8
• Powering the Wine Cooler
• Placement
• Attaching the Handle
Maintenance . . . . . . . . 10
• Cleaning the Wine Cooler
Troubleshooting . . . . . . . 11
Company Information . . . . . . 12
• International Support
• Contact Information
• Green Initiative
Culinair6
Introduction
TEMPERATURE CONTROL/
DISPLAY
REMOVABLE
SHELVING
ADJUSTABLE
FEET
Customer Support: 1-888-999-4215 Culinair 7
TEMPERATURE
CONTROL
Press to adjust the
temperature.
LIGHT
Press to turn the
interior light on
or o.
CELSIUS/
FAHRENHEIT
Press to switch
between Celsius
and Fahrenheit on
the display.
DISPLAY
Culinair8
Plug the attached AC cord into a
standard AC power outlet to power the
wine cooler.
When the AC power is connected, the
wine cooler will automatically power
on and begin cooling.
For optimal performance, place the
wine cooler in a dry (low humidity)
environment.
In order to function at maximum
potential, the wine cooler needs to be
placed on a at surface with at least 1”
clearance on all sides and 4” clearance
at the back.
Avoid placing the wine cooler in
direct sunlight or high temperature
environments.
Do not place heavy objects on top of
the wine cooler.
Powering the Wine Cooler
Placement
Setup
Customer Support: 1-888-999-4215 Culinair 9
1. Press the TEMPERATURE
CONTROL buttons to increase or
decrease the temperature of the
wine cooler.
While adjusting the temperature,
the display will show the adjusted
temperature. After a few seconds of
remaining idle, the display will show
the current temperature of the wine
cooler.
2. Press the CELSIUS/FAHRENHEIT
button to switch between Celsius
and Fahrenheit on the display.
The wine cooler temperature can be
adjusted from 46ºF to 65ºF.
The wine cooler will run until the set
temperature is reached, after which
it will run periodically to maintain
the set temperature.
Adjusting the Temperature
Operations
Culinair10
Maintenance
1. Unplug the wine cooler from the
AC power outlet.
2. Ensure that the power has been
completely disconnected and that
the wine cooler is shut down.
3. Remove the contents of wine
cooler, then remove the shelving.
4. The shelving can be hand-washed
using warm water.
The shelving must be dried
thoroughly before being placed back
into the wine cooler.
5. Wipe down the interior of the wine
cooler using a damp cloth.
6. Dry thoroughly and replace the
shelving.
Cleaning the Wine Cooler
