CP 333 NTi
Operating Instructions – Start-up
cushion pack
Am Riedweg 9a
D - 88682 Salem
Tel.: +49(0)7553 - 828 500
Fax: +49(0)7553 - 828 502
www.cushionpack.com
email: [email protected]
cushion packcushion pack
cushion packcushion pack
cushion pack
cushion packcushion pack
cushion packcushion pack
cushion pack
CP 333 NTi
Operating Instructions – Start-up
Application and Installation:
cushion packcushion pack
cushion packcushion pack

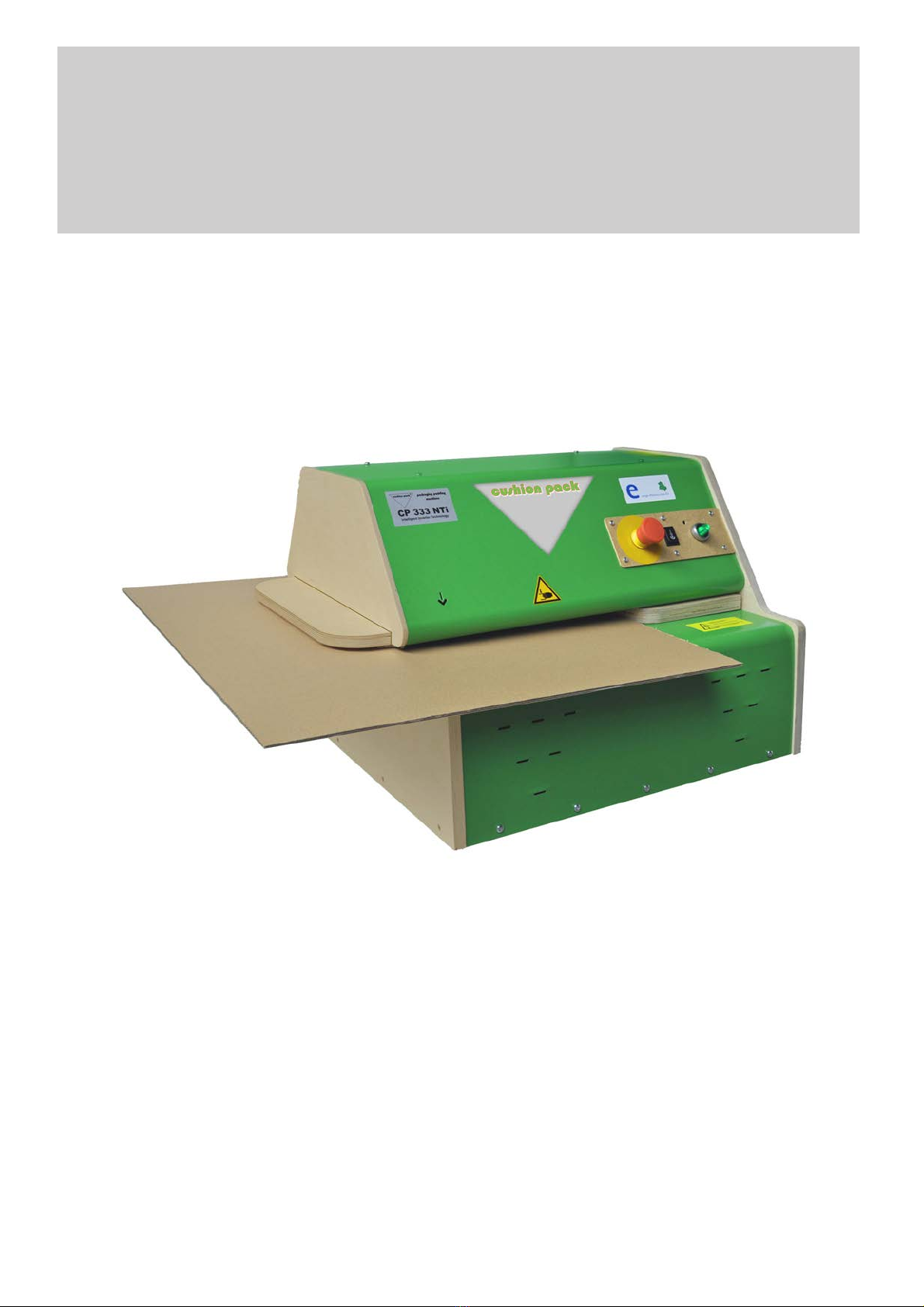

cushion pack CP 333 NTi is used to make packaging padding from new
and used cardboard.
Installation location and application can be changed as required.
cushion packcushion pack
cushion packcushion pack
cushion pack CP 333 NTi must be protected against moisture and
humidity.
Technical data:
Loading width – cardboard size : endless
Cutting width - padding : 333 mm x endless
Cardboard thickness : 12 mm
Production output : 1-2 m³/h
Throughput rate : 10 m/min
Motor capacity : 0,55Kw/ single phase
Main voltage : 230V 50-60Hz
Noise Emission / no-load operating : 60 dB (A)
Noise Emission / operating cycle : 66dB (A)
Dimensions H x W x D : 460x580x620 mm
Weight : 78Kg
cushion packcushion pack
cushion packcushion pack
cushion pack
cushion packcushion pack
cushion packcushion pack
cushion pack
CP 333 NTi
Operating Instructions – Start-up
Electrical connection - commissioning
A230/240 Volt, 50/60 Hz,AC connection is required to operate the CP 333 NTi.A2 metre
cablewith aplug isconnected tothe CP333NTi10A„inert“fuses must be provided by the
customer.
Commissioning
Connectplug to mains.Beforeputting themachineinto operation, switchonat mainswitch
(5),theoperating lamp (5)islit. Thenthemachine canbeswitched on withtheswitch (4)–the
machinestarts.
The cardboard material can now be inserted into the feed slot (1) and production of the
packaging padding can begin.
Afterpressing theEmergency-Stop switch(3),to switchonagainunlock theEmergency-Stop
switch.Press therocker switch(5) short to „R“torestart (R=resetafterpushed the
Emergencyswitch orafterover loadingthemachine). Theoperatinglamp (5) islit again.
Thenthe machine canbeswitched onwiththeswitch (4) onPos.I- themachinestarts.
Only press the Emergency Stop button in the event of danger -
do not use as an Off switch!
To switchthe machine off,place theswitch( 4)andthe mainswitch(5) off.The machineis
thencompletelydisconnected fromthe mains!
Whenthe CP333 NTiisnot inuse,the mainswitch(5) mustbeswitched offand prevented
frombeing switched onagainwhere necessary.
Iftoo thickcardboardis fedin,switch themachineoff immediatelyatthe switch(4) (pushup
toposition „0“) .Thenbriefly putrockerswitch(4) inposition„R“ (reverse/reset),switch
machineoff againandthe toothickcardboard cannowbe removedfromthe machine.
Disconnect the mains plug before opening the housing!
Rear
Atthe rear(2)the packagingpaddingmaterial comesout automatically.
Caution–the paddedmaterialmustalways fall unobstructedoutofthe outlet
channel. Do not block the channel.
cushion packcushion pack
cushion packcushion pack
cushion pack
cushion packcushion pack
cushion packcushion pack
cushion pack
CP 333 NTi
Operating Instructions – Start-up
Important Operating Instructions
Thepackage paddingmachinemay be fedonlywith materialsuch
ascorrugated cardboardor other boxes
as well as paper of 60 g/m2or more.
Do not feed the machine with a cardboard thickness that is more
than is specified in the technical data.
Thefeedingof othermaterialscanresult ininjurytothe operating
personnel,e.g.,splinters when insertinghardmaterials.
Hard materials can also lead to damage to the machine and the
destructionofthe cutting blades.
Usedcardboard thatis fed foldedinto themachinecan alsocontain
screws or similar hard materials that must be removed in all cases.
Always unfold the closing flaps of the used cardboard boxes also to
the outside so that metal parts that could damage the cutter blades
donot remain caughtinthe folds.
Dangerofinjury existswhen cutoffstaplesare caught
in the package padding !
Recommendation!
Alwaysremove thestaplededge !
!
!
!
!
cushion packcushion pack
cushion packcushion pack
cushion pack
cushion packcushion pack
cushion packcushion pack
cushion pack
CP 333 NTi
Operating Instructions – Start-up
1
2
3 4 5
cushion packcushion pack
cushion packcushion pack
cushion pack
cushion packcushion pack
cushion packcushion pack
cushion pack
CP 333 NTi
Operating Instructions – Start-up

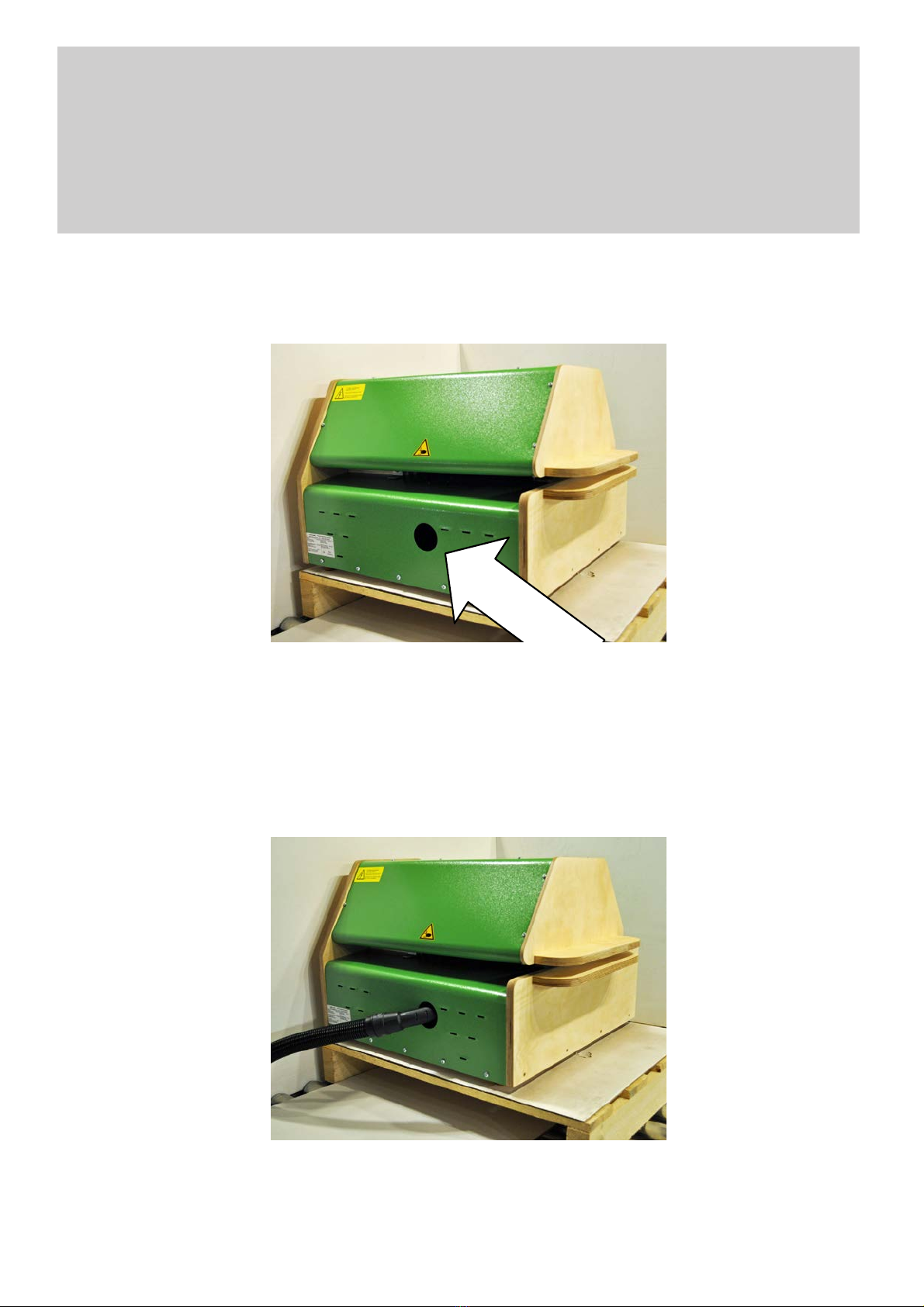

built-in dust extraction device on CP 333 NTi
Once a week please clean here with
a vacuum cleaner,
remove plug before!
cushion packcushion pack
cushion packcushion pack
cushion pack
cushion packcushion pack
cushion packcushion pack
cushion pack
CP 333 NTi
Operating Instructions – Start-up
Installation – safety rules
CP333 NTi hasbeen builtaccordingto thesafetyrules forshreddingmachines
(DIN 31001) and according to the EC Machine Directive 98/37/EG and 91 / 368/EWG/2006/
42/EGand EMV-Rules/ EWG89/336-91/263/EMVand 92/31/EMV.
CP333 NTimustbe installedso as toprevent potential hazardsfor persons.The installation
nextto rampsorother elevatedspacesis notallowed.
CP333 NTimay beoperatedand servicedonlyby technicallycompetentpersons.The
familiarisationwiththe OperatingInstructionsispartof theinstruction.TheOperating
Instructionsmustbe available andcompliedwith.
Keeplong hair,looseclothes, ties,scarves,etc. awayfromthe inletareaof the
cardboardinlet opening.
Defectsandmalfunctions ofthe CP333NTi which endangerthe safetyof theemployees
mustbeimmediatelyrepaired.Themachinemustbeputoutofoperationuntilthesehazards
havebeeneliminated.
Maintenance and service
TheCP333 NTimust bechecked atleastonce ayear by anauthorised person.The
existence,qualityand perfectfunctionof all safetydevicesmust be checkedinintervals of
twoor three monthsforwear ofmovingpartsand correctfunctionof the completeelectrical
system.
Opencoverto cleanmachine(pull mainsconnector)
Oilcutting rollers fromtimeto timewhilemachineis running.(Use oil spraywithextension
rod.).
Spray oil spraythroughtheinletslot (1)on thecuttingrollers.
cushion packcushion pack
cushion packcushion pack
cushion pack
cushion packcushion pack
cushion packcushion pack
cushion pack
CP 333 NTi
Operating Instructions – Start-up
Important Safety Notes
The package padding machine may not be operated by
several persons at the same time !
All safety elements are designed for safe operation by
one person.
Children are not allowed to be in the working area of
the operationally ready machine!
The safety distance to the feed opening, the
emergency-off switch, etc. are designed for safe
operation by adults.
Long hair, loose pieces of clothing, neckties, jewellery,
scarves or other loose objects are to be keep away from
the collecting area of the feed opening. Danger
of injury !
Do not reach into the feed open with the fingers when
the machine is running ! Danger of injury !
In case of danger, switch off the machine with the
main switch or the emergency-off switch. Pull the
mains plug immediately.
Before opening the housing for cleaning, for example,
the machine is to be disconnected from the power
source. Pull the mains plug !
Repairs may be performed only by a specialist.
!
!
!
!
cushion packcushion pack
cushion packcushion pack
cushion pack
cushion packcushion pack
cushion packcushion pack
cushion pack
CP 333 NTi
Operating Instructions – Start-up
Important Maintenance and Cleaning Instructions
Before opening the housing, for example, for cleaning
and maintenance work, the machine is always first to be
disconnected form the mains.
Pull the mains plug !
Maintenance and Cleaning of the Cutting Mechanism
The gears and the drive chain must be cleaned and
greased monthly.
Proceed as follows:
1. Open the hood. (Remove all screws.)
2. With a vacuum cleaner, vacuum the cutting duct
and dirt. Clean the chain and gears (with
compressed air, if necessary).
3. After the cleaning is completed, apply grease
with a brush or grease gun to the gears and the
drive chain.
4. The left and right of the cutting mechanism -
where the cutter shaft is held by the bearing -
are to be sprayed with oil on the bearing plates
and the cutting blades.
5. Close and firmly screw on the hood and the side
cover.
Repairs may be performed only by a speci!
!
!
!
cushion packcushion pack
cushion packcushion pack
cushion pack
cushion packcushion pack
cushion packcushion pack
cushion pack
CP 333 NTi
Operating Instructions – Start-up
EG - Konformitätserklärung
Certificate of Conformity
Der Hersteller
Cushion pack
Jürgen Degen
Am Riedweg 9a
D - 88682 Salem
erklärt hiermit, daß nachstehend beschriebene Maschine:
cushion pack CP333 NTi
übereinstimmt mit den Bestimmungen folgender EG - Richtlinien:
Maschinenrichtlinie 98/37/EG und 91 / 368/EWG/2006/42/EG
EMV-Richtline /EWG89/336-91/263/EMV,92/31/EMVund 2014/35/EU
DasobengenannteGerät entsprichtfolgenden Normen bzw. Richtlinien:
Wedo Hereby certifythatthe abovementionedproductmeets therequirementsset
forthinEEC-Guidlines 98/37/EGand91 /368/EWG/2006/42/EG
EMV-Guidelines/ EWG89/336-91/263/EMV,92/31/EMV and2014/35/EU
theabovementioned productmeetsthefollowing standardsandguidlines:
DIN EN ISO 13857, Ausgabe / dated 2008
EN 1088 Ausgabe / dated 1996
EN 0113-3 Ausgabe / dated 06-2007
EN 60204-1 Ausgabe / dated 1997/1998
EN 55011 Ausgabe / dated 1997
EN 61000-4-2/-5 Ausgabe / dated 1995/98
EMV 50140 (IEC 1000-4-2/-4) Ausgabe / dated 1993
Salem,den 14.01.2016
cushion pack
Verpackungspolstermaschinen
Jürgen Degen
——————————————
