User’s Manual

Table of Contents

Model List ......................................................1

PDU Naming Convention .............................1

Package Contents ........................................ 2

Safety Precautions ....................................... 2

Installation .................................................... 3

Horizontal Installation .......................

Vertical Installation with Brackets ...

Vertical Installation -

Keyhole Mounts (0U models only) ...

Cord Retention Tray installation .......

Meter Configuration ..........................

Electrical Installation ........................

Troubleshooting ........................................... 6

Product Features

Technical Specification ................................

Basic Series ....................................... 7

Metered Series ...................................9

Basic Series (0U) ...............................10

Metered Series (0U) ...........................11

Warranty & Service .......................................12

Model List:

Basic Series:

PDU15B8R

PDU15B10R

PDU15B12R

PDU20B8R

PDU20B10R

PDU20B12R

PDU20BT8R

PDU20BT10R

PDU20BT12R

PDU15B2F8R

PDU15B2F10R

PDU15B2F12R

PDU15B4F8R

PDU15B4F10R

PDU15B4F12R

PDU15B6F8R

PDU15B6F10R

PDU15B6F12R

PDU20B2F8R

PDU20B2F10R

PDU20B2F12R

PDU20B4F8R

PDU20B4F10R

PDU20B4F12R

PDU20B6F8R

PDU20B6F10R

PDU20B6F12R

PDU20BT2F8R

PDU20BT2F10R

PDU20BT2F12R

PDU20BT4F8R

PDU20BT4F10R

PDU20BT4F12R

PDU20BT6F8R

PDU20BT6F10R

PDU20BT6F12R

Metered Series:

PDU15M2F8R

PDU15M2F10R

PDU15M2F12R

PDU20M2F8R

PDU20M2F10R

PDU20M2F12R

PDU20MT2F8R

PDU20MT2F10R

PDU20MT2F12R

Basic Series (0U):

PDU15BV14F

PDU15BV16F

PDU15BV20F

PDU15BV28F

PDU15BV32F

PDU20BV14F

PDU20BV16F

PDU20BV20F

PDU20BV28F

PDU20BV32F

PDU20BVT14F

PDU20BVT16F

PDU20BVT20F

PDU20BVT28F

PDU20BVT32F

Metered Series (0U):

PDU15MV20F

PDU15MV26F

PDU15MV32F

PDU20MV20F

PDU20MV26F

PDU20MV32F

PDU20MVT20F

PDU20MVT26F

PDU20MVT32F

PDU Naming Convention:

1. Amperage:

2. Series:

3. Rack Space:

4. Input Voltage:

5. Plug Type:

6. Outlet Number Front

7. Outlet Number Rear

8. Network Management

PDU XX M V HV T F R NET

1 2 3 4 5 6 7 8

Amperage – 15A, 20A, 30A

B: =Basic M: =Metered

SW: = Switched

NULL: =Horizontal V:= Vertical

NULL: =120V HV:= High Voltage – 208V to 250V

NULL: =NEMA 5-15P / 5-20P

T: = Twist (NEMA L5-L6 Plug)

IEC:= (IEC C14/C20)

Number of Outlets followed by F – Example 8F

Number of Outlets followed by R – Example 8R

NET

For information on Cyberpower products, visit www.cyberpower.com

Check

Before using, please check to ensure the package contains all the

items shown above. If there are missing parts please contact

CyberPower technical support at www.cyberpower.com or call

1-877-297-6937.

Safety Precautions -

Read the following before installing or operating

the Power Distribution Unit (PDU):

1. CAUTION! Use ONLY the supplied hardware (including screws, pegs and

cord retainer clips) to attach the mounting brackets. Using different hardware

or improper installations may cause damage that is NOT covered by

this warranty.

2. The PDU must only be plugged into a three-wire, grounded outlet on a

circuit protected by a fuse or circuit breaker. Connection to any other type

of power outlet may result in a shock hazard.

3. Do not use extension cords or adapters with this PDU.

4. Never install a PDU, or associated wiring or equipment, during a lightning

storm.

5. Check that the power cord, plug, and socket are in good condition.

6. CAUTION! To prevent the risk of fire or electric shock, this PDU should be

installed in a temperature and humidity controlled indoor area free of

conductive contaminants. Do not install this PDU where excessive

moisture or heat is present.

For information on Cyberpower products, visit www.cyberpower.com 2

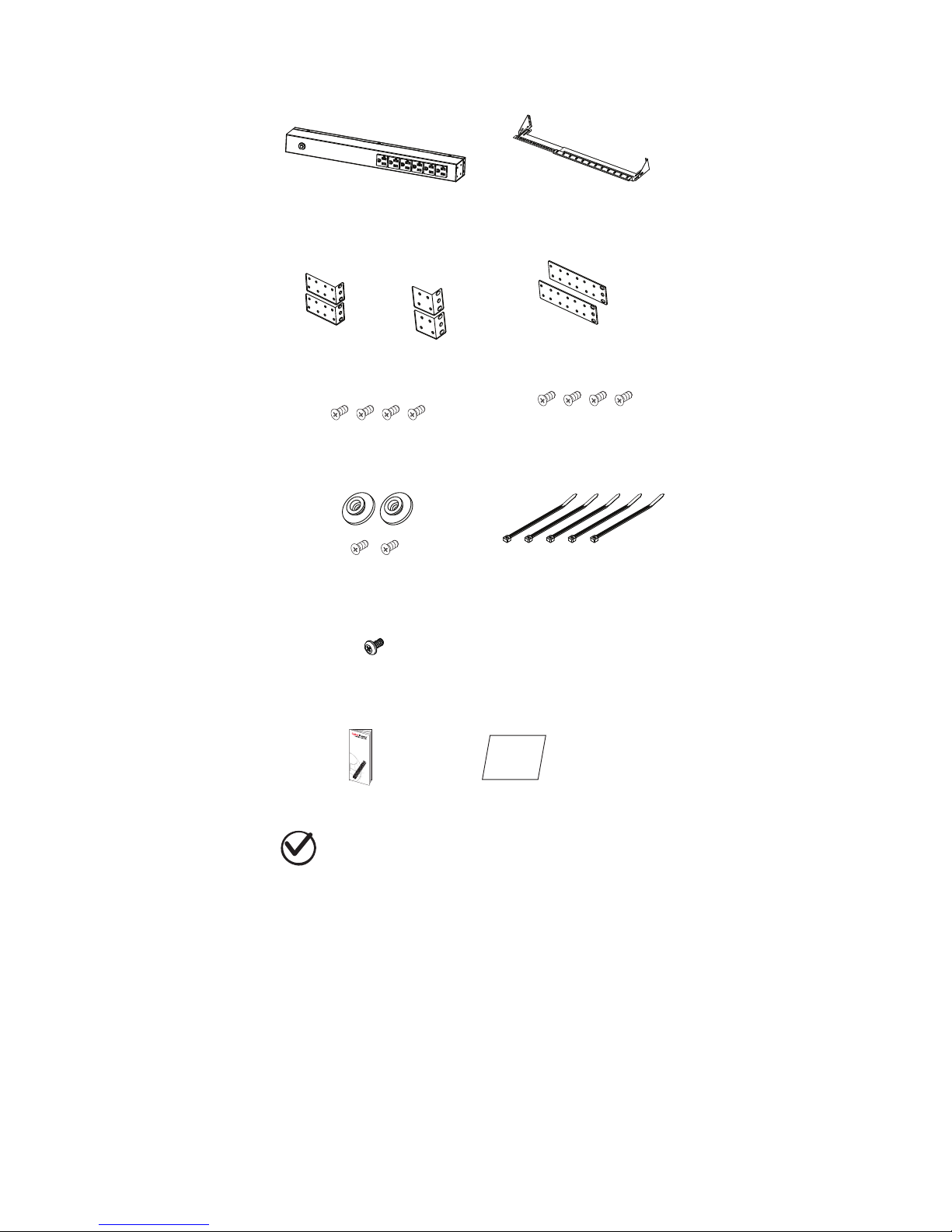

Package Contents

PDU (1) Cord Retention Tray

(1/2/3/4 pcs - varies by model)

Horizontal Installation

Used (1 set) Vertical Installation

Used (1 set)

Mounting Brackets

Vertical Mounting Brackets (1 set)

(for 0U models only)

Keyhole Mounting Pegs (2pcs)

with Screws M4 X 6 (2pcs)

(for 0U models only)

Bracket Mounting

Screws M4 X 6 (4pcs)

Cable Tie (12/ 15/ 21/ 24/ 30/ 36/

45/ 48/ 57 pcs - varies by model)

for Cord Retention Tray

Documentation:

User’s Manual

Power

Distribution

Unit

UserManual

Product Registration Card

Product

Registration

Card

Cord Retention Tray

Mounting Screws M3 X 6

(4/8/12/16 pcs - varies by model)

Ground Screw M4 X 6 (1 pcs)

Installation

Horizontal Installation (1U models only)

Step 1 – Mounting bracket installation

Install the screws (M4 X 6) in holes diagonal from each other.

Step 2 – PDU Mounting

Install the PDU using fasteners compatible with the rack.

For information on Cyberpower products, visit www.cyberpower.com

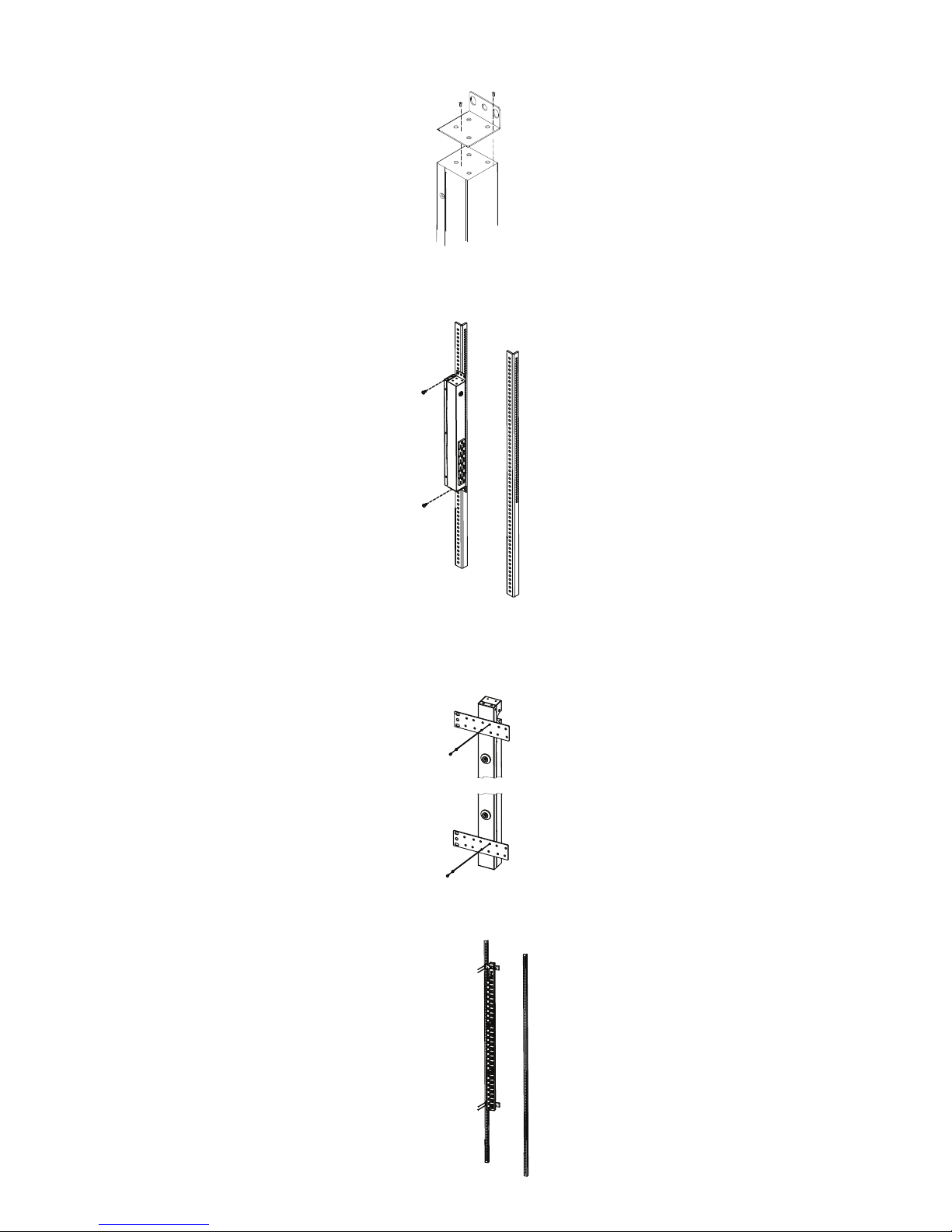

Vertical Installation with Brackets

Step 2 – PDU Mounting

Install the PDU using fasteners compatible with the rack.

Vertical Installation with Brackets (0U models only)

Step 1 – Mounting bracket installation

Attach the Vertical Mounting Brackets to the PDU with the 4 supplied

Bracket Mounting Screws (M4 X 6).

Step 2 – PDU Mounting

Install the PDU using fasteners compatible with the rack.

For information on Cyberpower products, visit www.cyberpower.com 4

Step 1 – Mounting bracket installation

Install the screws (M4 X 6) in holes diagonal from each other.

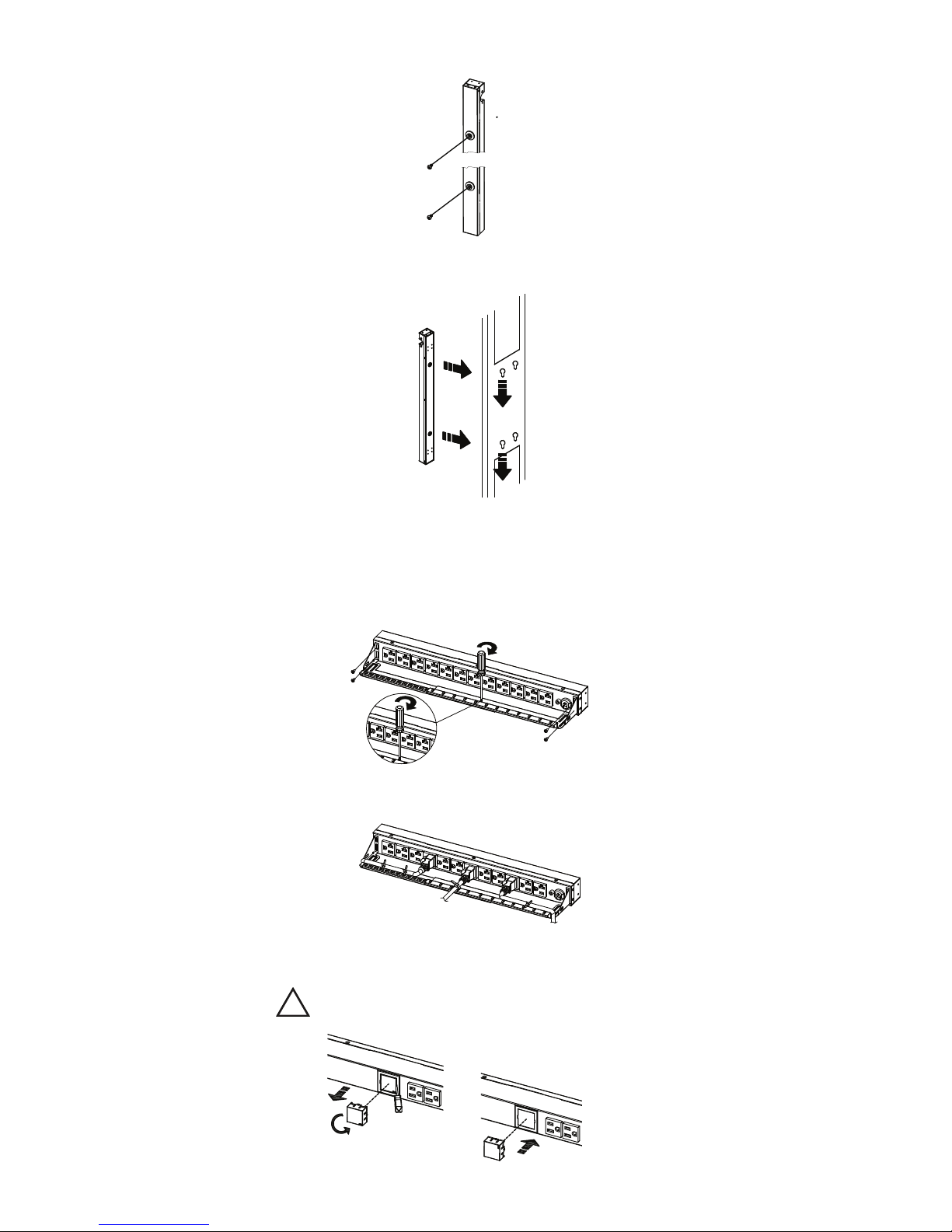

Vertical Installation with Keyhole Mounts (0U Models)

Align the the Keyhole Mounts to the Keyhole Slots on the rack.

Insert and slide down to lock firmly into place.

Step 2 – PDU Mounting

Step 1 – Keyhole Mount installation

Attach the Keyhole Mounting Pegs to the PDU with the 2 supplied

Bracket Mounting Screws (M4 X 6).

For information on Cyberpower products, visit www.cyberpower.com

Cord Retention Tray installation

(Optional for both horizontal and vertical installations)

Attach the Cord Retention Tray to the PDU with the 4 supplied Cord

Retention Tray Mounting Screws (M3 X 6). Tighten the Cord Retention Tray

with the screw on it.

Use the Cable Ties provided to fasten each power cord to the Cord Retention

Tray.

Meter Configuration

Use a screwdriver to gently remove the LED Meter. Rotate the LED Meter

90 degrees, and insert back into the PDU.

Note

Depending on installation method (vertical or horizontal),

the LED Meter may need to be rotated, before installation,

for proper orientation.

Adjust the length of the Cord Retention Tray till the screw hole on the Tray

and PDU are aligned.

Electrical Installation

Ensure that the plug type of your PDU unit (e.g. NEMA 5-15P, NEMA 5-

20P, NEMA L5-30P) matches the wall receptacle type that you are using.

Step 1 – Receptacle evaluation

PDU must be plugged into a three-wire, grounded wall receptacle only.

The wall receptacle must also be connected to an appropriate branch

circuit/main with fuse or circuit breaker protection. Connection to any

other type of wall receptacle may result in a shock hazard.

CAUTION!!

Step 2 – Plug the PDU into the wall receptacle

Step 3 – Attach equipment

Before attaching equipment, it is important to calculate the total load that you

will be placing on the PDU. It is extremely important not to exceed the PDU's

maximum current load (as outlined in the Specifications section). In order to

determine your total load, simply add up the amperage of your devices and

ensure that it does not exceed the unit’s capacity.

Troubleshooting

Problem Possible Cause Solution

PDU Outlets do not

provide power to

connected

equipment

1. Open breaker

2. Loose power cord

Reset Breaker check if

plug is completely

connected.

If the problem remains

contact tech support.

Amperage displayed

on Amperage Meter

exceedsthe unit’s

capability (Metered

type only)

1. Overload

2. Amperage meter is

damaged

The meter will flash

when overloaded.

Reduce the load on the

PDU until the overload

is gone.

If the problem remains

contact tech support.

Circuit breaker has

tripped

1. Sustained overload

2. Excessive ambient or

internaltemperatures.

3. Faulty breaker

Reset Breaker.

If the problem remains

contact tech support.

For information on Cyberpower products, visit www.cyberpower.com 6

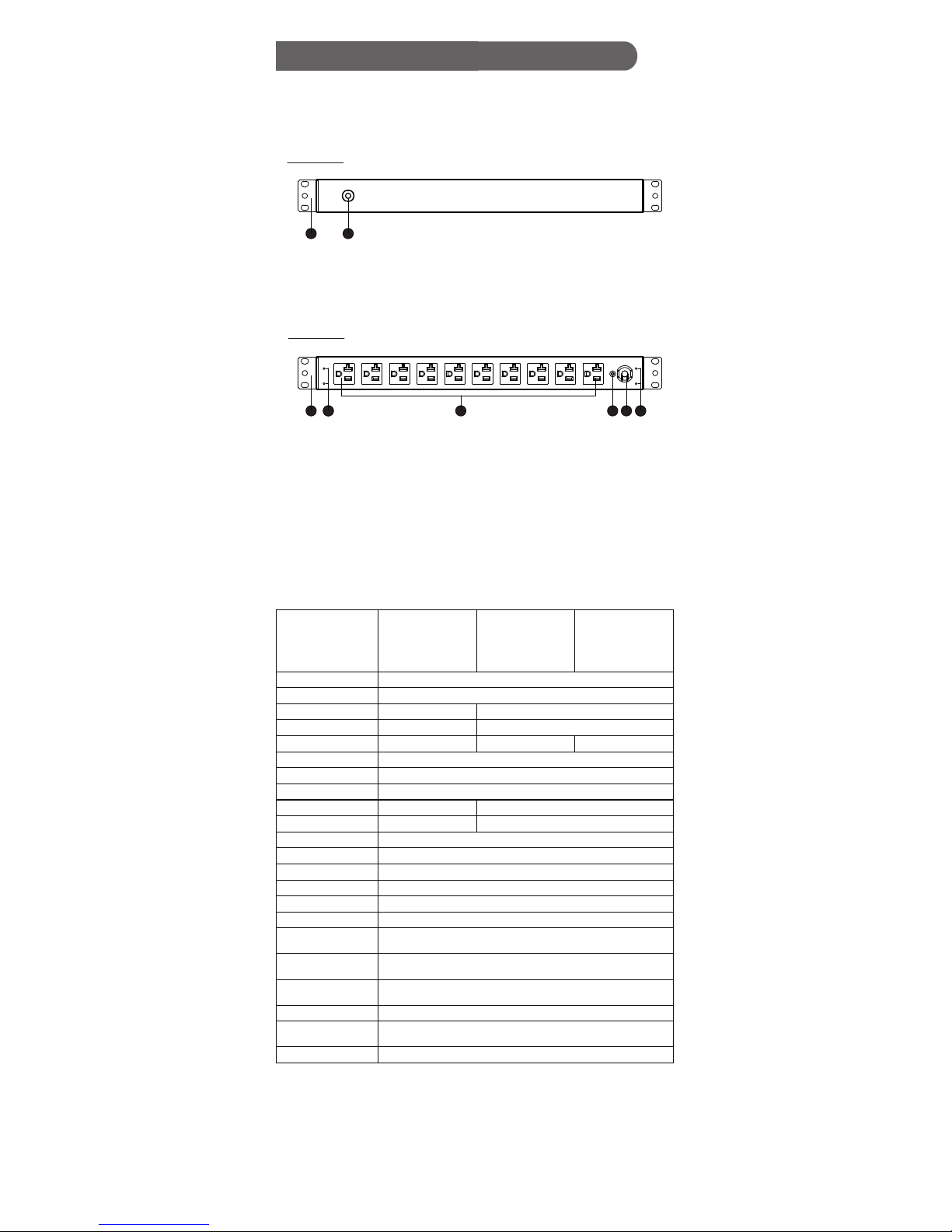

Basic Series

Product Features

Front View

Back View

A B

A. Mounting Bracket

B. Back Outlets

C. External Site Ground

A. Mounting Bracket

B. Circuit Breaker

A B C D

D. AC Power Cord

E. Cord Retention Tray

Screw Holes

Technical Specifications

For information on Cyberpower products, visit www.cyberpower.com

Model Name

PDU15B8R

PDU15B10R

PDU15B12R

PDU20B8R

PDU20B10R

PDU20B12R

PDU20BT8R

PDU20BT10R

PDU20BT12R

Input

Voltage

Max current

15 A

Circuit Breaker 15 A

Plug Type NEMA 5-15P NEMA 5-20P NEMA L5-20P

Output

Voltage

Current15 A

Outlet Type NEMA 5-15R

Indicators

LED Indicators

Meter Readout

Physical

Environmental

Humidity

Altitude

Temperature

Safety Approvals

Certifications

Warranty

ETL (test followed UL 1363)

RoHS

Lifetime

Operating 0 to 95% Non-condensing

Non-Operating 0 to 95% Non-condensing

Operating 0ft to 10,000ft

Non-Operating 0ft to 50,000ft

Operating 32Fto 95F

Non-Operating 5F to 113F

N/A

17.5" x 1.5" x 1.75"/ 44.5 x 3.81 x 4.45 cm

15 ft

N/A

100 ~ 125 V

20 A

NEMA 5-20R

100 ~ 125 V

20 A

Power Cord Length

Dimension (WxDxH)

Basic Series

Product Features

Front View

Back View

A B C D

A B C

A. Mounting Bracket

B. Back Outlets

C. External Site Ground

A. Mounting Bracket

B. Circuit Breaker

C. Front Outlets

D. AC Power Cord

E. Cord Retention Tray

Screw Holes

Technical Specifications

For information on Cyberpower products, visit www.cyberpower.com 8

Model Name

PDU15B2F8R

PDU15B2F10R

PDU15B2F12R

PDU15B4F8R

PDU15B4F10R

PDU15B4F12R

PDU15B6F8R

PDU15B6F10R

PDU15B6F12R

PDU20B2F8R

PDU20B2F10R

PDU20B2F12R

PDU20B4F8R

PDU20B4F10R

PDU20B4F12R

PDU20B6F8R

PDU20B6F10R

PDU20B6F12R

PDU20BT2F8R

PDU20BT2F10R

PDU20BT2F12R

PDU20BT4F8R

PDU20BT4F10R

PDU20BT4F12R

PDU20BT6F8R

PDU20BT6F10R

PDU20BT6F12R

Input

Voltage

Max current15 A

Circuit Breaker 15 A

Plug Type NEMA 5-15P NEMA 5-20P NEMA L5-20P

Output

Voltage

Current15 A

Outlet Type NEMA 5-15R

Indicators

LED Indicators

Meter Readout

Physical

Environmental

Humidity

Altitude

Temperature

Safety Approvals

Certifications

Warranty

ETL (test followed UL 1363)

RoHS

Lifetime

Operating 0 to 95% Non-condensing

Non-Operating 0 to 95% Non-condensing

Operating 0ft to 10,000ft

Non-Operating 0ft to 50,000ft

Operating 32Fto 95F

Non-Operating 5F to 113F

N/A

17.5" x 2.25" x 1.75"/ 44.5 x 5.72 x 4.45 cm

N/A

100 ~ 125 V

20 A

NEMA 5-20R

100 ~ 125 V

20 A

15 ft

Power Cord Length

Dimension (WxDxH)

Andere Handbücher für PDU15B8R

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere CyberPower Überspannungsschutz Handbücher

CyberPower

CyberPower CSB806 Bedienungsanleitung

CyberPower

CyberPower HT1006U Bedienungsanleitung

CyberPower

CyberPower 1085 Bedienungsanleitung

CyberPower

CyberPower CSP1008T Bedienungsanleitung

CyberPower

CyberPower B602RC1 Bedienungsanleitung

CyberPower

CyberPower B1006T Bedienungsanleitung

CyberPower

CyberPower HT1206TCU Bedienungsanleitung

CyberPower

CyberPower MP1070WS Bedienungsanleitung

CyberPower

CyberPower 649532008506 Bedienungsanleitung

CyberPower

CyberPower CSP806U Bedienungsanleitung

CyberPower

CyberPower B0418SA0-UN Bedienungsanleitung

CyberPower

CyberPower CSB404 Bedienungsanleitung

CyberPower

CyberPower B0520SC0-FR Bedienungsanleitung

CyberPower

CyberPower MP1075WS Bedienungsanleitung

CyberPower

CyberPower RKBS15S2F8R Bedienungsanleitung

CyberPower

CyberPower HT600TCWS Bedienungsanleitung

CyberPower

CyberPower GP400U4AWH Bedienungsanleitung

CyberPower

CyberPower 649532010301 Bedienungsanleitung

CyberPower

CyberPower HT706UC Bedienungsanleitung

CyberPower

CyberPower 649532008803 Bedienungsanleitung

CyberPower

CyberPower CSB6012 Bedienungsanleitung

CyberPower

CyberPower 6050-Silver Bedienungsanleitung

CyberPower

CyberPower HT705GR Bedienungsanleitung

CyberPower

CyberPower GP400U4A Bedienungsanleitung

Beliebte Überspannungsschutz Handbücher anderer Marken

ELAC

ELAC ProteK PR91-W Bedienungsanleitung

Tsubaki

Tsubaki TSM4000M1 Bedienungsanleitung

QVS

QVS PP134C Bedienungsanleitung

Davis Instruments

Davis Instruments Radio Surge Protector Bedienungsanleitung

M-system

M-system MGA-100 Bedienungsanleitung

M-system

M-system MGD-24 Bedienungsanleitung

Leviton

Leviton 51120-3R Bedienungsanleitung

Panamax

Panamax MAX 5400-EX Bedienungsanleitung

OBO Bettermann

OBO Bettermann ÜSM-20-230I1PE65 Bedienungsanleitung

Minuteman

Minuteman MMS7120RCT Bedienungsanleitung

Leviton

Leviton 52412-DS3 Bedienungsanleitung

Savio

Savio LZ-07 Bedienungsanleitung

Siemens

Siemens HNM3M120 Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric LITOL LTM-125RF Bedienungsanleitung

Intermatic

Intermatic PS3000 Bedienungsanleitung

ASCO POWER TECHNOLOGIES

ASCO POWER TECHNOLOGIES 360 Bedienungsanleitung

CPT

CPT PSC3-5 PV Bedienungsanleitung

Radio Shack

Radio Shack Surge Protector Bedienungsanleitung
