Userˊs Manual

BPSE240V75ART3U

BPSE240V75ART3UOA

CyberPower Systems Inc.

www.cyberpower.com

K01-C000117-02

CONTENT:

1. SAFETY............................................................................................................1

2. UNPACKING.....................................................................................................3

3. BASIC OPERATION.........................................................................................4

3.1. SCHEMATIC.............................................................................................4

3.2. FRONT/REAR PANEL DESCRIPTION.....................................................4

4. HARDWARE INSTALLATION..........................................................................5

4.1. RACKMOUNT INSTALLATION.................................................................5

4.2. VERTICAL/TOWER INSTALLATION........................................................8

5. ELECTRICAL INSTALLATION ......................................................................10

5.1. One Battery module with 240Vdc input of the Power module..................10

5.2. Multiple Battery modules with 240Vdc input of the Power module..........11

5.3. Two Battery modules with ±240Vdc input of the Power module..............13

5.4. Multiple Battery modules with ±240Vdc input of the Power module ........13

6. TECHNICAL SPECIFICATION.......................................................................14

1. SAFETY

This manual contains important instructions. Please read and follow all instructions

carefully during installation and operation of the unit. Read this manual thoroughly

before attempting to unpack, install, or operate the Battery module.

CAUTION! The UPS unit must be connected to a grounded AC power outlet

with fuse or circuit breaker protection. The Battery modules grounded are

through the UPS.

CAUTION! The battery can power hazardous components inside the unit,

even when the AC input power is disconnected.

CAUTION! To prevent the risk of fire or electric shock, install in a

temperature and humidity controlled indoor area, free of conductive

contaminants. (Please see specifications for acceptable temperature and

humidity range).

CAUTION! (No User Serviceable Parts): Risk of electric shock, do not

remove cover. No user serviceable parts inside. Refer servicing to qualified

service personnel.

CAUTION! (Non-Isolated Battery Supply): Risk of electric shock, battery

circuit is not isolated from AC power source; hazardous voltage may exist

between battery terminals and ground. Test before touching.

CAUTION! Wiring must be done by qualified personnel.

CAUTION! DO NOT USE WITH OR NEAR AQUARIUMS! To reduce the

risk of fire, do not use with or near aquariums. Condensation from the

aquarium can come in contact with metal electrical contacts and cause the

machine to short out.

CAUTION! Do not dispose of batteries in fire as the battery may explode.

CAUTION! Do not open or mutilate the battery, released electrolyte is

harmful to the skin and eyes.

CAUTION! A battery can present a risk of electric shock and high short

circuit current. The following precaution should be observed when working on

batteries

1. Remove watches, rings or other metal objects.

2. Use tools with insulated handles.

CAUTION! Make sure everything is turned off and disconnected completely

before conducting any maintenance, repairs or shipment.

CAUTION! Connect the Protection Earth (PE) safety conductor before any

other cables are connected.

DO NOT INSTALL THE UNIT WHERE IT WOULD BE EXPOSED TO

DIRECT SUNLIGHT OR NEAR A STRONG HEAT SOURCE!

SERVICING OF BATTERIES SHOULD BE PERFORMED OR SUPERVISED

BY PERSONNEL KNOWLEDGE OF BATTERIES AND THE REQUIRED

PRECAUTIONS. KEEP UNAUTHORIZED PERSONNEL AWAY FROM

BATTERIES!

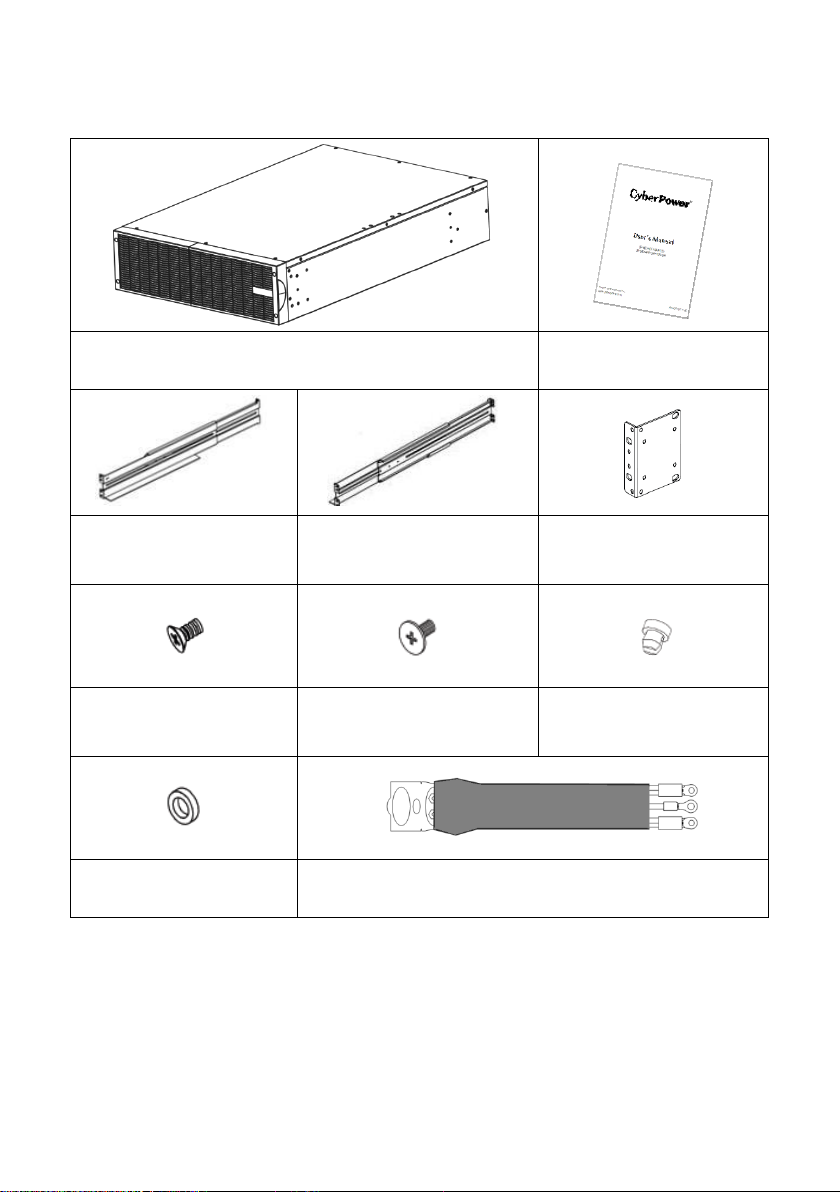

2. UNPACKING

Battery module

User’s manual

Rackmount left rail

Rackmount right rail

Rackmount ears

(Stands)*2PCS

Flat head screws:M4X8L

Pan head screws:M5X12L

Screw hole dust

Plastic washers

Battery Cable

3. BASIC OPERATION

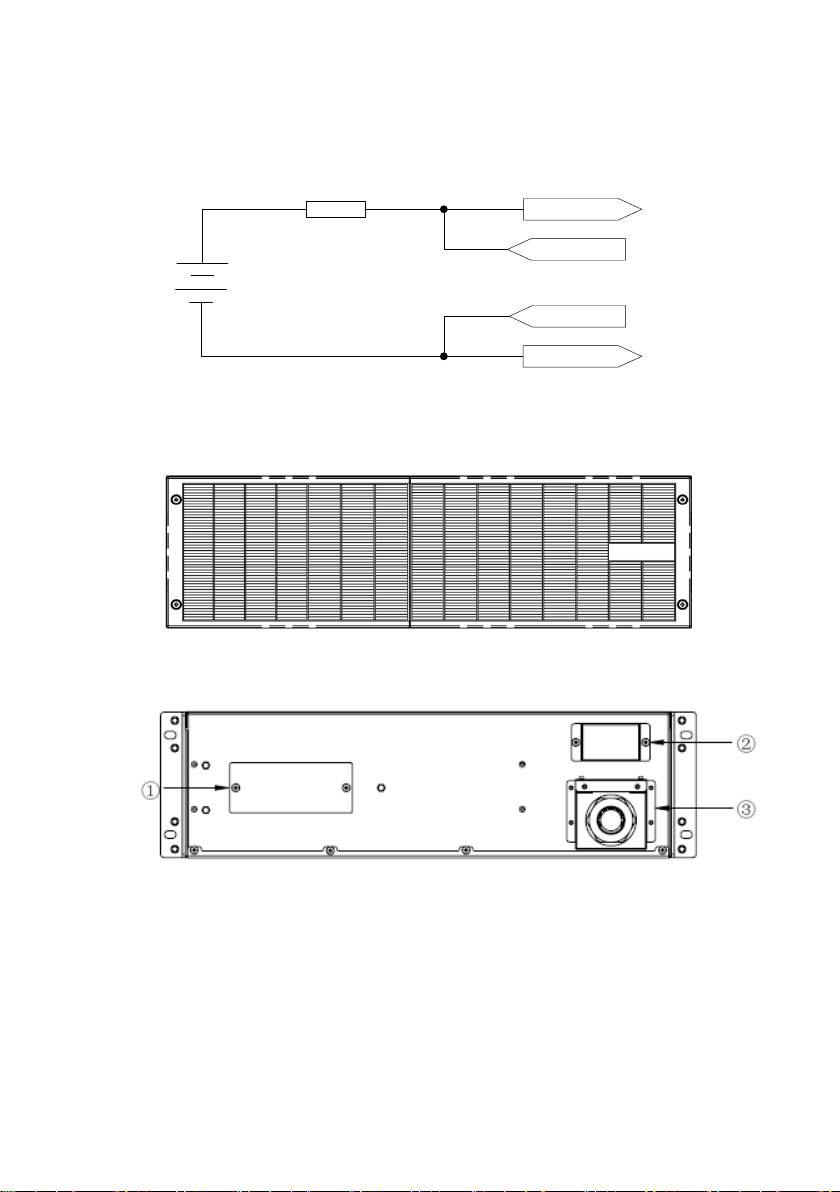

3.1. SCHEMATIC

Battery String

Fuse

Battery Output-

Battery Output+

Battery Input+

Battery Input-

3.2. FRONT/REAR PANEL DESCRIPTION

Front View

Rear View

①. Fuse: Replaceable fuse is accessible from the rear panel. It must be done by

qualified personnel.

②. Output Connector: Use this output connector to connect the Battery module

and the Power module.

③. Battery input Terminal Block: Use this input Terminal Block to daisy chain

the next Battery module.

4. HARDWARE INSTALLATION

CAUTION! To prevent the risk of fire or electric shock, only use the supplied

hardware to attach the mounting brackets.

These versatile UPS systems can be mounted in a rackmount or vertical/tower

orientation. This versatility is especially important to growing organizations with

changing needs that value having the option to position a UPS on a floor or in a

rackmount system. Please follow the instructions below for the respective

mounting methods.

4.1. RACKMOUNT INSTALLATION

Step1.Rackmount ears installation

a) Attach the two rackmount ears to the UPS using the provided screws

M4X8L*8pcs.

b) Insert dust cover into the rackmount ear screw holes that are not being used.

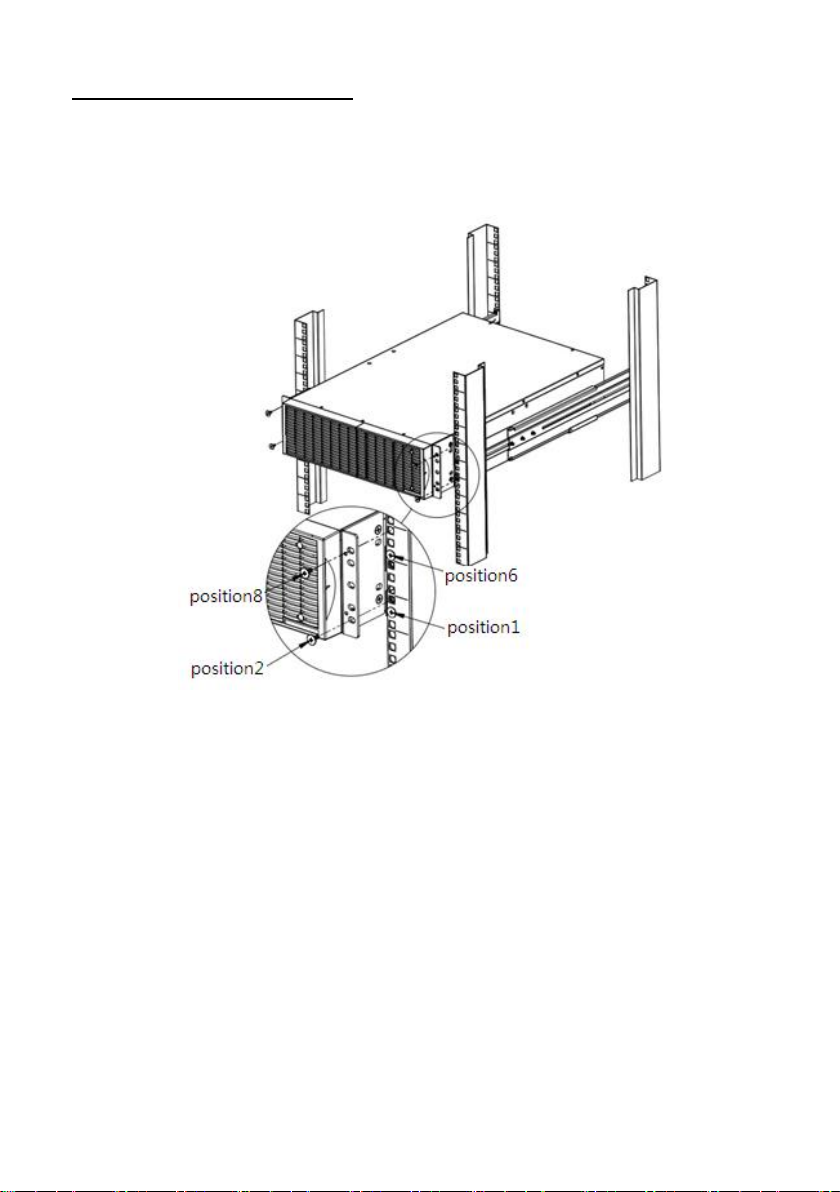

Step2.Rackmount rails Installation

a) The rails adjust to mount in 48-cm

(19-inch) panel racks from 52 to 91.5cm

(20.5 to 36 inches) deep. Select the

proper holes in the rack for positioning

the UPS in the rack. The UPS takes up

position 1 through position 9.

b) Attach the rackmount rail to your rack

with two M5X12L screws and two plastic

washers at the front of the rack.

(Located in position 1 & position 6) Do

not tighten the screws. Adjust the rail

size on the rail assembly of your rack.

Secure the rail to the rear of the rack

with two M5X12L screws and two plastic

washers. Tighten all screws at the front and rear of the rail. Once completed,

perform the same steps for assembling the other rackmount rail.

Step3.Install the UPS on the rack

a) Place the UPS on a flat stable surface with the front of the unit facing toward

you. Secure the UPS to your rack with four M5X12L screws at the front of the

rack. (Located in position 2 & position 8).

b) Once completed, perform the same steps for Power module.

CAUTION! The Battery module must be installed below the UPS.

4.2. VERTICAL/TOWER INSTALLATION

Attach the base stands #1: Without Power module

a) Tighten the screws (M5X12*4pcs) of the base stands (rackmount ears) onto

the bottom of the Battery module.

b) Insert dust cover into the rackmount ear screw holes that are not being used.
