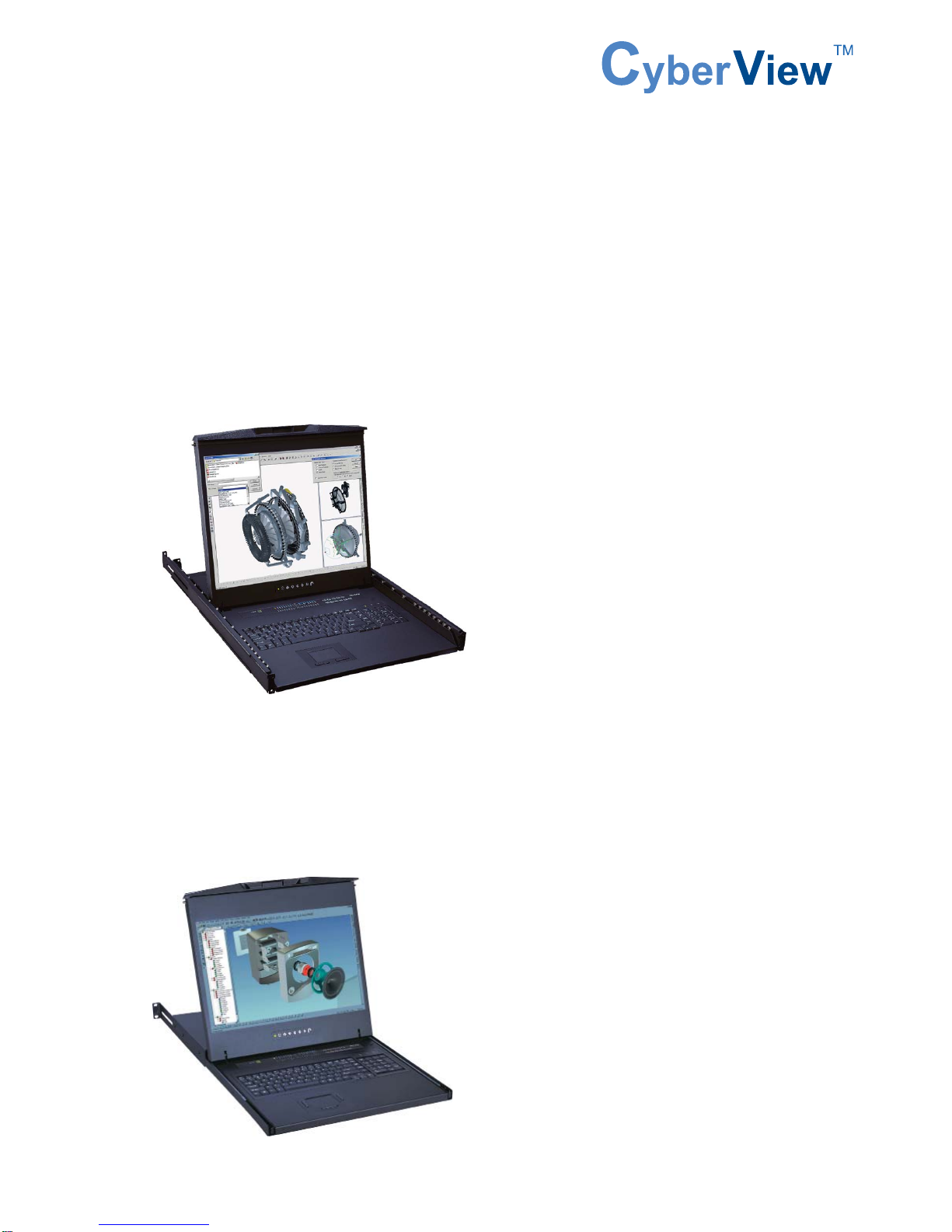

CyberView L120 Bedienungsanleitung

User Manual

W-119 / WS-119 Series

L-120 / LS-120 Series

- 1U 20" LCD keyboard drawer

- Resolution up to 1600 x 1200

- Full range KVM options

- 1U widescreen 19" LCD keyboard drawer

- Resolution up to 1440 x 900

- Full range KVM options

Chapter 1 Getting Started

1.1 Important Safeguards..........................................................1

1.2 Regulatory Notice................................................................2

1.3 Package Contents...............................................................3

1.4 Before Installation...............................................................4

1.5 Unpacking...........................................................................4

1.6 OptionalAccessories...........................................................4

1.7 Peripheral Products.............................................................5

1.8 Structure Diagram...............................................................6

1.9 Installation.....................................................................7-12

1.10 How to Use the Slide........................................................13

1.11 How to Use LCD Keyboard Drawer..................................14

1.12 LS-120 / WS-119 (Single console)

- Use CB-6 to connect to server via USB interface..........................15

1.13 LS-120 / WS-119 (Single console)

- Use CB-6 to connect to KVM via USB interface............................15

1.14 L-120 / W-119 (Single console)

- Use CE-6 to connect to server via PS/2 interface.........................16

1.15 L-120 / W-119 (Single console)

- Use CE-6 to connect to KVM via PS/2 interface..........................16

1.16 L-120 / W-119 (Single console)

- Use CE-6 to connect to server via USB interface...........................17

1.17 L-120 / W-119 (Single console)

- Use CE-6 to connect to KVM via USB interface............................17

Chapter 2 Operation

2.1 On-screen Display Operation............................................18

2.2 On-screen Menu...............................................................19

Chapter 3 Standard Speciﬁcation

3.1 Speciﬁcations..............................................................20-21

3.2 Keyboard & Mouse......................................................22-24

3.3 How to Use “NS” Keyboard...............................................25

Contents

Chapter 4 Optional Speciﬁcation

4.1 KVM Options.....................................................................26

4.2 DVI-D Input Option...........................................................26

4.3 BNC+S-VideoOption........................................................26

4.4 Audio Option.....................................................................27

4.5 DC power Options............................................................28

Chapter 5 Troubleshooting...........................................................29

Chapter 6 Dimensions.......................................................................30

Blank page

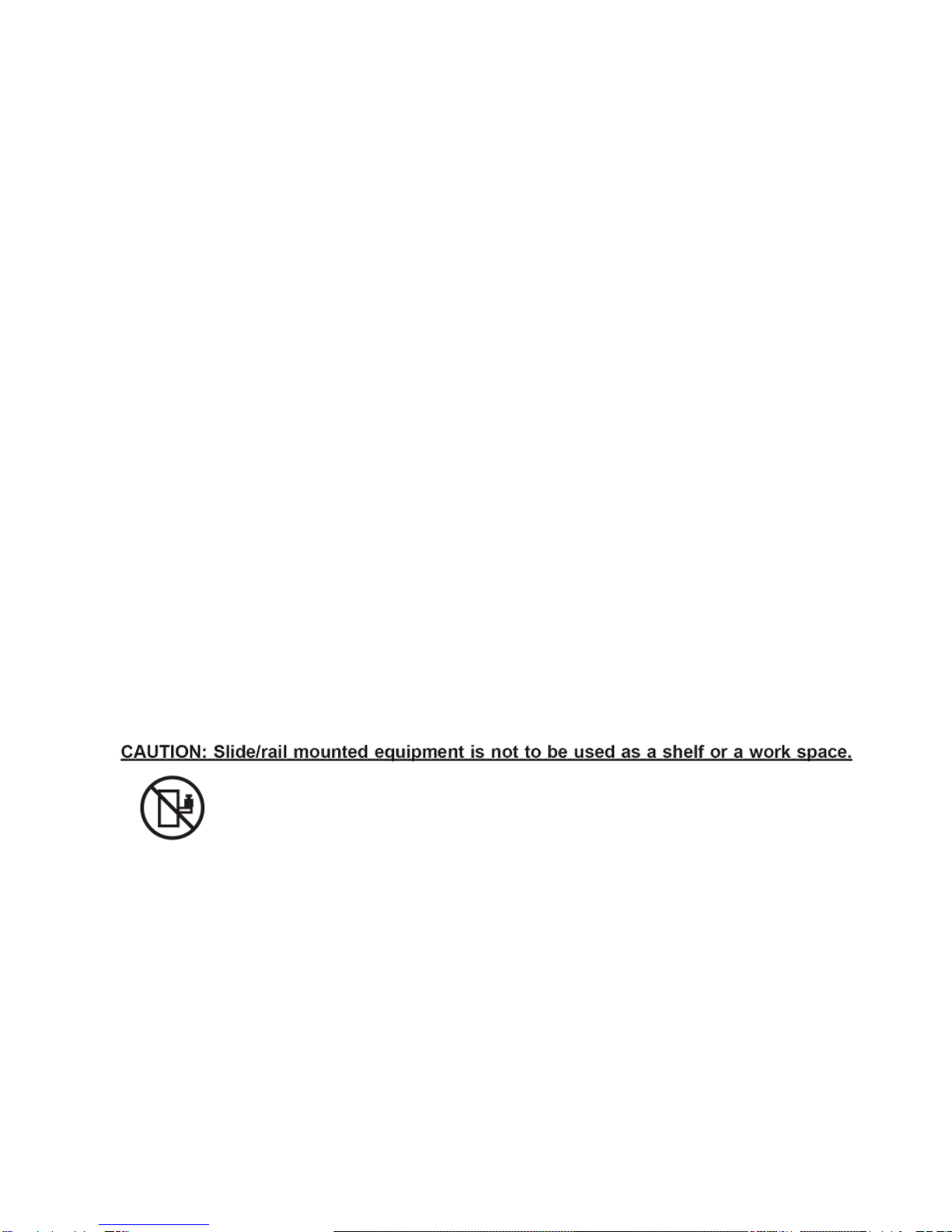

1.1 Important Safeguards Chapter 1

P. 1

Please read all of these instructions carefully before you use the device. Save this manual for future

reference.

What the warranty does not cover

■Any product, on which the serial number has been defaced, modiﬁed or removed.

■Damage, deterioration or malfunction resulting from:

□Accident, misuse, neglect, ﬁre, water, lightning, or other acts of nature, unauthorized product modiﬁ-

cation, or failure to follow instructions supplied with the product.

□Repair or attempted repair by anyone not authorized by us.

□Any damage of the product due to shipment.

□Removal or installation of the product.

□Causes external to the product, such as electric power ﬂuctuation or failure.

□Use of supplies or parts not meeting our speciﬁcations.

□Normal wear and tear.

□Any other causes which does not relate to a product defect.

■Removal, installation, and set-up service charges.

P. 2

1.2 Regulatory Notice Chapter 1

Legal Information

First English printing, October 2002

Information in this document has been carefully checked for accuracy; however, no guarantee is given to the

correctness of the contents. The information in this document is subject to change without notice. We are not

liable for any injury or loss that results from the use of this equipment.

Safety Instructions

■Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a moist cloth.

■Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned enviro-

nment with temperatures not exceeding 40º Celsius (104º Fahrenheit).

■When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and

causing damage to other equipment or injury to persons nearby.

■When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it and

the power supply. Proper air convection is necessary to keep it from overheating.

■Arrange the equipment’s power cord in such a way that others won’t trip or fall over it.

■If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage

and current labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be

higher than the one listed on the equipment’s ratings label.

■Observe all precautions and warnings attached to the equipment.

■If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent

being damaged by transient over-voltage.

■Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to

the power supply or on other hardware may cause damage, ﬁre or electrical shock.

■Only qualiﬁed service personnel should open the chassis. Opening it yourself could damage the equip-

ment and invalidate its warranty.

■If any part of the equipment becomes damaged or stops functioning, have it checked by qualiﬁed service

personnel.

Regulatory Notices Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interfer-

ence in a residential installation.

Any changes or modiﬁcations made to this equipment may void the user’s authority to operate this equip-

ment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment

does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

■Re-position or relocate the receiving antenna.

■Increase the separation between the equipment and receiver.

■Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

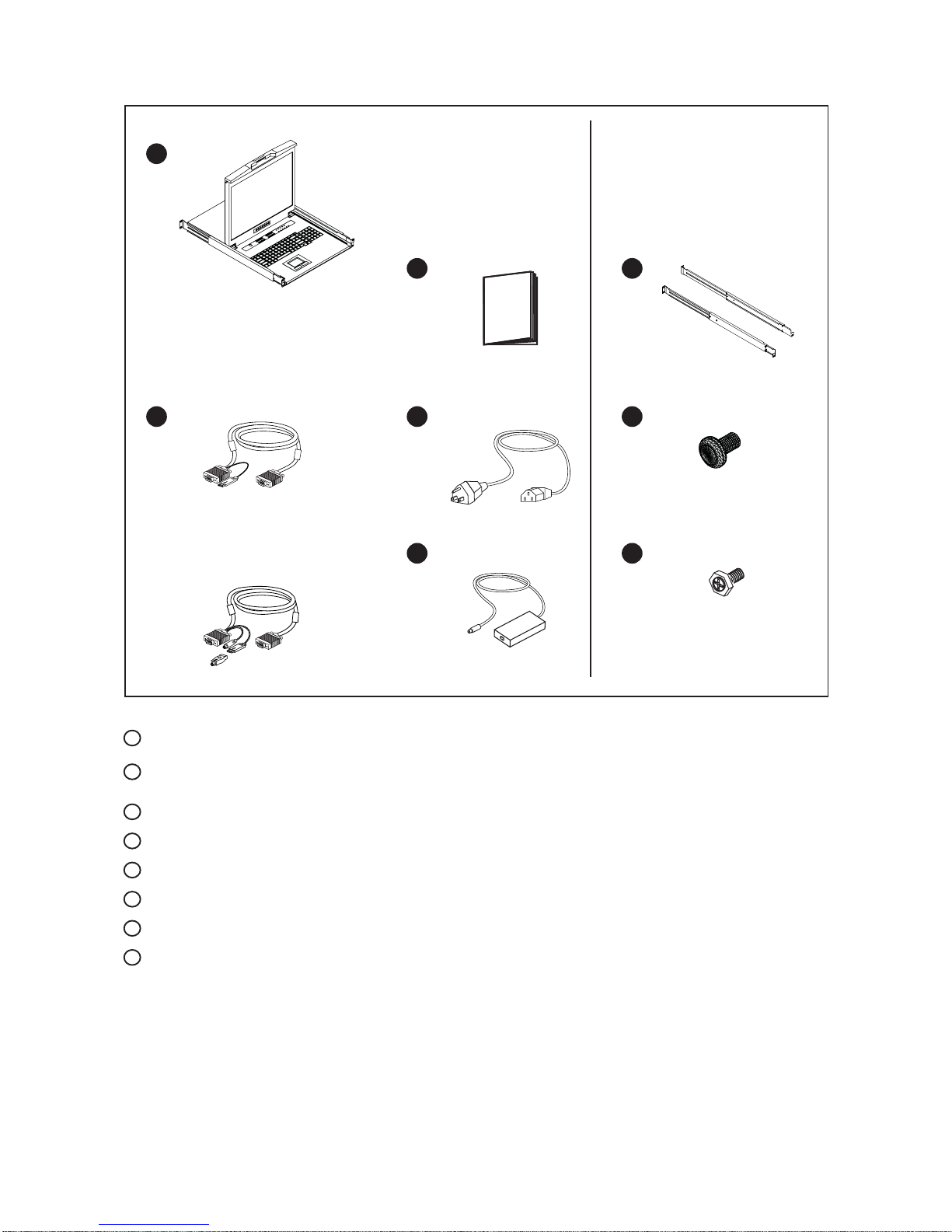

1.3 Package Contents Chapter 1

P. 3

LCD keyboard drawer x 1 pc

CB-6 USB 2-in-1 KVM cable x 1 pc (for LS / WS series) or

CE-6 Combo 4-in-1 KVM cable x 1 pc (for L / W series)

User manual x 1 pc

Power cord x 1 pc

Auto switch power adapter ( for external power version) x 1 pc

Mounting bracket x 2 pcs

M6*15mm screw x 8 pcs

M3.2*6mm screw x 4 pcs

User

Manual

■It is very important to locate the LCD Keyboard Drawer in a suitable environment.

■The surface for placing and ﬁxing the LCD Keyboard Drawer should be stable and level or mounted into a suitable

cabinet.

■Make sure the place has good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat,

water, moisture and vibration.

■Position LCD Keyboard Drawer with respect to related facilities.

The LCD keyboard drawer comes with the standard parts shown on the package contents. Check and make sure they

are included and in good condition. If anything is missing, or damage, contact the supplier immediately.

1.5 Unpacking

1.4 Before Installation Chapter 1

P. 4

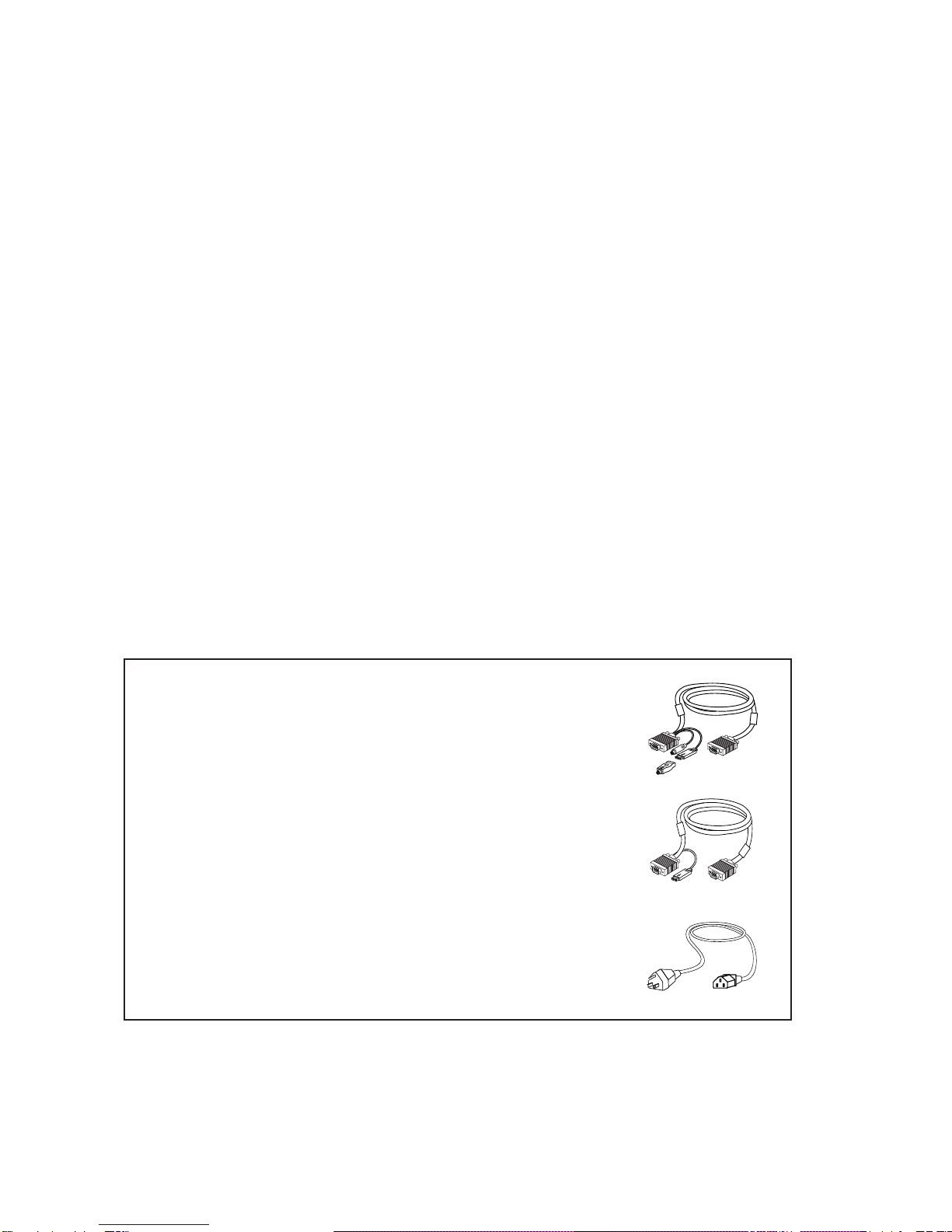

1.6 Optional Accessories

1. Combo 4-in-1 KVM cable

1.1 CE-6 6 feet

1.2 CE-10 10 feet

1.3 CE-15 15 feet

2. USB 2-in-1 KVM cable

2.1 CB-6 6 feet

2.2 CB-10 10 feet

2.3 CB-15 15 feet

3. Power Cord

3.1 IEC power cord

3.2 NEMA 5-15 power cord (US)

3.3 BS 1363 power cord (UK)

3.4 CEE 7/4 power cord (German)

3.5 AS 3112 power cord (Australia)

Remarks :

■CB-6 is for “LS” & “WS” series only.

P. 5

1.7 Peripheral Products Chapter 1

Remarks :

■“LS” & “WS” Series are for Matrix & Combo KVM only.

Item Model No. Description

Matrix Cat6 KVM

MU-1602 / MU-1603 / MU-1604

MU-IP1613 / MU-IP1614 / MU-IP1624

MU-3202 / MU-3203 / MU-3204

MU-IP3213 / MU-IP3214 / MU-IP3224

Matrix Cat6 16 port KVM

Matrix IP Cat6 16 port KVM

Matrix Cat6 32 port KVM

Matrix IP Cat6 32 port KVM

Matrix DB-15 KVM

M-802 / M-803 / M-804

M-IP813 / M-IP814 / M-IP824

M-1602 / M-1603 / M-1604

M-IP1613 / M-IP1614 / M-IP1624

Matrix DB-15 8 port KVM

Matrix IP DB-15 8 port KVM

Matrix DB-15 16 port KVM

Matrix IP DB-15 16 port KVM

Combo Cat6 KVM

U-801 / U-802 / U-IP802

U-1601 / U-1602 / U-IP1602

U-3201 / U-3202 / U-IP3202

Combo Cat6 8 port KVM

Combo Cat6 16 port KVM

Combo Cat6 32 port KVM

Combo DB-15 KVM CV-S801 / CV-802 / IP-802

CV-S1601 / CV-1602 / IP-1602

Combo DB-15 8 port KVM

Combo DB-15 16 port KVM

PS/2 DB-15 KVM CV-401 / CV-801 / CV-1601 4 / 8 / 16 port PS/2 DB-15 KVM

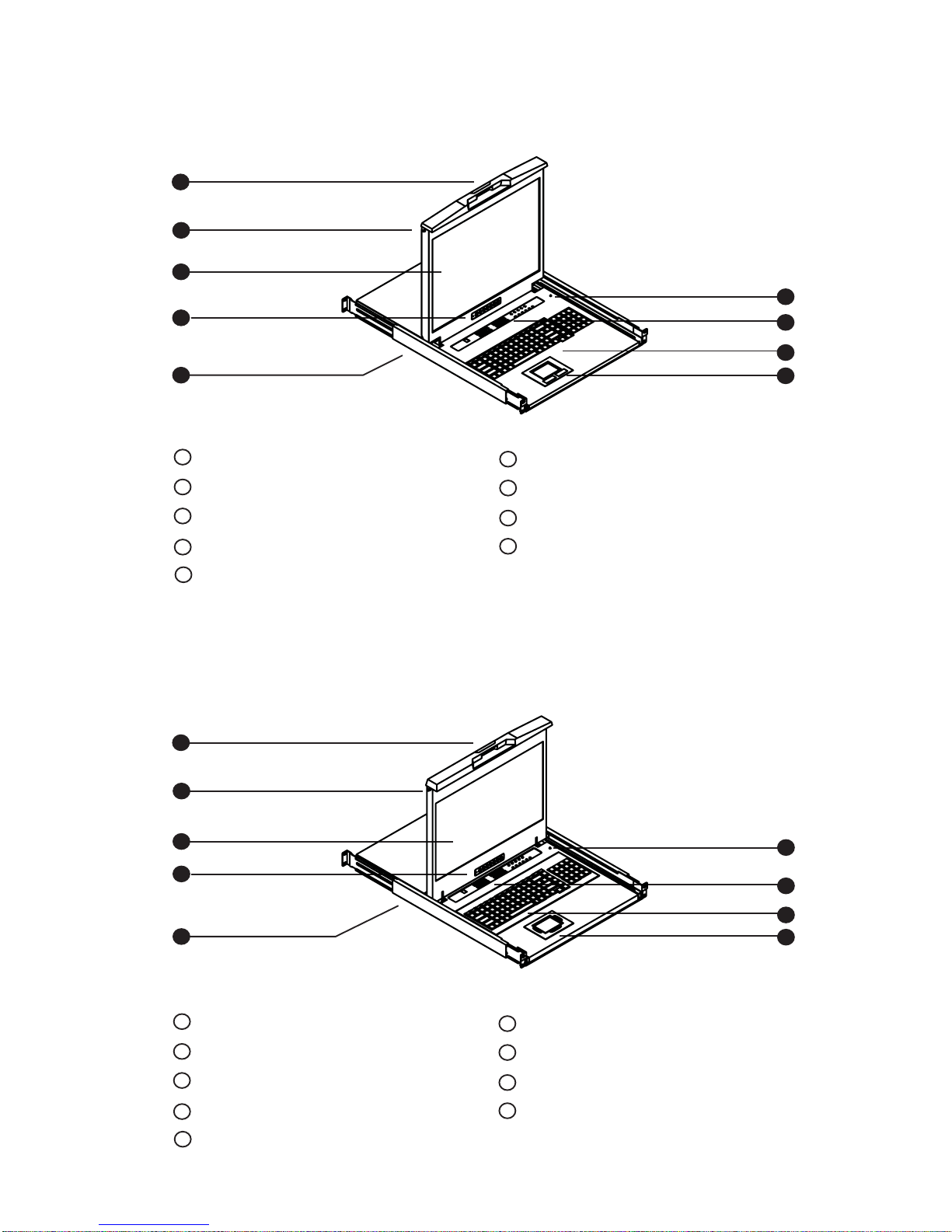

1.8 Structure Diagram Chapter 1

Carry handle to release the 2-pt lock

2-point lock

LCD interchangeable module kit

LCD membrane

“One Man” Installation Slide

Micro switch for screen auto power off

Membrane switch (KVM option)

Keyboard interchangeable module kit

2 buttons mouse interchangeable module kit

P. 6

W / WS series

Carry handle to release the 2-pt lock

2-point lock

LCD interchangeable module kit

LCD membrane

“One Man” Installation Slides

Micro switch for screen auto power off

Membrane switch (KVM option)

Keyboard interchangeable module kit

Mouse interchangeable module kit

L / LS series
