Cygolite TridenX 1300 Bedienungsanleitung

•1300 lumen LED light output

•3 High-brightness 2nd Generation Cree XM-L LEDs

•8 versatile lighting settings

Boost > High > Med > Low

> SteadyPulse > Daylight Flash > Slow Flash > Walking

•OSP (On-Site Programmable) Technology

•CrossFire Technology for wider visibility

•High capacity Li-ion battery

•Light mode and battery level indicator

•Locktite tool-free handlebar mount

•Helmet mount kit

OPERATION MANUALOPERATION MANUAL

OPERATION MANUAL

Congratulations on your purchase of the TridenX high-brightness LED

headlight system. Please refer to this guide to operate your TridenX

safely and properly.

Triple LED Rechargeable Smart Bicycle Light

If you have more questions that are not listed here,

visit the support page at: www.cygolite.com

CAUTION:

· Headlight may get hot during use. Use caution when handling.

· Unplug the headlight from charger when not in use.

· Unplug connectors by the plug, never by the cable.

· Do not modify or substitute any parts with non-Cygolite parts.

· Do not open headlight case.

· Provide adequate airflow to the headlight to cool during use.

· If the light is on & stationary longer than 10 minutes, turn it off.

· Do not look directly at light.

· Do not operate or submerge under water.

· Do not operate the light unattended.

· Keep headlight away from combustible materials.

· Do not package headunit when hot or immediately after use.

· Carrying a flash light is recommended.

· This light is for bicycle use only.

· State laws regarding flashing bicycle lights may vary among states. Use the flashing

modes in accordance to your local state laws as well as federal law.

TRIDENX 1300

FEATURESFEATURES

FEATURES

CONTENTSCONTENTS

CONTENTS

F.A.Q.sF.A.Q.s

F.A.Q.s

The TridenX is designed to be used on bikes in some of the most extreme

outdoor conditions. Over time, dust and dirt may hinder the connections on

your battery and headlight. To prevent this from happening, ensure that

both the battery and headlight are clean after every ride.

Wipe the headlight and battery down with a damp cloth. Do not submerge

the battery or headlight in water. The DC jack grommet on the headlight

occasionally needs lubrication. We recommend using a bit of vaseline to

ensure easier connection between the plug and headlight. Remove all dirt

around or on the plugs or jacks on both the battery and headlight.

The High-Brightness LEDs have extensive life so bulb replacement is not

required.

CARECARE

CARE

The headlight will not turn on.

•Make sure the power button was firmly pressed.

•Make sure the battery cable is properly connected.

•Make sure the battery is fully charged.

The headlight turns off over rough terrain.

•Make sure battery cable is securely plugged into the headlight.

•Make sure battery cable is fastened to the handlebar to

minimize cable vibration.

TROUBLESHOOTINGTROUBLESHOOTING

TROUBLESHOOTING

WARRANTYWARRANTY

WARRANTY

CYGOLITE

1307-A EAST SAINT GERTRUDE PL., SANTA ANA, CA 92705 USA

PHONE: (714) 437-7752 EMAIL: [email protected]

www.cygolite.com

All Cygolite products are backed by Cygolite’s warranty, providing

quality, craftsmanship, and the assistance of our knowledgeable staff.

If any support is needed, we will assist with 48 hour turnarounds on parts

and service. For questions, problems, and/or authorized Cygolite parts

COMMITMENTCOMMITMENT

COMMITMENT

• High-brightness LED headlight

• Rechargeable Li-ion battery

• Wall charger

• Locktite handlebar bracket

• Helmet mount kit

• Operation manual

Q: When should I replace the bulbs?

· The LEDs have extensive life so bulb replacement is not

necessary.

Q: When should I charge my battery?

·The battery can be charged any time, but we recommend

fully charging the battery every time you charge it.

Q: Can I leave my battery on the charger for extended periods of

time?

· The wall charger prevents damage from overcharging but,

like all electrical appliances, we recommend unplugging the

battery and charger once the battery is fully charged.

Q: Can I give a partial charge to my battery?

· In order for the battery level indicator to be accurate we

recommend fully charging the battery every time.

Q: How do I know the charger is charging?

·When the wall charger is plugged into the wall outlet and

connected to the battery, the LED charging indicator on the

charger will be RED, indicating it is in Rapid charge mode.

If the LED shows GREEN, the charger is in trickle mode

and the battery is fully charged.

Q: Are other batteries interchangeable with this light?

·No, the TridenX is only compatible with the Li-Ion battery it

came with. This light is not compatible with any other

batteries.

Q: Will chargers for my other Cygolite systems recharge the TridenX

battery?

·Yes, the TridenX battery is compatible with CygoLite’s 7.6

volt Li-Ion charger used on the Centauri, and Turbo (7.6v)

systems.

Q: Can I use non-Cygolite parts for this unit?

·No, Cygolite parts are manufactured to specific quality

specifications. Use of non-Cygolite parts will void the

warranty and may cause damage to the light.

Q: Can I use this light for activities other than cycling?

·No, this light is specifically intended for bicycle use only.

QUESTIONS ABOUT ADJUSTING BRIGHTNESS / FLASH SPEEDS

Q: Can I reset my light back to manufacture default setting?

·Yes, when the light is on, press and HOLD the power

button for 7 SECONDS. The light will turn off, then restart

with the factory default settings.

Q: Are my programmed settings going to be saved after I unplug the

battery?

·Yes, your programmed settings will be saved until you

press the OSP button.

Q: Why can’t I adjust the Boost brightness or Walking mode?

·Those 2 modes are permanent and can not be programmed.

Q: What if I don’t want to program the light, can I use it normally?

·Yes you can use the light with the factory default settings

it came with.

In the USA, the TridenX comes with a one year limited warranty against any

defective part or craftsmanship. The battery is warranted up to 180 days

after the original date of purchase. If the unit is under warranty, Cygolite

will repair or replace defective components at no charge provided the

product has not been subject to misuse, abuse, or non-Cygolite authorized

alteration, modification or repair. Warranted products requiring service

must receive a Return Merchandise Authorization number (RMA#) from

customer service. The original receipt (INCLUDING DATE) is required on

all warranty repairs. Shipping costs inccurred from shipping warranty or

repair items from the customer to Cygolite are covered by the customer.

For warranty issues outside the USA, contact the retailer where the

purchase was made.

V1:130820

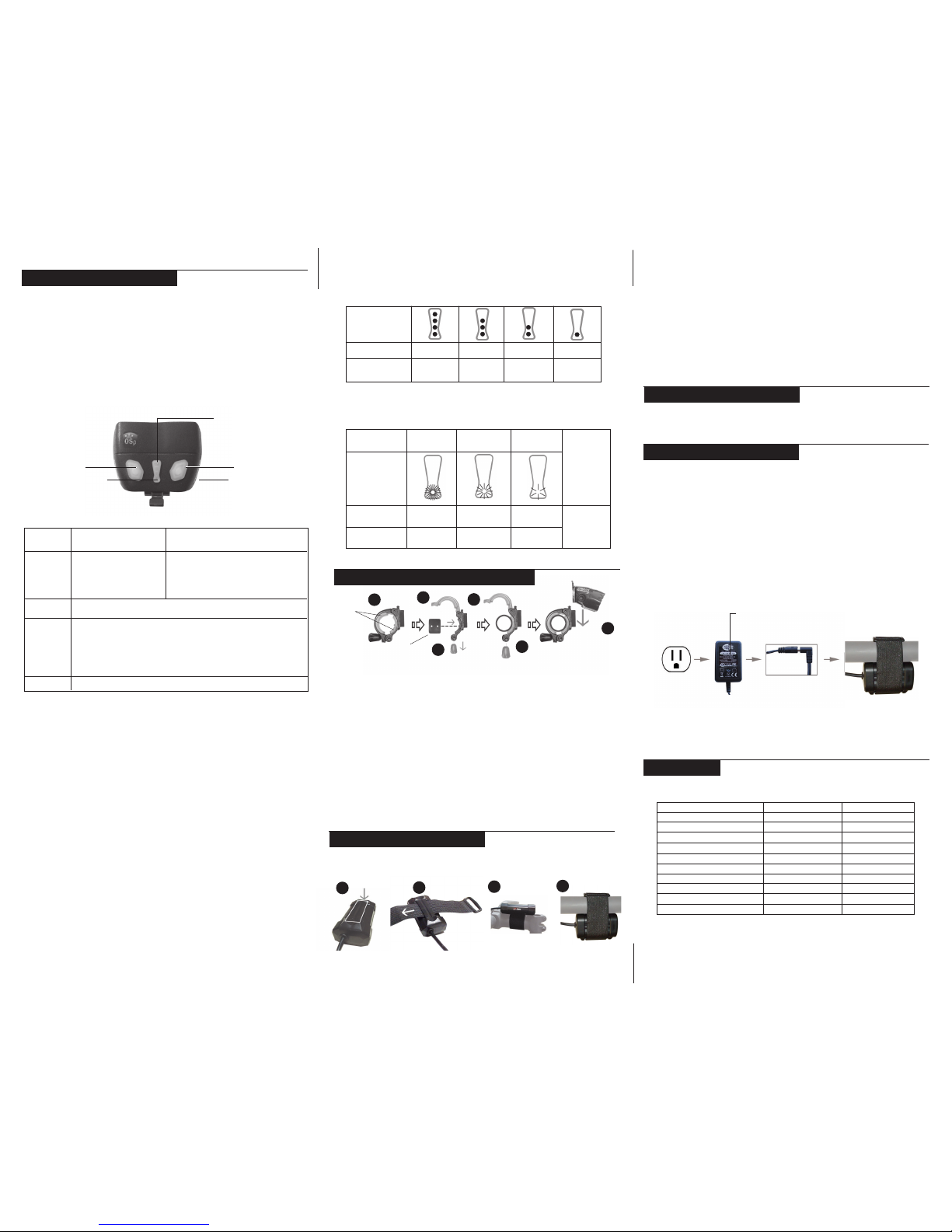

The TridenX features a BICYCLING MODE with 4 brightness mode, and a

SPECIAL MODE with 3 flashing, and a walking mode. These modes are

controlled by the power button and OSP button on the top of the headlight.

On top center of the headlight are 4 indicators that show which setting the

headlight is in with the rear indicator also functioning as a battery level

indicator. The diagram and instructions below indicate where these features

are located on the headlight and how to properly use them.

CAUTION: The light may get hot during use. Handle with care and turn

light off if stationary for more than 10 minutes.

CUSTOMIZE LIGHT SETTINGS

OSP is the first smart technology by Cygolite that gives you the freedom

to customize your preferred brightness settings and flashing speeds directy

to your headlight anytime, anywhere. You can use the factory default

settings or use the OSP button to customize your preferred settings.

NOTE: Boost mode and Walking mode are non-adjustable.

WARNING: Use discretion when programming the TridenX while riding. Do

not program your light during times that require total attention. Cygolite

cannot be held responsible for injuries that may occur during riding.

TO RESTORE FACTORYDEFAULT SETTINGS

While the light is ON, press and HOLD the power button for 7 seconds. The

light will turn off, then turn back on with the factory default settings.

THERMAL PROTECTION

The TridenX features a built in thermal protection to prevent the light from

overheating. The thermal protection will automatically dim the light (approx. 15%

brightness reduction) until the light cools to a normal operating temperature. At

that time, the light will return to its normal brightness.

HEADLIGHT OPERATIONHEADLIGHT OPERATION

HEADLIGHT OPERATION

MOUNTING BATTERYMOUNTING BATTERY

MOUNTING BATTERY

1. An adhesive foam pad is included to provide cushion and grip between

the battery and the bike.Apply the foam padding to the center of the

battery above the velcro slot.

2. Thread the velcro strap through the velcro slot

3A (Stem mount). Wrap velcro strap around stem, through plastic loop,

and fasten to itself

3B (Frame mount). Wrap velcro strap around frame, through plastic loop,

and fasten to itself

BATTERYMOUNTING PRECAUTIONS: When mounting the battery to the

bike, make sure the battery cable and battery velcro strap do not interfere

with the brake cables or the ability to turn the handlebars.

TO REMOVE HEADLIGHT FROM THE HANDLEBARS

1. Press tab on bracket plate forward.

2. Slide headunit up.

TO ADJUST THE SIDE-TO-SIDE BEAM DIRECTION

Roll the headlight left to right to adjust the side-to-side direction.

POWER BUTTON

LIGHT MODE

INDICATORS

BATTERYLEVEL

INDICATOR

Power In

DC JACK

Turn ON

BICYCLE MODE (4)

Boost >High > Med > Low

PLUG battery cable

into headlight DC Jack

(or from off position)

PRESS Power button

SPECIAL MODE (4)

SteadyPulse > Day Flash > Slow Flash > Walking

(From off position)

PRESS power button for 2 seconds

and then release

PRESS Power button to scroll between modes

Press and hold OSP button to gradually change brightness (in Special

mode flash speeds change) and RELEASE the button to stop the change.

HOLD the button again to change brightness in the opposite direction. If

brightness does not change while holding, the light reached the upper or

lower limit, RELEASE and HOLD the button again to go the opposite

direction.

HOLD Power button for 2 seconds

The TridenX comes with a stem mount battery (standard model) or a frame

mount battery (Xtra model). Attach battery to the bike as followed:

Stem mount 3B Frame mount

OSP BUTTON

INDICATOR

top of headlight

BICYCLE Mode

SPECIAL Mode

HIGH

DAYFLASH

MEDIUM

SLOW FLASH

LOW

WALKING

BOOST

S.PULSE

Switch

mode

Customize

mode

Turn OFF

Spacers

Rubber Pad

MOUNTING ON HANDLEBARSMOUNTING ON HANDLEBARS

MOUNTING ON HANDLEBARS

1. Attach handlebar spacers to inside of handlebar bracket for standard

sized and remove them for oversized handlebars.

2. Swing thumbnut down from thumbnut slot to open bracket.

3. Attach rubber pad to handlebar spacer. First remove paper from

rubber pad to reveal adhesive side, align rubber pad holes to

handlebar spacer plugs and join together.

4. Wrap bracket around handlebar & return thumbnut to slotted space.

5. Twist thumbnut clockwise until tight.

6. Slide headlight downward into bracket until headlight clicks into place.

BATTERYLEVEL INDICATOR

The battery level indicator is the blue LED closest to the back of the light next

to the power button. It flashes 3 different speeds to indicate the battery levels.

Constant

with Blink

Full to

1-1/2 hour left

Full to

3/4 hour left

Fast Flash

Less than

1-1/2 hour left

Less than

3/4 hour left

Slow Flash

Less than

1/2 hour left

Less than

1/4 hour left

Headlight

flashes for

20 seconds

then turns off

Battery

Empty

TridenX Xtra

(time remaining)

TridenX

(time remaining)

Indicator

Flash sequence

Indicator

(top of headlight)

RUN TIMESRUN TIMES

RUN TIMES

The run times below are based on the factory default settings. Run times

will vary if you customize the light settings.

BATTERY CHARGINGBATTERY CHARGING

BATTERY CHARGING

NOTE: Give the battery a full charge before using for the first time. To prolong

battery life, give the battery a 1 hour charge every 2 months it is not being used.

1. Connect the charger to wall outlet first then the battery to the charger

(Follow sequence for proper charging.)

NOTE: The LED charging indicator on charger may take up to 30 seconds to

turn on after the battery and charger have been connected.

2. The LED on the wall charger shows red when charging then

green when fully charged.

Allow approx. 4-8 continuous hours to fully charge a drained battery.

4. Disconnect charger and battery when charging is complete and not in

use.

Wall charger

LED charging indicator

RED=Charging

GREEN=Fully charged

WARNING: Charge the battery with the supplied charger only. Using any

other charger to charge the battery may result in damage. The Smart

Rapid charger is for indoor use only. Unplug the battery, and charger

once the battery is fully charged.

Allow approximately: 4 hours to fully charge (stem mount battery)

: 8 hours to fully charge (frame mount battery)

Battery

Outlet

HELMET MOUNTINGHELMET MOUNTING

HELMET MOUNTING

The TridenX can be mounted on the helmet with the included helmet mount kit.

Refer to separate helmet mounting instruction that is included with the helmet

mount kit.

LIGHT MODE INDICTORS

The 4 illuminated LEDs on the top of the headlight show which setting is in use.

NOTE: *SteadyPulse mode combines steady brightness to see and

alerting flash to be seen into one mode. It is made especially for riding at

night in high traffic areas.

TridenX 1300 Xtra

RUN TIME* (hr: min)

3:30

BICYCLE MODE

Boost

High

Medium

Low

SPECIAL MODE

SteadyPulse*

Day Flash

Slow Flash

Walking

(lumen)

(1300)

(900)

(650)

(150)

TridenX 1300

RUN TIME* (hr: min)

1:45

2:30

3:30

1Velcro Slot

Add Foam Pad

Dieses Handbuch passt für folgende Modelle

Andere Cygolite Taschenlampe Handbücher

Cygolite

Cygolite TURBOJET SERIES Bedienungsanleitung

Beliebte Taschenlampe Handbücher anderer Marken

StreamLight

StreamLight PROPOLYMER 2AA Bedienungsanleitung

StreamLight

StreamLight Stinger Bedienungsanleitung

Silverline

Silverline 994024 Bedienungsanleitung

Gama Sonic

Gama Sonic 23i60065 Bedienungsanleitung

Olympia

Olympia RG580 CREE XM-L2 Bedienungsanleitung

EUFAB

EUFAB 13495 Bedienungsanleitung

OLIGHT

OLIGHT S35 BATON Bedienungsanleitung

Kopp

Kopp Emergency Sensor Light Bedienungsanleitung

YLP

YLP PROFESSIONAL Series Bedienungsanleitung

Light motion

Light motion GoBe Bedienungsanleitung

MOB

MOB MO8622 Bedienungsanleitung

EuroLite

EuroLite KKS-3 Bedienungsanleitung

Carson

Carson 500907010 Bedienungsanleitung

Duracell

Duracell 550 Bedienungsanleitung

Mactronic

Mactronic Black Eye 1300 Bedienungsanleitung

Eurotops

Eurotops 29780 Bedienungsanleitung

MOB

MOB MO8690 Bedienungsanleitung

Pelican

Pelican L1 1930 LED Bedienungsanleitung
