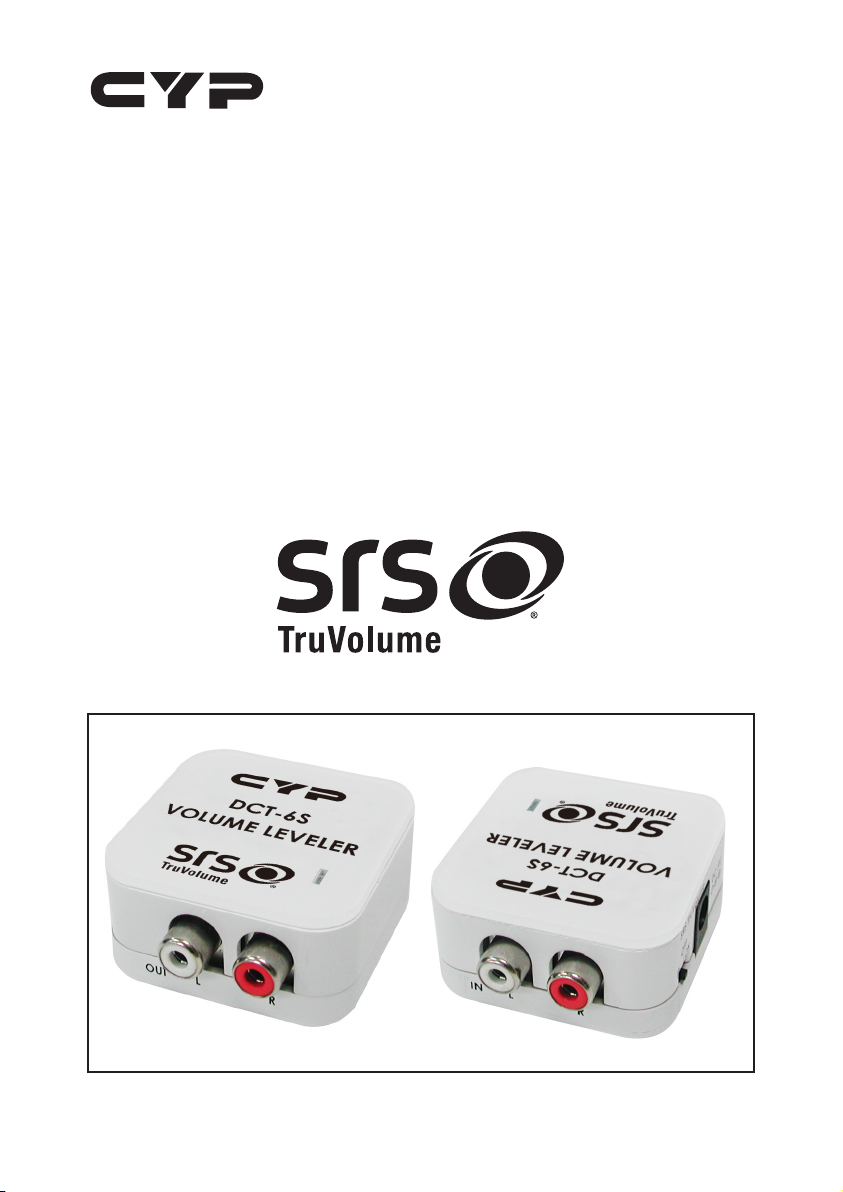

CYP DCT-6S Bedienungsanleitung
CYP DCT-6S
Volume Leveler
Operation Manual
- TruVolume, SRS and the (0) symbol are trademarks of SRS Labs,Inc.
- TruVolume technology is incorporated under license from SRS Labs, Inc.
DCT-6S
1 2
1
Introduction
The cypress Volume Leveler incorporating SRS TruVolumeTM technology can
regulate TV-channel volume to the listening level you're most comfortable with,
preventing annoying fluctuations while you channel surf as well as taming those
obnoxious commercials. It also enables you to hear everything that you’ve
been missing when the volume is set to a lower level!
Operation Controls and Functions
3.1 Front Panel 3.2 Rear Panel
Features
1. Simple Operation “On / Off”.
2. Simple connection for easy installation (Stereo analog in/out, Power).
3. Supports Line Level Inputs up to 2Vrms and Line Level Outputs up to 1Vrms,
via stereo RCA jacks.
4. Regulates TV / Satellite / Radio broadcast volume levels, so you don't have
to constantly adjust it when you change channels.
5. Connects between your TV / Stereo / Soundbar / HTiB / AVR and cable box,
BD/DVD player, DVR/PVR/TiVo® or Satellite Receiver.
6. Helps the hearing impaired by keeping channels at a consistent volume
level so they can hear everything while keeping others in the room
comfortable.
7. Powered via included external universal AC/DC adapter (input: 100V~240V
AC, 50~60Hz; output: +5V DC, US-type plug).
8. Package includes with 3 ft long stereo (male to male) RCA cable which
enables hassle-free installation in stereo analog systems today.
9. Boosts low and high-frequency content dynamically (20-bands/ch), using an
advanced psychoacoustic modeling engine making the entire listening
experience come alive, regardless of the audio level!
OUT RL
L RIN
1 L/R input: Connect L/R stereo analog audio input port to the L/R source
equipment, such as STB.
2 L/R output: Connect L/R stereo analog audio output to the display audio
input or audio equipment.
1 SRS TruVolume: Switch SRS TruVolume On/Off.
2 Power: Plug 5V DC power supply into the unit and connect the adaptor
to AC wall outlet.
Input ports
Output ports
Power Supply
Dimensions (mm)
Weight(g)
Chassis Material
Silk Skin Color
Operating Temperature
L/R
L/R
5V/1A DC (US/EU standards, CE/FCC/UL certified)
42(W) x 40.5(D) x 22(H)
25
Plastic
White
Operating from 0°C ~ 40°C
1 2
2
4. Connection and Installation
5. Specifications
3.3 Side Panel
TV L/R out
L/R
STB/DVD
LCD TV
DC 5V
OFF
ON
SRS TruVolume
CYP DCT-6S
Volume Leveler
Operation Manual
- TruVolume, SRS and the (0) symbol are trademarks of SRS Labs,Inc.
- TruVolume technology is incorporated under license from SRS Labs, Inc.
DCT-6S
1 SRS TruVolume: Switch SRS TruVolume On/Off.
2 Power: Plug 5V DC power supply into the unit and connect the adaptor
to AC wall outlet.
Input ports
Output ports
Power Supply
Dimensions (mm)
Weight(g)
Chassis Material
Silk Skin Color
Operating Temperature
L/R
L/R
5V/1A DC (US/EU standards, CE/FCC/UL certified)
42(W) x 40.5(D) x 22(H)
25
Plastic
White
Operating from 0°C ~ 40°C
1 2
1 2
1 2
Introduction
The cypress Volume Leveler incorporating SRS TruVolumeTM technology can
regulate TV-channel volume to the listening level you're most comfortable with,
preventing annoying fluctuations while you channel surf as well as taming those
obnoxious commercials. It also enables you to hear everything that you’ve
been missing when the volume is set to a lower level!
Operation Controls and Functions
3.1 Front Panel 3.2 Rear Panel
Features
1. Simple Operation “On / Off”.
2. Simple connection for easy installation (Stereo analog in/out, Power).
3. Supports Line Level Inputs up to 2Vrms and Line Level Outputs up to 1Vrms,
via stereo RCA jacks.
4. Regulates TV / Satellite / Radio broadcast volume levels, so you don't have
to constantly adjust it when you change channels.
5. Connects between your TV / Stereo / Soundbar / HTiB / AVR and cable box,
BD/DVD player, DVR/PVR/TiVo® or Satellite Receiver.
6. Helps the hearing impaired by keeping channels at a consistent volume
level so they can hear everything while keeping others in the room
comfortable.
7. Powered via included external universal AC/DC adapter (input: 100V~240V
AC, 50~60Hz; output: +5V DC, US-type plug).
8. Package includes with 3 ft long stereo (male to male) RCA cable which
enables hassle-free installation in stereo analog systems today.
9. Boosts low and high-frequency content dynamically (20-bands/ch), using an
advanced psychoacoustic modeling engine making the entire listening
experience come alive, regardless of the audio level!
OUT RL
L RIN
1 L/R input: Connect L/R stereo analog audio input port to the L/R source
equipment, such as STB.
2 L/R output: Connect L/R stereo analog audio output to the display audio
input or audio equipment.
4. Connection and Installation
5. Specifications
3.3 Side Panel
TV L/R out
L/R
STB/DVD
LCD TV
DC 5V
OFF
ON
SRS TruVolume
