General Information

E0 Manual

(incl. accessories)

Version 3.2 EN, 03/2008, D2099.E .01

Keep this manual with the product or in a safe place so that it is

available for future reference.

When reselling this product, hand over this manual to the new

customer.

If you supply d&b products, please draw the attention of your customers

to this manual. Enclose the relevant manuals with the systems. If you

require additional manuals for this purpose, you can order them from

d&b.

d&b audiotechnik GmbH

Eugen-Adolff-Strasse 134, D-71522 Backnang, Germany

Telephone +49-7191-9669-0, Fax +49-7191-95 00 00

E-mail: [email protected], Internet: www.dbaudio.com

Safety precautions

Information regarding use of loudspeakers

WARNING! Never stand in the immediate vicinity of loudspeakers driven at a high

level. Professional loudspeaker systems are capable of causing a

sound pressure level detrimental to human health. Seemingly non-

critical sound levels (from approx. 95 dB SPL) can cause hearing

damage if people are exposed to it over a long period.

In order to prevent accidents when deploying loudspeakers on the

ground or when flown, please take note of the following:

When setting up the loudspeakers or loudspeaker stands, make sure

they are standing on a firm surface. If you place several systems on

top of one another, use straps to secure them against movement.

Only use accessories which have been tested and approved by d&b

for assembly and mobile deployment. Pay attention to the correct

application and maximum load capacity of the accessories as detailed

in our specific "Mounting instructions" or in our "Flying system and

rigging manuals".

Ensure that all additional hardware, fixings and fasteners used for

installation or mobile deployment are of an appropriate size and load

safety factor. Pay attention to the manufacturers' instructions and to

the relevant safety guidelines.

Regularly check the loudspeaker housings and accessories for visible

signs of wear and tear and replace them when necessary.

Regularly check all load bearing bolts in the mounting devices.

CAUTION! Loudspeakers produce a static magnetic field even if they are not

connected or are not in use. Therefore make sure when erecting and

transporting loudspeakers that they are nowhere near equipment and

objects which may be impaired or damaged by an external magnetic

field. Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic

data carriers (floppy disks, audio and video tapes, bank cards, etc.) is

sufficient; a distance of more than 1 m (3 ft) may be necessary with

computer and video monitors.

E0 Manual (3.2 EN) Safety precautions - 1

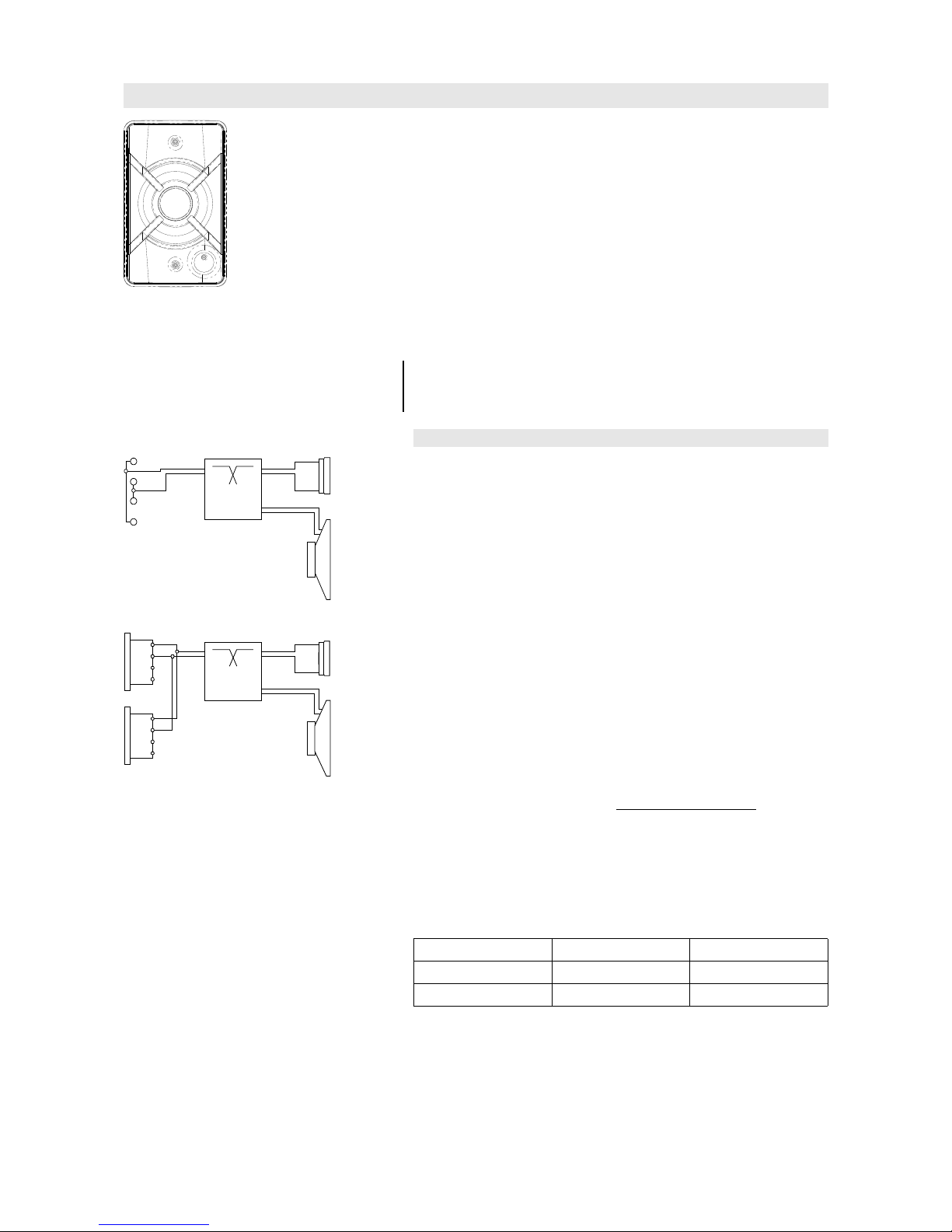

Fig. 1: E0 loudspeaker

The E0 is a compact, coaxial 2-way loudspeaker fitted with a 5” LF

driver and 1” dome tweeter.

The E0 is housed in a cleverly shaped strong polyamide cabinet

containing magnetic shielding of the LF driver. A rigid metal grill

protects the front of the loudspeaker cabinet. Recessed into the rear is a

quad push connector and a self-locking ball joint with integrated

mounting arm that incorporates an M10 female thread. Along with a

selection of d&b rigging accessories the E0 can be deployed quickly and

easily in a variety of configurations.

Whilst the loudspeaker components are shielded against magnetic

radiation, we advise a minimum distance of 15 cm (0.5 ft) between the

E0 and susceptible equipment (e.g. PC and video monitors).

NOTICE: Only operate E0 loudspeakers with a correctly configured d&b

amplifier, otherwise there is a risk of damaging the loudspeaker

components.

Connections

passive

crossover

red +

black -

red +

Fig. 2: Wiring of the push connector

2- passive

crossover

Fig. 3: Wiring of the NL4 connectors

The E0 loudspeaker can be supplied with three connection options.

Push connector:

Two pairs of push connectors wired in parallel (cross-section up to

6 mm2 (AWG 10).

NL4 connector:

Two NL4 connectors wired in parallel using pins 1+/1–. Pins 2+/2– are

not connected – refer to the graphic opposite - Fig. 3.

Using one connector as the input, the second connector allows for direct

connection to additional loudspeakers.

Fixed cable (PG):

E0 loudspeakers with the weather resistant option (WR) are supplied

with a cable gland (screw thread) and are fitted with a 2 m/6.6 ft cable

(cable H-05-RR-F 2 x 0.75 mm2).

Dimensioning of the loudspeaker cable:

We recommend a loudspeaker cable with a minimum cross-section of

0.5 mm2. The minimum cross-section required for a single cabinet can

be calculated from:

crosssectionmm2=

single

length

cable





Where multiple E0 loudspeakers are connected in parallel the minimum

cross-section required is obtained by multiplying the above result by the

number of cabinets.

Pin equivalents of NL4 connectors, push connectors and the fixed cable

option (PG) are listed in the table below.

NL4 1+ 1–

Push connector Red (+) Black (–)

Fixed cable Brown (+) Blue (–)

E0 Manual (3.2 EN) Page 4 of 10

Operation with D6 or D12

Select the controller setup E0.

Within the D12 amplifier this is available in "Dual Channel" and "Mix

TOP/SUB" mode.

Up to a total of four E0 loudspeakers can be driven by each D6 or D12

amplifier channel.

Controller settings

For acoustic adjustment the functions CUT, HFA and CPL can be

selected.

CUT circuit

Set to CUT, a high pass filter with a 120 Hz cut off frequency is inserted

in the controller signal path. The E0 is now configured for use with d&b

active subwoofers.

HFA circuit

-5

-10

-15

-20

-25

-30

20 100 1k 10k 20k

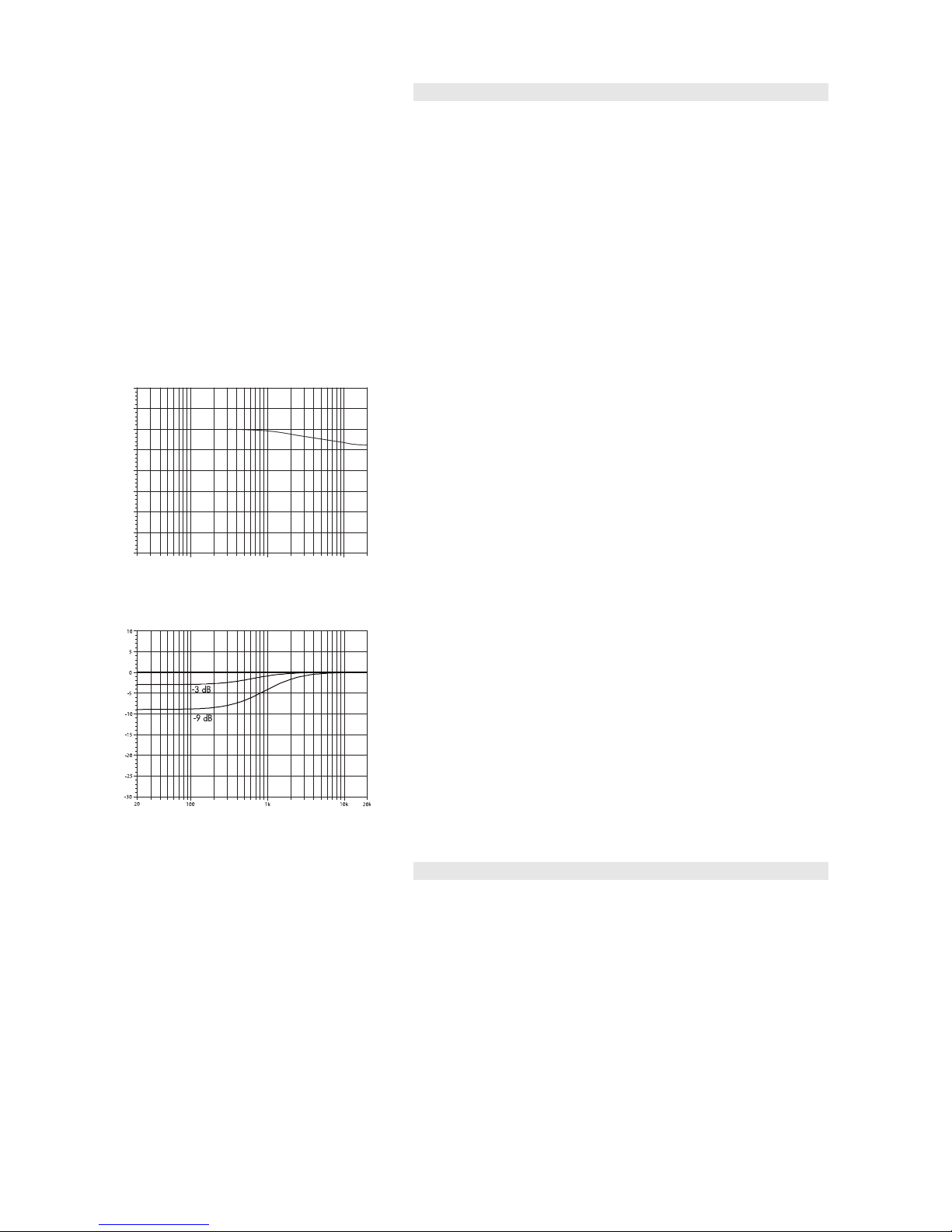

Fig. 4: Frequency response correction of

HFA circuit

In HFA mode (High Frequency Attenuation), the HF response of the E0

system is rolled off. The HFA circuit provides a natural, balanced

frequency response when a unit is placed close to listeners in near field

or delay use.

High frequency attenuation begins gradually at 1 kHz, dropping by

approximately 3 dB at 10 kHz. This roll-off mimics the decline in

frequency response experienced when listening to a system from a

distance in a typically reverberant room or auditorium.

CPL circuit

Fig. 5: Frequency response correction of

CPL circuit

The CPL (Coupling) circuit compensates for coupling effects between the

cabinets when building closely coupled arrays. CPL begins gradually at

1 kHz, with maximum attenuation below 250 Hz, providing a balanced

frequency response when E0 cabinets are used in arrays of two or

more. The function of the CPL circuit is shown in the diagram opposite

and can be set in dB attenuation values between –9 and 0.

Operation with E-PAC

Selecting E0 mode enables the E-PAC to drive up to two E0 cabinets.

LO IMP mode allows the E-PAC to drive a maximum of four E0 cabinets

with a 6 dB reduction of input level to the loudspeakers.

The CUT and HFA settings are available. The characteristics of the CUT

and HFA settings are explained in the previous section "Operation with

D6 or D12 - Controller settings".

E0 Manual (3.2 EN) Page 5 of 10

Dispersion characteristics

Due to the coaxial driver design, the horizontal and vertical dispersion

characteristics of the E0 are identical. The diagram below shows

dispersion angle vs frequency plotted using lines of equal sound

pressure (isobars) at –6 dB and –12 dB.

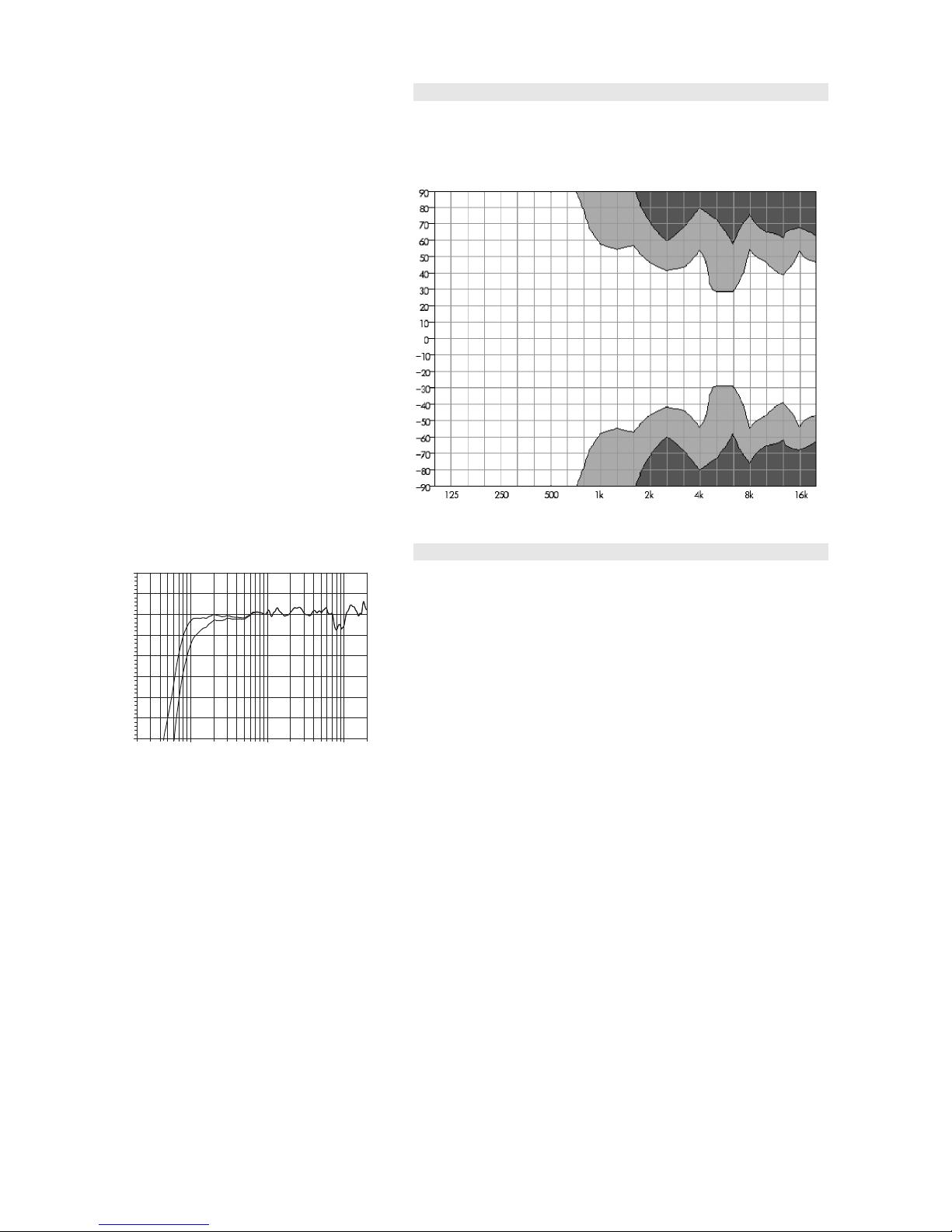

Fig. 6: E0 isobar diagram

Technical specifications

-5

-10

-15

-20

-25

-30

20 100 1k 10k 20k

Fig. 7: E0 frequency response standard

and CUT settings

E0 system data

Frequency response (–5 dB)....................................................................80 Hz - 20 kHz

Max. sound pressure (1 m, free field) with D12................................................117 dB

Max. sound pressure (1 m, free field) with D6...................................................116 dB

(SPLmax peak, pink noise test signal with crest factor of 4)

Input level (100 dB SPL / 1 m)...............................................................................–4 dBu

E0 loudspeaker

Nominal impedance...............................................................................................16 ohms

Power handling capacity (RMS / peak 10 ms)...........................................50 /400 W

Nominal dispersion angle..............................................................................100° conical

Components........................................5" driver/coaxially mounted 1" dome tweeter

....................................................................................................Passive crossover network

Connections...............................................Push connector, two pairs wired in parallel

.................................................................................cross-section up to 6 mm² (AWG10)

......................................................................................................................................2 x NL4

............................................optional fixed cable H-05-RR-F 2 x 0.75 mm² (AWG19)

Pin assignments..................................................................Push connector: red+/black–

...............................................................................................................................NL4 1+/1–

.............................................................................................Fixed cable: Brown + / Blue –

Weight.............................................................................................................2.5 kg (5.5 lb)

E0 Manual (3.2 EN) Page 6 of 10

233 [9.17"]

28 [1.1"]

172 [6.77"]

144 [5.67"]

45 [1.77"]

170 [6.69"]

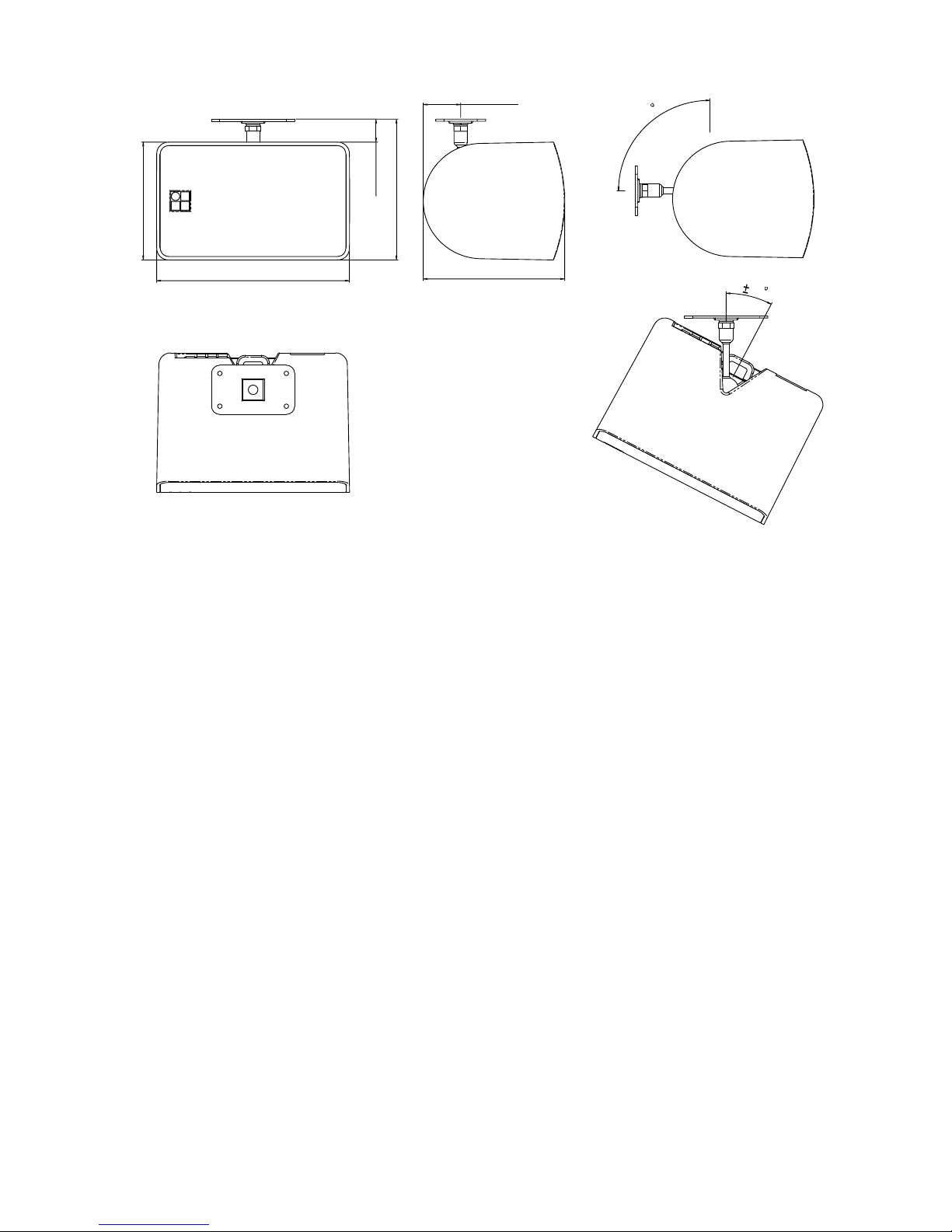

Fig. 8: E0 cabinet dimensions in mm [inch] and angle ranges

E0 Manual (3.2 EN) Page 7 of 10

E0 Accessories

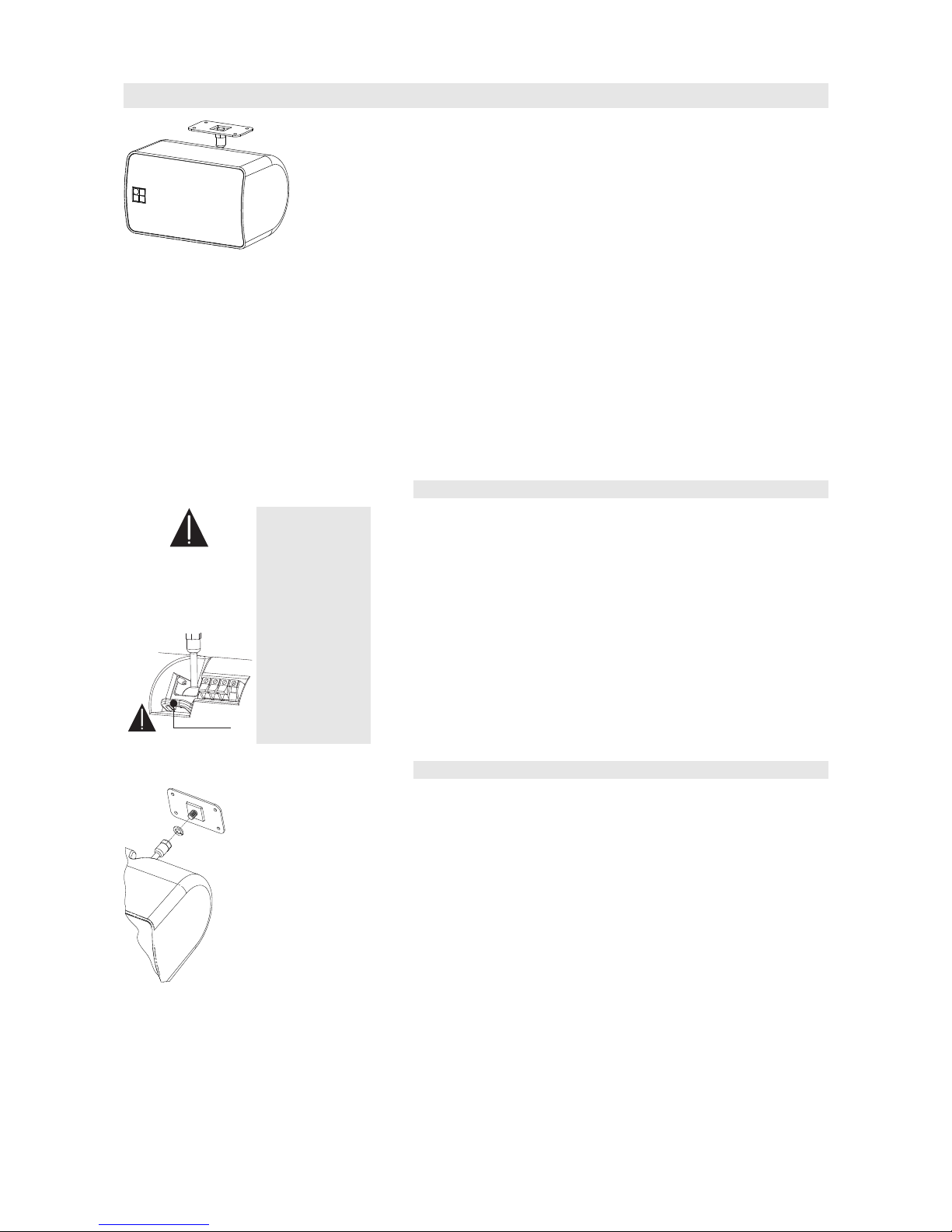

Fig. 9: E0 with B2123 Fixing plate

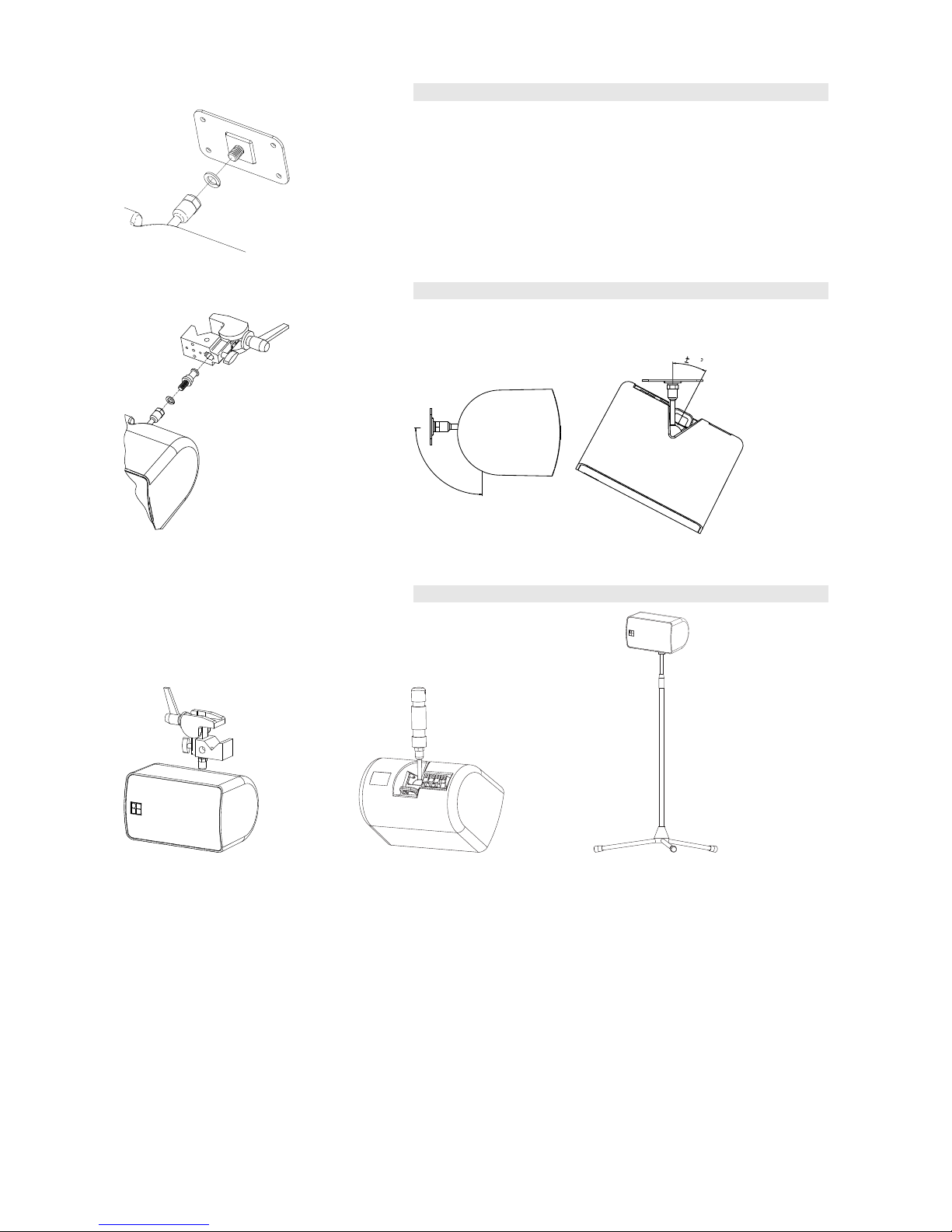

Recessed into the rear is a self-locking ball joint with an integrated

mounting arm that incorporates an M10 female thread. The E0 rigging

accessories allow different mounting of the E0 loudspeaker as described

below:

- The E0 comes with the B2123 Fixing plate to allow mounting to walls

and ceilings or other surfaces.

- Single cabinets can be hung from a truss or bar using the E6532

Super Clamp together with the E6533 M10 adapter for Super

Clamp. The jaw of the Super Clamp can be adjusted to fit bars, or

any other supporting structures with diameters from 13 to 55 mm

(0.5" to 2.2").

- Alternatively, the Z5029 TV spigot together with the Z5012 Pipe

clamp can be used for tube diameters from 32 to 50 mm (1.25" to

2").

- The Z5035 M10 to 3/8" adapter enables the E0 to be mounted to a

microphone stand, whilst the Z5034 Stand adapter allows the E0 to

be mounted to a loudspeaker stand. The E0 is mounted horizontally

when using either a microphone or loudspeaker stand.

Safety instructions

[S]

WARNING! When attaching the accessories as listed above to the

mounting arm of the E0 loudspeaker, the spring washer

M10 must always be used.

When using the accessories as listed above, please refer

to the accessory specific mounting instructions.

Secondary safeties should always be provided and used

when flying or fixing loudspeaker loads overhead. In

case of the E0 loudspeaker there is a safety hook [S] at

the back of the loudspeaker to which a safety rope

should be attached.

Under no circumstances should the safety hook [S] be

used to support other loads.

Parts list E0 accessories

[1] [2] [3]

Fig. 10: E0 accessories

The following accessories are included as standard with the E0

loudspeaker:

E0 Loudspeaker black/white (Z0400.000/001):

- 1 x Ball joint with integrated mounting arm M10 [1]

- 1 x Spring washer M10 [2]

- 1 x Fixing plate M10

black/white (B2123.200/201) [3]

E0 Manual (3.2 EN) Page 8 of 10

Assembly

[1]

[2]

Fig. 11: Attaching accessories to the

mounting arm [1] using the spring washer

[2]

Fig. 12: E6532 Super Clamp with E6533

M10 adapter for Super Clamp

The E0's ball joint with integrated mounting arm incorporates an M10

female thread which enables the attachment of the accessory items as

listed above.

The specific accessories are attached to the mounting arm [1] using the

spring washer [2] and should be fixed using a wrench (SW: #17).

The E6533 M10 adapter allows the attachment of the E6532 Super

Clamp to the E0 mounting arm (please refer to the specific mounting

instructions provided with the Manfrotto Super Clamp).

Operation/Adjustments

The self-locking ball joint allows the angling of the loudspeaker in any

direction (see diagram below).

0 - 90°

Fig. 13: Angle setting of the E0 loudspeaker

Rigging examples

Fig. 14: E0 with E6532 Super Clamp Fig. 15: E0 with Z5029 TV spigot Fig. 16: E0 mounted on a microphone

stand using the Z5035 M10 to 3/8"

adapter

E0 Manual (3.2 EN) Page 9 of 10

Manufacturer's declarations

EU conformity of loudspeakers (CE symbol)

This declaration applies to:

d&b E0 loudspeaker, Z0400

manufactured by d&b audiotechnik GmbH.

All production versions of this type are included, provided they

correspond to the original technical version and have not been subject

to any later design or electromechanical modifications.

We herewith declare that said products are in conformity with the

provisions of the respective EC directives including all applicable

amendments.

A detailed declaration is available on request and can be ordered from

d&b or downloaded from the d&b website at www.dbaudio.com.

WEEE Declaration (Disposal)

Electrical and electronic equipment must be disposed of separately from

normal waste at the end of its operational lifetime.

Please dispose of this product according to the respective national

regulations or contractual agreements. If there are any further questions

concerning the disposal of this product please contact d&b audiotechnik.

d&b audiotechnik GmbH, Eugen-Adolff-Str. 134, D-71522 Backnang, Germany, Phone +49-7191-9669-0, Fax +49-7191-95 00 00

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere d & b audiotechnik Sprecher Handbücher

d & b audiotechnik

d & b audiotechnik Vi7P Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik J-SUB Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik E18-SUB Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik E8 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik XSL-SUB Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik Q Series Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik MAX Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik V8 Montageanleitung

d & b audiotechnik

d & b audiotechnik XSL8 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik 10S Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik xS 18S-SUB Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik M2 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik SL Series Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik V-GSUB Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik E3 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik SL Series Kurzanleitung

d & b audiotechnik

d & b audiotechnik 12S Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik ALi60 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik Ti10 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik 10AL Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik Ci45 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik SL Z5731 Kurzanleitung

d & b audiotechnik

d & b audiotechnik B2-SUB Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik Qi1 Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung

d & b audiotechnik eo Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken
