D & b audiotechnik J12 Montageanleitung

J12

Manual (1.2 EN)

Symbols on the equipment

Please refer to the information in the operating manual.

WARNING!

Dangerous voltage!

Contents

Safety precautions..............................................................3

Information regarding use of loudspeakers.............................................3

J12.......................................................................................4

J-Series rigging components

J-Series arrays.................................................................................................4

Connections......................................................................................................5

Operation with D12.......................................................................................5

Dispersion characteristics...............................................................................6

Technical specifications...................................................................................7

Manufacturer's Declarations..............................................8

EU conformity of loudspeakers (CE symbol).............................................8

WEEE Declaration (Disposal)........................................................................8

General Information

J12 Manual

Version 1.2 EN, 03/2008, D2981.EN .01

Keep this manual with the product or in a safe place so that it is

available for future reference.

When reselling this product, hand over this manual to the new

customer.

If you supply d&b products, please draw the attention of your

customers to this manual. Enclose the relevant manuals with the

systems. If you require additional manuals for this purpose, you can

order them from d&b.

d&b audiotechnik GmbH

Eugen-Adolff-Strasse 134, D-71522 Backnang, Germany

Telephone +49-7191-9669-0, Fax +49-7191-95 00 00

E-mail: [email protected], Internet: www.dbaudio.com

Safety precautions

Information regarding use of loudspeakers

WARNING! Never stand in the immediate vicinity of loudspeakers driven at a high

level. Professional loudspeaker systems are capable of causing a sound

pressure level detrimental to human health. Seemingly non-critical

sound levels (from approx. 95 dB SPL) can cause hearing damage if

people are exposed to it over a long period.

In order to prevent accidents when deploying loudspeakers on the

ground or when flown, please take note of the following:

When setting up the loudspeakers or loudspeaker stands, make sure

they are standing on a firm surface. If you place several systems on top

of one another, use straps to secure them against movement.

Only use accessories which have been tested and approved by d&b for

assembly and mobile deployment. Pay attention to the correct

application and maximum load capacity of the accessories as detailed

in our specific “Mounting instructions” or in our "Flying system and

Rigging manuals".

Ensure that all additional hardware, fixings and fasteners used for

installation or mobile deployment are of an appropriate size and load

safety factor. Pay attention to the manufacturers' instructions and to the

relevant safety guidelines.

Regularly check the loudspeaker housings and accessories for visible

signs of wear and tear, and replace them when necessary.

Regularly check all load bearing bolts in the mounting devices.

CAUTION! Loudspeakers produce a static magnetic field even if they are not

connected or are not in use. Therefore make sure when erecting and

transporting loudspeakers that they are nowhere near equipment and

objects which may be impaired or damaged by an external magnetic

field. Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic

data carriers (floppy disks, audio and video tapes, bank cards, etc.) is

sufficient; a distance of more than 1 m (3 ft) may be necessary with

computer and video monitors.

J12 Manual (1.2 EN) Safety precautions - 1

J12

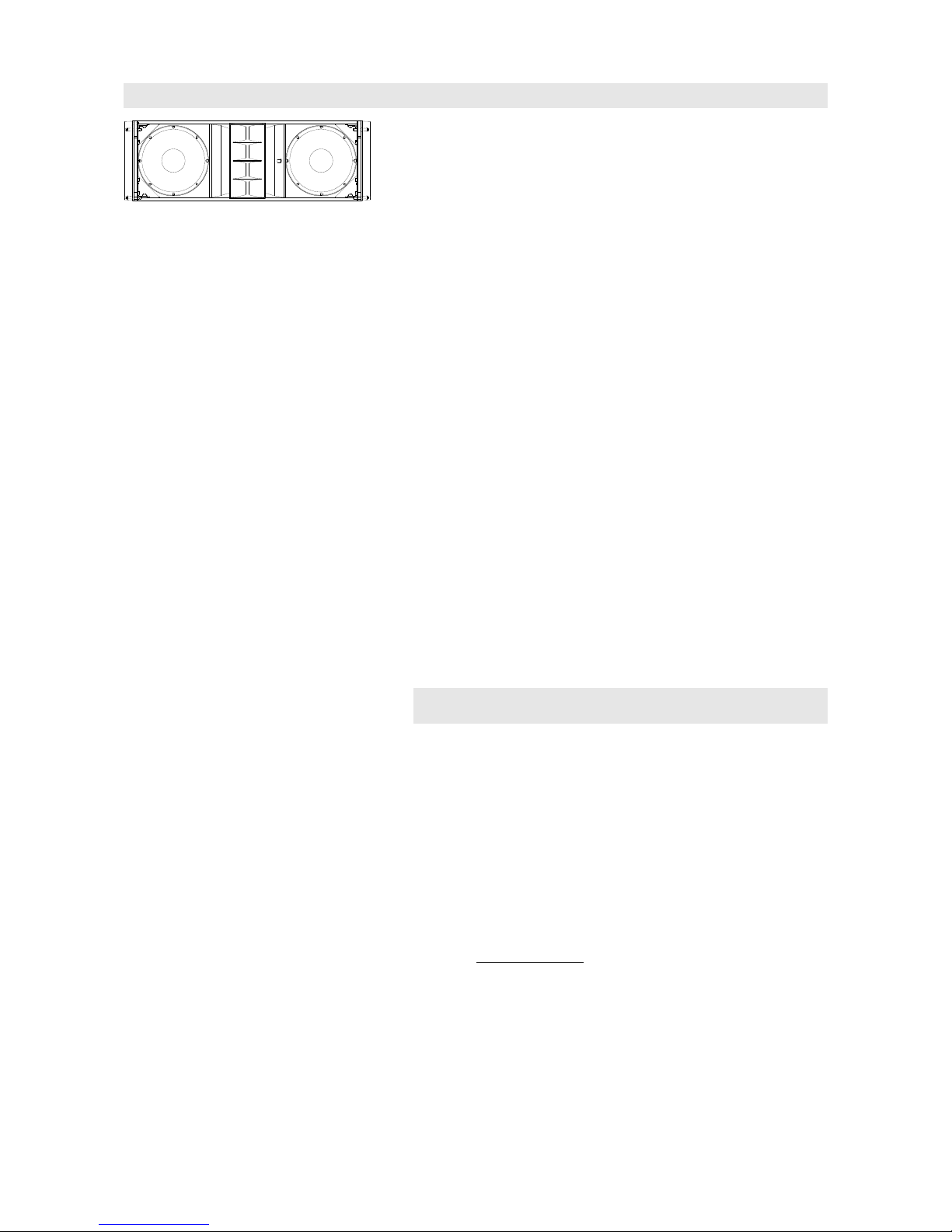

Fig. 1: J12 loudspeaker

The J12 is a line array loudspeaker for large-scale sound

reinforcement. When the J Flying Frame is used, J12 cabinets can be

flown in vertical columns with up to 24 cabinets producing a 120°

constant directivity dispersion pattern in the horizontal plane.

The J12 is acoustically and mechanically compatible to the J8 line array

module which provides a 80° horizontal dispersion. J-Series arrays may

consist of a combination of J8, J12 loudspeakers and J-SUB cardioid

subwoofers.

The J12 cabinet is a 3-way design housing 2 x 12" neodymium LF

drivers, one horn-loaded 10" MF driver and two 1.4" exit HF

compression drivers with 3" coils mounted to a dedicated wave shaping

device. The cylindrical wave segments of each cabinet couple without

gaps and sum up coherently. Splay angles between adjacent cabinets

can be set in the range from 0° to 7°.

J12 cabinets are driven by the two channels of the d&b D12 amplifier

providing the active crossover between the LF and mid/high sections.

MF and HF drivers are crossed over passively within the cabinet.

All components are arranged symmetrically around the center axis of

the cabinet to produce a perfect symmetrical dispersion pattern. This

setup allows a very smooth crossover design with a well defined

overlap of adjacent frequency bands resulting in a very consistent and

accurate horizontal dispersion. Due to the dipolar arrangement of the

low drivers the nominal dispersion of 120° is maintained down to

200 Hz.

The J12 frequency response extends from 48 Hz to above 17 kHz.

The J12 cabinet is constructed from marine plywood and has an impact

and weather protected PCP (Polyurea Cabinet Protection) finish. The

front of the loudspeaker cabinet is protected by a rigid metal grill. The

side and rear panels incorporate four handles.

J-Series rigging components

J-Series arrays

Cabinets are mechanically connected using the rigging strands at both

sides of the cabinet front and a central strand at the rear of the cabinet

which also serves as a heat sink for the MF driver. All necessary rigging

components are mounted to the cabinet and folded or slid out when

needed.

A detailed description of the J-Series rigging components is given in the

J-Series Rigging manual which is provided with the J Flying frame.

A detailed description of planning and designing J arrays is given in the

technical information "TI 385 J, Q and T-Series system design,

d&b ArrayCalc" which is also provided with the J Flying frame.

The d&b ArrayCalc array calculator can be downloaded from the d&b

website at www.dbaudio.com.

J12 Manual (1.2 EN) Page 4 of 8

Connections

Sense D rive

passiv e

crosso v er

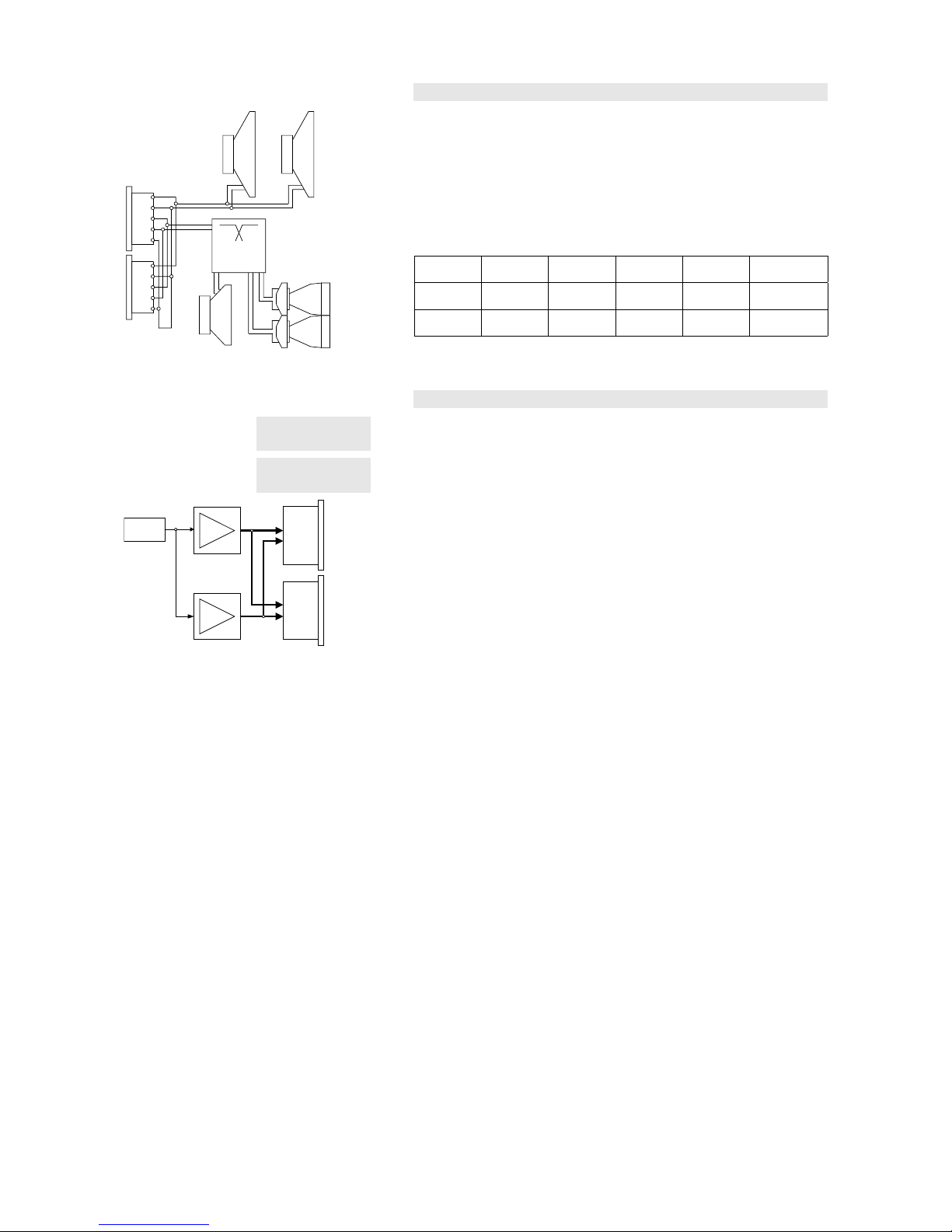

Fig. 2: Connector wiring

The J12 cabinet is fitted with a pair of EP5 connectors. All five pins of

both connectors are wired in parallel. The J12 uses the pin assignments

1/2 for the low drivers. Pins 3/4 drive the mid/high section. Pin 5 is

used for SenseDrive. Using the male connector as the input, the female

connector allows for direct connection to a second cabinet.

The J12 can be supplied with NL8 connectors as an option. Pin

equivalents of EP5 and NL8 connectors are listed in the table below.

LF + LF • MF/HF + MF/HF • SenseDrive

EP5 1 2 3 4 5

NL8 1+ 1• 4+ 4• 3•

Operation with D12

CAUTION! Only operate J12 loudspeakers with a d&b amplifier configured for the

J12, otherwise there is a risk of damaging the loudspeaker components.

IMPORTANT! Selecting "2-Way Active" and J12 mode enables up to two J12

cabinets to be driven actively by the D12 amplifier.

INPUT A OUT A

2-Way

SenseDrive

OUT B

2-Way

AMP B

AMP A

Fig. 3: D12 Input/Output routing 2-Way

Active mode

The input signal is fed to INPUT A, while the input signal is routed

(linked) to INPUT B internally.

To enable SenseDrive at least one of the cabinets has to be connected

to output A of the D12 amplifier.

"J12 Arc" and "J12Line" setups

The D12 amplifier provides two setups for J12 cabinets. The selection

depends on the curvature of the array. Within a typical J12 array both

amplifier setups may be used.

The "Arc" setup is used for J12 loudspeakers in curved array sections.

The "Line" setup is used for long throw array sections with three or

more consecutive splay settings of 0° or 1°. Compared to the "Arc"

setup, the mid/-high range is reduced to compensate for the extended

nearfield.

The transition from "Line" to "Arc" configuration within the array is

made according to the splay progression but may allow for certain

deviations due to the paired wiring of the cabinets.

Controller settings

For acoustic adjustment the functions CUT, HFC and CPL can be

selected.

CUT circuit

Set to CUT, the J12 low frequency level is reduced. The J12/J8 array is

now configured for use with the d&b J-SUB, Q-SUB or B2-SUB

subwoofers.

J12 Manual (1.2 EN) Page 5 of 8

HFC circuit

Fig. 4: Frequency response correction of

HFC circuit, HF1 and HF2 settings

Selecting the HFC (High Frequency Compensation) circuit compensates

for loss of high frequency energy due to absorption in air when

loudspeakers are used to cover far field listening positions.

The HFC circuit has two settings (HF1, HF2) for different distance ranges

the cabinets have to cover. The settings should be used selectively, only

for those cabinets covering the respective distances, HF1 for distances

larger than 40 m (130 ft) and HF2 for distances larger than 80 m

(260 ft).

The compensation is adjusted for a typical relative humidity of 40%.

With lower humidity the absorption by air increases therefore the

distances where the respective HFC setting provides a correct

equalization are shorter than indicated above.

Using the HFC function provides the correct sound balance between

close and remote audience areas, whilst all amplifiers driving the array

can be fed with the same signal.

CPL circuit

Fig. 5: Frequency response correction of

CPL circuit

The CPL (Coupling) circuit compensates for coupling effects between the

cabinets by reducing the low and mid frequency level. The CPL function

should be used when J8/J12 cabinets are used in arrays of five or

more. As coupling effects increase with the length of the line array the

CPL circuit can be set to dB attenuation values between 0 and –9. CPL

begins gradually at 2 kHz with the maximum attenuation below

100 Hz. With higher attenuation values the corner frequency of the

filter shifts towards lower values.

The function of the J12 CPL circuit in the D12 amplifier is shown in the

diagram opposite. Please note that all cabinets within the line array

should be operated with the same CPL setting.

Dispersion characteristics

The graph below shows dispersion angle over frequency plotted using

lines of equal sound pressure (isobars) at –6 dB and –12 dB. The

nominal horizontal dispersion of 120° is maintained above 200 Hz.

Fig. 6: Isobar diagram J12 horizontal

J12 Manual (1.2 EN) Page 6 of 8

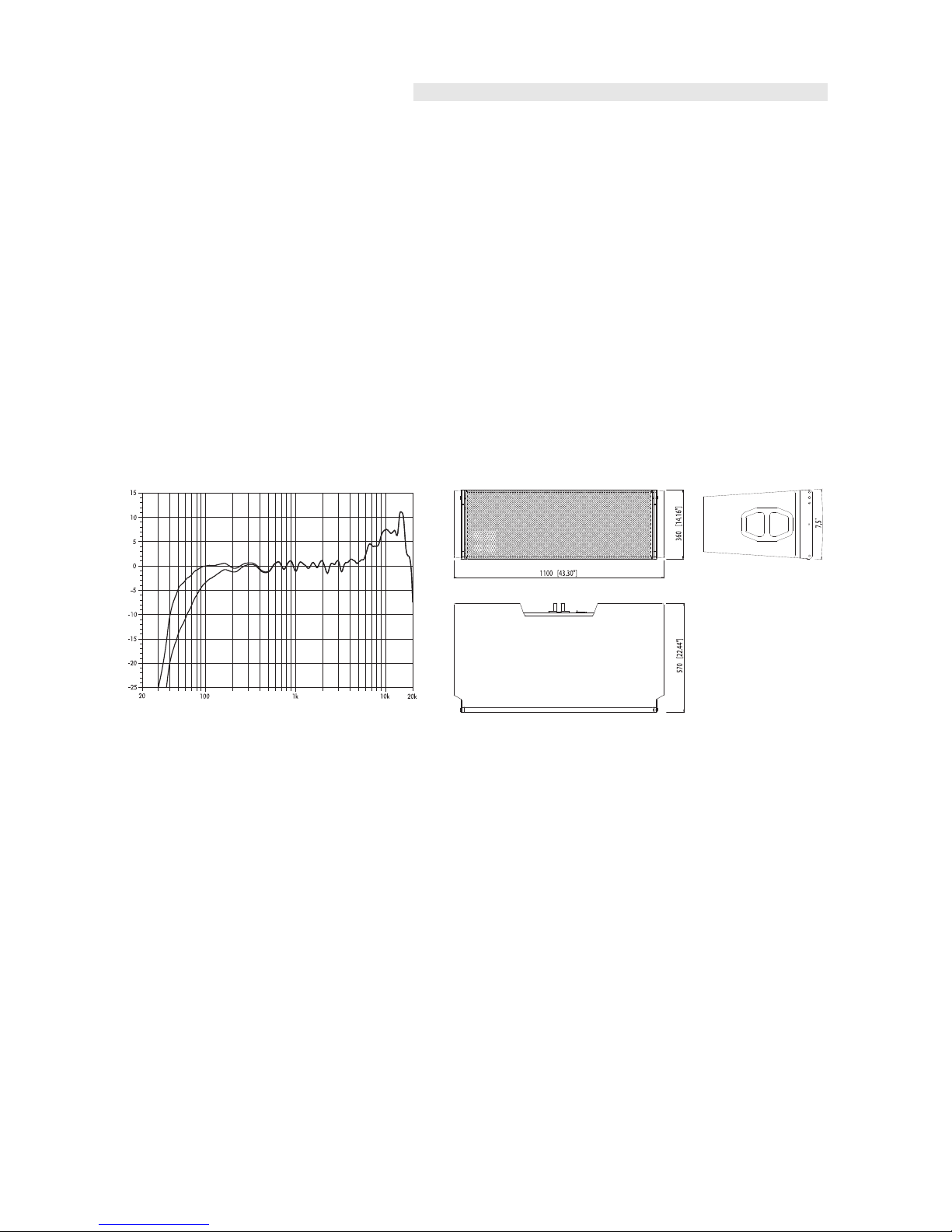

Technical specifications

J12 system data

Frequency response (–5 dB standard)..................................................48 Hz ... 17 kHz

Frequency response (–5 dB CUT mode)..............................................85 Hz ... 17 kHz

Max. sound pressure (single cabinet, 1 m, free field) with D12 ....................143 dB

(SPLmax peak, pink noise test signal with crest factor of 4)

J12 loudspeaker

Nominal impedance LF/MHF.............................................................................6/12 ohms

Power handling capacity LF (RMS / peak 10 ms)..................................500/2000 W

Power handling capacity MHF (RMS / peak 10 ms)................................200/800 W

Nominal dispersion angle (horizontal)........................................................................120°

Splay angle settings.............................................................................0...7° (1° increment)

Components......................................................................................................2 x 12” driver

..............................................................................................................................1 x 10“ driver

.............................................................................................2 x1.4” exit compression driver

.......................................................................................................Passive crossover network

Connections...................................................................................................................2 x EP5

......................................................................................................................(optional 2 x NL8)

Pin assignments

EP5............................................1: LF+ / 2: LF– / 3: MHF+ / 4: MHF–/5: SenseDrive

NL8..............................1+: LF+ / 1–: LF– / 4+: MHF+ / 4–: MHF–/3–: SenseDrive

Weight...............................................................................................................60 kg (132 lb)

Fig. 7: J12 frequency response, single cabinet,

standard and CUT settings Fig. 8: J12/J8 cabinet dimensions in mm [inch]

J12 Manual (1.2 EN) Page 7 of 8

Manufacturer's Declarations

EU conformity of loudspeakers (CE symbol)

This declaration applies to

- J12 loudspeaker Z0651

manufactured by d&b audiotechnik GmbH.

All production versions of this type are included, provided they

correspond to the original technical version and have not been subject

to any later design or electromechanical modifications.

We herewith declare that said products are in conformity with the

provisions of the respective EC directives including all applicable

amendments.

A detailed declaration is available on request and can be ordered

from d&b or downloaded from the d&b website at www.dbaudio.com.

WEEE Declaration (Disposal)

Electrical and electronic equipment must be disposed of separately

from normal waste at the end of its operational lifetime.

Please dispose of this product according to the respective national

regulations or contractual agreements. If there are any further

questions concerning the disposal of this product please contact d&b

audiotechnik.

D2981.EN .01, 03/2008 © d&b audiotechnik GmbH

d&b audiotechnik GmbH, Eugen-Adolff-Str. 134, D-71522 Backnang, Germany, Phone +49-7191-9669-0, Fax +49-7191-95 00 00

Inhaltsverzeichnis

Andere d & b audiotechnik Sprecher Handbücher

d & b audiotechnik

d & b audiotechnik Y Series Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik Ci45 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik 4S/5S Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik E18-SUB Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik SL Z5731 Kurzanleitung

d & b audiotechnik

d & b audiotechnik XSL8 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik V7P Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik Yi7P Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik M2 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik xS Series Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik E8 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik Y7P Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik Vi-GSUB Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik AL90 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik Ci80 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik 10AL Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik xS Series Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik E4 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik M6 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik V-GSUB Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik Qi7 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik Vi8 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik C690 Bedienungsanleitung

d & b audiotechnik

d & b audiotechnik E8 Bedienungsanleitung

Beliebte Sprecher Handbücher anderer Marken

argon audio

argon audio IE20 Bedienungsanleitung

Denon

Denon SC-N7 Bedienungsanleitung

Gemline

Gemline Ace 3952 Bedienungsanleitung

Focal

Focal ON WALL 300 Bedienungsanleitung

HEADRUSH

HEADRUSH Maximus HRSP 5024 Bedienungsanleitung

SoundLogic

SoundLogic BCCS-6/6395 Bedienungsanleitung

Peavey

Peavey DTH 218 Bedienungsanleitung

Avantree

Avantree Pluto Air Bedienungsanleitung

Morel

Morel Integra Series INTEGRA OVATION 4 Bedienungsanleitung

Oppo

Oppo SONICA Bedienungsanleitung

Bose

Bose SoundLink Wireless Music System Bedienungsanleitung

Rocksteady

Rocksteady Stadium Bedienungsanleitung

Bowers & Wilkins

Bowers & Wilkins 4 Bedienungsanleitung

Sonance

Sonance SONOS OUTDOOR Series Bedienungsanleitung

Electro-Voice

Electro-Voice EVID FM4.2 Bedienungsanleitung

Pioneer

Pioneer XW-HTD630 Bedienungsanleitung

Onn

Onn BWA16AA002 Bedienungsanleitung

HP GL313AA - USB Speakers PC Multimedia Bedienungsanleitung

d & b audiotechnik J12 Montageanleitung

Beliebte Sprecher Handbücher anderer Marken
