Da-Lite Multi Format Imager Bedienungsanleitung

INSTRUCTION BOOK FOR

Dual Format Imager

Tools Required for Installation

Important Safety Instructions

When using your video equipment, basic safety

precautions should always be followed, including the

following:

1. Read and understand all instructions before using.

2. Close supervision is necessary when any appliance is

used by or near children. Do not leave appliance

unattended while in use.

3. Care must be taken as burns can occur from touching

hot parts.

4. Do not operate appliance with a damaged cord or if the

appliance has been dropped or damaged - until it has

been examined by a qualiied serviceman.

5. To reduce the risk of electric shock, do not immerse this

appliance in water or other liquids.

6. The use of an accessory attachment not recommended

by the manufacturer may cause a risk of ire, electric

shock, or injury to persons.

Save These Instructions

Pre-Installation

Have space for this unit available on a lat clean surface such as

a large table or loor. The work area should be larger than the

frame size. If the loor is used, clean papers should be spread to

keep all dirt from the Pro-Trim surfaces.

1/8" and 5/64"

Allen Wrenchs

Tape Measure

Carpenter's Level Electric Screw Gun Utility Knife

1. The frame will arrive in two separate cardboard boxes. One

box will be very long and will house the top & bottom pieces.

The smaller cardboard box will house the side frame pieces,

hanger hardware, hardware required to put frame together

and the wall switch.

2. To open the boxes there is a side lap that is taped down the

length of the box. It will be labeled OPEN THIS SIDE (Figure 1).

Carefully cut tape down the length of the box with a utility

knife and fold box open. You will have to tear hard on the

ends as it is stapled on the ends.

3. Inside each box the frame pieces will be individually paper

wrapped and taped. Remove all paper from pieces.

CAUTION: DO NOT USE A UTILITY KNIFE TO REMOVE

PAPER FROM PIECES

ATTENTION: N'UTILISEZ PAS DE COUTEAU UTILITAIRE

POUR RETIRER LE PAPIER DES PIÈCES.

4. Remove all paper and styrofoam blocks from top frame

assembly after unwrapping.

1. In the hardware bag, you will receive (12) #10 x .375" long hex

button head screws and (4) #10 x .500" long hex button head

screws required for frame assembly.

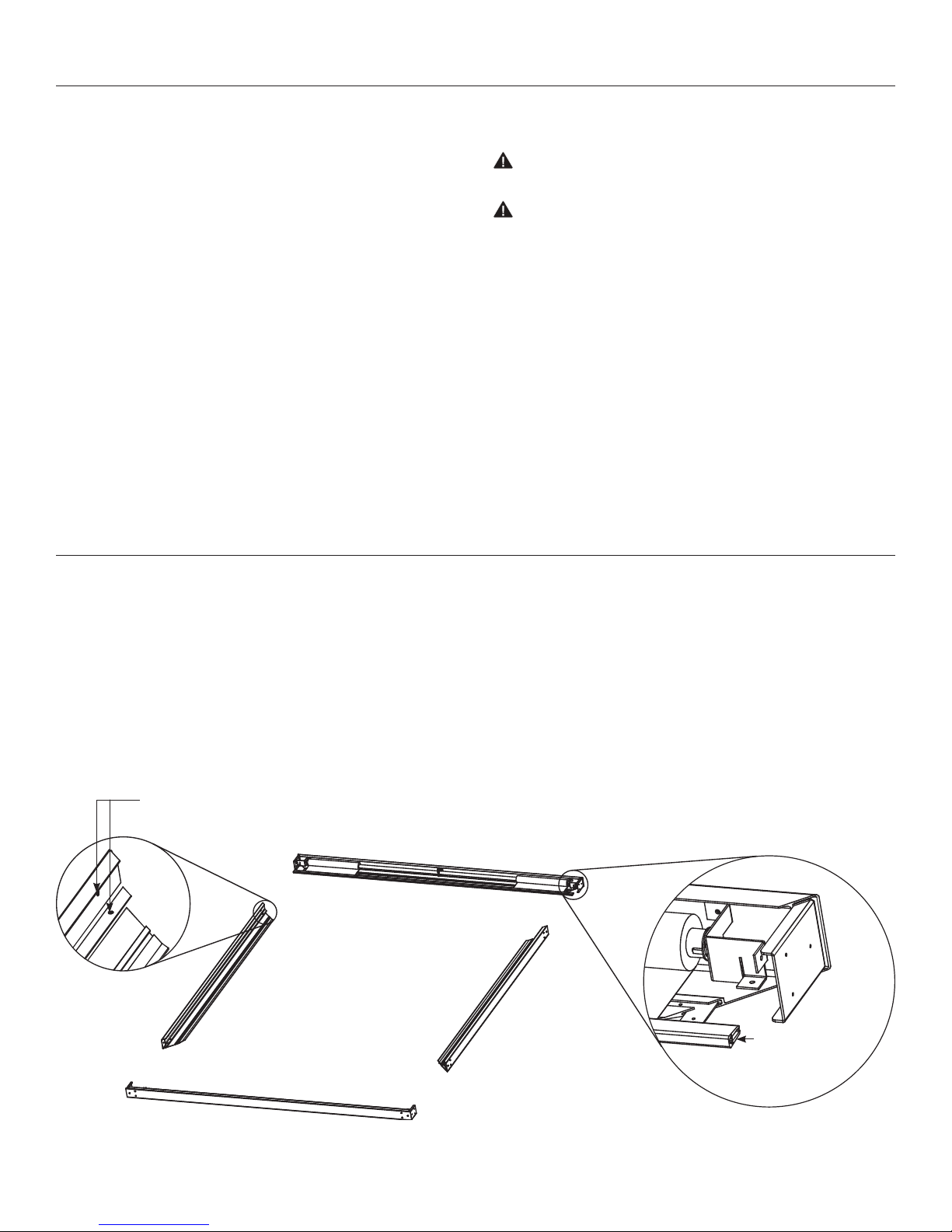

2. Lay frame pieces out on loor or table as shown in Figure 1.

The top frame assembly has the roller and motor assembly

attached to it. The side frames are the two shorter pieces.

Watch side piece to make sure oriented properly. The sides

have two riv nuts used for roller mounting brackets that

should face toward the top frame piece.

Unpackaging the Frame:

Frame Assembly

Rivnut

Make sure slat is

guided in to the

channel

Figure 1

Top of Frame

Bottom of Frame

Right of

Frame

Left of

Frame

3. Assemble left side of frame to the top of frame. The large

black metal L bracket will slide into the aluminum extrusion

while the small L bracket will slide into the aluminum channel.

The pin end bracket needs to be on the outer surface to bolt

into the rivnuts of the left side piece. The slat will need to be

guided in between the standing in and the front of the frame.

4. Using a 5/64" allen wrench, tighten set screws in frame

straightner bracket. Adjust set screw so that the front surfaces

evenly match at the corner (Figure 4).

5. Using a 1/8" allen wrench, insert (3) #10 x .375" long button head

screws in frame corner connector bracket. Tighten down snug to

frame surface (Figure 5).

Frame Assembly (continued)

Figure 2 – Back of Frame Figure 3 – Back of Frame

Figure 5

Guide slat in

front of in Loosen set

screws for

clearence

before

inserting

side pieces.

Figure 4 – Back of Frame

Set Screws

Fasten pin

end bracket

(2) #10 x .500"

Button

Head

Screws

6. Assemble right side of frame to the top of frame. This is done

exactly the same way as the left side. When assembling the

unit, route the motor wire behind bracket as shown and

attach ield wiring box to side of frame (Figure 6 and 7).

7. Assemble bottom of frame to the right and left sections of

frame. This is done by sliding the large black metal L brackets

into the aluminum extrusion while the small L brackets will

slide in the aluminum channels. Then repeat steps 8 and 9 on

each side (Figure 8).

Frame Assembly (continued)

Figure 6 – Back of Frame Figure 7 – Back of Frame

Figure 8

Installation Hole

For 1/2" Conduit

Route motor

wire behind

bracket

(2) 1/420 x .375"

screws atiach box

to frame

Incoming Wire

Grounding Lug

Motor

Ground

Screw

Wall Mounting Assembly

1. Depending on size of screen it will be shipped with either 2

wall brackets that are 48" long or 2 wall brackets that are 64"

long. Two small L brackets included will be used to hold

frame securley to wall at bottom.

2. To install the Dual Format lmager over a Da-Lite Perm-Wall

screen you will need to place the supplied wooden spacers

between the screen and the wall.

NOTE: Da-Snap, lmager and Cinema Contour frames do not

require any spacers.

3. Refer to Figure 9 hanger bracket location. Dimension A will

vary depending on the type of screen you have. Dimension A

is measured from the top of the screen frame to the top of

the hanger bracket.

4. Both wall brackets must be mounted into at least two wall

studs. Check to make sure both brackets are vertically level

with each other.

5. Drill holes and attach mounting brackets into wall. You will

need at least 4" clearance above the drilled holes to hang the

screen. Dimension for hole is shown from the top bracket to

center hole position. It is recommended to use a ¼" x 1 ½" lag

screw (not supplied) to fasten bracket to wall.

Screen Type Dimension A

Cinema Contour 33/4"

Perm-Wall 43/4"

lmager 43/4"

Da-Snap 51/4"

Figure 9

Figure 10

1 ½"

Wall Mounting Assembly (continued)

6. Hang the frame assembly on the hanger brackets as shown

in image. Carefully slide bracket between the top of the frame

extrusion and the roller assembly. There is a lip on the back

of the frame that wedges itself into the hanger bracket once

fully installed on bracket. This is a two person installation. Do

not attempt to do this without two people.

The top of the frame assembly will be approximately 1 ¾" above

the hanger brackets when mounted.

Figure 11 Figure 12

Figure 13

Slide frame

over brackets

Bracket

Back lip of frame will

wedge down between

wall bracket and wall

120V Wiring Diagram for Standard Wall Switch

Motor

White

Black

Red

Green

White

Black (Up)

Red (Down)

AC Common

AC Hot 120VAC 60Hz 1 Amp

Black/Yellow

Red

SPOT Switch

with Center Of

OFF

DOWN Black

NOTE: Junction box located on left upper side of frame

Note: A single switch cannot be used to operate more than one

screen. Contact Da-Lite for further information.

CAUTION: This switch

can not be used with LVC.

ATTENTION: Ce commutateur ne peut être

utilisé avec le tableau de contrôle basse

tension.

Post Installation Procedures Travel Adjustments:

1. Test installation by carefully running mask surface up and

down 23 times. Be prepared to stop screen. Standard Duty

Cycle: 1 MIN. ON I 3 MIN. OFF.

CAUTION! Excessive countinous operation may cause

overheating. If motor overheats put switch in center-of

position and allow motor to cool for 30 minutes.

ATTENTION! Le fonctionnement continu et excessif peut

provoquer une surchaufe. Si le moteur surchaufe, mettez

le commutateur au centre sur la position Of et laissez le

moteur refroidir pendant 30 minutes.

Masking travel is stopped automatically in the up and down

positions by limit switches that are properly adjusted at the

factory. Should it be necessary to adjust the stop positions,

proceed in the following manner:

NOTE: Use a screw driver or 5/32" Allen wrench to make

adjustments.

MORE SCREEN DROP

1 . Place operating switch in "down" position.

2. When the mask stops, turn the "down" limit knob (WHITE) one

turn counterclockwise. Test by raising the mask

approximately two feet, then lower again. Repeat until desired

picture surface position is attained.

LESS SCREEN DROP

1. Raise picture surface approximately two feet above

desired level.

2. Place operating switch in "of" position.

3. Turn the "down" limit knob (WHITE) one turn clockwise. Test

by raising the mask approximately two feet, then lower again.

Repeat until desired picture surface position in attained.

Symptom Cause Solution

Masking System will not

operate. Motor does not hum.

Incorrect line voltage. Verify 115125V (or 220240V). If insuicient voltage, rewire

incoming electric line.

Blown fuse. Replace fuse.

Tripped circuit breaker. Reset circuit breaker.

No power to operating switch

or junction.

Check above. Tighten all loose wire connections. Correct any

improper connections.

Down Position

Check for power across black and white leads.

Up Position

Check for power across red and white leads.

Screen will not operate

and motor does not hum.

Power at junction box.

Thermal overload tripped. Let motor cool down for 15 minutes. Try again.

Broken wire in the “down” or “up” position. Check for continuity. Cut o old splice and reconnect.

Defective motor, limit switch or capacitor. Replace motor assembly. NOTE: Motor is a sealed assembly.

Capacitor burned out. Replace motor assembly.

Masking System does not stop

at correct position. Limit switch is out of adjustment. See Mask Travel Adjustment section on page 9.

Noise.

NOTE: Masking System will

operate with a low-pitched

hum.

Squeaking, rubber end plug rubbing on motor. Center roller in case.

Grinding. Foreign object in screen rubbing on roller

or fabric. Remove.

Gear noise. Replace motor assembly.

Coasting. Defective brake. Replace motor assembly.

Mask hangs crooked.

Masking System not installed properly. Check for level and plumb.

Mask has backed up inside case. Adjust "down" limit switch slowly until roller is exposed and

wrinkle comes out, then readjust for proper drop.

Mask is damaged. Replace mask.

Troubleshooting

Andere Handbücher für Multi Format Imager

Inhaltsverzeichnis

Andere Da-Lite Projektorzubehör Handbücher

Da-Lite

Da-Lite Tensioned Cosmopolitan Electrol Bedienungsanleitung

Da-Lite

Da-Lite Fast-Fold Bedienungsanleitung

Da-Lite

Da-Lite Dual Masking Electrol Bedienungsanleitung

Da-Lite

Da-Lite Tensioned Large Advantage Deluxe Electrol Bedienungsanleitung

Da-Lite

Da-Lite IDEA Panoramic Bedienungsanleitung

Da-Lite

Da-Lite Boardroom ElEctrol Bedienungsanleitung

Da-Lite

Da-Lite Multi Format Imager Bedienungsanleitung

Da-Lite

Da-Lite INSTA-THEATER PLUS Bedienungsanleitung

Da-Lite

Da-Lite Tensioned Cosmopolitan Series Bedienungsanleitung

Da-Lite

Da-Lite Advance 26P Pivoting Da-Lift 26P Bedienungsanleitung

Da-Lite

Da-Lite 22516 Bedienungsanleitung

Da-Lite

Da-Lite Cosmopolitan Electrol Bedienungsanleitung

Da-Lite

Da-Lite TENSIONED CONTOUR ELECTROL Bedienungsanleitung

Da-Lite

Da-Lite Motorized Scenic Roller Screen Bedienungsanleitung

Da-Lite

Da-Lite Pivoting Da-Lift 26P Bedienungsanleitung

Da-Lite

Da-Lite Tensioned Advantage Deluxe Electrol Bedienungsanleitung

Da-Lite

Da-Lite DESIGNER DA-TAB ELECTROL Bedienungsanleitung

Da-Lite

Da-Lite TENSIONED CONTOUR ELECTROL Bedienungsanleitung

Beliebte Projektorzubehör Handbücher anderer Marken

Optoma

Optoma BX-AL133B Bedienungsanleitung

PEERLESS

PEERLESS PE 1120 Leitfaden

Osram

Osram SIRIUS HRI Series Handbuch

Presentation Switchers

Presentation Switchers PS111 Bedienungsanleitung

Kramer

Kramer VIA GO Bedienungsanleitung

Yamaha

Yamaha PJL-112 Stücklistenhandbuch

Swedstyle

Swedstyle CL23AA02ZA25E Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric 236CB Betriebsanleitung

Epson

Epson BrightLink 475Wi Bedienungsanleitung

Acer

Acer WP100 Bedienungsanleitung

i3 i3board Bedienungsanleitung

CHIEF

CHIEF HB-43E Bedienungsanleitung

Biamp

Biamp Modena Hub Service-Handbuch

NEC

NEC MP10RX Bedienungsanleitung

Panamorph

Panamorph DCR-S3 Bedienungsanleitung

Exact solutions

Exact solutions FRAME-EVO-P10 Bedienungsanleitung

CHIEF

CHIEF VCM103S Bedienungsanleitung

InFocus

InFocus LP70+ Leitfaden
