30” and 36” Wide, Distinctive Series

Slide-in Gas Cooktops

DRT304S, DRT366S

ELECTRIC CIRCUIT REQUIREMENTS

Circuit Required Total Connected Load

120 Vac 60Hz, 15 Amp. (3 wire) 1.0 Amp @ 120 Vac, 60 Hz.

GAS SUPPLY PRESSURE REQUIREMENTS*

Gas Type Manifold Pressure Minimum Gas Supply

Pressure

Natural Gas 5” Water Column 6” Water Column

Propane (LP) 10” Water Column 11” Water Column

* Maximum gas supply pressure for all models is 1/2 p.s.i.

Installation of a non-combustible material* (up to the hood) or a backsplash

is always recommended, and mandatory if the distance to the back

wall from the cooktop is less than 2 1/2” (Figure 2). When installing a

backguard, use only Dacor model numbers AEB3009 (DRT304S), AEB3609

or AEB3612 (DRT366S).

SIDE VIEW WITHOUT BACKGUARD

SIDE VIEW

Product Dimensions

Electrical and Gas Supply Requirements

Cabinet and Countertop Layout

COOKTOP WIDTH (A)

DRT304S 29 7/8” (75.9 cm)

DRT366S 35 7/8” (91.1 cm)

Product tolerances:

±1/16” (±1.6 mm)

unless otherwise noted

WARNING

• Observe all governing codes and ordinances during planning

and installation. Contact your local building department for

further information.

• This appliance must be installed in accordance with the

accompanying installation instructions.

Document # PG04-003 Revised 02/03/11 Page 1/4

4” (10.2 cm) 5/8” min.

(1.6 cm)

7 3/4”

(19.7 cm)

Trim:

1/2”

(1.3 cm)

thick

25 7/8” (65.7 cm)

1 5/8” (4.1 cm) cooking surface

height (grate level) above

countertop

3/4” gas inlet, connects to regulator from

bottom or rear of unit, end is recessed

2” (5.1 cm) from chassis bottom

28 1/8” (71.4 cm)

Power cord

32” (81.3 cm) long

Combustible

rear wall

Backguard mandatory if

gap from back of cooktop

to combustible wall is less

than 2 1/2”

Combustible

rear wall

2 1/2” (6.4 cm) min. to

combustible rear wall

PLANNING

GUIDE

4.15

Specications subject to change without notice. Phone: (800) 793-0093www.Dacor.com

See note 2

2See Cabinet/Countertop Dimensions - Top View

3Not applicable for cabinets more than a horizontal

distance of 10” (25.4 cm) from the edge of the cooktop.

1Vertical to combustible surface from cooktop grate level;

if installing an overhead vent hood, also check the hood

specifications for minimum required clearances.

13” (33.0 cm)

max.3

Top of

finished

counter

18” (45.7 cm)

min.1, 3

30” (76.2 cm)

min.1Cutout for

utility access

Hood

Recommended

gas and electrical

service location,

consult local code

10” (25.4 cm) to

combustible side

wall min. both sides 1/2” (1.3 cm)

overhang,

both sides

1 1/2” (3.8 cm)

typical countertop

thickness

7 3/4”

(19.7 cm)

36” (91.4 cm)

typical

Cooktop platform

1” (2.5 cm) min.

thickness

Model No. B C

DRT304S 30” (76.2 cm) 30” (76.2 cm)*

36” (91.4 cm)**

DRT366S 36” (91.4 cm) 36” (91.4 cm)*

42” (106.7 cm)**

* Minimum ** Recommended

Cabinet tolerances: +1/16”, -0 (+1.6 mm, -0)

unless otherwise noted.

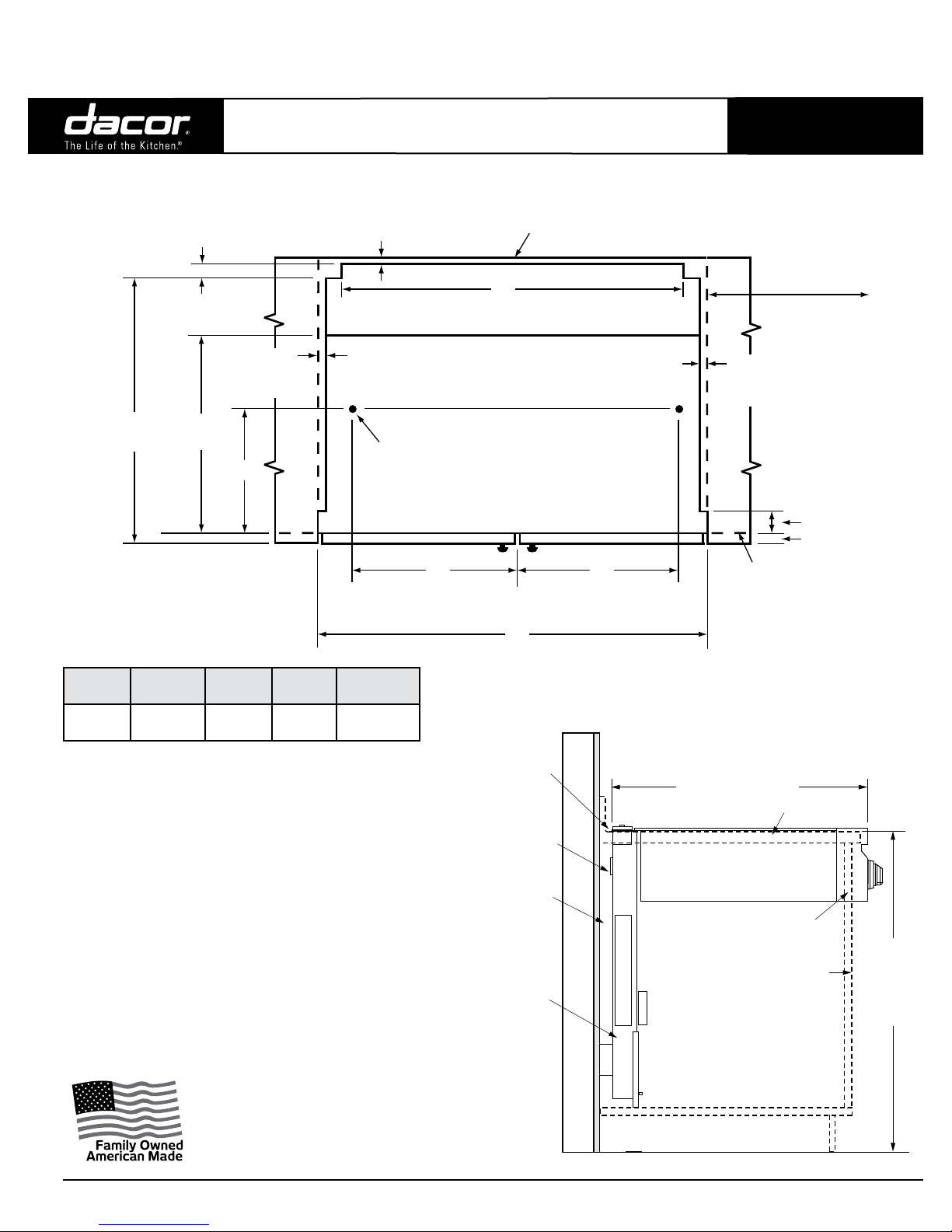

CABINET/COUNTERTOP DIMENSIONS - FRONT VIEW

CABINET/COUNTERTOP DIMENSIONS -

ISO VIEW

Continued. on following page...

Cabinet and Countertop Layout (Continued)

DRT304S, DRT366S

Document # PG04-003 Revised 02/03/11 Page 2/4

NOTE: Model DRT304S is not approved for installation

with a raised vent.

30” and 36” Wide, Distinctive Series

Slide-in Gas Cooktops

PLANNING

GUIDE

4.16

Specications subject to change without notice. Phone: (800) 793-0093www.Dacor.com

DRT304S, DRT366S

CABINET/COUNTERTOP CUTOUT DIMENSIONS WITHOUT RAISED VENT - TOP VIEW

Model No. B - Cutout Width D E

DRT304S 30” (76.2 cm) 13 3/8” (34.0 cm) 10 1/8” (25.7 cm)

DRT366S 36” (91.4 cm) 16 5/8” (42.2 cm) 11 3/16” (28.4 cm)

Cutout tolerances: +1/16” (+1.6 mm), -0, unless otherwise stated

Document # PG04-003 Revised 02/03/11 Page 3/4

Cabinet and Countertop Layout (Continued)

Non-combustible

rear wall, rear of

mounting platform

10” (25.4 cm) min.

to combustible wall

above countertop,

both sides

Cabinet face

below countertop

overhang

Increase countertop and overhang

additional 2 1/2” (6.4 cm) min. for

combustible rear wall above

countertop

3/8” (1.3 cm)

countertop overhang

Hole 1/2” dia. (1.3 cm),

2 places, through platform

for hold down bolts

Gas/electrical utility cut-out in right rear corner of

mounting platform 8” W X 6” D (20.3 cm X 15.2 cm),

if gas and electrical are routed through bottom

1/2” (1.3 cm)

countertop

overhang

1” thick mounting platform min.

Countertop

1/2” (1.3 cm)

countertop

overhang

2” (5.1 cm)

1” (2.5 cm)

24 5/8”

(62.5 cm)

D D

Gas connection and power cord may be

routed through bottom or back of chassis

Gas and electrical connections at

right rear section of chassis

30” and 36” Wide, Distinctive Series

Slide-in Gas Cooktops

PLANNING

GUIDE

4.17

Specications subject to change without notice. Phone: (800) 793-0093www.Dacor.com

Stiffener

Cabinet face

Control panel

Countertop

Use Dacor raised

vent, model

ERV3615 only IMPORTANT: See raised vent

installation instructions for

duct system layout/planning

DRT366 cooktop

3/8” min. (1.0 cm)

space behind

raised vent

chassis to clear

stiffener

3/8” min. (1.0 cm)

flat countertop

overhang required

behind cutout

Minimum

countertop

height:

30 1/4"

(76.8 cm)

28 5/16” (71.9 cm)

Non combustible rear

wall recommended 10” (2.5 cm) min. to

combustible wall

above countertop,

both sides

Cabinet face

below countertop

overhang

3/8” (1.0 cm) min.

countertop overhang

2 5/8”

(6.7 cm)

Hole 1/2” dia. (1.3 cm),

2 places, through platform

for hold down bolts

1/2” (1.3 cm)

countertop

overhang

1” (2.5 cm) thick mounting platform min.

Open to below to allow for raised

vent, gas and electrical connections

Countertop

1/2” (1.3 cm)

countertop

overhang

2” (5.1 cm)

1” (2.5 cm)

15”

(38.1 cm)

24 1/2”

(62.2 cm)

CABINET/COUNTERTOP CUTOUT

DIMENSIONS WITH RAISED

VENT - TOP VIEW

CABINET/COUNTERTOP CUTOUT

DIMENSIONS WITH RAISED

VENT - SIDE VIEW

Model

No.*

B - Cutout

Width D E F - Raised

Vent Cutout

DRT366S 36”

(91.4 cm)

16 5/8”

(42.2 cm)

11 3/16”

(28.4 cm)

33 1/2”

(85.1 cm)

* Model DRT304 is not approved for use with a raised vent.

** Use only raised vent model specified. Raised vent is not

compatible with DRT cooktops having a serial number starting

with letters “SA.”

Cutout tolerances: +1/16” (+1.6 mm), -0, unless otherwise stated

DRT304S, DRT366S

Document # PG04-003 Revised 02/03/11 Page 4/4

Cabinet and Countertop Layout (Continued)

30” and 36” Wide, Distinctive Series

Slide-in Gas Cooktops

NOTE: Gas and electrical connections may only be routed through

the bottom of the cooktop when installed with a raised vent.
