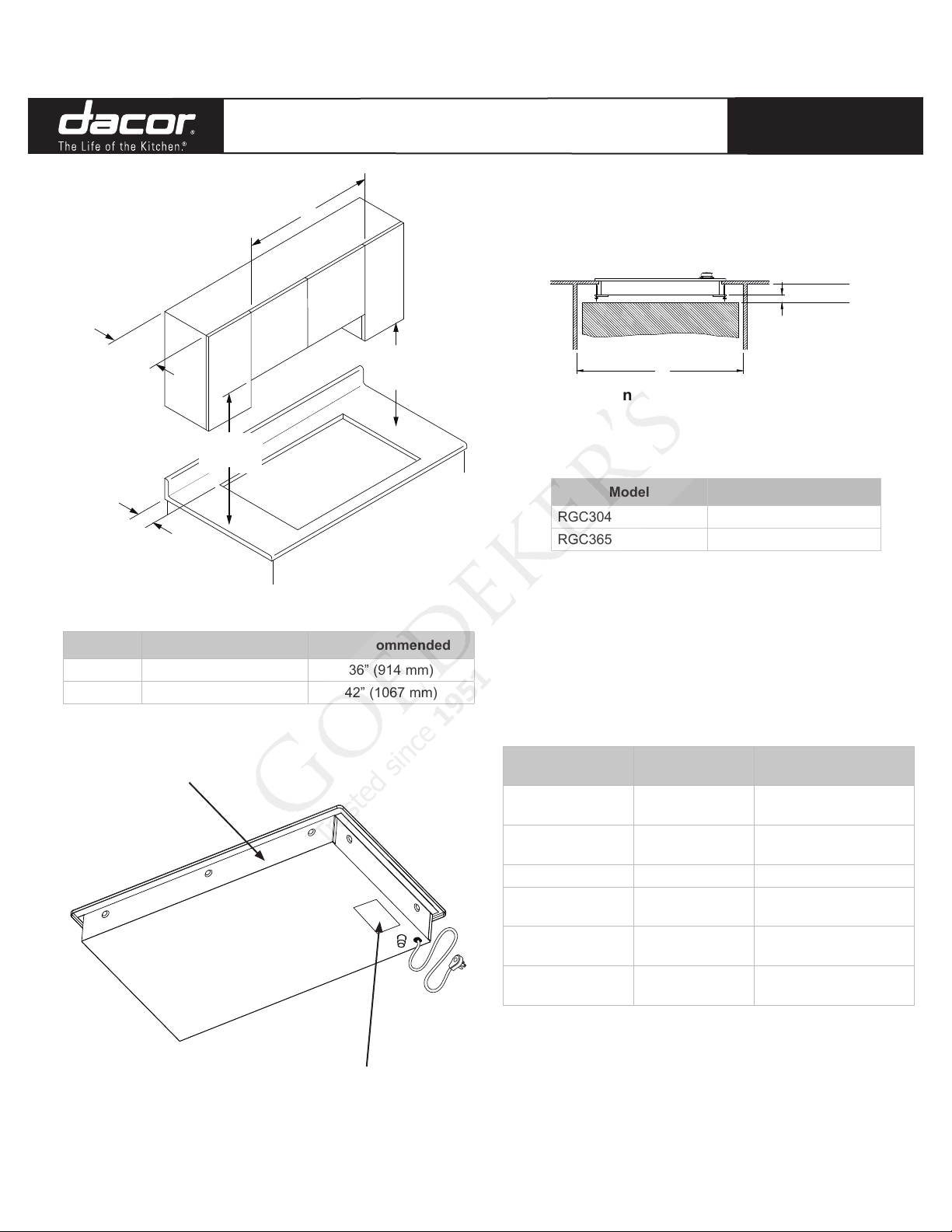

PLANNING

GUIDE

Web: http://www.Dacor.com

Corporate Phone: 800-793-0093

Specifications are subject to change without notice.

See installation instructions for additional details. 4.11

RGC304, RGC365

30”, 36” Wide, Preference™

Renaissance Gas Cooktops

1/2

Revised

05/21/08

30"

(762 mm)

21"

(533 mm)

4" (102 mm)

Chassis height

1/4" (6 mm) Min.

to combustibles

below chassis

27 1/2"

(699 mm)

19 7/8" (505 mm)

3 1/8"

(79 mm)

7 1/2" (191 mm) Min.

to combustible

side wall above

the cooktop

(both sides)

Vertical

combustible

surface

Rear

wall

(51 mm) Min.

25" (635 mm)

Min.

PRODUCT AND CUTOUT DIMENSIONS:

MODEL RGC304

36"

(914 mm)

21"

(533 mm)

19 7/8"

(505 mm)

33 3/4"

(857 mm)

4" (102 mm)

Chassis height

3 1/8"

(79 mm)

1/4" (6 mm) Min.

to combustibles

below chassis

7 1/2" (191 mm) Min.

to combustible

side wall above

the cooktop

(both sides)

Vertical

combustible

surface

Rear

wall

(51 mm) Min.

25" (635 mm)

Min.

Axis2Axis2

PRODUCT AND CUTOUT DIMENSIONS:

MODEL RGC365

WARNING

Observe all governing codes and ordinances during planning

and installation. Contact your local building department for

further information.

This appliance must be installed in accordance with the

accompanying installation instructions.

All tolerances +1/16” -0 (+1.6 mm, 0) unless

otherwise noted.

PLANNING

GUIDE

Web: http://www.Dacor.com

Corporate Phone: 800-793-0093

Specifications are subject to change without notice.

See installation instructions for additional details. 4.12

RGC304, RGC365

30”, 36” Wide, Preference™

Renaissance Gas Cooktops

2/2

Revised

05/21/08

13" Max.

(330 mm)

3 1/8" Min.

(79 mm)

18" Min.

(457 mm)

30" Min.

(762 mm)

Clearances to Combustibles

1/4” (6 mm)

Mimimum clearance

to combustible

surfaces

Under Cabinet Clearances

Model A: Minimum A: Recommended

RGC304 30” (762 mm) 36” (914 mm)

RGC365 36” (914 mm) 42” (1067 mm)

Model B: Minimum

RGC304 29” (737 mm)

RGC365 35 ¼” (895 mm)

All tolerances +1/16” -0 (+1.6 mm, 0) unless otherwise noted.

RGC304

RGC365

RGC304LP

RGC365LP

Total Connected

Load

0.25 Amps

(0.03 kW)

0.25 Amps

(0.03 kW)

Circuit

Requirement

120 Vac,

60 Hz, 15 Amp

120 Vac,

60 Hz, 15 Amp

Gas Type Natural LPG

Manifold

Pressure 5” Water Column 10” Water Column

Min. Gas Supply

Pressure 6” Water Column 11” Water Column

Power Cord

Length 40” (1016 mm) 10” (254 mm)

GAS AND ELECTRICAL REQUIREMENTS*

* The data above is for reference only. If the above data does not

agree with the product data label, use the data on the product data

label.

Front of Unit

Data Label
