Dacor DMT2420 Technisches Handbuch

PLANNING

GUIDE

www.Dacor.com

Phone: (800) 793-0093

Specications are subject to change without notice.

See installation instructions for additional details. CI.22

Microwave/Discovery Wall Oven/

Warming Drawer

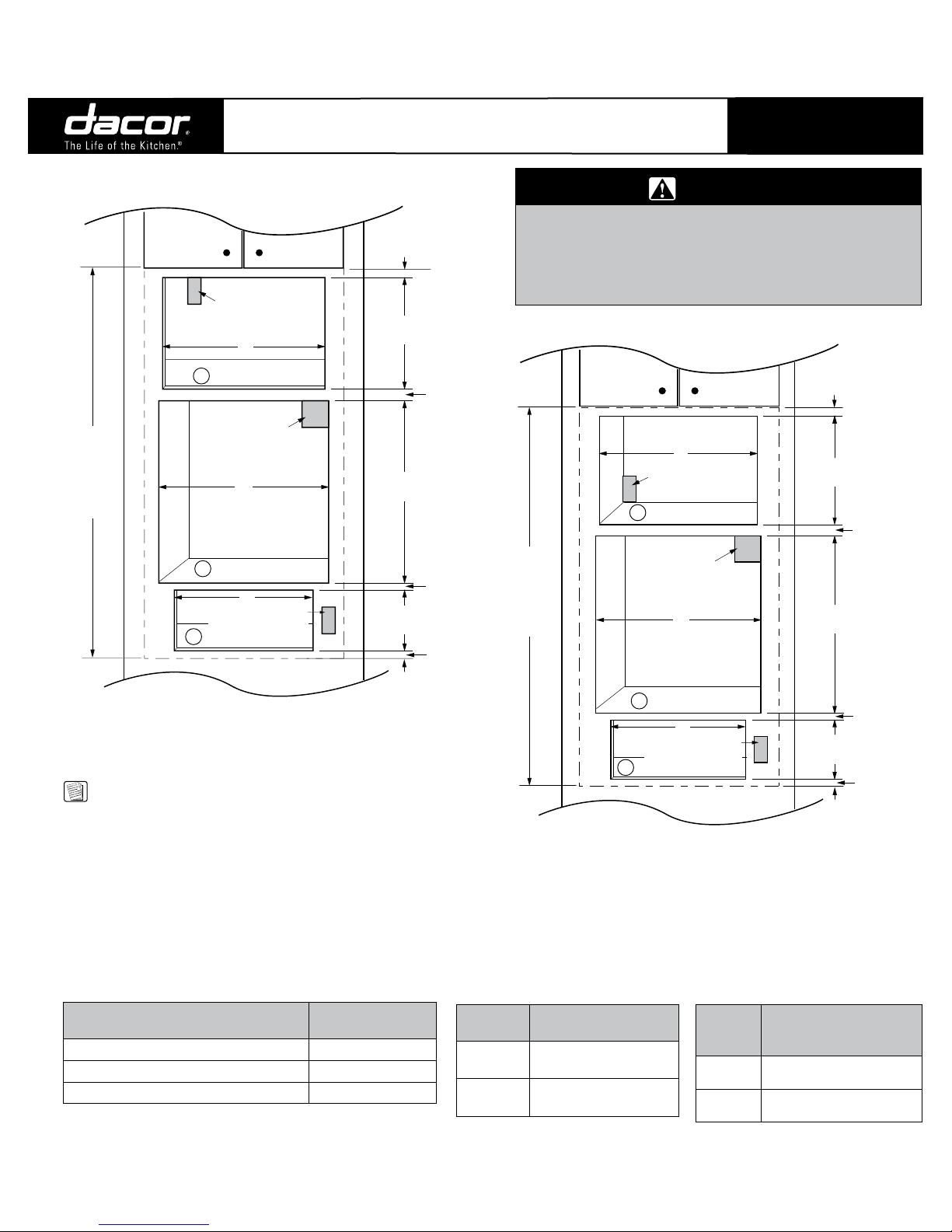

COMBINATION INSTALLATIONS

CUTOUT DIMENSIONS

DMT2420 ShOWN

CUTOUT DIMENSIONS

DCM24 ShOWN

Wall Oven

Models (B) Cutout Width

Single 27” 25 1/2” (648 mm)

Single 30” 28 1/2” (724 mm)

Microwave

Model No. (A) Cutout Width

DMT2420 w/AOMTK series trim kit 24 3/8” (619 mm)

DCM24 w/AOCTK27 trim kit 25 1/4” (641 mm)

DCM24 w/AOCTK30 trim kit 25 1/4” (641 mm)

Warming

Drawer

Models

27” 25 1/2” (648 mm)

30” 28 1/2” (724 mm)

NOTE:

3/4” (19 mm) support platform (flush with cutout).1.

See individual appliance Planning Guide pages to2.

determine overlays.

Spacing between appliances and drawers/doors shown3.

is minimum required to allow for ventilation and prevent

scraping. Additional space may need to be added for

appearance.

Warming drawer model OWD24 is not approved for4.

installation below a wall oven.

9 1/8”

(232 mm)

27 1/2”

(699 mm)

16 3/4”

(425 mm)

1 1/2” Min.

(38 mm)

2 1/4” Min.

(57 mm)

7/8” Min. (22 mm)

3/4” Min.

(19 mm)

58 3/4”

Min.

(1492 mm)

overall

stacked

height

120 Vac electrical

outlet for microwave

120 Vac electrical

drawer

240 Vac

wall oven

junction box

outlet for warming

9 1/8"

(232 mm)

27 1/2"

(699 mm)

18 1/2”

(470 mm)

1 3/4" Min.

(44 mm)

2 1/4" Min.

(57 mm)

7/8" Min. (22 mm)

3/4" Min.

(19 mm)

60 3/4"

Min.

(1543 mm)

overall

stacked

height

120 Vac electrical

outlet for microwave

120 Vac electrical

drawer

240 Vac

wall oven

junction box

outlet for warming

All tolerances: +1/16”, -0, (+1.6 mm, -0) unless otherwise stated

Document # PGCI - 018 Revised 11/05/09 Page 1/1

WARNING

Observe all governing codes and ordinances during•

planning and installation. Contact your local building

department for further information.

All appliances must be installed in accordance with the•

accompanying installation instructions.
