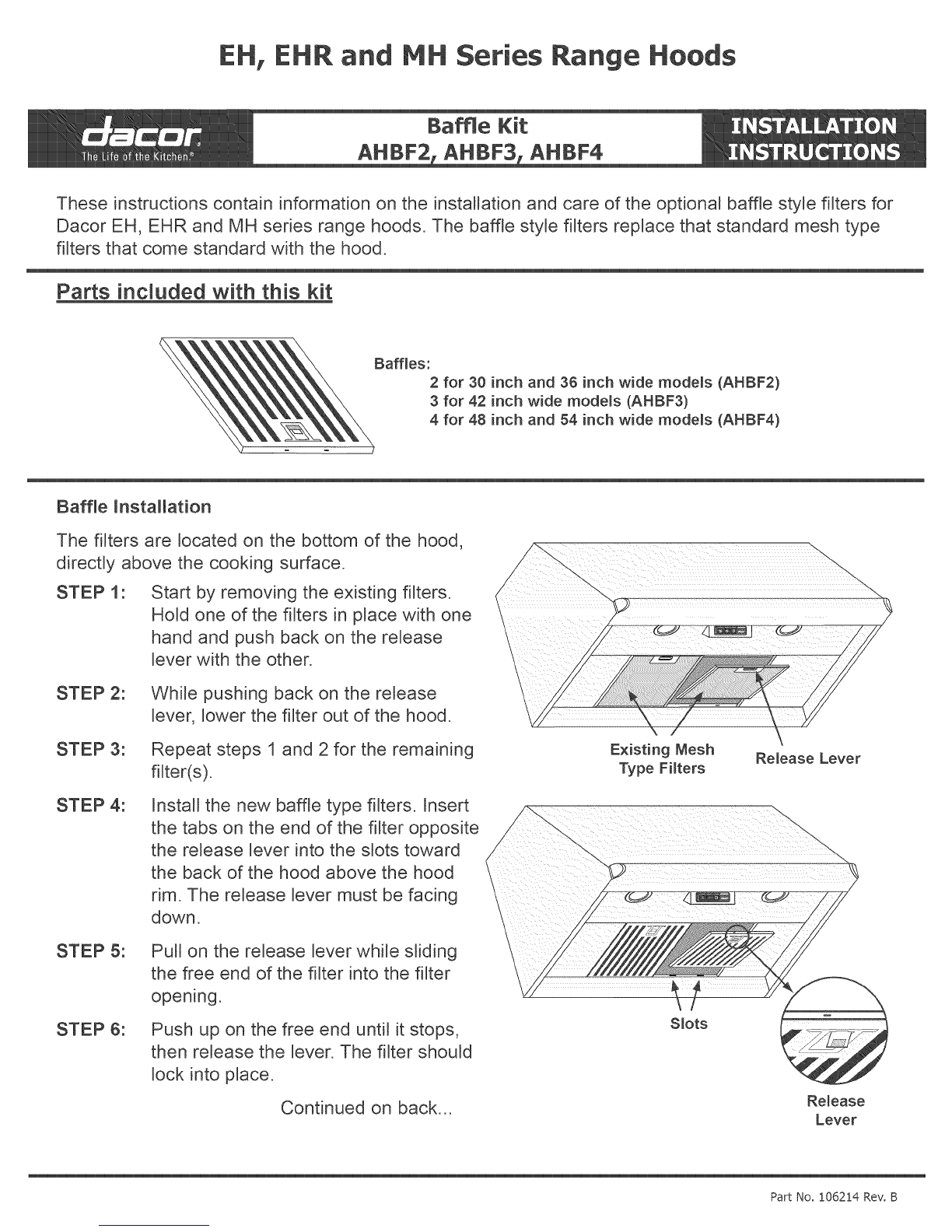

These instructions contain information on the installation and care of the optional baffle style filters for

Dacor EH, EHR and MH series range hoods. The baffle style filters replace that standard mesh type

filters that come standard with the hood.

Parts included with this kit

Baffmes:2 for 30 inch and 36 inch wide mode_s (AHBF2)

3for 42 inch wide mode_s (AHBF3)

4 for 48 inch and 54 inch wide mode_s (AHBF4)

Baffle installation

The filters are located on the bottom of the hood,

directly above the cooking surface.

STEP 1: Start by removing the existing filters.

Hold one of the filters in place with one .....................................................

hand and push back on the release

lever with the other.

STEP 2: While pushing back on the release

lever, lower the filter out of the hood.

STEP 3: Repeat steps 1 and 2 for the remaining

filter(s). Existing Mesh

Type Fi_ters Re_ease Lever

STEP 4: Install the new baffle type filters. Insert

the tabs on the end of the filter opposite

the release lever into the slots toward

the back of the hood above the hood

rim. The release lever must be facing

down.

/

STEP 5:

STEP 6:

Pull on the release lever while sliding

the free end of the filter into the filter

opening.

Push up on the free end until it stops,

then release the lever. The filter should

lock into place.

Continued on back...

S_ots

Release

Lever

Part No. 106214 Rev. B

CNeaning the FHters

STEP 1: Remove the filters from the hood to clean them. Hold one filter in place with one hand and

pull on the release lever with the other.

STEP 2: Lower the filter out of the hood.

STEP 3: Follow" steps 1 and 2 to remove the remaining filter(s).

STEP 4: Hand wash the filters in hot water with a mild detergent solution or dishwashing soap. You

may also place them in an automatic dishwasher.

STEP 5: Dry the filters completely before reinstalling them according to the installation instructions

on the front page.

_'_ Family Owned

American Made

Dacor ® 600 Anton Blvd. Suite !000 Costa Mesa, CA 92626 ® Phone: (800) 793-0093 ® Fax: (626)403-3!30 ®www.Dacor.com
