PLANNING

GUIDE

7.8

Specications subject to change without notice. Phone: (800) 793-0093www.Dacor.com

Custom Hood Liners

IHL

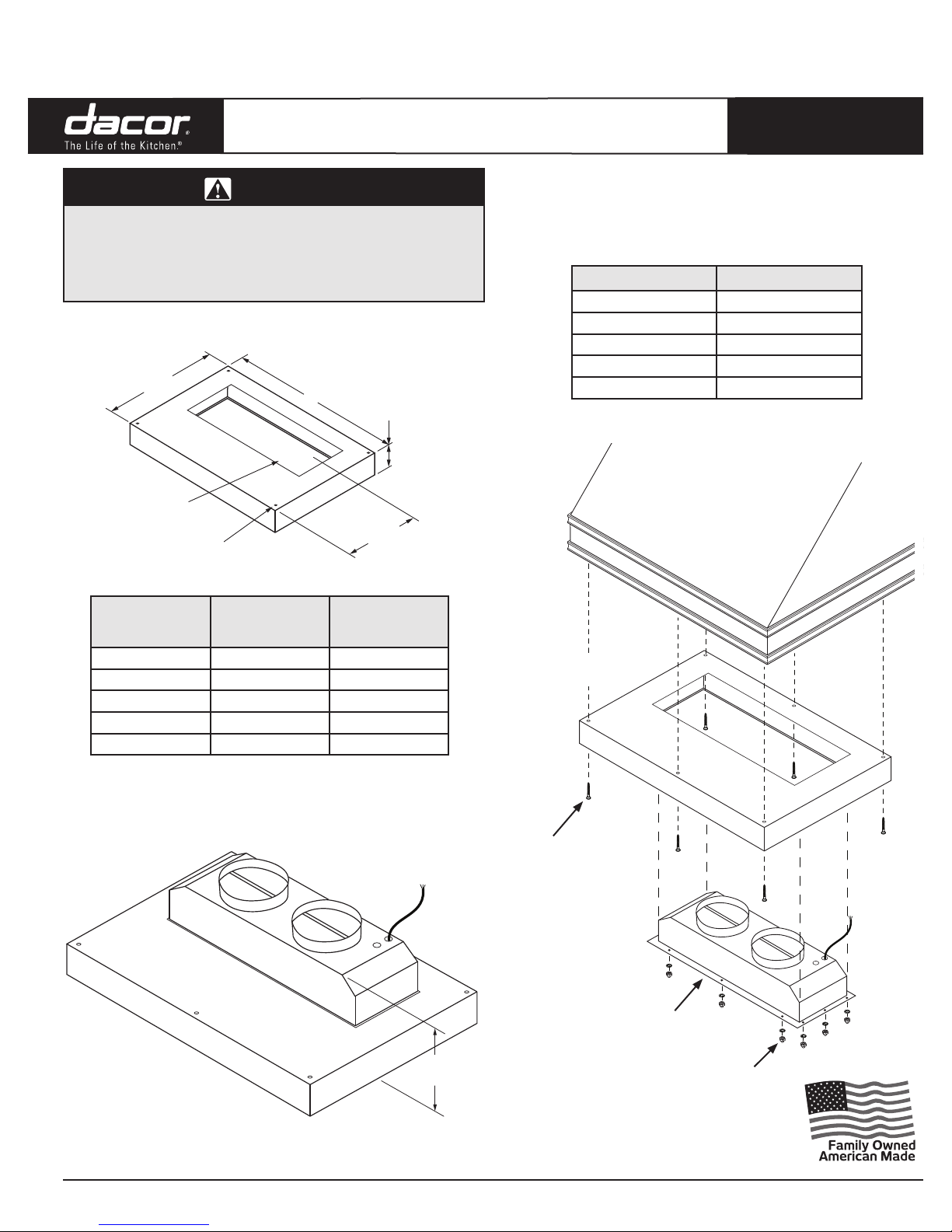

IHL SERIES HOOD LINER DIMENSIONS

HEIGHT OF IHL SERIES HOOD LINER AND IVS SERIES

INTEGRATED VENTILATION SYSTEM WHEN ASSEMBLED

VENTILATION SYSTEM COMPATIBILITY

Custom hood

Dacor IVS series integrated

ventilation system

Hood liner mounting screw,

number required varies with

model, see table

Cap nuts/lock washers for mounting IVS

(provided with IHL kit)

21"

(53.3 cm)

13 7/16"

(34.1 cm)

(10.2 cm)

Mounting hole

for IVS

IHL mounting hole,

number and locations

vary with model

10"

(25.4 cm)

All tolerances: ±1/16” (±1.6 mm) unless otherwise stated.

Document # PG07-005 Revised 11/30/10 Page 1/1

WARNING

• Observe all governing codes and ordinances during planning

and installation. Contact your local building department for

further information.

• This appliance must be installed in accordance with the

accompanying installation instructions.

IHL Model (A) Width

Dimension

Number Mounting

Holes/Mounting

Screws Required*

IHL30 27” (68.6 cm) 4

IHL36 33” (83.8 cm) 4

IHL42 39” (99.1 cm) 6

IHL48 45” (114.3 cm) 6

IHL54 51” (129.5 cm) 6

IHL Model IVS Model

IHL30 IVS1

IHL36 IVS1

IHL42 IVS2

IHL48 IVS2

IHL54 IVS2

The Dacor IHL series integrated hood liner is used to line the inside of

custom built range hoods. It is constructed with non-combustible stainless

steel and is designed for use with Dacor IVS series integrated ventilation

systems. Together the IVS and IHL series products can be built into a

custom hood structure to provide the required ventilation and heat resistant,

easy to clean surfaces.

Dacor IHL series

hood liner

* #8 mounting screws (not included) are required. Length and type

must be determined according to application (mounting material).
