Dacor DRW24980RAP/LAP Bedienungsanleitung
Installation Instructions
Built-In Wine Cellar
DRW24980RAP/LAP
English2
Contents
Before You Begin 4
Important 4
Customer-Service Information 5
If You Need Help 5
Important Safety Instructions 6
State of California Proposition 65 Warning (US only) 6
General Safety Precautions 7
Safety and Warning Information 11
Installation Safety 11
Installation Specifications 13
Installation Options 14
Product Specifications 16
Custom Panel Specifications 17
Handle Specifications 18
Installation 20
Installation Requirements 21
Installation Preparation 21
Grounding the Wine Cellar 24
Cabinet Special Requirements 25
English 3
Installation Instructions 26
1. Uncrating the Wine Cellar 26
2. Moving the Wine Cellar 27
3. Installation Preparation 28
4. Attaching the Anti-tip-Bracket 28
5. Removing Upper Door Cover, Kickplate 31
6. Attaching Insulators on the Side of the Wine Cellar
- Single Installation 34
7. Attaching insulators on the side of the freezer or fridge or Wine Cellar
- Side-by-side (Pair) Installation 35
8. Connecting the Two Chassis 38
9. Adjusting the door Opening Angle 39
10. Moving the Wine Cellar Into Its Enclosure 40
11. Removing Two Levers 42
12. Leveling the Wine Cellar 43
13. Attaching Two Levers 45
14. Attaching the Wine Cellar’s Top Cover 46
15. Securing the Wine Cellar 47
16. Attaching the Custom-Door-Panel Brackets 48
17. Hanging a Custom Panel 50
18. Preparing the Panel for Adjustment 51
19. Aligning the Panel 52
20. Attaching the Door’s Interior Covers 56
21. Attaching Grill, Kickplate and Toe Kickplate (optional) 59
22. Attaching the Wine Cellar Trim 61
23. Attaching Trim Top Cover 62
24. Assembling the Wine Rack 63
25. Disassembling the Wine Rack 66
26. Adjusting the Door Spring 67
27. Cleaning 67
28. Installation Checklist 68
SAVE THESE INSTRUCTIONS
English4

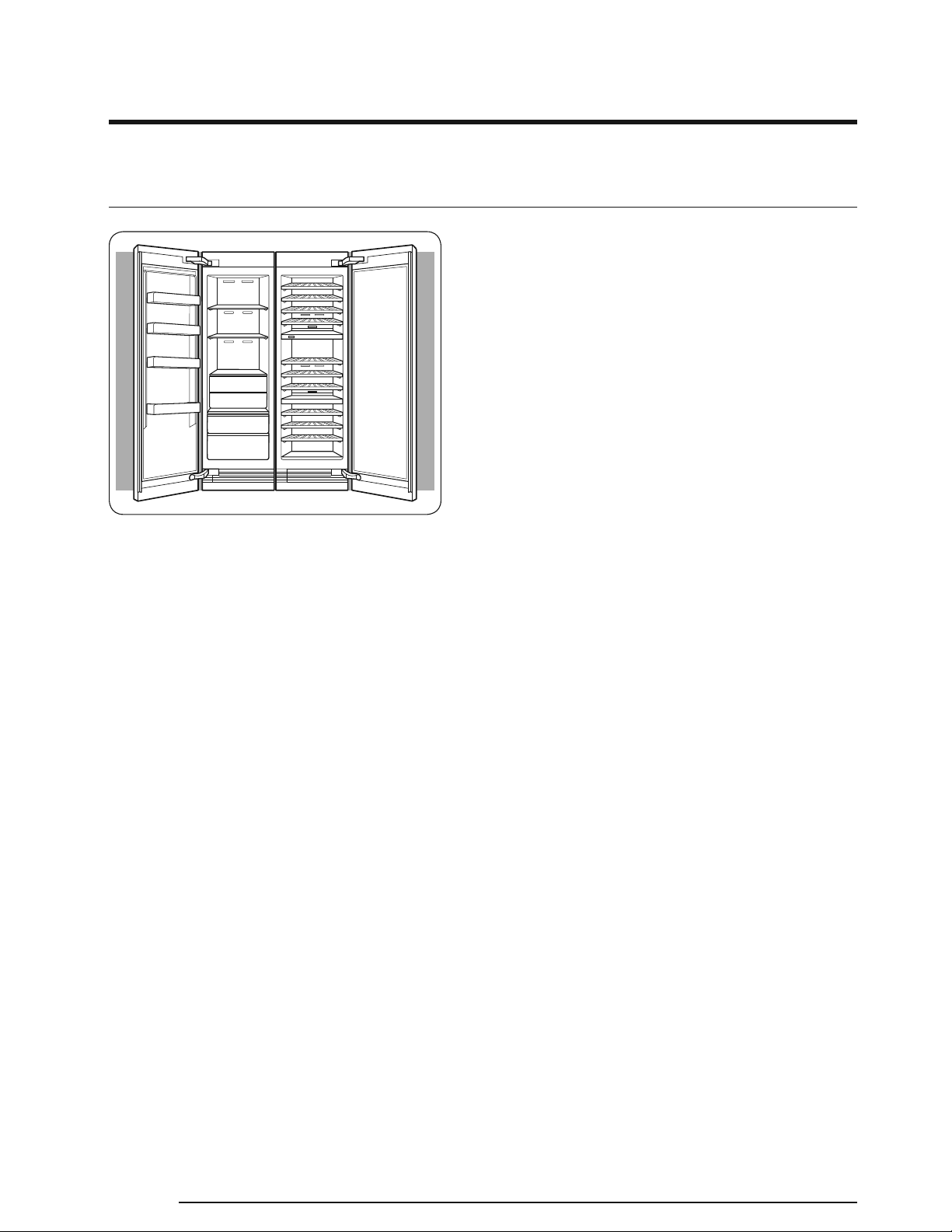

Before You Begin
Important
• The overall design and/or accessories
may differ with the model.
Installer
• To promote safety and minimize
problems, read this manual thoroughly
before starting the installation. Leave
this manual with the user.
• Write the appliance’s model/serial
numbers in this manual for service/
maintenance reference.
• Model/serial numbers are on the data
label in the Wine Cellar compartment.
User
• Keep this manual for personal reference
and for that of inspectors, service
personnel, etc.
SAVE THESE INSTRUCTIONS
English 5
Customer-Service Information
If You Need Help
If you have questions or problems with installation, contact your Dacor® dealer or the
Dacor Customer Assurance Team. If your Dacor appliance is under warranty, call Dacor
Distinctive Service. Have the appliance’s model/serial numbers available when you call.
(These numbers are on the data label on the right-hand door jamb inside the иʪʀʪɇθ.)
Dacor Customer Assurance
Phone: 833-35-ELITE (833-353-5483) USA, Canada
Mon – Fri 5:00 a.m. to 5:00 p.m. Pacific Time
Website: www.dacor.com/customer-care/contact-us
Product Information: knowledgebase.dacor.com
All specifications are subject to change without notice. Dacor assumes no liability for
changes to specifications.
© 2017 Dacor, all rights reserved.
SAVE THESE INSTRUCTIONS
English6
Important Safety Instructions
The Important safety instructions and warnings in these instructions are not meant to
cover all possible problems and conditions that can occur.
Use common sense and caution when installing, maintaining, or operating this or any
other appliance.
Always contact the Dacor Customer Assurance Team about problems and conditions that
you don’t understand. See Customer-Service Information.
Safety symbols and labels
These alerts are meant to bring attention to important areas in the manual.
Whenever you see these symbols or labels, read the message carefully before continuing.
DANGER
Immediate hazards that WILL cause severe personal injury or death.
WARNING
Hazards or unsafe practices that MAY cause in severe personal injury or death.
CAUTION
Hazards or unsafe practices that MAY cause in minor personal injury or property damage.
State of California Proposition 65 Warning (US only)
WARNING : This product contains chemicals known to the State of California to cause
cancer and birth defects or other reproductive harm.
SAVE THESE INSTRUCTIONS
English 7
WARNING - R600a Refrigerant
This appliance contains isobutane refrigerant, R600a, a natural gas with high
environmental compatibility; however, it is also flammable. Please adhere to the warnings
below
• When handling, installing and operating the appliance, care should be taken to avoid
damage to the refrigerant tubing.
• Servicing shall be performed by manufacture-authorized service personnel and
component parts shall be replaced with manufacturer-authorized replacement
components.
• Refrigeration products contain refrigerants, which under federal law must be removed
prior to product disposal.
• Keep ventilation openings in the appliance enclosures or in the built-in structure clear
of obstruction.
• In order to avoid the creation of a flammable gas-air mixture if a leak in the
refrigerating circuit occurs, the size of the room in which the appliance may be sited
depends on the amount of refrigerant used. The room must be 35.3 ft³ in size for every
8 g of R-600a refrigerant inside the appliance.
• The installation location should not be exposed to direct sunlight and avoid placing
near any electric appliances or heat source, e.g. stove, cooktop, oven, or radiator, etc.
• If you use two products side by side, for safety reason, be sure to use certified
products in explosive gas atmospheres.
• Do not use mechanical devices or other means to accelerate the defrosting process.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartment of the appliance.
General Safety Precautions
DANGER
IMPORTANT:
To prevent child entrapment and suffocation when discarding an old appliance:
• Take off the door(s).
• Leave the racks in place so children cannot easily climb inside.
• Cut the prongs off the power plug and discard them.
• Cut the power cable off and discard it separately from the old appliance.
SAVE THESE INSTRUCTIONS
Important Safety Instructions
English8
To avoid the possibility of explosion or fire, do not store or use combustible, flammable
or explosive vapors and liquids (such as gasoline) inside or in the vicinity of this or any
other appliance. Also keep items that could explode, such as aerosol cans away from
cooktop burners, ovens and range hoods. Do not store flammable or explosive materials in
adjacent cabinets or areas.
WARNING
IMPORTANT: This appliance is equipped with a three-prong grounding electric plug for
protection against possible electric shock hazards. It must be plugged into a dedicated,
grounded, electrical outlet. If only a two-prong electrical outlet is available, it is the
responsibility of the customer to have it replaced with a dedicated, properly grounded
three-prong electrical outlet.
• Do not kink or pinch the power supply cord of the appliance.
• Never unplug the appliance by pulling on the power cord.
• Always grip the plug firmly and pull straight out from the electrical outlet.
• Disconnect this appliance when not in use.
• Do not install, repair, modify, or replace any part of the appliance unless specifically
recommended in the literature accompanying it.
• A qualified service technician should perform all other services.
DO NOT cut or remove the third (ground)
prong from the power cord.
DO NOT use an adapter plug.
DO NOT use a power cord that is frayed or
damaged.
DO NOT connect the appliance to an
extension cord. Keep the power cord away
from heated surfaces.
NOTE
• Use of an electrical outlet with a
ground.
• Use of an electrical outlet with a
ground fault interrupter (GFI) is not
recommended.
SAVE THESE INSTRUCTIONS
English 9
WARNING
• To reduce the risk of fire, electric shock, serious injury or death when using your
appliance, follow basic safety precautions, including the following:
• If you receive a damaged product, immediately contact your dealer or builder. Do not
install or use a damaged appliance.
• Make sure that this appliance has been properly installed according to these
installation instructions.
• Make sure to install in outlet locations according to electric supply location.
• Refrigeration equipment and refrigerants must be properly disposed of in a
professional and appropriate way, in accordance with the current local regulations
and laws which protect the environment. This applies to your old appliance and to
your new unit once it has reached the end of its service life. DO NOT dispose of the
appliance in a landfill or with urban waste. Contact local waste disposal centers for
information on how to dispose of recyclable waste.
• Take care when handling, moving, using or disposing of the appliance to avoid
damaging the refrigeration system.
• Do not install or use outdoors or in wet conditions. This appliance is not designed for
installation in a recreational vehicle or boat.
• Keep packaging materials away from children. Plastic sheets and bags can cause
suffocation.
• Connect this appliance to a 115 V, 15 A. circuit that is controlled by a circuit breaker or
fuse. This appliance should have its own separate grounded circuit.
• Do not kink or pinch the power supply cord of the appliance. Never unplug the
appliance by pulling on the power cord. Always grip the plug firmly and pull straight
out from the electrical outlet.
• Disconnect this appliance when not in use.
• Do not install, repair, modify, or replace any part of the appliance unless specifically
recommended in the literature accompanying it. A qualified service technician should
perform all other services.
• Before performing any type of service, switch power off at the circuit breaker panel.
• This appliance is not intended for use by persons (including children) with reduced
physical, sensory abilities, or lack of experience and knowledge, unless they are
properly supervised by a person responsible for their safety. Children must be
supervised for their safety.
• Never allow anyone, including children to sit, stand or climb on any part of the
appliance, including the door. Doing so may cause damage, serious injury or death.
SAVE THESE INSTRUCTIONS
Important Safety Instructions
English10
• If the power cord is damaged, it must be replaced by the manufacturer or a qualified
service technician in order to avoid a safety hazard. Do not tamper with the controls.
• Clean this appliance regularly as instructed in the Care and Cleaning section of the User
manual.
• Do not use any type of electrical equipment inside the wine cellar compartments.
• Do not obstruct any of the vents or openings on the appliance.
• To avoid risk of the appliance tipping over it is mandatory to secure the appliance to
the wall by means of the two supplied anti-tip brackets.
• Use this appliance only for its intended purpose: the storage of food and beverages. It
is not intended for commercial or industrial use.
•ƸϑʪʪуϩθɇʀɇЇϩͱи˵ʪϑϩɇ˝ʪʪʀϩθʀɇʀͱΧͱʪϩɵͱу˙ͱθʒɇɇ˝ʪϩͱϩ˵ϑɵͱуɇц
ʀɇЇϑʪϑ˵ͱʀΧʪθϑͱɇЇθцɇʒ؏ͱθʒɇɇ˝ʪϩͱΧθͱΧʪθϩцɇʒϑЇθθͱЇʒ˝ϑ
• Hold the handle when opening and closing the door.
• When you open and close the door, be careful not to put your hands in the doorway.
