Daewoo DWC-070C Bedienungsanleitung

TABLE OF CONTENTS

1. PRECAUTION

ÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅ

2. GENERAL SPECIFICATIONS

ÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅ

3. NAMES OF MAJOR COMPONENTS

ÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅ

4. FUNCTION OF MAIN COMPONENTS

ÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅ

5. GENERAL INFORMATIONS

ÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅ

6. CARE AND MAINTENANCE

ÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅ

7. TROUBLE SHOOTING GUIDE

ÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅ

8. HOW TO DISASSEMBLE

ÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅ

9. WIRING DIAGRAM

ÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅ

10. REFRIGERANT CYCLE

ÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅ

11. EXPLODED DIAGRAM AND PARTS LIST

ÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅÅ

1. PRECAUTION

Please observe the following instructions.

1. Turn off unit.

Make sure the unit is OFF and the AC cord is unplugged before repairing or servicing.

2. In case of checking the circuit unavoidably while the unit is connected with power source, be careful

not to connect with the part of electric charge.

You may cause electric shock.

3. Use of proper part if you need to replace the part, be sure to use genuine part of servicing model.

Do not repair or replace the electric contact part.

Consumer must not repair the unit, because it is dangerous.

4. Use of proper tool.

You must use the proper tool to repair the unit, and use the measuring appliance adjusted accurately.

5. Damage of electric wire and power cord when servicing.

Check electric wire and a surely replace a damage electric wire and a damage power cord.

6. Never use connecting the middle of wire, after cutting the middle of wire.

It may cause a fire and trouble.

7. Checking the insulation resistance.

After you complete the assembly of unit, surely check the insulation resistance.

Confirm that the insulation resistance of the power line and the ground terminal is over 30MΩby measuring insulation

resistance.

8. Checking the ground.

After checking the ground, servicing it completely.

9. Checking the installation.

After checking the installation, servicing it completely.

10. Care children.

When servicing, do not make the children approach the air-conditioner.

2. GENERAL SPECIFICATIONS

ITEM MODEL DWC-070C DWC-091C

Function Cooling only

Power source AC 115V, 60Hz, Single phase

Cooling Capacity Btu/h 7,390 Btu/h 9,000 Btu/h

Kcal/h 1,862 Kcal/h 2,268 Kcal/h

Energy Efficiency Ratio Btu/wh 10.0 Btu/wh 9,6 Btu/wh

Kcal/wh 2.52 Kcal/wh 2.42 Kcal/wh

Dehumidification Pts/h 2.36 Pts/h 3.04 Pts/h

Electrical Data Power Input 739 W 938 W

Running Current 7.2A 9.6A

Compressor

Type Rotary

Model QB110CL12A QK141CN12A

Capacitor 35µF-370VAC 40µF-370VAC

Model A9525HS601-1 A9525HS602

Motor Capacitor 4µF-370VAC 7µF-370VAC

Indoor-Fan Blower-Fan

Outdoor-Fan Propeller-Fan

Dimensions Unit(W x H x D) 18.5(W) x 13.8(H) x 18.9(D) Inch (470(W )x 350(H) x 480(D) mm)

PACKING(W x H x D) 21.3(W) x 17.3(H) x 21.7(D) inch (540(W )x 440(H) x 550(D) mm)

Weight Net Weight 63 lbs (28.5Kg) 65 lbs (29.5Kg)

Gross Weight 66 lbs (30.0 Kg) 68 lbs (31.0Kg)

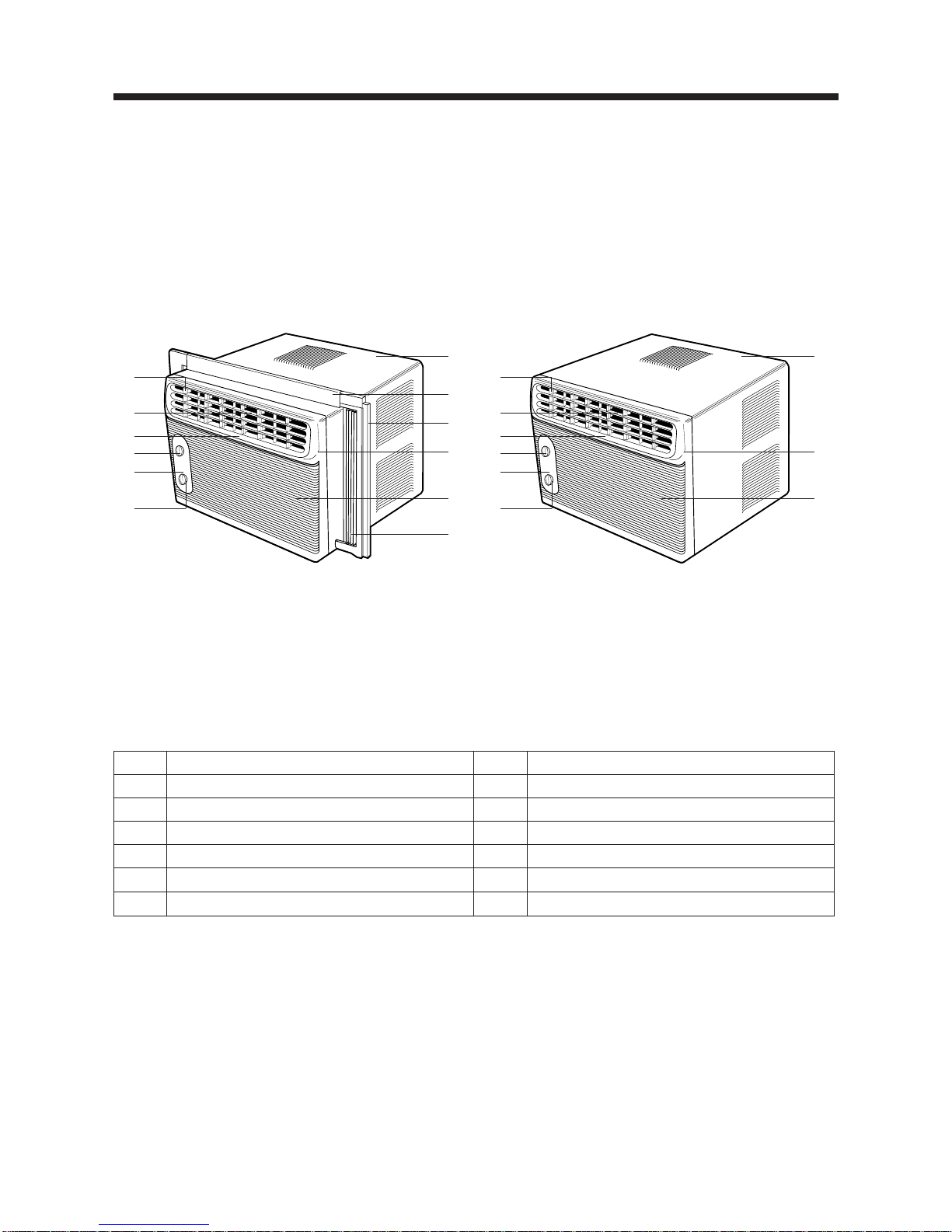

3.NAMES OF MAJOR COMPONENTS

NO PART NAME

1 CABINET

2 BLADE VERTICAL

3 COOL AIR DISCHARGE

4 GRILL FRONT

5 KNOB SELECTOR

6 KNOB THERMOSTAT

NO PART NAME

7 AIR INTAKE

8 AIR FILTER

9 CONTROL PANEL

10 PLATE WINDOW TOP

11 FRAME WINDOW KIT

12 SHUTTER WINDOW

¤æ

4. FUNCTION OF MAIN COMPONENTS

1. ROTARY SWITCH (SELECTOR)

Please refer to the part of selector in the chapter 9 (Wiring Diagram).

The rotary switch (selector) controls the fan motor’s rotation speed, and has five positions.

The function of the five position is as follow.

OFF: This position stops all operations of the air conditioner.

HIGH COOL: This position provides the maximum air flow for rapid

cooling, dehumidifying and dust removing operations.

(Use this position on sultry summer days.)

LOW COOL: This position provides the minimum air flow for quiet

cooling, dehumidifying operations.

(Use this position on suitable for night-time.)

HIGH FAN: This position provides the maximum air fiow alone fan

operation without cooling operation.

LOW FAN: This position provides the minimum air flow air flow alone

fan operation without cooling operation.

2. THERMOSTAT (TEMPERATURE CONTROL)

The Thermostat automatically starts and stops operation in order to keep

the room temperature at a proper level, and this results in efficient use of

power and economical cooling.

Turn clockwise for a cooler room temperature.

Turn counter-clockwise for a warmer room temperature.

3. MOTOR

The motor is used to rotate the indoor and outdoor fan so that the room air can be recirculated.

4. FAN

BLOEWR FAN: The Blower draws hot air from the room through the Evaporator and then discharges it back into the

cool air. It circulates the room air.

PROPELLER FAN: The propeller draws outdoor air through louvering and cools Condenser, and then blows the hot

air out.

5. CAPACITOR

The Capacitor enlarges the difference of phase between main coil and sub coil so that the Compressor and Fan Motor

starts well.

6. ACCUMULATOR

The Accumulator blocks the unflow of liquid refrigerant and impurities into the Compressor.

SELECTOR

HIGH

COOL

HIGH

FAN

LOW

COOL

LOW

FAN

OFF

THERMOSTAT

COOLER

5. GENERAL INFORMATIONS

1. CHANGING AIR FLOW DIRECTION

Air flow deflectors divert air from center flow to left or right.

Adjust deflectors for desired air flow pattern.

2. AIR FLOW AROUND UNIT

Check in door grill and outdoor louvers for air flow obstructions. Do not block air flow to and from unit. The outdoor coil

should be checked and periodically cleaned for debris that may collect and block unit air flow. If air flow is obstructed

or deflected back into unit, the compressor may cycle on and off rapidly, causing early compressor failure.

3. Electrical Grounding Instructions.

This appliance is equipped with a three-prong(grounding) plug for protection against possible shock hazards. If a two-

prong wall receptacle is encountered, the customer is required to contact a qualified electrician and have the two-

prong wall receptacle replaced with a properly grounded three-prong wall receptacle in accordance with the National

Electrical Code.

4. USE OF EXTENSION CORDS

Because of potential safety hazards under certain conditions we strongly recommend against the use of an extension

cord. However, if you still elect to use an extension cord, it is absolutely necessary that it be a UL listed 3-wire

grounding type appliance extension cord rated has a 3-blade grounding plug and a 3-slot receptacle that will plug into

appliance. The marked rating of the extension cord should be 115V 15A or more.

5. DRAIN HOLE AND WATER DRIPPING OUTSIDE

Locate drain hole at the rear of unit. Water in base pan is picked up by the fan blade and thrown onto the warm

outdoor coil where it evaporates. The air conditioner must be installed level or tited or slightly to the outside for proper

water disposal. On exceptionally hot and humid days the air conditioner may permit excess water to pass thru rear

drain hole or overflow. This should be considered normal.

6. CARE AND MAINTENANCE

1. AIR FILTER

Clean the air filter, which removes dust inside the room.

It should be washed at least once every week during operation.

1. Remove the Air Filter from the front grill by pulling up.

2. Clean Air Filter with a vacuum cleaner or lukewarm, soapy water.

3. Shake it when clean to remove moisture completely. Replace it.

2. CLEANING THE AIR CONDITIONER

1. At least once a year, remove cabinet and thoroughly clean air conditioner. Have the unit inspected by an authorized

servicer to ensure unit is functioning properly.

2. Wash air conditioner with lukewarm, soapy water as needed. Rinse and dry thoroughly.

3. If using concentrated liquid detergent, dilute in warm water first.

4. Front grill may be wiped off with a cloth dampened in a mild detergent solution.

5. Cabinet may be washed with mild soap or detergent and lukewarm water, then polished with liquid wax for

appliances.

6. Condenser and Evaporator coils should be cleaned at the beginning of each cooling season. Use a soft brush or

vacuum cleaner to clean them, making sure that the Condenser and Evaporator coils are not damaged.

7. Do not use abrasive cleaners. These items scratch, crack and discolor surfaces.

7. TROUBLE SHOOTING GUIDE

TROUBLE SITUATION ANALYSIS CAUSE REMEDY

Fan motor and

compressor do not

run

Switch is in “cool”

position but the

compressor does not

run

1. Power failure

2. Power is supplied,

but the equipment

does not run

1. Not operating at all

2. Compressor

3. Frequent start and

stop

1) Power plug

2) Circuit breaker

1) receptacle

2) Operation switch

3) Cord or lead wire to

the switch

1) Compressor

2) Thermostat

3) Selector switch

4) O.L.P

5) Capacitor

1) Electricity

2) Room temperature

and outside

temperature

3) Compressor

4) O.L.P

5) Capacitor

1) Thermostat

2) Capacitor

3) O.L.P

1) Power failure

2) Circuit breaker is tripped

3) Power plug is not contacting

¡Disconnection

¡Mechanical failure of switch

1) Disconnection

2) Malfunction of contact

¡Disconnection or burned-out

1) Failure

2) Malfunction

3) Knob is not set to the proper

setting

¡Failure of malfunction of proper

setting

1) Disconnection

2) Malfunction of contact

¡Lack of capacity

¡Disconnection

1) The voltage exceeded allowed

range (110V-120V)

2) Capacity of wire is not

sufficient

¡Extremely high

¡Burned-out

¡Malfunction

¡Lack of capacity

¡Malfunction

¡Lack of capacity

¡Malfunction

¡Consult your electric company

¡In case of a breaker, turn it on

and off a few times

¡Replace the power plug

¡Repair or replace the

receptacle

¡Replace the cord or lead wire

¡Replace the compressor or

connection wire

¡Replace

¡Repair or replace

¡Turn knob for cooler setting

¡Repair or replace the swtting

¡Repair

¡Repair or replace

¡Replace

¡Repair

¡Consult your electric company

¡Check the capacity of wire

¡Ventilate well and remove the

heat source

¡Replace

TROUBLE SITUATION ANALYSIS CAUSE REMEDY

The compressor runs

but the motor doesn’t

run

Both fan motor and

compressor are

running but cooling is

bad

Vibration & Noise

Water leakage into

room

Electric shock

(Leakage of current)

Not cooling at all

Insufficient cooling

1) Fan

2) Fan motor

3) Capacitor

4) Fan motor circuit

Refrigerant system

1) Refrigerant system

2) Filter

3) Heat exchanger of

condenser

1) Installation place

2) Fan

3) Fixing screws

4) Electric

components

¡Installation condition

¡Insulation of

components

¡Blocked by others

¡Disconnection or burned-out

electric cord

¡Failure malfunction of contact

¡Disconnection of malfunction of

contact

1) Refrigerant system is choked

2) Compressor failure

3) Leakage of refrigerant gas

1) Refrigerant system is choked

2) Compressor failure

3) Leakage of refrigerant gas

4) Refrigerant charge is too high

¡Clogged up with dust

1) Fin is cogged up with dust

2) The ventilation is not good

3) The unit is exposed to the

sunlight

4) Other heat source is added in

the room

¡Installation of the unit is

imperfectly done

1) Fan is contacted with

obstacles

2) Fixing bolt

¡Have a screw loose

¡Electrical noise

¡The front is lower than rear

side

1)Insulation defect of wiring and

lead wire

2) Leakgae of current due to the

dew or rust

¡Repair

¡Replace the fan motor

¡Replace

¡Check the circuit

¡Repair

¡Recharge refrigerant gas

¡Check and repair refrigerant

system

¡Replace

¡Check a part of Leakage and

repair

¡Repair and recharge

¡Clean the air fiter

¡Clean the unit

¡Shade the unit from the

sunlight

¡Remove the added heat

source

¡Install the unit perfectly

¡Remove obstacles

¡Tighten the bolt

¡Tighten the screw

¡Exchange the components

¡Make rear side of the unit

lower than the front

¡Check the unit’s Leakage of

current.

¡Replace the defective parts or

components

8. HOW TO DISASSEMBLE

1 Before service of 1. Stop the unit, remove the power cord from the receptacles.

any part. 2. Move the unit to the safe location for the suitable work.

2 Ass’y Fan Motor 1. Remove Front Grill

- Fan Motor - Remove Filter Pre.

- Propeller Fan - Remove screw(1 point) in Front Grill.

- Blower Fan 2. Remove Cabinet from the unit.

- Remove screws (8 point) from the unit’s sides.

3. Remove Scroll upper.

4. Remove Plate Scroll

- Remove screws (3 point) from Plate Scroll’s sides.

5. Remove Ass’y Control Box

- Remove screws (3 point).

- Remove wires in the each components.

6. Remove wires in the Panel Housing.

7. Remove screws (7 point) from Ass’y Fan Motor’s sides.

- Ass’y Fan Motor is assembly of Fan Motor, Propeller and Blower Fan, Orifice

and Panel Housing.

8. Lift the Ass’y Fan Motor from the unit.

9. Remove hex-nut (2 point) from the shaft of Fan Motor.

10. Remove Propeller Fan from the shaft of Fan Motor.

11. Remove Blower Fan from the shaft of Fan Motor.

12. Remove Fan Motor from Panel Housing.

- Remove screws (4 point).

3 Ass’y Control Box 1. Same as the procedure 1 to 5 in the Item 2.

Rotary Switch (selector)

- Thermostat

- Capacitor

- Power Cord

4 O.L.P 1. Same as the procedure 1 to 2 in the Item 2.

2. Remove Terminal Cover from Compressor.

- Remove hex-nut (1 point).

Please refer to the chapter 11 (Exploded diagram and parts list).

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Daewoo Klimaanlage Handbücher

Daewoo

Daewoo DWA-182R Bedienungsanleitung

Daewoo

Daewoo DWB-180C-R Bedienungsanleitung

Daewoo

Daewoo DWC-121R Bedienungsanleitung

Daewoo

Daewoo COL1317 Bedienungsanleitung

Daewoo

Daewoo DPB-540R Bedienungsanleitung

Daewoo

Daewoo COL1319 Bedienungsanleitung

Daewoo

Daewoo DWB-072C Bedienungsanleitung

Daewoo

Daewoo DSB-F1216LH-DV Bedienungsanleitung

Daewoo

Daewoo DTB-F071LH-DVI Bedienungsanleitung

Daewoo

Daewoo DMB-1822LH Bedienungsanleitung

Daewoo

Daewoo DOC-091RH Bedienungsanleitung

Daewoo

Daewoo DWC121R1 Bedienungsanleitung

Daewoo

Daewoo DWB-180RH-R Bedienungsanleitung

Daewoo

Daewoo DSB-G075L Bedienungsanleitung

Daewoo

Daewoo DWC-052CAL Bedienungsanleitung

Daewoo

Daewoo DWA-182C Bedienungsanleitung

Daewoo

Daewoo DWB-122CH Bedienungsanleitung

Daewoo

Daewoo DSB-181L Bedienungsanleitung

Daewoo

Daewoo DSB-092A Bedienungsanleitung

Daewoo

Daewoo DSB-F154LH Bedienungsanleitung

Daewoo

Daewoo DWA-240R Bedienungsanleitung

Daewoo

Daewoo DWC-054R Bedienungsanleitung

Daewoo

Daewoo DSB-182L Bedienungsanleitung

Daewoo

Daewoo DSC-097L Installations- und Benutzerhandbuch

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
