LCD TELEVISION
INSTRUCTION MANUAL
DLN-15D3
DLN-17D3
DLN-20D3
DLN-17D4
DLN-20D4
Important
Information
OUTDOOR USER MARKING
WARNING : To reduce the risk of fire or electric shock hazard, do not expose this appliance to rain or
moisture.
WET LOCATION MARKING
“Apparatus shall not be exposed to dripping or splashing and no objects filled with lipuids, such as vases,
shall be placed on the apparatus.
Service Instructions
2
CAUTION
RISK O ELECTRIC SHOCK
DO NOT OPEN
CAUTION : TO REDUCE THE RISK O ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK)
NO USER-SERVICEABLE PARTS INSIDE.
RE ER SERVICING TO QUALI IED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence of uninsulated “dangerous voltage with-
in the product’s enclosure that may be of sufficient magnitude to constitute a risk
electric shock.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and servicing instructions in the literature
accompanying the appliance.
Important
Information
CC R INTER ERENCE STATEMENT
NOTE : This equipment has been tested and found to comply with the limit for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If these equipment does cause harmful interference to radio or television reception which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measure.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Correct the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio, TV technical for help.
• Only shielded interface cable should be used.
WARNING : FCC regulations state that any unauthorized changes or modifications to this equipment not
expressly approved by the manufacturer could void the user’s authority to operate this
equipment. U.S.A. ONLY
Note to CATV system installer : This reminder is provided to call the CATV system installer’s attention to
Article 820-40 of the National Electrical Code that provides guidelines for
proper grounding and, in particular, specifies that the cable ground shall
be connected to the grounding system of the building, as close to the point
of cable entry as practical.
This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury.
Disposal of these materials may be regulated due to environmental considerations. For disposal or
recycling information, please contact your local authorities or the Electronic Industries Alliance :
www.eia.org
3
Safety
Precautions
4
1. CLEANING
Unplug this TV equipment from the AC power outlet before cleaning.
Do not use liquid cleaner or aerosol cleaners. Use a soft and damp cloth for
cleaning.
2. ATTACHMENTS
Do not use attachments not recommended by the TV equipment manufacturer
as they may result in the risk of fire, electric shock or other injury.
3. WATER AND MOISTURE
Do not place this TV equipment near water, for example, near bathtub,
kitchen sink, laundry tub, in a wet basement, or near a swimming pool, or
the like.
4. HEAT
Keep the TV equipment away from the heat sources such as radiator, heater,
stoves and other heat-generating products.
5. SETTING
Do not place this TV on unstable cart, stand, or table. Placing the TV on an
unstable base can cause the TV to fall, resulting in serious personal injuries
as well as damage to the TV. Use only a cart, stand, bracket or table
recommended by the manufacturer or salesperson.
6. WALL OR CEILING MOUNTING
When mounting the product on a wall or ceiling, be sure to install the
product using the designated mounting tool according to the method
recommended by the manufacturer.
7. POWER
This TV equipment should be operated only from the type of power source
indicated on the marking label. If you are not sure of the type of power
supplied to your home, consult your TV dealer or local power company.
8. PIXEL
The LCD panel is a very high technology product with 2,359,296(15")
2,949,120(17 ) 1,440,000(20 ) thin film transistors which give you fine
picture details. Occasionally, a few non-active pixels may appear on the
screen as a fixed point of blue, green or red please note that this does not
affect the performance of your product.
9. SET MOVING
When moving the product, place your fingers of one hand in the socket on
the back of the TV and support the front of the TV with the other hand.
SA ETY
PRECAUTIONS
5
Contents
IMPORTANT IN ORMATION 2
SA ETY PRECAUTIONS 4
IMPORTANT SA EGUARDS 6
SUPPLIED ACCESSORIES 7
UNCTIONAL OVERVIEW 8
Front (Control panel) 8
Remote Controller 9
PREPARATION 10
Inserting Batteries into the Remote Control Unit 10
Mains Connection 10
CONNECTIONS 11
Antenna Connection 11
Connecting External Equipment 14
BASIC OPERATIONS 16
Switching On / Off 16
TV/AV Mode Selection 16
Volume Control 17
Channel Selection 17
MENU ADJUSTMENT 18
Channel Adjustment 18
Picture Adjustment 19
Sound Adjustment 20
PC Adjustment 21
Utilities Adjustment 23
WALL/ARM MOUNTING 27
TROUBLE SHOOTING 28
SPECI ICATIONS 30
6
Important
Safeguards
Location
Heat, Moisture, Dust, Vibration
Position your set so that bright light or sunlight doesn't fall directly onto the screen.
Care should be taken not to expose the set to any unnecessary vibration, moisture, dust or
heat.
Do not expose the set to dripping or splashing.
Ventilation
Also ensure that the set is placed in a position to allow a free flow of air.
Do not cover the ventilation openings on the back cover.
Leave at least 10 cm around each side of the TV set.
Mounting
This set can be positioned by using the table top stand or wall mounting bracket.
When you install the set using the wall mounting bracket, fix it carefully so it is secure.
Object Entry
Do not insert foreign objects, such as needles and coins, into the ventilation openings.
Lightning striking
You should disconnect your set from the mains and the aerial system during thunderstorms.
Cleaning
Unplug the set from the mains before cleaning.
Dust the set by wiping the LCD screen and the cabinet with a soft, clean cloth.
If the screen requires additional cleaning, use a clean, damp cloth.
Do not use liquid cleaners or aerosol cleaners.
Do not rub or strike the LCD with anything hard as this may scratch, or damage the LCD
permanently.
Service
Never remove the back cover of the set as this can expose you to high voltage and other
hazards.
If the set does not operate properly,unplug it and call your dealer.
7
Supplied
Accessories
Make sure that the following accessories are provided with the product.
AC cord
AC cord
AC/DC adapter
123
456
789
MODE SOUND
MODE
DISPLAY MTS
TV AV
COMPONENT
PC
POWER
MUTE
VOL VOL
CH
CH
PREV. CH
CAPTION
SLEEP
TV/CABLEADD/DEL
ASPECT
MENU
0
100
Remote controller
Batteries (Option)
(2x1.5V, AAA)
Instruction manual
8

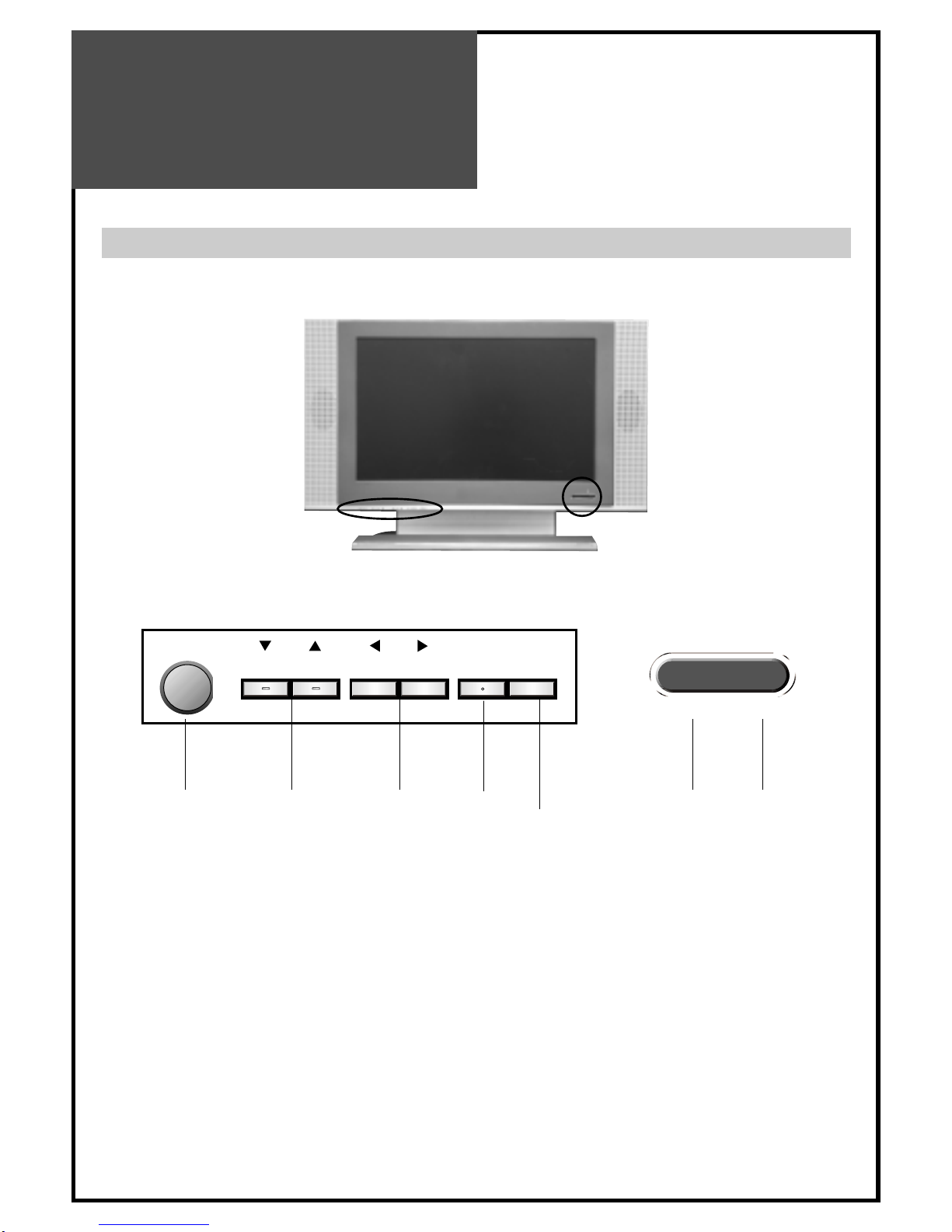

unctional
Overview
ront (Control panel)
Remote
sensor LED
indicator
STAND-BY
ON/OFF CH VOL
TV/VIDEO
MENU
Power
On/Off CH
Up/Down Volume
Up/DownTV/VIDEO
MENU
LED Indicator : Lights up red in Stand-By mode and Lights up green in TV on mode.
Remote Sensor : Receives signals from the remote controller.
Power On/Off Button : Use this button to power on/off.
CH Up/Down Buttons : Use these buttons to change channels on your TV or to move the cursor in the menu.
VOL Up/Down Buttons : Use these buttons to change your TV’s volume or to move the cursor in the menu.
TV/VIDEO Button : Each time you press the TV/VIDEO button, the TV will cycle through:
TV / AV / S-VIDEO / COMPONENT 1 / COMPONENT 2 / PC
MENU Button : Use this button to enter and exit the MENU.
9
unctional
Overview

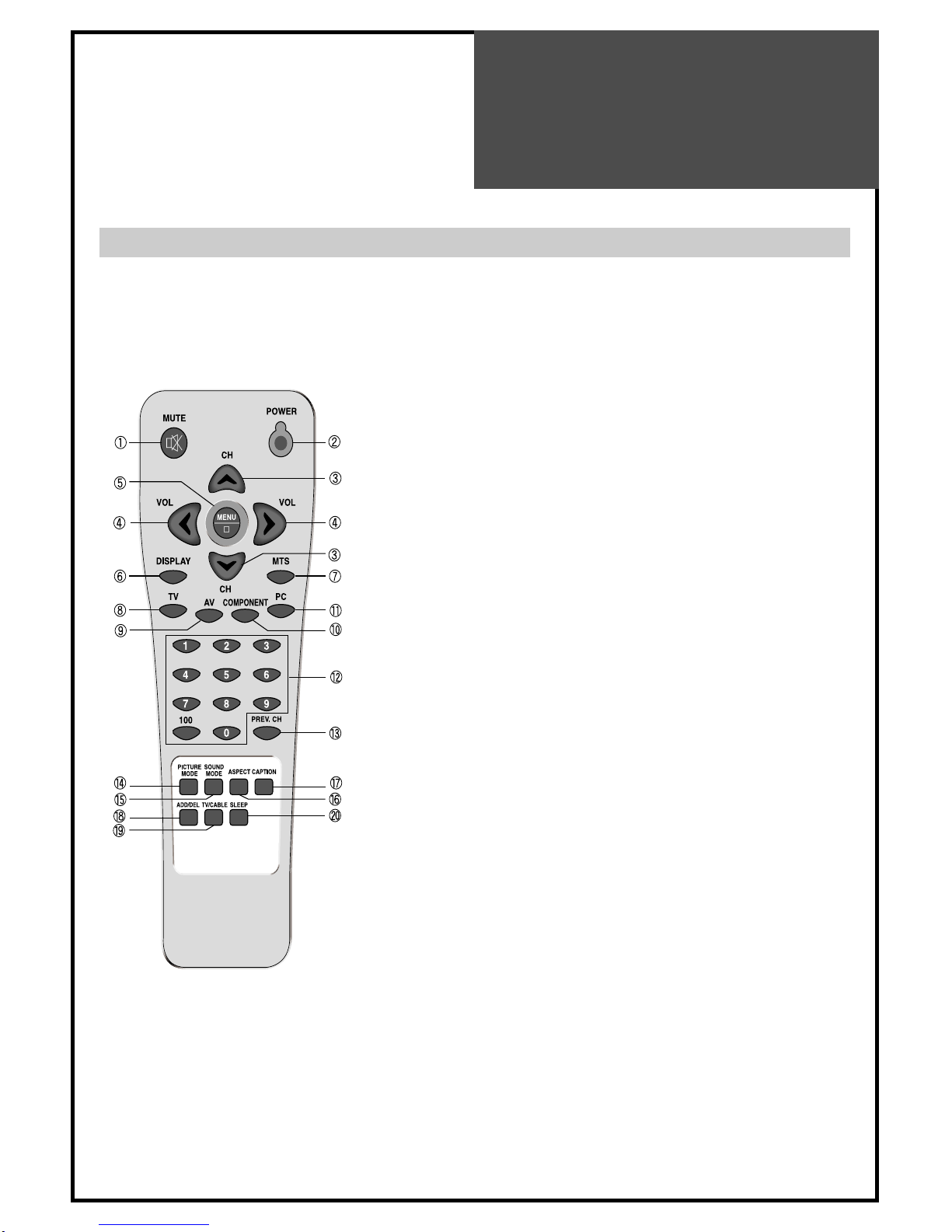

Remote Controller
1. MUTE : Press this button, and the sound goes off. Press again,
and the sound returns.
2. POWER : Power on/off button in Stand-By mode.
3. CH : Change channels on your TV or move the cursor (up/down)
in the menu.
4. VOL : Adjust the volume or move the cursor (left/right) in the
menu.
5. MENU : Menu display button.
6. DISPLAY : Display the current channel number and broadcasting
sound mode, or the external mode.
7. MTS (Multi CH TV Sound) : You can select sound mode in Mono,
Stereo, SAP (Second Audio Program). Choose the sound
mode you want. It works only in TV mode.
8. TV : Select TV input mode.
9. AV : Select AV / S-VIDEO input mode.
10. COMPONENT : Select COMPONENT1 / COMPONENT2 input
mode.
11. PC : Select PC input mode.
12. NUMBER : Press the numbers on this board, you can select
channels directly in TV mode.
13. PREV. CH : Previous channel button.
14. PICTURE MODE : Picture modes change as follows : Standard /
Soft / User
15. SOUND MODE : Select Super bass on / off.
16. ASPECT : Select screen aspect ratio : Normal / 16:9(15 ,20 ) /
4:3(17 ) / Zoom
17. CAPTION : Select CC1, CC2, CC3, CC4, T1, T2, T3, T4 and off
the Closed Caption mode.
18. ADD / DEL : Channel ADD or DELETE button.
19. TV / Cable : Select Air / CATV broadcasting mode.
20. SLEEP : Sleep Timer setting. (Sleep 0 ->Sleep 15 ->Sleep 30
->Sleep 45 -> Sleep 60 -> Sleep 90 -> Sleep 120)
10
Preparation
Inserting Batteries into the Remote Control Unit
Mains Connection
1. Connect the DC plug of the AC adaptor to the DC 12V(DC 15V-only 20”) input terminal of
the set.
2. Connect the AC adaptor and AC cord.
3. Plug the other end of AC cord into a Power outlet with 100V~240V AC, 60Hz.
To load the batteries, turn the remote control
handset over and open the battery compartment.
Insert the batteries (two 1.5v, type R03 or AAA).
Make sure that the polarity matches with the (+)
and (-) marks inside of the battery compartment.
Note: To avoid damage from possible battery
leakage, remove the batteries if you do not
plan to use the remote control handset for
an extended period of time.
DC IN 12V
－+
Power outlet
AC/DC Adapter
AC Cord
DC 12V input terminal
(DC 15V-only 20 )
