Daewoo FR-490M Bedienungsanleitung

Service Manual

Refrigerator

Model: FR-490M

FR-490P

DAEWOO ELECTRONICS CO., LTD.

S/M No. : FR490P0010

1.Specification-----------------------------------------------------------------------------------------------1

2.External view ---------------------------------------------------------------------------------------------2

3.Wire diagram----------------------------------------------------------------------------------------------3

4.Name of parts----------------------------------------------------------------------------------------------4

5.Air flow diagram------------------------------------------------------------------------------------------5

6.Refrigerant cycle diagram-----------------------------------------------------------------------------6

7.Machine room view and part list--------------------------------------------------------------------7

8. Main components---------------------------------------------------------------------------------------- 8

9. Door color specification--------------------------------------------------------------------------------11

10. Exploded view and parts list ------------------------------------------------------------------------16

11.Electronic function -------------------------------------------------------------------------------------20

1. SPECIFICATION

MODEL NAME FR-490M FR-490P

Refirgerant R12 180g 180g

R134a 150g 150g

Cooling System Fan Cooling Convection

Refrigeration System AirForced Convection

Defrost System Fin EvaporatorForced

Defrost Operation Automatic Start&Stop

Cold Control Adjustable Dial Adjustable Button

Capacity

Freezer 111



111



Refrigerator 299



299



Total410



410



External

Dimension

Height 1771mm 1771mm

Width750mm750mm

Depth 642mm642mm

Net Weight 76Kg 76Kg

2. EXTERNAL VIEW

1. FR-490M

740

116 1070

1771

569 610

24510.51020.5140 60

24 692 24 750

7407.5

750

1356.5

580

2. FR-490P

740

116 1070

1771

569 610

24510.51020.5140 60

24 692 24 750

740 7.5

750

1356.5

580

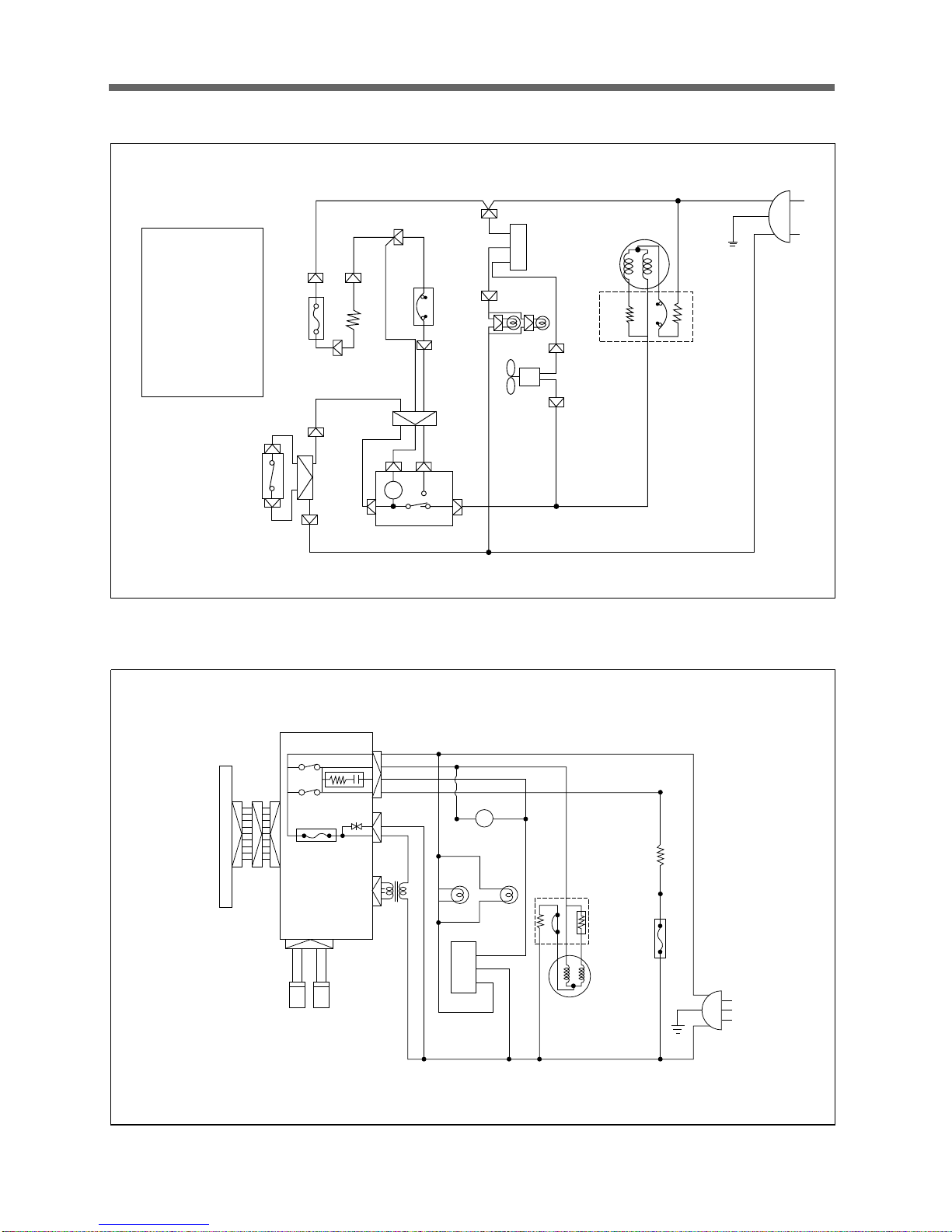

3. WIRE DIAGRAM

2. FR-490P

F-PCB M-PCB

YELLOW YELLOW

PINK

WHITE

VIOLET

BLUE

GRAY

DOWN

TRANS

ORANGE BLUE

F-SENSOR D-SENSOR

F D

BLACK BLACKBLACK L/BLUE PLUG

G/YW

COMPRESSOR

TEMP

FUSE

GRAY

HTR

GLASS

WHITE

PINK

LAMPLAMP

YELLOW

BLUE

P-RELAY

DOOR

SWITCH

1. FR-490M

PLUG

G/YW

L/BLUEBKBK

TEMP

FUSE

WH/BL

THERMOSTAT

YW WH/BL DEFROST

TIMER

BRWH

DEFROST

HEATER

BI-METAL

LAMP

FAN

MOTOR

RD RD

1DOOR

S/W

COMPRESSOR

PTC

P-RELAY

RD : RED

BR : BROWN

WH : WHITE

PK : PINK

BK : BLACK

YW : YELLOW

BL : BULE

GY : GRAY

WH/BL : WHITE WITH

:BLUE STRIPE

4. NAME OF PARTS

1. FR-490M

1Freezer Crystal Shelf

2Freezer Temperature

Controller

3Ice Tray & Crystal Clear

Ice Maker

4Ice Box

5Chilled Tray

6Refrigerator Temperature

Controller

7Refrigerator Crystal Shelf

8Crisper Cover

9Crisper

10 Front Grille

11 Adjustable Foot

12 Freezer Pocket

13 Egg Pocket

14 Egg Tray

15 Refrigerator Pocket (SM)

16 Refrigerator Pocket

(Medium)

17 Refrigerator Pocket (BG)

18 Super Deodorant

(Option)

2. FR-490P

1Freezer Shelf

2Case Icing

3Case Ice

4Case Child

5Shelf

Refrigerator

Refrigerator Temperature

Control

7Crisper Cover

8Crisper

9Adjustable Foot

10 Front Grille

11 Freezer Door Pocket

12 Egg Pocket

13 Case Egg

Refrigerator

Pocket(SM)

Refrigerator

Pocket(Medium)

Refrigerator

Pocket(BG)

17Deodorant

5. AIR FLOW DIAGRAM

-16~-18

-17~-19

1~32~4

2~3

5~7

2~4

3~5

3~5 2~4

Freezer door pocket

Do not put ice cream or frozen

food in freezer door pocket to

store for a long term. Opening

and shutting the door can rise up

the temperature.

Cold air absorbing duct

Do not place food in front

of the duct because it is the

entrance of the cold air.

Refrigerator door pocket

Temperature is high even if the

pocket is in the middle.

When storing margarine or cheese

for one or two weeks, make use

of the refrigerator shelf.

Crisper

Suitable in storing fruits or

vegetable.

Wrapping can prevent from

dryness.

Freezer room

Do not put any bottle such as

beer or beverage because it can

be frozen and broken.

Refrigerating room

This model is multi-flow type

which flows out cold air from

each shelf space. The hot air

after making the refrigerator

cold, flows into cooling system

through the front upper part.

Do not put food having much

moisture at the middle part of

each shelf space ("A", "B" and

"C" part). It can be frozen owing

to the low temperature.

6. REFRIGERANT CYCLE DIAGRAM

FIN CROSS

EVA

SUC-PIPE

MAIN CAPI TUB.

ACCUM

HOT PIPE

DRYER

COMP

AUX-HOT PIPE

BACK PLATE PIPE

COOLING PIPE

7. MACHINE ROOM VIEW AND PART LIST

232243212112 76

NO PART NAME NO PART NAME NO PART NAME

1COMPRESSOR 9PIPE CON (SUC) 17 CABLE CLAMP

2ABSORBER 10 PIPE COOLING CON (AUX) 18 STARTING CAPACITOR

3BOLT COMP. FIXTURE 11 PIPE COOLING (A) 19 POWER CORD

4FIXTURE COMP. WASHER 12 PIPE CON (P.A) 20 ABSORBER PIPE

5PLATE AUX-CON AS 13 SCREW MACHINE 21 VIBRATIONPROOF MASS(B)

6CASTER PIN 14 DRAIN HOSE(B) AS 22 SWITCH P-RELAY AS

7CASTER 15 TAPE OPP 23 RELAY BAND

8 DRYER 16 CEC COVER

8. MAIN COMPONENTS

1. COMPRESSOR

2. RELAY ASSEMBLY

3. RUNNING CAPACITOR

4. STARTING CAPACITOR

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Comp. model XCL27YE-3-C CL27YE-1-C CL27YE-2-C SL28YE-4E-C KL27YE-4E-C PL25YE-4 SL28YE-6-C

Part code X3957127C30 3957127C10 3957127C20 3954128C60 3958127C60 3956125442 3956128C60

Strating type XCSIR CSIR SCIR RSIR CSIR RSCR RSIR

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Comp. model XHBL27YE-3- CHBL27YE-1-C XHSL27YE-5-C XHSL27YE-5-C

Part code X3952127L30 3952127L10 X3954127L50 X3954127L50

Strating type XCSR CSR XRSIR XRSIR

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Relay model X444UHBZZ-52 437THBYY-5 2276THBYY-5 2730RFBYY-5 2197SHBYY-5 2213THBYY-52

Part code X3018105720 3018109530 3018105031 3018105021 3018109700 3018105061

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Relay model X783SHBZZ-52 X276THBYY-52 X276THBYY-52

Part code X3018105720 X3018105031 X3018109510 3018105031

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Spec.

XXXXX300V/5 µF X350V/5 µF

Part c ode

XXXXXX400EL15110

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Spec.

X230V/10 µF

XXXXX

Part code

X400EL15130

XXXXX

Refrigerant R134a

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Spec.

X200V/100 µF

XXX290V/50 µF X

Part code

X3016400100

XXX4124G62020 X

Refrigerant R12

Voltage 100V/50,60Hz 110V/60Hz

115, 120V/60Hz

127V/60Hz 220V/50Hz 220V/60Hz 230V/50Hz

240V/50Hz

Spec.

X140V/100 µF

X350V/25 µF XX

Part code

X400EL16110 XX
