Daewoo FRP-301D Series Bedienungsanleitung

Dec. 2014.

Ver. 1.0

● Notice )

RF : R-134a (Refrigerant)

RN : R-600a (Refrigerant)

F/Model : FRP-301D..

B/Model: RF-331D..

RN-331D..

Service Manual

~ Ballista Dispenser ~

RFP301DCP8

WARNINGS AND PRECAUTIONS FOR SAFETY

Please observe the following safety precautions in order to use safely and correctly the refrigerator

and to prevent accident and danger during repair.

1. Be care of an electric shock. Disconnect power cord from wall outlet and wait for more than

three minutes before replacing PCB parts.

Shut off the power whenever replacing and repairing electric components.

2. When connecting power cord, please wait for more than five minutes after power cord was

disconnected from the wall outlet.

3. Please check if the power plug is pressed down by the refrigerator against the wall.

If the power plug was damaged, it may cause fire or electric shock.

4. If the wall outlet is over loaded, it may cause fire.

Please use its own individual electrical outlet for the refrigerator.

5. Please make sure the outlet is properly earthed, particularly in wet or damp area.

6 Use standard electrical components when replacing them

Use

standard

electrical

components

when

replacing

them

7. Make sure the hook is correctly engaged.

Remove dust and foreign materials from the housing and connecting parts.

8. Do not fray, damage, machine, heavily bend, pull out or twist the power cord.

9. Please check the evidence of moisture intrusion in the electrical components.

Replace the parts or mask it with insulation tapes if moisture intrusion was confirmed.

10. Do not let the customers repair, disassemble and reconstruct the refrigerator for themselves.

It may cause accident, electric shock, or fire.

11. Do not store flammable materials such as ether, benzene, alcohol, chemicals, gas, or

medicine in the refrigerator.

12. Do not put flower vase, cup, cosmetics, chemicals, etc., or container with full of water

on the top of the refrigerator.

13 Do not put glass bottles with full of water into the freezer

not

put

glass

bottles

with

full

water

into

the

freezer

The contents shall freeze and break the glass bottles.

14. When you scrap the refrigerator, please disconnect the door gasket first and scrap it

where children are not accessible.

1-1. Model Information

Freezer

Refrigerator

Refrigerator Lighting

1. SPECIFICATIONS

* is the Door Type

Buyer No.

Factory No.

Control Type KNOB & Digital Smart Control

Gross Vol.

ISO 15502

(unit: L)

Total

Storage Vol.

ISO 15502

(unit: L)

Total

Freezer

Refrigerator

302

218

Diemension

(unit: mm)

Net Width (Packing)

Net Depth (Packing)

Net Height (Packing)

595(634)

650(685)

1870(1970)

Freezer Fan Motor

Refrigerant Charge 0.044kg

Evaporator Type Fin Type

Condenser Type

Capillary Tube (unit: mm) ID0.7 x T0.55 x L2290

Defrost Shape Sheath Type

AC(A+) / DC(A++) MOTOR

Heater

Defrost Type Automatic Start & Stop

Defrost Heater AC230V, 130W

Net Weight (Packing)

Blowing Agent C-Pentane

Cooling Cycle

Refrigerant Type R-600a

Bulb LED 1.2W x 1EA

Natural Convection Cooling System

Dryer Desiccant: Molecular Sieve xH-9

67(73)kg

RN-33*D

RFP-30*D*P8N

335

111

224

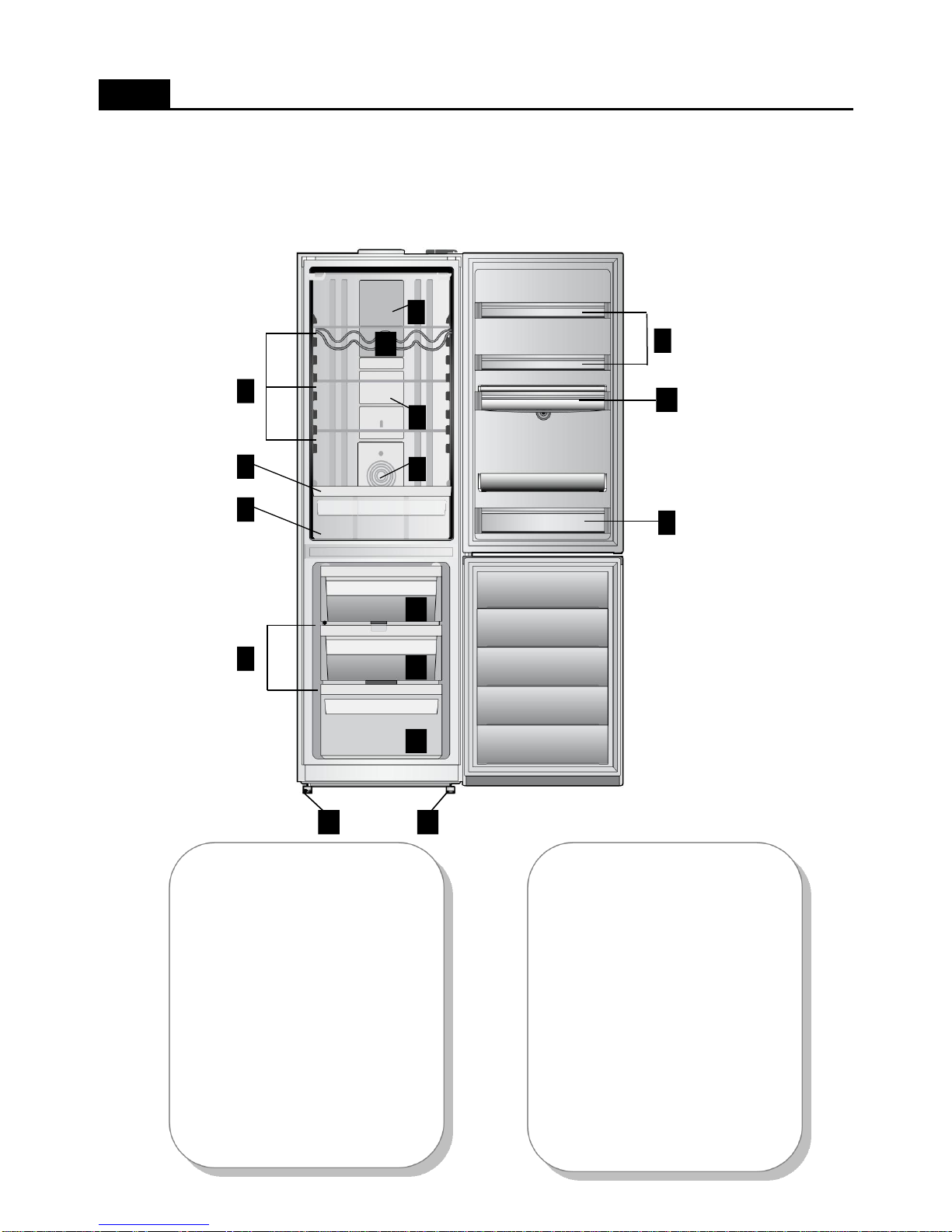

1-2. Interior Parts

1. SPECIFICATIONS

1. Refrigerator Shelves

2. Lamp Window

3. Multi Duct

4. Knob R Control

5. Cover Vegetable Case

6. Vegetable Case

7. Refrigerator Pocket "R"

8. Refrigerator Pocket "J"

9. Freezer Shelves

10. Freezer Case "A"

11. Freezer Case "B"

12. Adjusting Leg (Left)

13. Adjusting Leg (Right)

14. Tank Water AS

15. Wine Rack [Option]

12 13

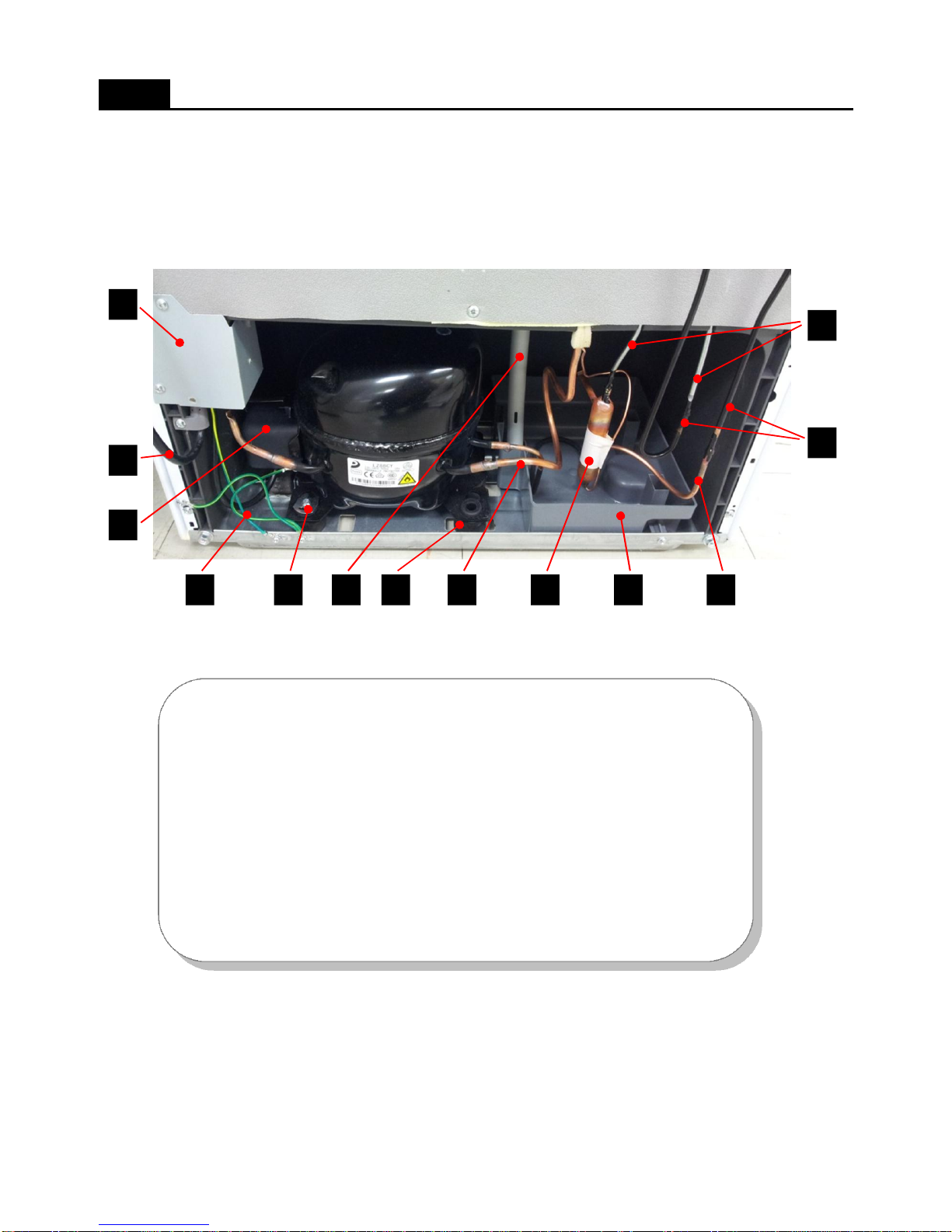

1-3. Machine (Compressor) Compartment View

1. SPECIFICATIONS

1.Box Power As (Capacitor Run)

2. Power Cord

3. Switch P Relay As

4. Earth Comp Wire

5. Fixture Compressor (Washer)

6. Drain Hose

7. Compressor Absorber

8. Suction Pipe As

9. Dryer As

10. Case vaporization As

11.Pipe connector A

12. Pipe Wire Condensor As

13. Pipe Hot

- Features are model dependent

5 8 9 10 11

6 7

1-4. Refrigerant Cycle

- Welding Point

1. SPECIFICATIONS

Copper Welding ( Ag 5%) 5 Point

Silver Welding ( Ag 30%) 3 Point

Suction Pipe

Capillary Tube

Evaporator

Compressor Pipe connector A Dryer

①

②

③

④

⑤

⑥

⑦

⑧

1-5. Temperature Diagram

; The actual inner temperature varies depending on the food status, as the indicated setting temperature is a

target temperature, not actual temperature within refrigerator.

; Refrigeration function is weak in the initial time.

Please adjust temperature as above after using refrigerator for minimum 1 ~ 2 days.

1. SPECIFICATIONS

* Features are model dependent

Refrigerator Dial Mode

MIN: 5 ~ 8℃

MID: 2 ~ 5℃

MAX: -1 ~ 2℃

Vegetable compartment

: 1 ~ 5℃

Freezer Mode

LOW: -17 ~ -19℃

MID: -19 ~ -22℃

HIGH: -22 ~ -25℃

1-6. Wiring Diagram

1. SPECIFICATIONS

1.7. Main PCB Circuit Diagram

1. SPECIFICATIONS

2. FUNCTIONS

-PCB Volume

CONTROL OBJECTINPUT

- Turn 'DIAL KNOB' on the 'COVER M/FLOW

DUCT'.

2-1. "PCB VOLUME" Control

PCB VOLUME

R SENSOR

DIAL KNOB

- Features are model dependent

<'COVER M/FLOW DUCT AS': Air Duct Device in the Refrigerating Compartment>

- Temperature is controlled by "PCB Volume" assembled with "Dial Knob".

- 16step(0step ~ 15step) mode of successive temperature mode

- Each model is diffrent using range.

step 4 ~ step 14
