PIN Signal Designation Matching Value

1Audio Out (linked with 3) 0.5Vrms, Imp < 1 k (RF 60% MOD)

2Audio In (linked with 6) 0.5Vrms, Imp < 10 k

3Audio Out (linked with 1) 0.5Vrms, Imp < 1 k (RF 60% MOD)

4Audio Earth

5Blue Earth

6Audio in (linked with 2) 0.5Vrms, Imp < 10 k (RF 60% MOD)

7Blue in 0.7Vpp 2dB, Imp 75

8Slow (Function) Switching TV : 0-2V, PERI : 9.5 - 12V, Imp > 10 k

9Green Earth

10 NC

11 Green In 0.7Vpp 2dB, Imp 75

12 NC

13 Red Earth

14 Rapid(Blanking) Switching Earth

15 Red In, C In 0.7Vpp 2dB, Imp 75

16 Rapid(Blanking) switching Logic 0 : 0 - 0.4V, Logic 1 : 1 - 3V, Imp 75

17 Video Earth

18 Rapid Blanking Earth

19 Video Out 1Vpp 2dB, Imp 75

20 Video In, Y In 1Vpp 2dB, Imp 75

21 Common Earth

2. Specifications

3. Circuit Block Diagram

5. Alignment Instructions

4-1. User Remocon

RV-22D

TV..........................TXT

VOLUME........VOLUME

DOWN DOWN

(CURSOR

LEFT)

TV..............................TXT

MENU.................MENU

POWER...........POWER

PR.......................PAGE

NUMBER NUMBER

0-9 0-9

SLEEP............Not used

Not used.........CANCEL

Not used.............HOLD

RECALL.......SUBPAGE

STILL..............REVEAL

Not used.....................R

Not used....................G

PR UP...............PAGE UP

VOLUME UP

....

VOLUME UP

(CURSOR

RIGHT)

NORMAL.................Not used

AV............................Not used

TXT...................................TV

SOUND MODE.......Not used

MUTE..........................MUTE

Not used........................SIZE

ZOOM.....................Not used

EFFECT..................Not used

Not used..............................C

Not used..............................Y

4-6-3 VERTICAL SIZE

* The VERTICAL CENTER adjustment has to be done in advance.

1) Apply a RETMA PATTERN Signal.

2) Set the TV to Normal I mode.

3) Adjust the VERTICAL SIZE of the picture with the select V.size by

volume UP/DOWN keys.

4-6-4 VERTICAL S-CORRECTION ( Fixed : Adjust if need be )

1) Apply a CROSSHATCH PATTERN Signal.

2) Adjust the S-CORRECTION to obtain the same distance between

horizontal lines with the S.Curve by volume UP/DOWN keys.

4-6-5 HORIZONTAL CENTER

1) Apply a RETMA PATTERN Signal.

2) Adjust picture centering with the select H.Center by volume UP/DOWN keys.

4-7. EW

4-7-1 WIDTH

1) Apply a RETMA PATTERN Signal.

2) Adjust the horizontal width to make a perfect circle with the select H.Width

by volume UP/DOWN keys.

4-7-2 PARA

1) Apply a CROSSHATCH PATTERN Signal.

2) Adjust the vertical line to straight with the select E.W Para by volume

UP/DOWN keys.

4-7-3 CORNER ( Fixed : Adjust if need be )

1) Apply a CROSSHATCH PATTERN Signal.

2) Adjust the vertical line to straight with the select EW.Cor T by volume

UP/DOWN keys.

4-7-4 SYMMETRY ( Fixed : Adjust if need be )

1) Apply a CROSSHATCH PATTERN Signal.

2) Turn R451 to the maximum left.

3) Adjust the symmetrical balance to be suitable with the select EW Sym by

volume UP/DOWN keys.

Alignment Instructions

4-8. WHITE BALANCE

4-8-1 RGB Reference R

4-8-2 Beam Reference LOW ( 288, 301 : 10Cd/ )

HIGH ( 288, 301 : 10Cd/ )

4-8-3 Adjust G, B Gain with select Menu G,B of BIAS, DRIVE of select Menu so that R, G, B Bars

are on the center position of the analog meter. If R Analog meter is not on center, control

the Brightness +/- of user Remocon so as R Analog meter to be on the center position.

4-9. SUB BRIGHT

4-9-1 Pattern : Retma

4-9-2 Adjust the SUB BRIGHT with the select Sub Bri by volume UP/DOWN keys.

so that only H-Center parts of picture can be seen.

4-10. DOUBLE TEXT CENTER

4-10-1 Pattern : Pattern RED

4-10-2 Select Menu

4-10-3 Select DT in SVC menu time to see the Double Text Picture.

( Left : RF Picture, Right : Text Picture )

4-10-4 Change the Double Text control keys volume UP/DOWN keys so that the left edge of text

picture concur with the right edge of RF picture.

Alignment Instructions

Andere Handbücher für DSC-3270E

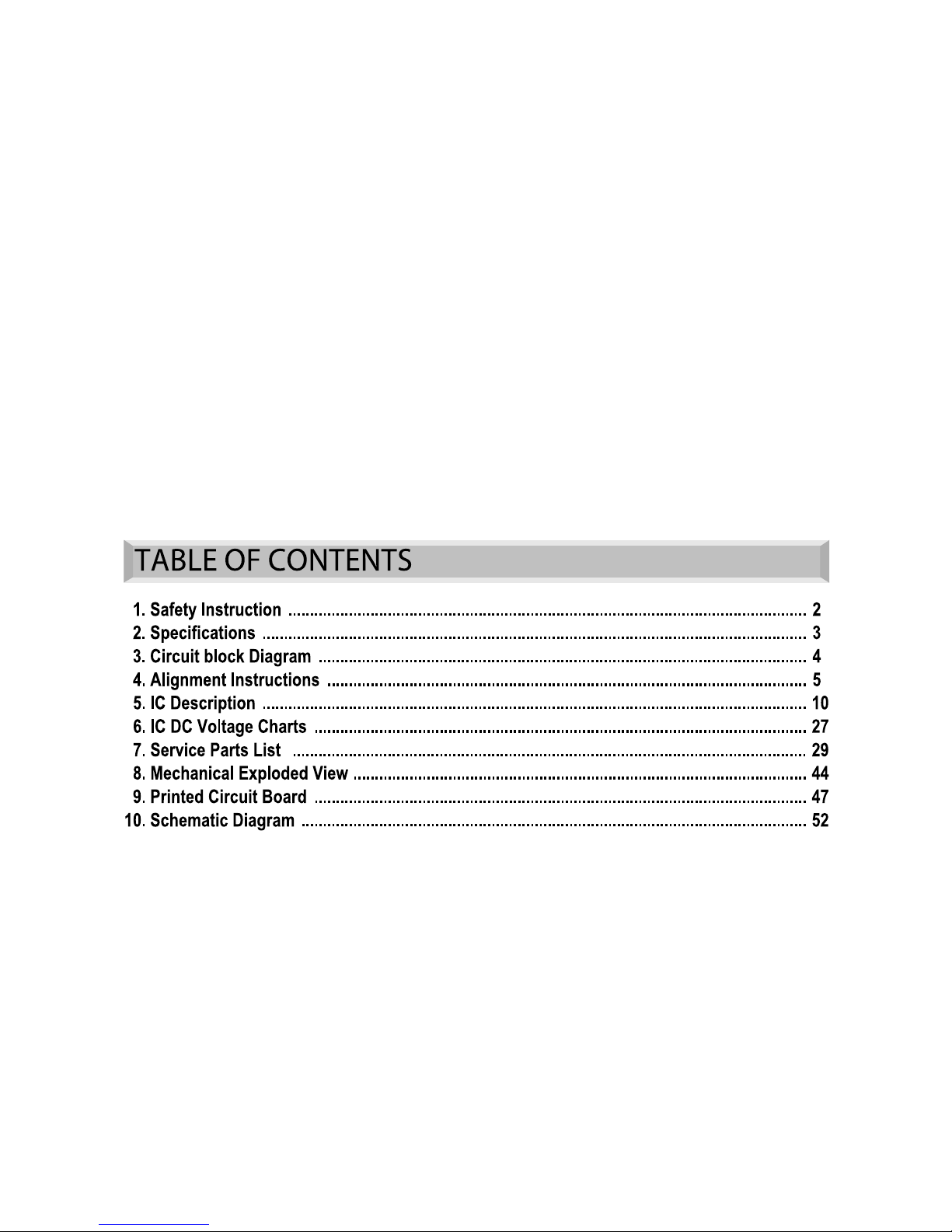

Inhaltsverzeichnis
