Daewoo DTC-2987 Bedienungsanleitung
DTC-2987
CONTENTS
SPECIFICATIONS 1
IMPORTANT SAFEGUARDS 2
AERIAL CONNECTIONS 3
AV CONNECTIONS 4
BATTERY INSTALLATION 6
CONTROLS 7
OPERATION OF CONTROLS 9
TROUBLESHOOTING 19
TV Standard PAL/SECAM-B/G, D/K, I, NTSC-3.58/4.43
Mains Voltage 110-250V~, 50/60 Hz
Power Consumption 145W approx.
Sound Output Power 10Wx2 (at 100% MOD. 10% THD)
Channel Coverage VHF-L : I1-S8CH (43.25-154.25MHz)
VHF-H : S9-S41CH (161.25-463.25MHz)
UHF : C13-C57CH (471.25-863.25MHz)
Tuning System Voltage Synthesizer Tuning System
Program No. Indication ON-Screen Display
Programme Selection 100 Programmes
Aux. Terminal AV input 1,2. AV output 1.
Remote Control Unit R-33 (Required two 1.5V penlight batteries type
with AA Size)
Dimension 699 x 558 x 499mm
Weight 45kg approx.
SPECIFICATIONS
1
To operate your receiver at the peak performance, please read this Instruction
Manual carefully and retain it for the future reference.
• Place this unit on a flat, level surface and in a dry area free from dust and
moisture.
• Adequate ventilation must be provided to prevent heat building up inside of
the unit. Do not build this set into a bookcase or other enclosure in which it
would be poorly ventilated
• Do not place liquids including flower vases and vessels filled with chemicals
or water, etc. on the top of the unit. Keep the inside of the unit free from
foreign objects such as hairpins. If hazardous objects fall inside of the unit,
unplug it immediately and call a qualified technician for removal.
• Do not remove the back cover of the TV set. Accidental contact with high
voltage components could result in electric shock.
• If your set produces sound but no picture, or it emits smoke or produces a
strange sound or smell, continuous operation is very dangerous. Immediately
remove the power plug from the socket and contact your service centre.
• When you don't use the set for an extended period during vacation or other
occasions, always make sure of switching off the MAIN POWER SWITCH of
the TV set.
2
IMPORTANT SAFEGUARDS
NOTE :
If the receiver is moved or placed in a different direction, the MAIN
POWER SWITCH must be switched off for at least 15 minutes in
order to take out a colour strain on the screen.
In order to receive a true colour reproduction, an effective antenna installation is the
most important. Please make sure that your antenna is correctly connected.
• When using an external antenna, the antenna is usually connected to the TV set by
means of 75 ohm coaxial antenna cable.
To make the connection, first attach a suitable coaxial plug to the antenna cable and
then insert the plug into the antenna terminal on the rear of the TV set.
If your antenna system is used with 300 ohm parallel feeder, connect the feeder to a
300 ohm 75 ohm conversion plug and insert the plug into the TV set antenna
terminal.
3
AERIAL CONNECTIONS
1. To connect the TV to a stereo VCR for playback
• Connect the VCR to the AUDIO IN and VIDEO IN jacks on the back or
front of the TV as shown below. If you have a mono VCR, see the NOTE
on page 5.
• Press the VIDEO ( ) button on the remote control unit or TV/VIDEO
selector button ( / ) on the front of the receiver to select the Video 1
or Video 2 mode. "VIDEO 1" or "VIDEO 2" will appear on the screen.
• Operate the VCR for tape playback.
4
AV CONNECTIONS
CAUTION :
Before making any connections, turn the power off on the TV and the
other components.
R
BACK OF TV (VIDEO 1)
FRONT OF TV (VIDEO 2)
AUDIO (R) OUT
AUDIO (L) OUT
AUDIO (R) OUT
AUDIO (L) OUT
VIDEO OUT
VIDEO OUT

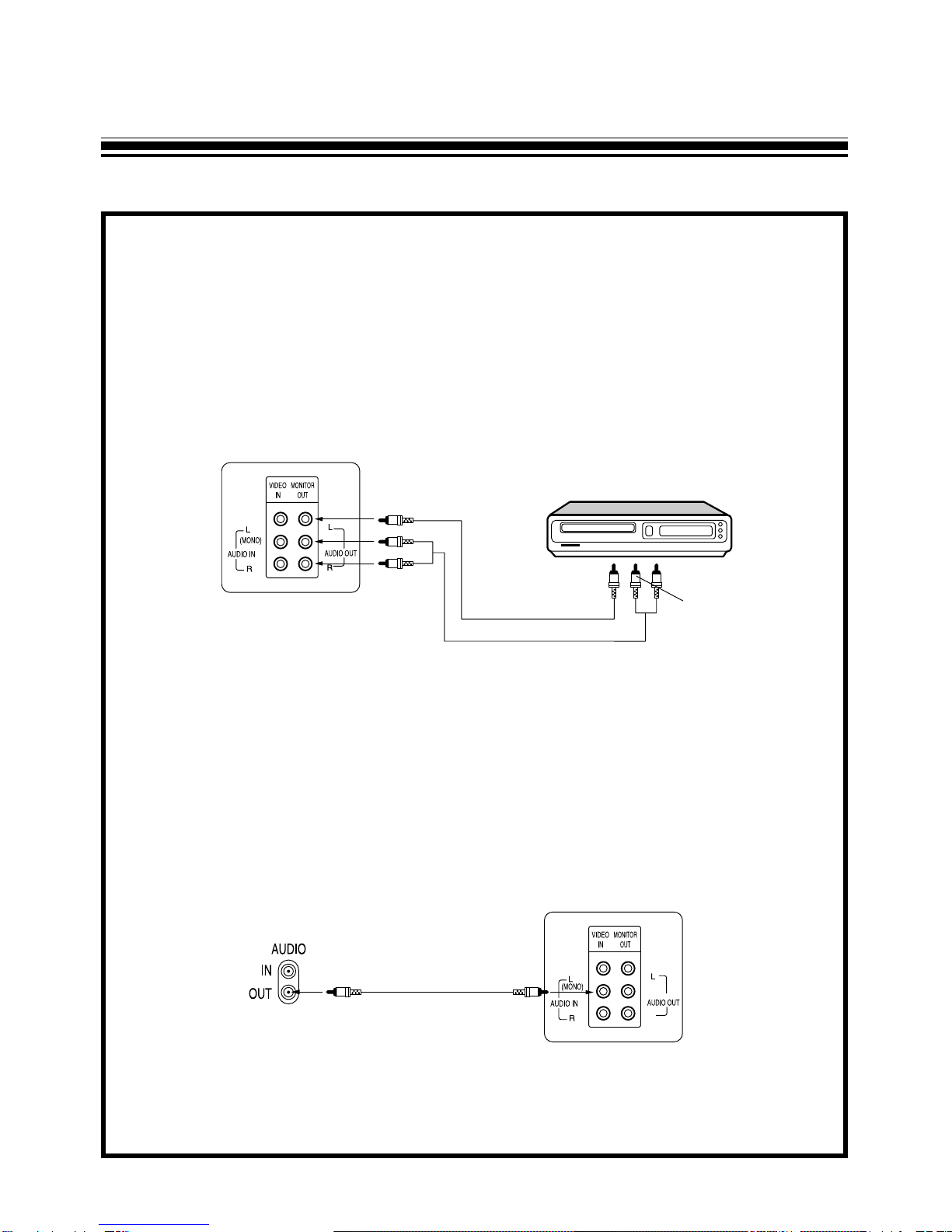

2. To connect the TV to a VCR for recording
• To record programs you are watching, connect the VCR to the AUDIO OUT
and VIDEO OUT(MONITOR OUT) jacks on the back of the TV as shown
below.
• Operate the VCR normally for recording.
5
NOTE:
If you have a mono VCR, video disk player, video game or camcorder,
connect the TV to your other equipment as shown below.
R
BACK OF TV
AUDIO (R) IN
AUDIO (L) IN
VIDEO IN
BACK OF TV
The remote control unit operates with two 1.5V size AA (penlight) batteries
which are supplied with the set.
1. Open the battery compartment cover on
the back of the remote control unit.
2. Install the two batteries making sure that
battery polarity matches with the (+), (-)
marks inside of the battery compartment.
Incorrect polarity could damage the unit.
3. Close the battery compartment cover.
6
BATTERY INSTALLATION
• The remote control unit is designed to operate within a distance of
about 7 metres. If malfunction occur even though you are within the
effective operating range, batteries may be weak and may require
replacement.
• Do not mix new and old batteries.
NOTE:

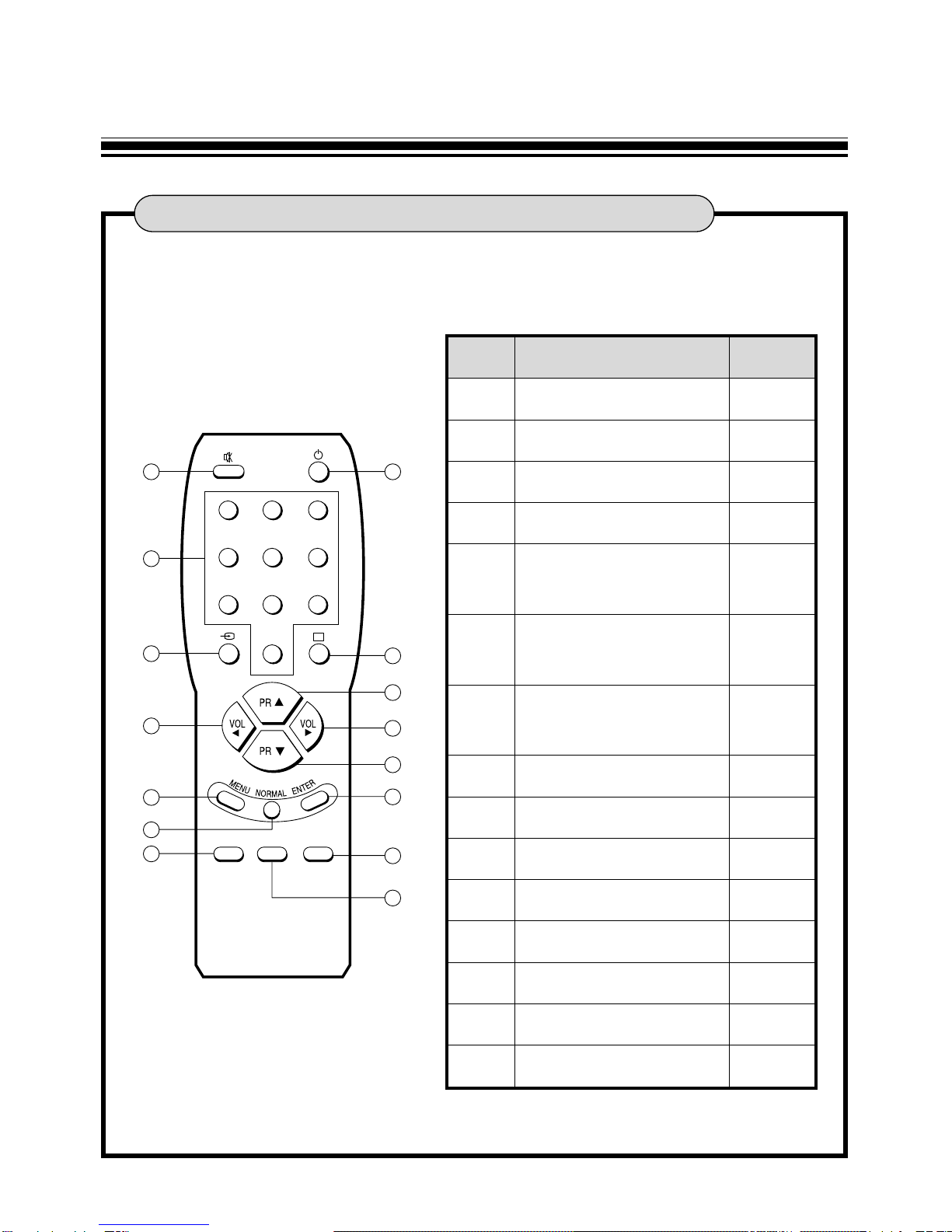

No. FUNCTION PAGE
1 POWER 9
2 MENU 10
3 ENTER 10
4 UP (PR. UP) 9
5 DOWN 9
(PR. DOWN)
6 LEFT 10
(VOL. DOWN)
7 RIGHT 10
(VOL. UP)
8AV 18
9TV 18
10 NORMAL 17
11 RECALL 17
12 SYSTEM 18
13 MUTE 18
14 SLEEP 16
15 PR SELECTOR 0~9 9
7
CONTROLS
REMOTE CONTROL UNIT
1 2 3
7 8
0
9
4 5 6
SLEEP RECALL SYSTEM
13 1
9
4
7
5
3
12
11
15
8
6
2
10
14
8

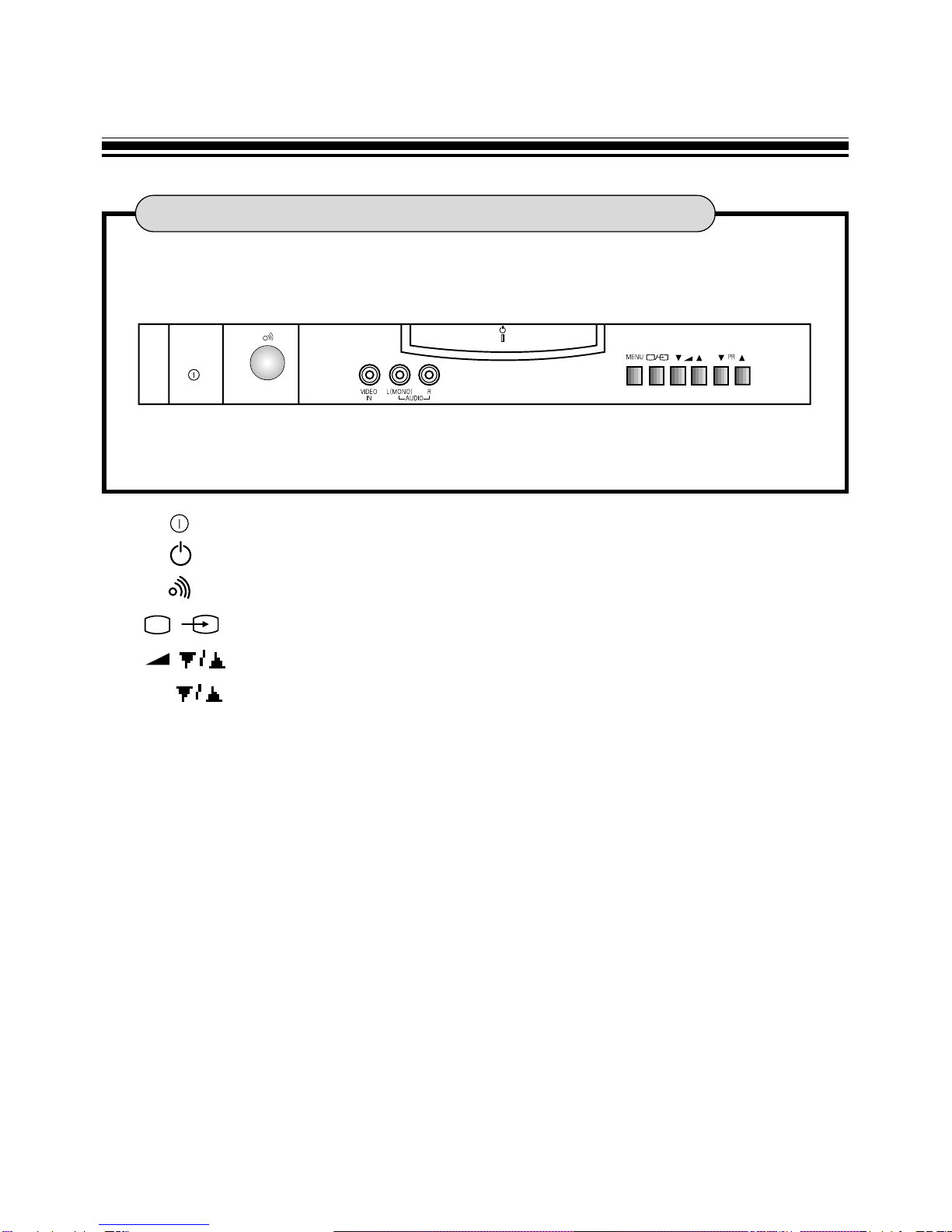

FRONT CONTROL
1) : MAIN POWER SWITCH
2) : STAND-BY INDICATOR
3) : INFRARED REMOTE SENSOR
4) / : TV/AV SELECTION BUTTON
5) : VOLUME DOWN/UP BUTTONS
6) PR : PROGRAMME DOWN/UP BUTTONS
• Before plugging in, confirm that your power supply is suitable. This
receiver is designed to operate with 110-250V~, 50/60 Hz range.
Do not operate the receiver on DC power supplies or any other voltage.
• Plug the code into the main outlet.
• Switch the receiver on by pressing the MAIN POWER SWITCH ( ). In
this case the STAND-BY INDICATOR( ) will illuminate, then the TV will
be in Stand-by mode.
• Next press the PROGRAMME DOWN/UP buttons ("PR ") in front of
the receiver or POWER button ( ) or PROGRAMME DOWN/UP
buttons ("PR ")on the remote control unit.
The STAND-BY INDICATOR will turn off and a picture appear.
First, the programme number will appear on the upper right side of the
screen and then disappear after about 5 seconds.
• Press the POWER button ( ) on the remote control unit to return the
set to Stand-by mode.
9
OPERATION OF CONTROLS
POWER ON/OFF
In normal TV mode, these are direct programme selection buttons.
PR SELECTION BUTTONS
In normal TV mode, these are sequential programme selection button, but
"SKIP ON" programme number cannot be selected.
On the screen, "POS. No." indicates programme number.
(Refer to "SKIP ON/OFF" at page 15)
DOWN & UP ("PR ")
SKIP ONSKIP ON SKIP ON
PR /
PR /
PR /
PR /
