Daewoo DTM-28 Series Bedienungsanleitung

MODEL NO. : DTK-28_

DTM-28_

DTM-29_

Colour Television

Instruction Manual

Manufactured under license from Dolby Laboratories.

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

IDENTITY OF FEATURES ON LOCAL AND REMOTE CONTROL

LOCAL CONTROL

REMOTE CONTROL

MAIN

POWER

BUTTON

VOLUME

DOWN/UP

BUTTON

REMOTE

SENSOR TV/AV

(Menu)

AUDIO

INPUT

VIDEO

INPUT HEAD-

PHONE

ANT AV1

PROGRAMME

DOWN/UP

BUTTON

INDICATOR

S-VHS

INPUT

(DTM-28_)

(DTM-29_)

AERIAL

TERMINAL SCART

SOCKET 1 SCART

SOCKET 2

AV2

TV TXT

VOLUME VOLUME

DOWN DOWN

(CURSOR LEFT)

MENU MENU

POWER POWER

PR NUMBER PAGE NUMBER

0-9 0-9

SLEEP NOT USED

NOT USED HOLD

NOT USED CANCEL

STILL REVEAL

RECALL SUBPAGE

NOT USED R

NOT USED G

TV TXT

PR UP PAGE UP

(CURSOR UP)

VOLUME UP VOLUME UP

(CURSOR RIGHT)

PR DOWN PAGE DOWN

(CURSOR DOWN)

NORMAL NOT USED

AV NOT USED

TXT TV

SOUND MODE NOT USED

MUTE MUTE

NOT USED INDEX

NOT USED SIZE

ZOOM DOUBLE WINDOW

EFFECT NOT USED

NOT USED C

NOT USED Y

CONTENTS

LLIDENTITY OF FEATURES ON LOCAL AND REMOTE CONTROL 1

LLIMPORTANT SAFEGUARDS 2

LLINSTALLATION

-Inserting Batteries into the Remote Control Unit 3

-Aerial connection 3

-Mains connection 3

-Switching the set on and off 4

-On screen display menu 4

-Language selection 4

-Automatic Tuning the TV Channels 4

-Programme Edit 5

-Manual Channel Setting 6

-Fine tuning 6

LLDAILY USE

-Recall 7

-Selecting a Programme Number 7

-Picture Control 7

-Sound Control 7

-Timer 8

-Child Lock 9

-Aspect control 9

-Still 9

LLTELETEXT 10

LLCONNECTING THE EXTERNAL EQUIPMENT 11

IMPORTANT SAFEGUARDS

LLVentilation : Do not cover the ventilation openings in the cabinet.

Never place the set in a confined space such as a bookcase or built-in cabinet, unless

proper ventilation is provided.

Leave at least 10 cm around each side of the TV set.

LLHeat : Never place the set near heat sources(e.g. radiator).

LLWater / Moisture : Never install the set in the the bathroom or in a wet basement.

Do not place any containers with liquid (e.g. flower vases) on the set.

LLObject Entry : Do not insert foreign objects, such as needles and coins, into the ventilation openings.

LLLightning Striking : You should disconnect your set from the mains and the aerial system during

thunderstorms.

LLCleaning : Unplug the set from the mains before cleaning.

INSTALLATION

If the set is moved or placed in a different direction, the MAIN POWER button

must be switched off for at least 15 minutes in order to take out a colour strain

on the screen.

Press down the battery compartment grip and slide the cover.

Insert the batteries supplied (two 1.5V, type AAA).

Make sure that the polarity matches with the (+) and (-) marks inside of the bat-

tery compartment.

For better picture and sound quality, an effective aerial installation is the most

important.

When using an outdoor aerial, it is usually connected to the set by means of 75

ohm coaxial cable.

Plug the mains cable into the power socket with 220V - 240V / 50HzAC.

INSERTING BATTERIES INTO THE REMOTE CONTROL UNIT

AERIAL CONNECTION

MAINS CONNECTION

SWITCHING THE SET ON AND OFF

Switching On

•Switch the set on with the MAIN POWER (ON/OFF) button.

The INDICATOR will illuminate in Red.

That means the set is on stand-by mode.

•Press PR UP or DOWN button on the front of set or POWER button( ) or

PR UP/DOWN button or one of the NUMBER button (0..9) on the remote

controller.

The set will be switched on and then the INDICATOR will be changed in

Green from Red.

Switching Off

•Press POWER button( ) on the remote controller to return the set to its

stand-by mode.

•If you don't use the set for extended periods of time, turn it off with MAIN

POWER (ON/OFF) button .

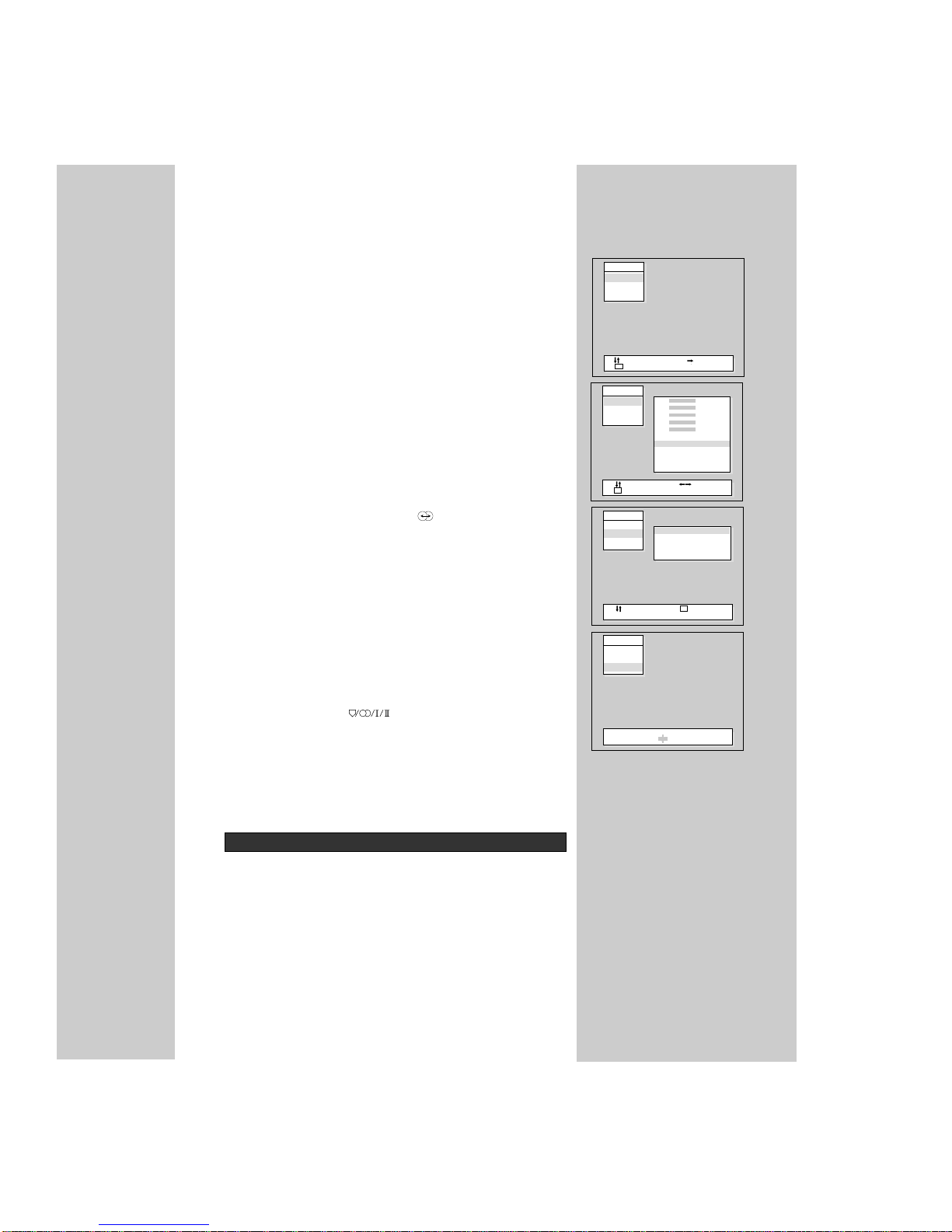

The MENU button ( ) on the remote controller is used to call up the Main

menu and also to return to either the Main menu or a previous menu.

You can call up the Main menu by pressing and holding down the TV/AV

( ) button on the front of the set during 3 seconds

The PR UP / DOWN buttons on the remote controller or on the front of the set

are used to move the selection bar up or down the menus, change data.

The Volume ( ) UP button on the remote controller or on the front of the

set are used to call up sub-menus, adjust levels.

•Press the Menu button to call up the Main menu.

•Move the selection bar to the Language with UP or DOWN button.

•Press the RIGHT button.

Then the languages will be displayed.

•Press the UP/DOWN button to choose the language you want .

•Press the MENU button to return to Main Menu .

•Call up the Install menu from the Main menu.

•Place the selection bar on Auto setup and press the RIGHT button.

Then the country names will be displayed.

•Place the selection bar on the country you require with UP/DOWN button.

ON SCREEN DISPLAY MENU

LANGUAGE SELECTION

AUTOMATIC TUNING THE TV CHANNELS

Sound

Timer

Language

Install


Position Access

Return

Install

Manual Tune

Fine Tune

Edit

Auto Setup

Position Start

Return

Deutschland

France

Italia

Sverige

Switzerland

Nederland

Ireland

España

East Europe

Others

Great Britain

•Press the RIGHT button.

Auto setup will begin, your stations will be located and stored.

•Please wait until the Edit menu appears.

If you don’t want to edit programme now, escape from menu with the MENU

button.

You can do it later.

The EDIT menu shows you information as follows:

- Programme position assignment : Progamme number and Station name,

Real channel number

- Picture information : PAL, SECAM, SECAM-F

- Sound informatin : B/G, L/L’, I, D/K

- Skip information : YES, NO

NB: Terrestrial transmissions in GREAT BRITAIN are PAL I.

I.E. picture information is PAL.

sound informatin : I.

DELETING THE PROGRAMME POSITIONS

•Position the selection bar to programme number to delete with the

UP/DOWN buttons.

Note that you can move the selection bar when the cursor is on the Pr ( pro-

gramme no. ).

•Press the DELETE (Yellow) button.

MOVING THE PROGRAMME POSITIONS

•Position the selection bar to programme number you want to move.

•Press the MOVE(Green) button. The color of selection bar will be changed

in Purple from Blue.

•Position the new blue selection bar to new programme number.

•Press the MOVE(Green) button.

SKIPPING THE CHANNELS

•Select SKIP "YES" or "NO" with the SKIP (Red) button. You can also use

the UP/DOWN button after moving the cursor to Skip.

•The programme marked with SKIP "YES" is skipped when changing chan-

nel using the UP / DOWN button.

A skipped programme number can be selected using the NUMBER button

0..9, will be displayed in Cyan.

ENTER A STATION NAME

•Move the cursor to Name.

Then the Alphabet, Number and symbols will appear.

•You can enter a station name with the UP / DOWN and LEFT/RIGHT but-

tons.

PROGRAMME EDIT

Auto Setup C02 Pr01

Please wait!

Position Skip

Cursor Move

Return Delete

Edit

Pr Name Ch Picture Sound Skip

02 ----- C07 France L/L’ No

03 ----- C11 SECAM D/K No

04 ----- C25 PAL I No

05 ----- C35 PAL I No

06 ----- C50 SECAM D/K Yes

07 ----- C50 SECAM D/K Yes

FR1-- C02 PAL B/G No

Position Skip

Cursor Move

Return Delete

Edit

Pr Name Ch Picture Sound Skip

02 ----- C07 France L/L’ No

03 ----- C11 SECAM D/K No

05 ----- C35 PAL I No

06 ----- C50 SECAM D/K Yes

07 ----- C50 SECAM D/K Yes

01 FR1-- C02 PAL B/G No

----- C25 PAL I No

Adjust Skip

Cursor Move

Return Delete

Edit

Pr Name Ch Picture Sound Skip

02 ----- C07 France L/L’ No

03 ----- C11 SECAM D/K No

04 ----- C25 PAL I No

05 ----- C35 PAL I No

06 ----- C50 SECAM D/K Yes

07 ----- C50 SECAM D/K Yes

01 FR1-- C02 PAL B/G No

ABCDEFGHIJKLMNOPQRST

UVWXYZ+-. 0 23456789

•Press the NUMBER buttons (0..9) or the UP / DOWN button to select a pro-

gramme number you want.

•Locate the selection bar on the Manual tune at the Install menu.

•Select the system with Picture(Cyan) button.

Select the "SECAM-F" for a French stations and "PAL or SECAM" for the

others.

•Press the RIGHT or LEFT button.

Atuning screen will appear and a cursor will move from left to right / from right

to left.

If you want to stop tuning, press the MENU button.

After searching a station, the tuning screen will disappear and then the chan-

nel will be memorized automatically.

SEARCHING A CHANNELS IN THE EDIT MENU

You can also search a channel at the Edit menu.

•

Position a selection bar to Pr number you want.

•

Position the cursor to the Picture with LEFT / RIGHT button.

•

Select the system (PAL or SECAM, SECAM-F) of channel you want to

search with the UP / DOWN button.

•

Position the cursor to C(or S) entry position with LEFT button . For spe-

cial channels, select the "S" with UP / DOWN button.

Position the cursor to channel number entry position with RIGHT button.

Search a channel with UP/DOWN button.

If you are unable to get a good picture or sound because of a poor broad-

casting signal, it is possible to adjust the fine tuning.

Move the selection bar to Fine tune and press the RIGHT / LEFT button to

activate fine tuning up or down.

Note that it operates while the RIGHT / LEFT button is being pressed.

The change is memorized automatically.

FINE TUNING

MANUAL CHANNEL SETTING

Install

Auto Setup

Fine Tune

Edit

Manual Tune

Position Adjust

Return Picture

PAL

Install

Auto Setup

Fine Tune

Edit

Manual Tune

Manual Tune C02 Pr01

PAL

Adjust Skip

Cursor Move

Return Delete

Edit

Pr Name Ch Picture Sound Skip

02 ----- C07 France L/L’ No

03 ----- C11 SECAM D/K No

04 ----- C25 PAL I No

05 ----- C35 PAL I No

06 ----- C50 SECAM D/K Yes

07 ----- C50 SECAM D/K Yes

01 FR1-- C PAL B/G No

Install

Auto Setup

Manual Tune

Edit

Fine Tune

Fine Tune 493.75MHz

DAILY USE

RECALL

The RECALL button is used to display the current status:

programme number, station name, sound system, clock.

This display appear for 2 seconds.

The set has totally 100 programme numbers, 0..99.

The NUMBER buttons 0..9 are used for direct programme selection.

To select two-digit programme, press the second numbered button within

two seconds.

You can also select a programme number by pressing step by step the

UP/DOWN buttons.

BRIGHTNESS,CONTRAST,COLOUR, SHARPNESS

•Press the MENU button.

•Press the RIGHT button to call up the Picture menu.

•You can select each function with the UP / DOWN buttons.

•The levels of each function can be adjusted the LEFT / RIGHT buttons

to suit your viewing conditions, the lightning conditions of the room and

your preference.

For Hue control Tint is displayed only when receiving a NTSC signal

from external jack.

The adjusted levels are stored automatically at Favourite mode.

Smart Picture Selection

When you press the NORMAL button repeatedly you can call up three pic-

ture settings stored in memory :

NORMAL

-> NORMAL

-> FAVOURITE ->

(hard picture) (soft picture) (user adjustable)

VOLUME CONTROL

Adjust the volume with the VOLUME( ) DOWN / UP buttons on the

front of the set, or with the LEFT/RIGHT button on the remote control.

MUTE

Pressing the MUTE( ) button to turns the sound off.

The mute symbol will be displayed. The sound returns

if the button is pressed once more.

SELECTING A PROGRAMME NUMBER

SOUND CONTROL

PICTURE CONTROL

Volume 21

SOUND CONTROL

•Press the MENU button.

•Place the selection bar to the Sound with UP/DOWN button.

•Press the RIGHT button to call up Sound menu.

•Select the required function by moving the selection bar ith the UP /

DOWN buttons.

•Press the RIGHT button to call up the each sub-menus.

Equalizer :

There are four possible choice considering your preference:

"Favourite, Music, Speech, Normal".

In Favourite mode you can adjust a level at each frequency band with

LEFT/RIGHT button .

Effect :

There are four possible choice considering your preference:

1. Available only for Dolby Virtual option.

Normal->Spatial->Panorama->Dolby Virtual

2. Available only for Non-Dolby Virtual option.

Normal->Spatial->MDB

Smart Sound Selection

When you press the sound effect button ( ) repeatedly, you can call up

easily one of the following:

1. Available only for Dolby Virtual option.

Normal->Favourite->Music->Speech->Spatial->Panorama->Dolby Virtual->

Normal...

2. Available only for Non-Dolby Virtual option.

Normal->Favourite->Music->Speech->Spatial->MDB

Balance :

Balance the loudness of the left and right speaker .

SOUND MODE

There may be cases of stereo broadcasts where excessive noise will be

heard due to weak incoming signal.

You may be able to eliminate this noise by selecting the MONO mode.

Press the Sound Mode ( ) button to change to MONO from

STEREO.

Then the "MONO" colour will be changed in Red.

Pressing this button again will change it back to stereo.

During a bilingual programme transmission, pressing the Sound Mode but-

ton will change the language to the second channel (DUAL

Pressing again will change it back to the main channel (DUAL

SETTING THE CLOCK

•Position the selection bar to the Timer in the Main Menu.

•Press the RIGHT button.

•Place the cursor to Hour / Minute with LEFT /RIGHT button.

•Set the hour / minute with the UP/DOWN buttons.

•Place the cursor to Clock with LEFT/RIGHT button and then press the

Menu button to compelet.

Note that if you turn the TV off with MAIN POWER (ON/OFF) button, the

clock setting is lost and must be reset if necessary.

TIMER

Sound

Effects

Balance

Equalizer

Position Access

Return

Sound

Effects

Balance

Equalizer

Position Adjust

Return

100

300

1 K

3 K

10K

Music

Speech

Normal

Favourite

Sound

Equalizer

Balance

Effects

Position Return

Spatial

Panorama

Dolby virtual

Normal

Sound

Equalizer

Effects

Balance

L/R 00

Automatic clock setting and correction

Even though you turn the TV off with MAIN POWER (ON/OFF) button, if you

select a programme of your country which has Teletext or PDC transmission,

clock will be set and corrected automatically.

This function is only available for the countries as follows:

Deutschland, Great Britain, France, Italy, Sweden,

Switzerland, Netherlands, Ireland

SETTING THE WAKE UP TIME / PROGRAMME

•Confirm the Clock is set.

Wake up time is only available when Clock is set

•Select the Wake up to "YES".

The Wake up time and Wake up prog. will be displayed.

•Set Wake up time and prog. in a same way to the above for Clock.

The set will switch on to this time and programme number.

Note that the Wake up time is not operate in Childlock mode.

SLEEP

By pressing the SLEEP ( ) button repeatedly, you can select one of the

following setting:

00:20 -> 00:40 -> 01:00 -> 01:20 -> 01:40 -> 02:00

The set will turn off after time you select.

Automatic Switch-Off in No Broadcast Signal

If a broadcast signal is not present for about 30 minutes, the set will be auto-

matically turned off.

In AV mode, however, this function does not operate.

CHILD LOCK

You can prevent the use of the TV set without the remote control.

The set is child-locked after switching off the set by pressing the R, G, Y, C,

the POWER button ( ) in sequence on the remote control within 5 sec-

ond. The child-lock function is indicated by flashing the INDICATOR on the

front of set.

The set can only be switched back on using the remote control.

ASPECT CONTROL

Whenever the Zoom button is pressed, the screen will be changed as shown :

DTK-28W5_,DTK-2880_,DT -28_:

Auto

Normal

4:3

Zoom1

Zoom2

Zoom3

Panorama

DTK-28G_,DTK-28A_,DTK-28B_,DTM-29__:

Auto

Normal

16:9

Zoom1

Zoom2

Zoom3

Waterglass

Auto mode displayed on AV mode.

STILL

The Still button allows you to freeze the picture at anytime.


Sound

Language

Install

Timer

Adjust Cursor

Return

Clock --:--

Time 00:05

Prog. Pr01

Wake up Yes

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Daewoo Fernseher Handbücher

Daewoo

Daewoo CM21S7 Series Bedienungsanleitung

Daewoo

Daewoo DTA-1420ME Bedienungsanleitung

Daewoo

Daewoo DLT-26C2, DLT-26C3, DLT-32C1, Bedienungsanleitung

Daewoo

Daewoo DTH-29U3 Bedienungsanleitung

Daewoo

Daewoo DTH-211F Bedienungsanleitung

Daewoo

Daewoo DTR-29U9ME Bedienungsanleitung

Daewoo

Daewoo DTJ-28 Bedienungsanleitung

Daewoo

Daewoo DTQ-29U9FS Bedienungsanleitung

Daewoo

Daewoo DTQ 29G1FC Bedienungsanleitung

Daewoo

Daewoo Color Television Bedienungsanleitung

Daewoo

Daewoo DTH-20D5FS Bedienungsanleitung

Daewoo

Daewoo DTH-25G1FST/FSP/FS Bedienungsanleitung

Daewoo

Daewoo DTQ-20S1SSFV Bedienungsanleitung

Daewoo

Daewoo DTC-14D9T Bedienungsanleitung

Daewoo

Daewoo DTR-14D9ME Bedienungsanleitung

Daewoo

Daewoo DTY-2896 TF Bedienungsanleitung

Daewoo

Daewoo DTM-2930ME Bedienungsanleitung

Daewoo

Daewoo DTL-29U8ZLP Bedienungsanleitung

Daewoo

Daewoo DTQ-29U1SCV Bedienungsanleitung

Daewoo

Daewoo DTC-29G1 Bedienungsanleitung

Daewoo

Daewoo DTU-14D3 Bedienungsanleitung

Daewoo

Daewoo DTH-29MS Bedienungsanleitung

Daewoo

Daewoo DTQ 13V6FC Bedienungsanleitung

Daewoo

Daewoo D50DM54UAMS Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Loewe

Loewe Table Stand Reference 55 Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung
