REMOVAL

PROCEDURE

SERVICE MANUAL

Outdoor Unit

Inverter

Multi Type

7.0/8.0/9.0/10.0 kW Class

24000/32000 Btu/h Class

Si121176

Service Manual

Removal Procedure

Outdoor Unit

Applicable Models

zCooling Only zHeat Pump

2MKS70JVLT 3MXS24JVJU

2MKS80JVLT 4MXS32GVJU

3MKS90KVLT

4MKS100KVLT 2MXS70JVLT

2MXS80JVLT

4MKS90EVMA 3MXS90KVLT

4MXS100KVLT

4MKS80KVM

4MKS100KVM 4MXS80EVMA

5MKS90E2V3B 4MXS80KVM

4MXS100KVM

4MXS80E2V3B

5MXS90E2V3B

Si121176

Removal Procedure 1

Table of Contents

1. Removal of Outer Panels ........................................................................2

2. Removal of Electrical Box .....................................................................16

3. Removal of PCBs..................................................................................22

4. Removal of Fan Motor...........................................................................26

5. Removal of Coils / Thermistors .............................................................27

6. Removal of Sound Blankets..................................................................32

7. Removal of Compressor .......................................................................35

Note: The illustrations may be slightly different depending on the model.

The illustrations are for heat pump models as representative.

Removal of Outer Panels Si121176

2Removal Procedure

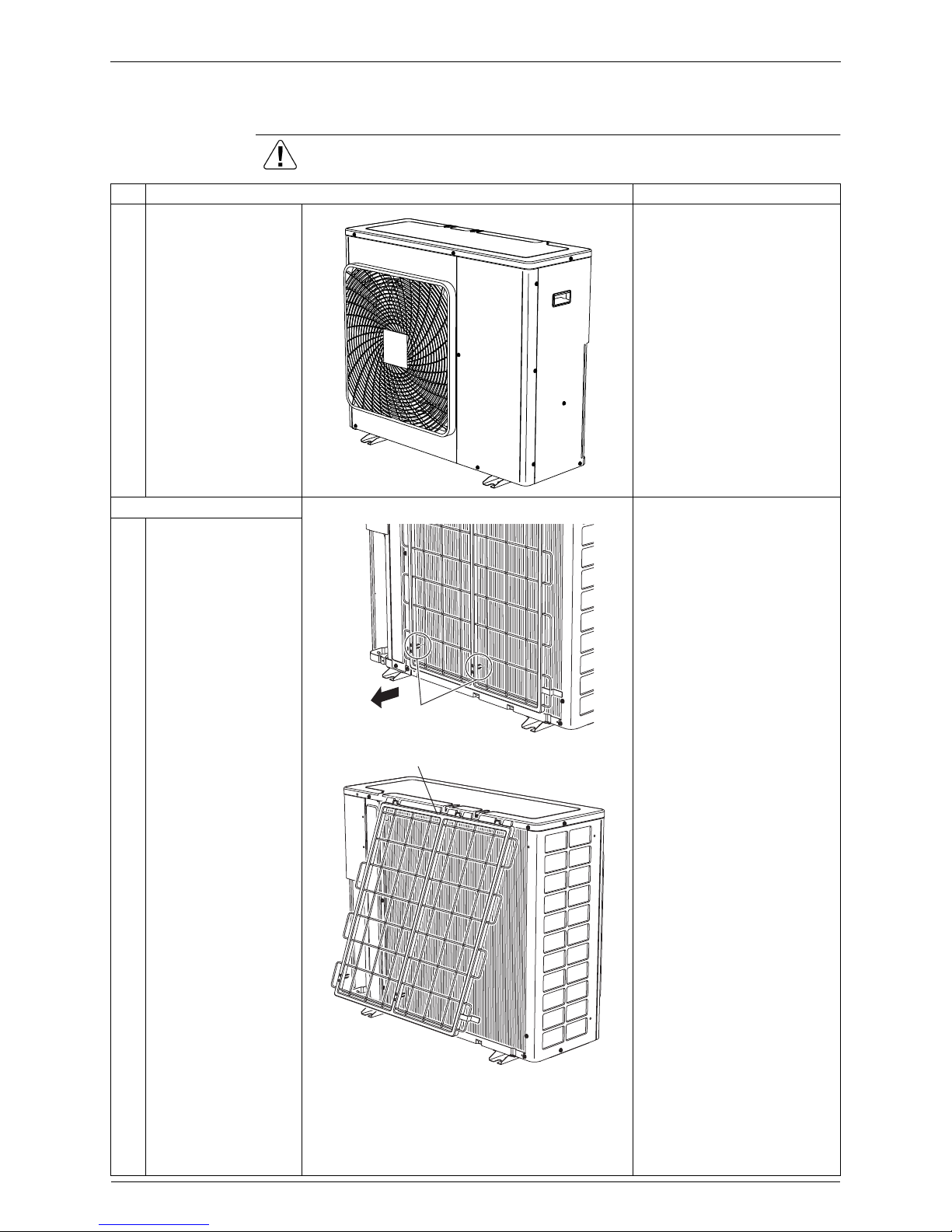

1. Removal of Outer Panels

Procedure Warning Be sure to wait for 10 minutes or more after turning off all power

supplies before disassembling work.

Step Procedure Points

Appearance features

1. Remove the suction grille. The hooks are secured in

the clearances of the

outdoor heat exchanger fins.

1Unfasten the 2 hooks at

the bottom first.

(

R6368

)

Hook

Rear side

(R14612)

Suction grille

(R6370)

Si121176 Removal of Outer Panels

Removal Procedure 3

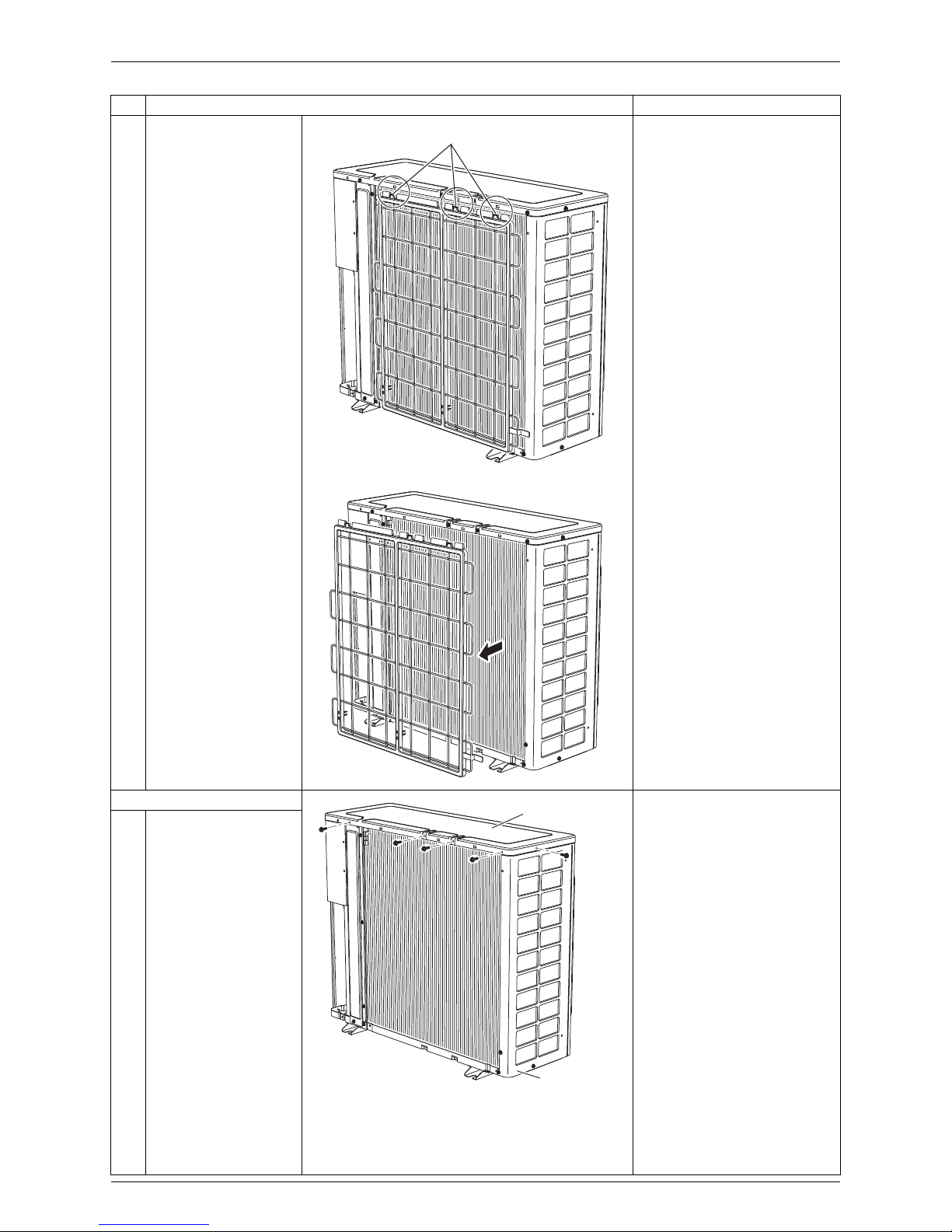

2Slide the suction grille

downward to unfasten

the 3 top hooks.

3Remove the suction

grille.

2. Remove the top panel.

1Remove the 4 screws

on the back and the

screw on the left side

panel.

Step Procedure Points

Hook

(

R14613

)

(R6372)

Top panel

Left side panel

(R6373)

Removal of Outer Panels Si121176

4Removal Procedure

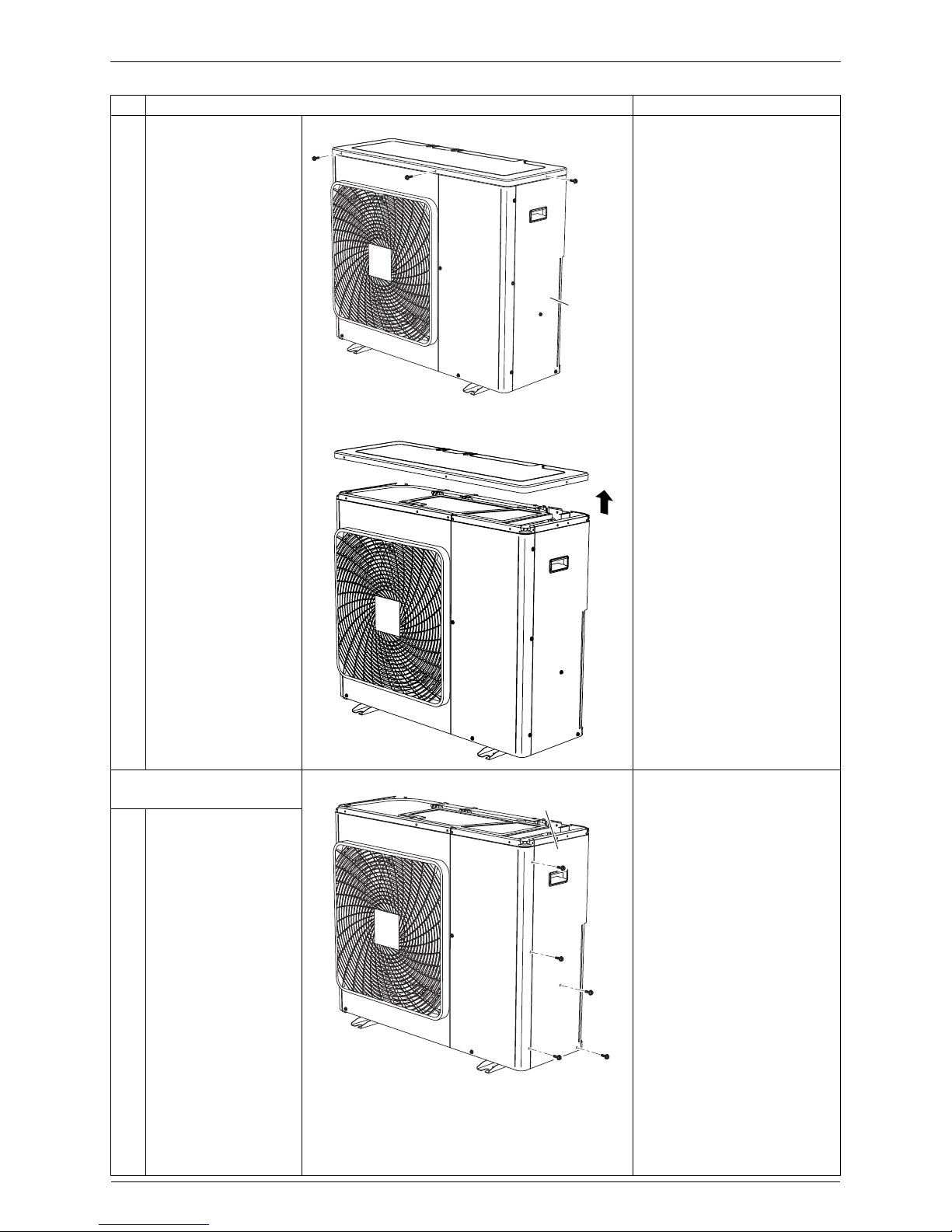

2Remove the 2 screws

on the front and the

screw on the right side

panel.

3Lift the top panel and

remove it.

3. Remove the right side

panel.

1Remove the 5 screws.

Step Procedure Points

(R6374)

Right side

panel

(R6375)

(R6376)

Right side panel

Si121176 Removal of Outer Panels

Removal Procedure 5

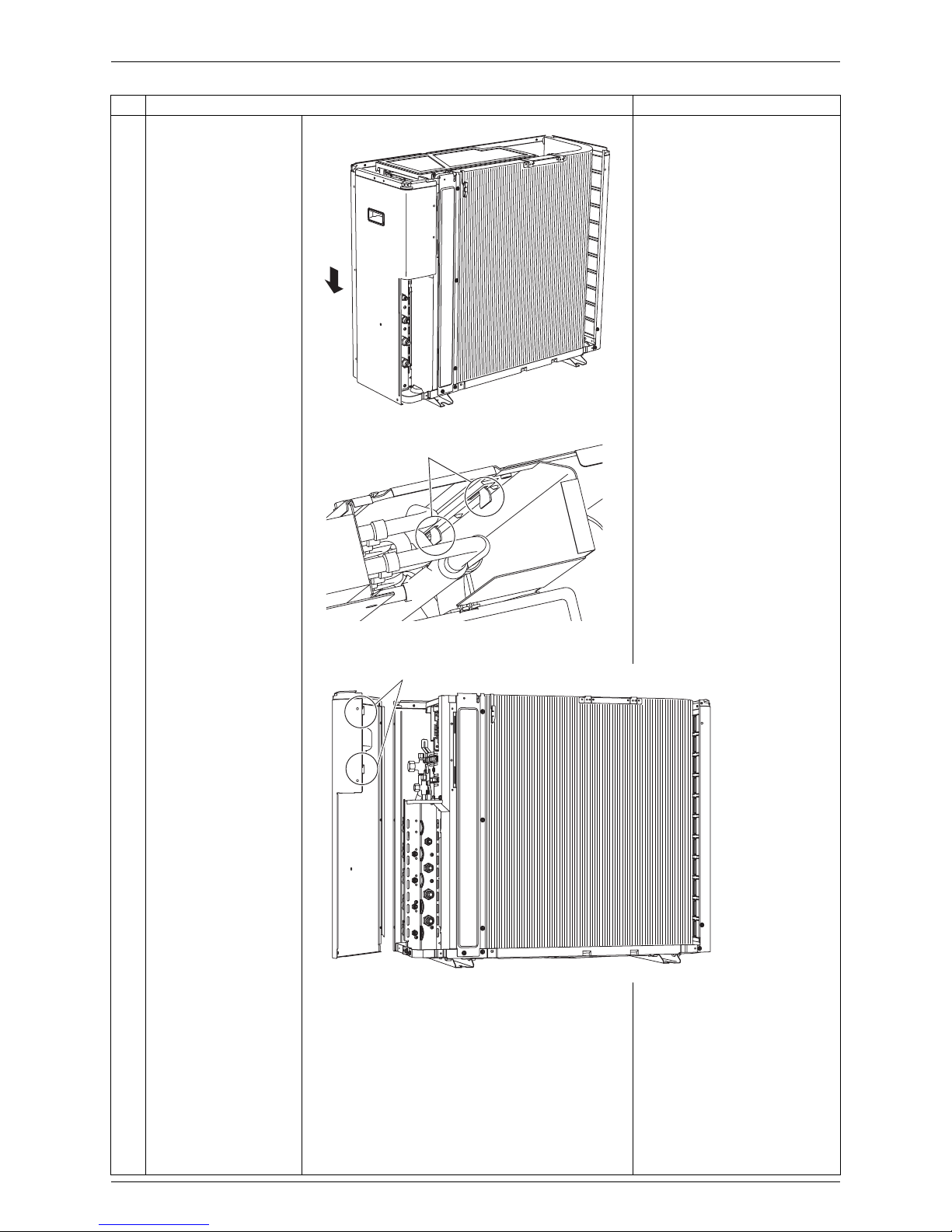

2Slide the right side

panel downward to

unfasten the 2 hooks on

the back side.

Step Procedure Points

(R6377)

Hook

(R14614)

Hook

(R14615)

Removal of Outer Panels Si121176

6Removal Procedure

3Remove the right side

panel.

The US model has a service

lid on the stop valve

mounting plate.

Remove the 2 screws to

remove the service lid.

The US model has a conduit

mounting plate.

4. Remove the front panel

(2). This screw is M5 × 16

1Remove the 2 screws.

2Slide the front panel (2)

downward to unfasten

the hook.

Step Procedure Points

(R10441)

Service lid

Screw (R10372)

Lock nut

Conduit

Knockout hole

(R17351)

Conduit

mounting plate

(R10629)

Front Panel (2)

Front

Panel (1)

(R10374)

Si121176 Removal of Outer Panels

Removal Procedure 7

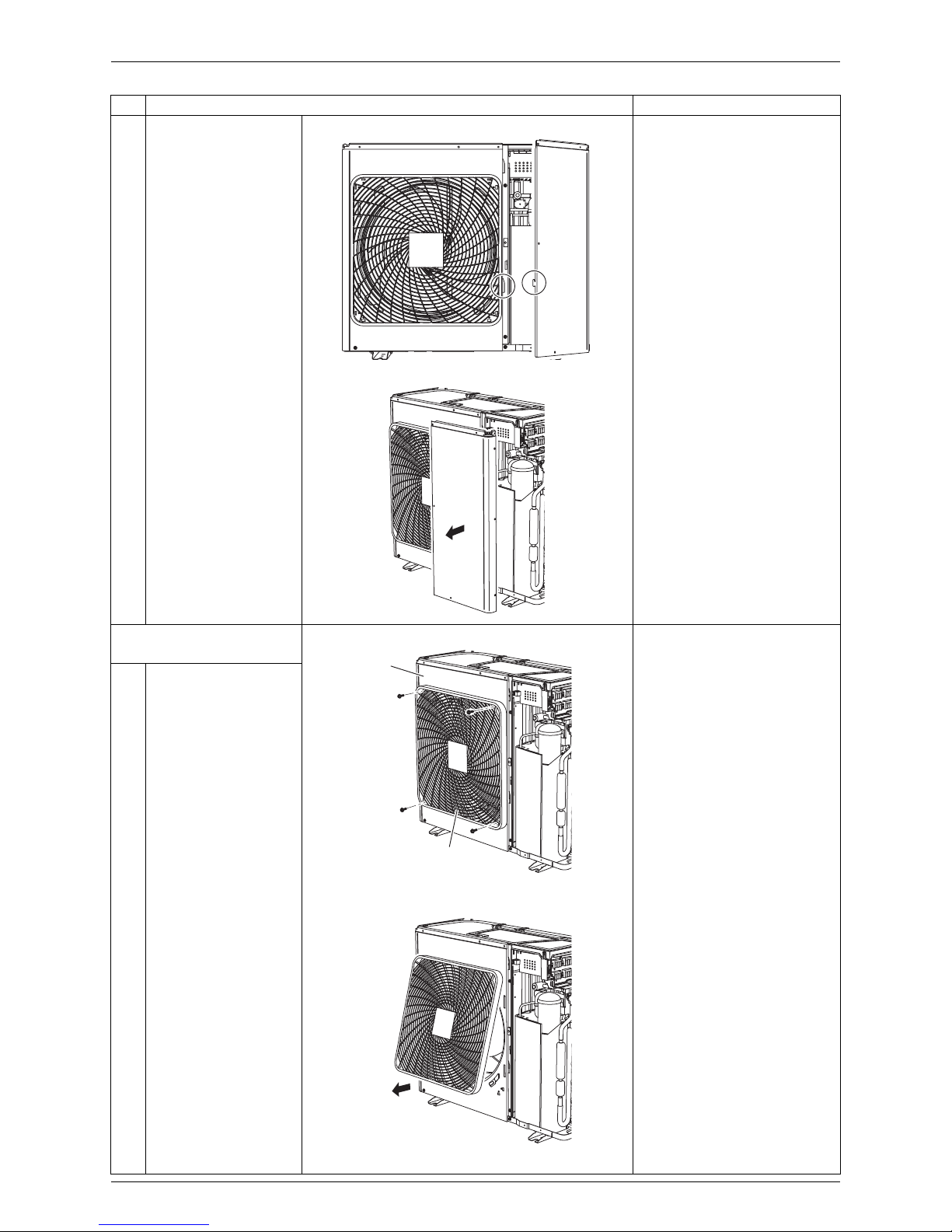

3Remove the front panel

(2).

5. Remove the front panel

(1).

Remove the discharge grille

and outdoor fan first to

remove the front panel (1).

1Remove the 4 screws

on the discharge grille.

2Pull the bottom of the

discharge grille.

Step Procedure Points

(R6383)

(R10375)

(R10376)

Front

Panel (1)

Discharge grille

(R10377)

Removal of Outer Panels Si121176

8Removal Procedure

3Slide the discharge

grille downward to

unfasten the 2 hooks at

the top.

4Remove the discharge

grille.

5Remove the nut and

remove the outdoor fan.

Nut size : M8

When reassembling, align

the mark of the outdoor

fan with the D-cut section of

the motor shaft.

Step Procedure Points

(R17173)

Hook

(R10380)

(R10381)

Outdoor fan

13 mm

(R12301)
