Daikin CCXS09PVM Bedienungsanleitung

REMOVAL

PROCEDURE

SERVICE MANUAL

Indoor Unit

Inverter

Ceiling Mounted Cassette

Type (Single Flow)

9000/12000/18000 Btu/h

Si091659E

Service Manual

Removal Procedure

Indoor Unit

zHeat Pump

CCXS09PVM

CCXS12PVM

CCXS18PVM

Si091659E

Removal Procedure 1

Table of Contents

1. Air Filters / Front Grille ............................................................................2

2. Horizontal Blades ....................................................................................4

3. Decoration Panel ASSY ..........................................................................5

4. Air Outlet ASSY.......................................................................................9

5. PCB / Thermistor...................................................................................12

6. Electrical Box ........................................................................................14

7. Drain Pan ..............................................................................................20

8. Drain Pump ...........................................................................................22

9. Heat Exchanger ....................................................................................24

10.Fan Motor..............................................................................................26

Note: The illustrations may be slightly different depending on the model.

Air Filters / Front Grille Si091659E

2Removal Procedure

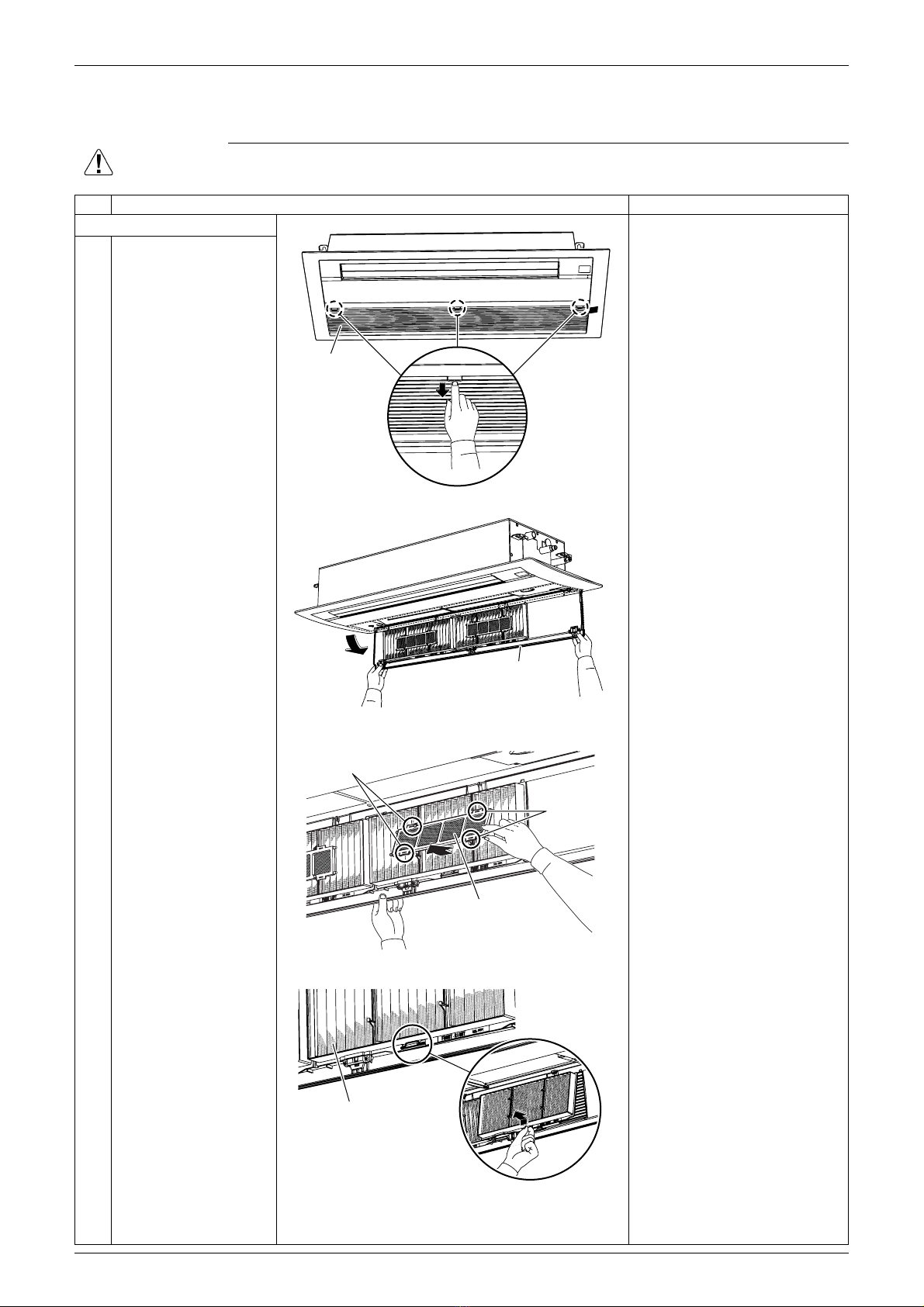

1. Air Filters / Front Grille

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

1. Remove the air filters.

1 Unfasten the 3 hooks of

the front grille.

2 Open the front grille.

3 Unfasten the 4 hooks

and remove the

Titanium apatite

photocatalytic air-

purifying filter.

4 Unfasten the hook at

the center of the air

filter.

Front grille

(R10891)

Front grille

(R10892)

Hook

Titanium apatite

photocatalytic

air-purifying filter

(R10893)

Air filter

(R10894)

Si091659E Air Filters / Front Grille

Removal Procedure 3

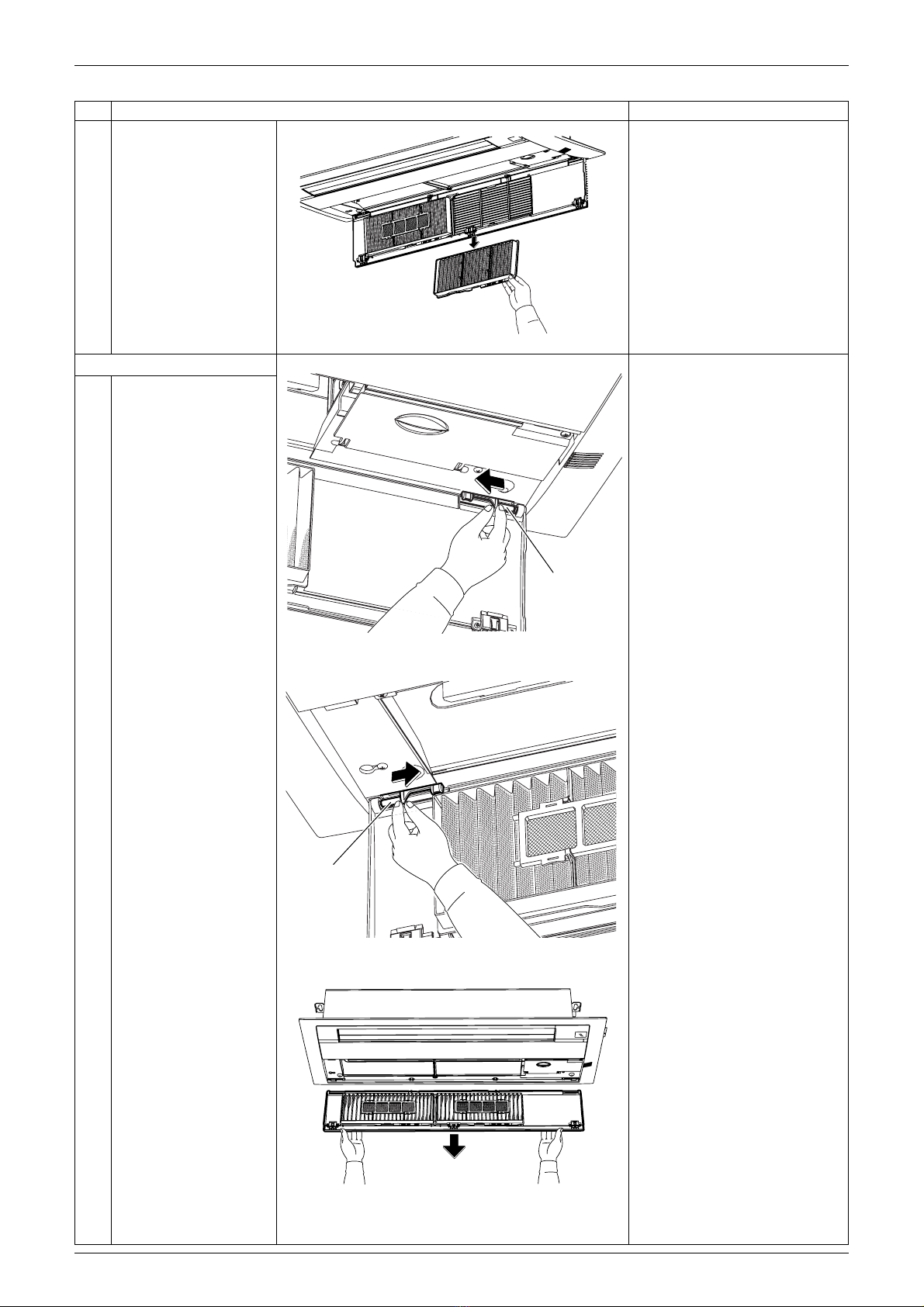

Remove the air filter.

Remove the other air

filter in the same way.

2. Remove the front grille. Do not completely open the

front grille.

The shaft may become stuck

if the front grille is opened

too widely.

The front grille can be

removed without removing

air filters.

1 Slide the right and left

levers toward the inside

while holding the front

grille with one hand.

2 Pull down slightly and

remove the front grille.

Step Procedure Points

(R10895)

Right lever

(R10896)

Left lever

(R10897)

(R10898)

Horizontal Blades Si091659E

4Removal Procedure

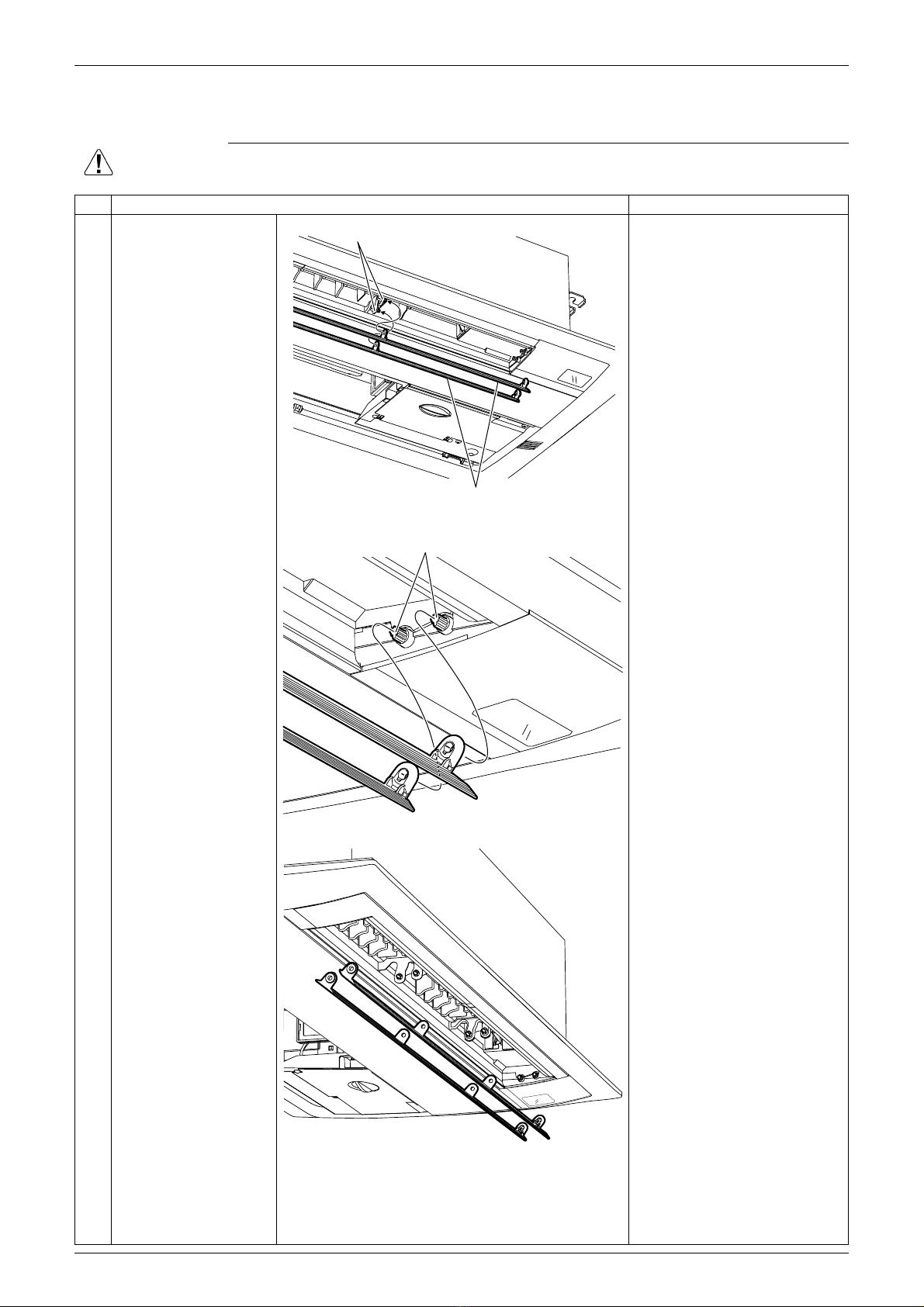

2. Horizontal Blades

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

Open the horizontal

blades.

Bend the horizontal

blades and release the

2 center shafts for each

blade.

3 Release the left and

right shafts for each

blade.

Installation procedure

1. Fit the horizontal blade to the

right shaft first. Make sure to

rotate the horizontal blade so

the shaft fits correctly.

2. Fit the horizontal blade to the

center and left shafts.

Horizontal blade

Shaft

(R23744)

Right shaft

(R23745)

(R10901)

Si091659E Decoration Panel ASSY

Removal Procedure 5

3. Decoration Panel ASSY

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

1. Release the harnesses.

1 Remove the screw of

the service cover.

2 Open the service cover.

3 Remove the screw of

the electrical box cover.

Service cover

(R23746)

(R23747)

Electrical box

cover

(R23748)

Decoration Panel ASSY Si091659E

6Removal Procedure

4 Disconnect each

connector and release

the harnesses.

[S41]: sensor PCB (Room

temperature thermistor)

[S45]: swing motors

[S48]: display/signal receiver

PCB

2. Remove the decoration

cover.

The screw on the right side

runs through the service

cover.

Remove the 2 screws

of the decoration cover.

Slide the decoration

cover horizontally to

release the 4 hooks.

Slide the decoration

cover to release the 2

hooks on the left.

Remove the decoration

cover.

3. Remove the display and

control panel.

You can remove the signal

receiver unit without

removing the decoration

panel ASSY.

1 Unfasten the 4 hooks of

the display and control

panel.

Step Procedure Points

[S48]

[S45]

[S41]

(R23749)

Hook

Decoration cover

(R23750)

Hook

(R23751)

Hook

Display and

control panel

(R23752)

Si091659E Decoration Panel ASSY

Removal Procedure 7

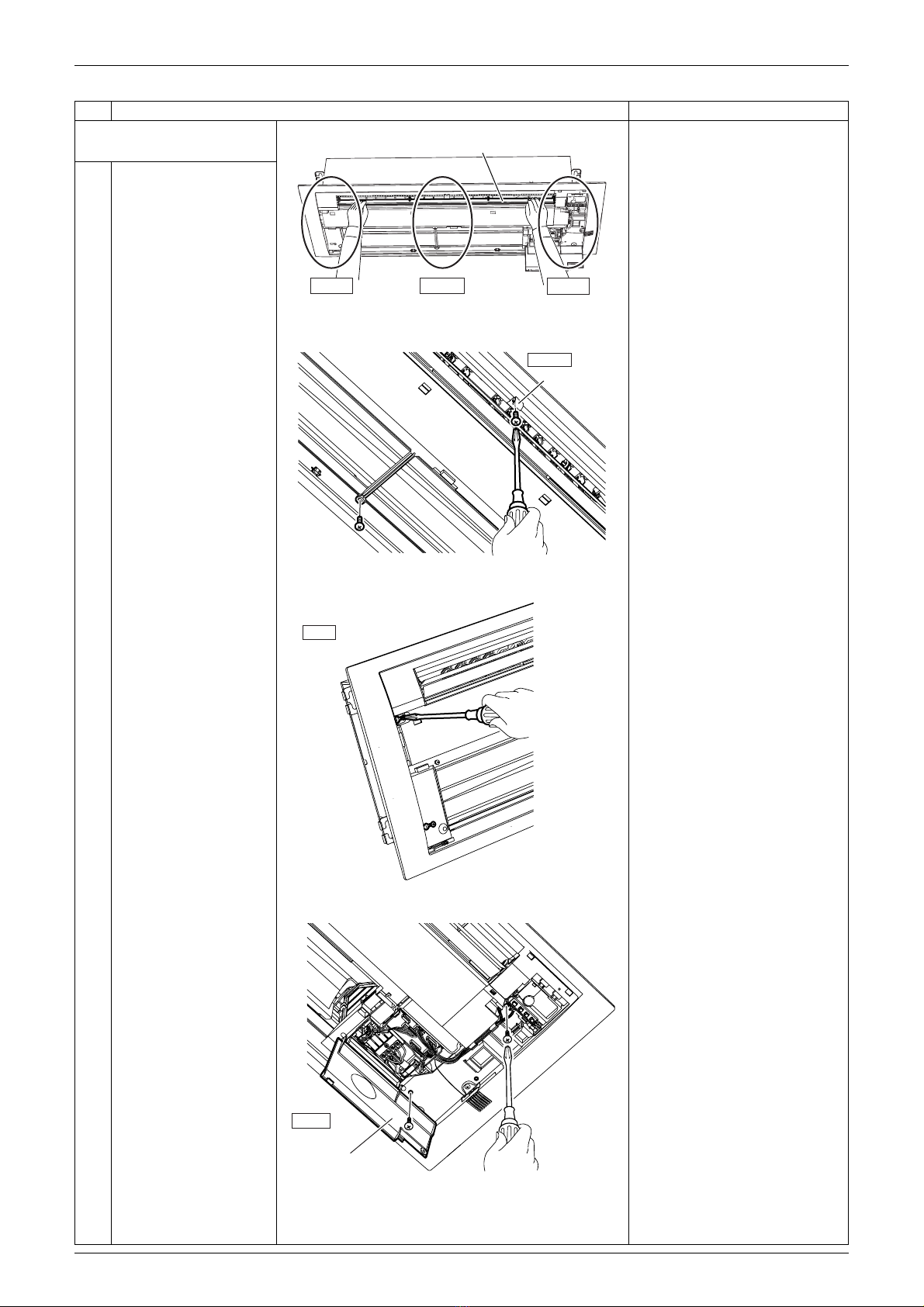

4. Remove the decoration

panel.

1 Open the horizontal

blade.

2 Remove the 2 screws

at the center of the

decoration panel.

3 Loosen the 2 screws of

the left side of the

decoration panel.

Loosen the screws until they

come out about 25 ~ 30mm.

4 Remove the 2 screws

on the right side of the

decoration panel.

Step Procedure Points

Center RightLeft

Horizontal blade

(R23753)

Center

Screw cover

(R23754)

Left

(R23755)

Right

Service cover

(R23756)

Decoration Panel ASSY Si091659E

8Removal Procedure

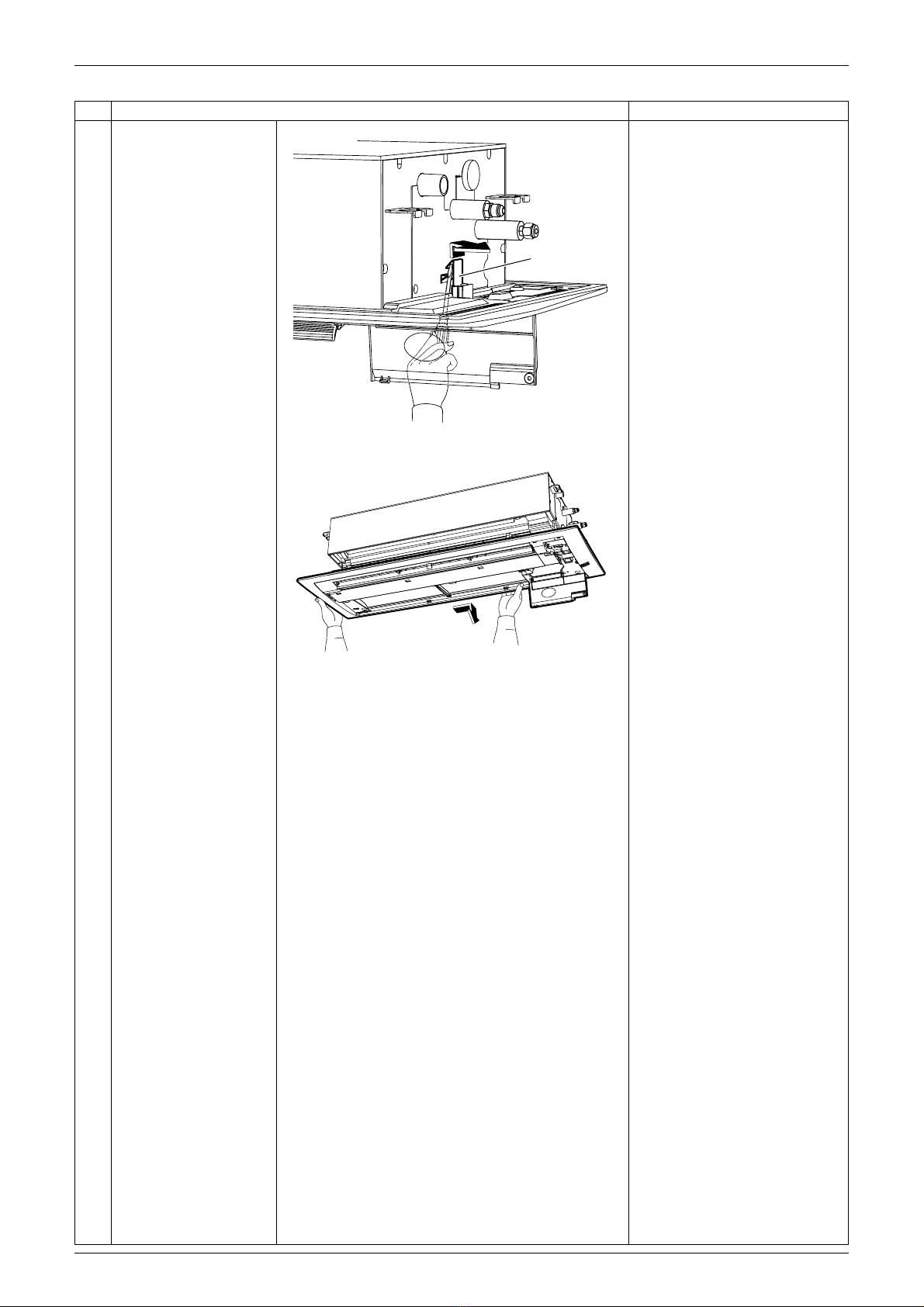

5 Insert a flat screwdriver

into the decoration

panel ASSY fixing

hook, and then release

the fixing hook.

6 Slide the decoration

panel ASSY to the right

to remove.

Step Procedure Points

Fixing hook

(R10916)

(R10917)
