Round flow cassette

EEDEN13-100

FCQG-F

• Split - Sky Air • Indoor Unit 1

• Indoor Unit • Round flow cassette • FCQG-F

TABLE OF CONTENTS

FCQG-F

1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3 Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4 Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Safety Device Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Dimensional Drawings with Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

7 Centre of gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Centre of Gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

8 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Piping Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

9 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

10 External connection diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

External Connection Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

11 Sound data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Sound Pressure Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

12 Air flow patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Air Flow Pattern - Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Air Flow Pattern - Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

• Indoor Unit • Round flow cassette • FCQG-F

• Split - Sky Air • Indoor Unit

1 Features

IndoorUnit Split-Sk FCQG-FRoundflow

• The round flow cassette provides a more comfortable environment

and offers greater savings in energy consumption to shop, office and

restaurant owners

• 360º air discharge ensures uniform air flow and temperature

distribution

• Modern style decoration panel is available in 3 different variations:

pure white (RAL9010) auto cleaning panel, pure white (RAL9010)

standard panel with grey louvers and pure white (RAL9010) standard

panel with white louvers

• Daikin introduces first auto cleaning cassette to European market.

• Higher efficiency and comfort thanks to daily auto cleaning of the

filter.

• Lower maintenance costs thanks to auto cleaning function.

• Easy dust removal with vacuum cleaner without opening the unit.

• The presence sensor (optional) : - adjusts the temperature or

switches off the unit when there is nobody in the room - ensures the

air flow is directed away from any person detected in the room, when

the air flow control is activated

• The floor sensor (optional) detects the average floor temperature and

ensures even temperature distribution between ceiling and floor.

Cold feet will become history.

• Individual flap control: one flap can be easily closed via the wired

remote control (BRC1E52) in case you would refurbish or rearrange

your interior

• Fresh air intake: up to 20 %

• No optional adapter needed for DIII-connection, link your unit into the

wider building management system.

3 steps

• Split - Sky Air • Indoor Unit 3

• Indoor Unit • Round flow cassette • FCQG-F

2 Specifications

2-1 Technical Specifications FCQG35F FCQG50F FCQG60F FCQG71F FCQG100F FCQG125F FCQG140F

Casing Material Galvanised steel plate

Dimensions Unit Height/Width/

Depth

mm 204/840/840 246/840/840

Packed unit Height/Width/

Depth

mm 220/880/880 260/880/880

Weight Unit kg 18 19 21 24

Packed unit kg 22 23 25 28

Decoration panel Model BYCQ140D7W1

Colour Pure White (RAL 9010)

Dimensions Height/Width/

Depth

mm 60/950/950

Weight kg 5.4

Decoration panel 2 Model BYCQ140D7W1W

Colour Pure White (RAL 9010)

Dimensions Depth/Height/

Width

mm 950/60/950

Weight kg 5.4

Decoration panel 3 Model BYCQ140D7GW1

Colour Pure White (RAL 9010)

Dimensions Height/Width/

Depth

mm 145/950/950

Weight kg 10.3

Heat exchanger Inside length mm 2,134 2,090

Outside length mm 2,181 2,184

Rows Quantity 2 3

Fin pitch mm 1.2

Passes Quantity 4 6 12 14

Face area m² 0.278 0.366 0.371 0.464

Stages Quantity 9 12 15

Empty tubeplate

hole

Quantity 0

Fin Type Cross fin coil (multi slit fins and hi-XA tubes)

Fan Type Turbo fan

Quantity 1

Air flow rate Cooling High m³/min 12.5 12.6 13.6 15.0 22.8 26.0

Nom. m³/min 10.6 10.7 11.2 12.1 17.6 19.2

Low m³/min 8.7 9.1 12.4

Heating High m³/min 12.5 12.6 13.6 15.0 22.8 26.0

Nom. m³/min 10.6 10.7 11.2 12.1 17.6 19.2

Low m³/min 8.7 9.1 12.4

Fan motor Model QTS48D11M QTS48C15M

Speed Steps 3

Output High W 48 106

Sound power level Cooling High dBA 49 51 54 58

Heating High dBA 49 51 54 58

Sound pressure level Cooling High/Nom./Low dBA 31/29/27 33/31/28 37/33/29 41/35/29

Heating Super high/High/

Nom./Low

dBA -/31/29/27 -/33/31/28 -/37/33/29 -/41/35/29

Refrigerant Type R-410A

Piping connections Sound absorbing insulation Foamed Polyurethane

Liquid Type/OD mm Flare connection/6.35 Flare connection/9.52

Gas Type/OD mm Flare

connection/

9.52

Flare connection/12.7 Flare connection/15.9

Drain VP25 (O.D. 32 / I.D. 25)

Heat insulation Foamed polystyrene / Foamed polyethylene

Air filter Type Resin net with mold resistance

• Indoor Unit • Round flow cassette • FCQG-F

• Split - Sky Air • Indoor Unit

2 Specifications

Standard Accessories : Clamps;

Standard Accessories : Drain sealing pad;

Standard Accessories : Sealing pads; Quantity : 4;

Standard Accessories : Insulation for fitting; Quantity : 2;

Standard Accessories : Installation guide;

Standard Accessories : Screws;

Standard Accessories : Washer for hanger bracket;

Standard Accessories : Clamp for drain hose;

Standard Accessories : Drain hose;

Standard Accessories : Installation manual;

Standard Accessories : Operation manual;

Notes

(1) The sound power level is an absolute value indicating the power which a sound source generates.

(2) The BYCQ140D7W1W has white insulations. Be informed that formation of dirt on white insulation is visibly stronger and that it is consequently not advised to install the

BYCQ140D7W1W decoration panel in environments exposed to concentrations of dirt.

(3) BYCQ140D7W1: pure white standard panel with grey louvers; BYCQ140D7W1W: pure white standard panel with white louvers; BYCQ140D7GW1: pure white auto cleaning panel.

2-2 Electrical Specifications FCQG35F FCQG50F FCQG60F FCQG71F FCQG100F FCQG125F FCQG140F

Power supply Name VE

Phase 1~

Frequency Hz 50

Voltage V 220-240

• Split - Sky Air • Indoor Unit 5

• Indoor Unit • Round flow cassette • FCQG-F

3 Electrical data

3 - 1 Electrical Data

• Indoor Unit • Round flow cassette • FCQG-F

• Split - Sky Air • Indoor Unit

4 Safety device settings

4 - 1 Safety Device Settings

• Split - Sky Air • Indoor Unit 7

• Indoor Unit • Round flow cassette • FCQG-F

5 Options

5 - 1 Options

• Indoor Unit • Round flow cassette • FCQG-F

• Split - Sky Air • Indoor Unit

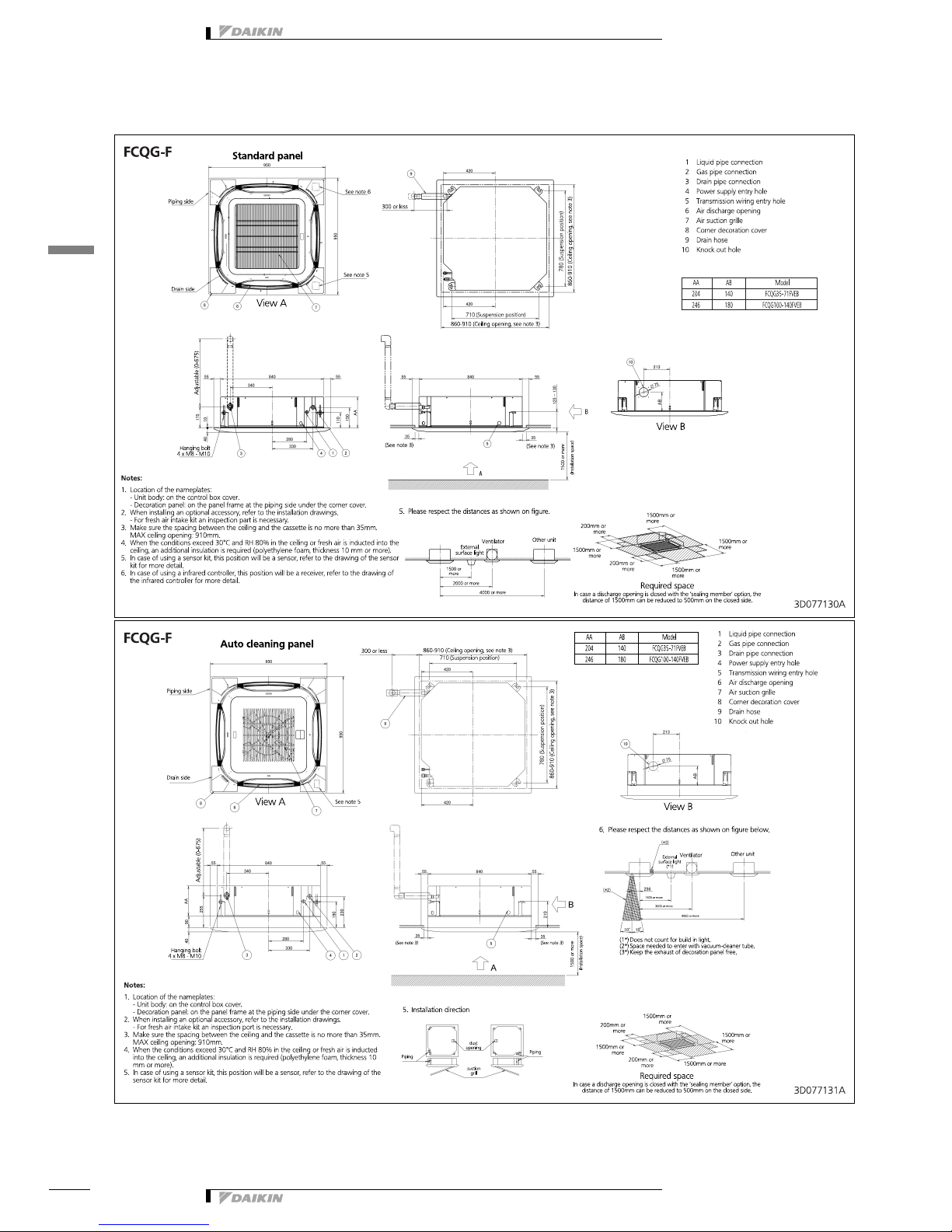

6 Dimensional drawings

6 - 1 Dimensional Drawings
