Daikin FT35CV1A9 Kurzanleitung

• Indoor Units • R-22 • FT-C

• Split Sky Air • Indoor Units

IndoorSplitFT-CR-22

1 Features

• Easy to clean flat suction grille

• Quiet operation: down to 28 dBA sound pressure level

• Vertical auto-swing function moves the discharge flaps up and down

for efficient air distribution throughout the room

• Wide angle louvers provide a comfortable air flow throughout the

entire room

• You have the choice out of 5 fan speeds to select

• Daikin’s special dry programme reduces humidity in the room without

variation in room temperature

• Powerful mode can be selected for rapid cooling

• Night set mode saves energy by preventing overcooling or

overheating during night time

• Air purification filter with photocatalytic deodorising function:

deodorises the air, powerfully decomposes cigarette and pet odours,

removes house dust and pollen, deactivates bacteria and viruses

• Daikin remote controls give you easy control at your fingertips.

optional 5 steps

standard

• Split Sky Air • Indoor Units 2

• Indoor Units • R-22 • FT-C

2 Specifications

2-1 TECHNICAL SPECIFICATIONS FT25CV1A9 FT35CV1A9 FT50CV1A9 FT60CV1A9

Casing Colour White

Dimensions Packing Height mm 325 325 366 366

Width mm 834 834 1147 1147

Depth mm 258 258 337 337

Unit Height mm 273 273 290 290

Width mm 784 784 1050 1050

Depth mm 195 195 238 238

Weight Machine Weight kg 8.0 8.0 12.0 12.0

Gross Weight kg 11.0 11.0 17.0 17.0

Heat

Exchanger Dimensions Length mm 577 577 863 863

Nr of Rows 2 2 2 2

Fin Pitch mm 1.40 1.40 1.40 1.40

NrofPasses2244

Nr of Stages 12 12 16 16

Tube type Hi-XA (7)

Fin Type ML fin (Multi louver)

Fan Type Cross flow fan

Quantity 1 1 1 1

Air Flow Rate Cooling High m³/min 8.3 8.4 16.2 17.5

Medium m³/min 6.7 7.0 14.0 15.0

Low m³/min 5.0 5.5 11.9 12.5

Fan Motor Quantity 1 1 1 1

Model 18F-22 18F-22 D43C-31 D43C-31

Number of steps 5 steps and auto

Motor Speed

(cooling) High rpm 1360 1390 1260 1340

Medium rpm 1150 1200 1110 1170

Low rpm 940 1010 960 1000

Fan Motor Output

(high) W18 18 43 43

Cooling Sound

Pressure High dBA 38.0 39.0 43.0 46.0

Medium dBA 34.0 35.0 39.0 41.0

Low dBA 28.0 31.0 35.0 36.0

Refrigerant Type R22

Piping

connections Liquid (OD) Diameter

(OD) mm 6.4 6.35 6.4 6.4

Gas Diameter

(OD) mm 9.5 12.7 15.9 15.9

Drain Diameter

(OD) mm 18 18 18 18

Heat Insulation Both liquid and gas pipes

Air Filter Removable/washable/Mildew proof

Air direction control Left, right, up and downwards

Temperature control Microcomputer control

• Indoor Units • R-22 • FT-C

• Split Sky Air • Indoor Units

Standard

Accessories Item Installation manual

Quantity 2 pcs

Item Operation manual

Quantity 1 pc

Item Infrared remote control

Quantity 1 pc

Item Screws

Quantity 1 set

Item Batteries

Quantity 2 pcs

Item Mounting plate

Quantity 1 pc

Item Insulation tape Insulation tape Insulation tape Insulation tape

Quantity 1 pc

Item - Remote controller

mounting plate Remote controller

mounting plate

Quantity - 1 pc

Item Remote control holder - - -

Quantity 1 pc - - -

Item Air purification filter with photocatalytic function

Quantity 2 pcs

Notes Sound values are measured in an anechoic room.

Sound pressure level is a relative value, depending on the distance and acoustic environment. For more details,

please refer to sound level drawings of this chapter.

The sound power level is an absolute value indicating the power which a sound source generates.

2-1 TECHNICAL SPECIFICATIONS FT25CV1A9 FT35CV1A9 FT50CV1A9 FT60CV1A9

• Split Sky Air • Indoor Units 4

• Indoor Units • R-22 • FT-C

2-2 ELECTRICAL SPECIFICATIONS FT25CV1A9 FT35CV1A9 FT50CV1A9 FT60CV1A9

Power Supply Name V1 V1 V1 V1

Phase 1111

Frequency Hz 50 50 50 50

Voltage V 220-240

Current Nominal

runningcurrent

(RLA)

Cooling A 0.22 0.22 0.18 0.20

Wiring

connections For Power

Supply Quantity 3 3 3 3

Remark 4 for interunit wiring (included earth wiring)

Voltage range Minimum -10%

Maximum +10%

Power Supply Intake Outdoor unit only

NOTES

• Indoor Units • R-22 • FT-C

• Split Sky Air • Indoor Units

3 Dimensional drawing & centre of gravity

3 - 1 Dimensional drawing

FT25,35CV1A9

3D045893

Up/down (automatic)

cooling, dry

Right/left (manual)

Blow

BLADE ANGLE

WIRELESS REMOTE

CONTROLLER

(ARC423A18)

Signal transmitter

Flaps

Front panel fixed screws (inside)

Bottom

Left Right

Rear

Signal receiver

Room temp. thermistor

Timer indicator lamp

Operation indicator lamp

Operation switch

Air flow (indoor)

REQUIRED SPACE

Terminal block with

earth terminal

Name plate

50 min.

(space for performance)

50 min.

(space for performance)

30 min.

(space for performance)

Drain hose

(connecting part I.D. ø 14.0,

O.D. ø 18.0)

(the hose length of outside

the unit is approx. 410)

Gas pipe 9.5 CuT (FT25C--) or

12.7 CuT (FT35C--)

(the length of pipe outside the

unit: about 340)

Liquid pipe 6.4 CuT

(the length of pipe outside

the unit: about 390)

Wall hole

ø 65 hole

Wall hole for

embedded piping

ø 65 hole

STANDARD LOCATIONS OF WALL HOLES

(for performance and maintenance)

(including mounting

plate)

• Split Sky Air • Indoor Units 6

• Indoor Units • R-22 • FT-C

3 - 2 Centre of gravity

FT50,60CV1A9

3D045893

Horizontal blade

(automatic)

cooling

Vertical blade

(manual)

Dry

BLADE ANGLE

WIRELESS REMOTE

CONTROLLER

(ARC433A24)

Signal transmitter

Flaps

Front grille fixing screws (inside)

Bottom

Left Right

Rear

Operation lamp

Signal receiver

Indoor unit on/off

Room temp. thermistor

(inside)

Timer lamp

Air flow (indoor)

REQUIRED SPACE

Terminal block with

earth terminal

(inside)

Model name plate

50 min.

(space for maintenance)

50 min.

(space for performance)

30 min.

(space for performance)

Drain hose for VP13

(connecting part I.D. ø 14.0,

O.D. ø 18.0)

(the hose length of outside

the unit: about 530)

Gas pipe 15.9 CuT

(the length of pipe outside

the unit: about 430)

Liquid pipe 6.4 CuT

(the length of pipe outside

the unit: about 480)

Wall hole

ø 80 hole

Wall hole for

embedded piping

ø 80 hole

STANDARD LOCATIONS OF WALL HOLES

Fan

(including installation plate)

(For performance and maintenance)

Rear

FT25,35CV1A9

4D020686N

• Indoor Units • R-22 • FT-C

• Split Sky Air • Indoor Units

FT50,60CV1A9

4D040313H

• Split Sky Air • Indoor Units 8

• Indoor Units • R-22 • FT-C

4 Piping diagram

FT25,35CV1A9

4D023507H

NOTE

1 Field piping specifications are as shown below.

Model

name A

FT25-- 9.5 CuT

FT35-- 12.7 CuT

Field piping

(6.4 CuT)

Indoor unit

9.5 CuT

Heat exchanger

Thermistor on heat

exchanger

Cross flow fan

Fan motor

Field piping

(specifications see note 1)

7.0 CuT

7.9 CuT

• Indoor Units • R-22 • FT-C

• Split Sky Air • Indoor Units

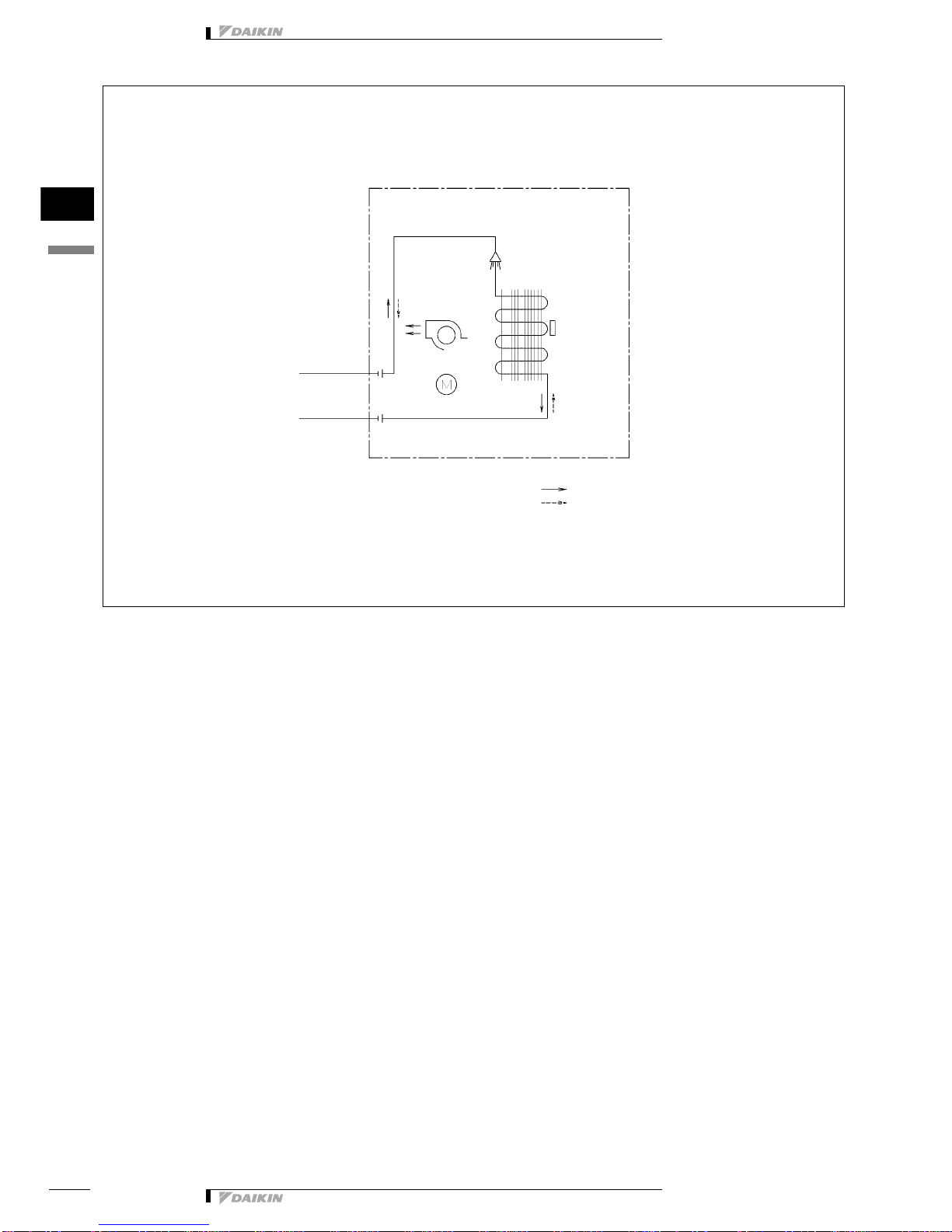

FT50,60CV1A9

4D040082F

Field piping

(6.4 CuT)

Indoor unit

12.7 CuT

Heat exchanger

Thermistor on heat

exchanger

Cross flow fan

Fan motor

Field piping

(15.9 CuT)

7.9 CuT

Refrigerant flow

Cooling

Heating

• Split Sky Air • Indoor Units 10

• Indoor Units • R-22 • FT-C

5 Wiring diagram

5 - 1 Wiring diagram

FT25,35CV1A9

3D027406C

Signal receiver

To outdoor unit

Wireless remote

controller

LEGEND

C70 Running capacitor

FU Fuse

H1P, H2P Pilot lamp

M1F Fan motor

M1S Swing motor

MR2 Magnetic relay

PCB1, PCB2 Printed circuit board

R1T, R2T Thermistor

S1~S32 Connector

SW7 Operation switch

SA1 Surge arrester

V1, V2 Varistor

X1M Terminal strip

Protective earth

NOTES

1 Wiring diagram nameplate size: width 110 x length 65.

2 Material: wood free tack paper. Coat the reverse side with pressure sensitive adhesive. Refer to AS(Y)303002 unless otherwise specified.

3 This drawing was drawn on CAD system.

4 Make a slit on separate liner in vertical direction.
