Daikin FVQ-C Gebrauchsanweisung

FVQ-C

Technical Data

Air Conditioners

EEDEN12-100

Floorstanding unit

• Split - Sky Air®• Indoor Unit 1

• Indoor Unit • Floor standing unit • FVQ-C

TABLE OF CONTENTS

FVQ-C

1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3 Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Safety Device Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Piping Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

8 External connection diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

External Connection Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

9 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Sound Pressure Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

• Indoor Unit • Floor standing unit • FVQ-C

• Split - Sky Air®• Indoor Unit

1 Features

IndoorUnit Split-Sk FVQ-CFloorstand

• Seasonal efficiency, optimized for all seasons.

• Seasonal efficiency gives an indication on how efficient an air

conditioner operates over an entire heating or cooling season.

• Can be installed in both new and existing buildings

• Ideal solution for shops, restaurants or offices without false ceilings

• Very efficient for use in rooms with high ceilings

• Better air flow distribution is achieved via individual blow: up and

down, swing mechanism or air volume control (class 71 & 100)

• Compact design

• No optional adapter needed for DIII-connection: standard plug and

play connection with centralised control systems, intelligent touch

controller, intelligent manager, ...

• Home leave operation maintains the indoor temperature at your

specified comfort level during absence, thus saving energy

• Split - Sky Air®• Indoor Unit 3

• Indoor Unit • Floor standing unit • FVQ-C

2 Specifications

Standard Accessories :Remote control wiring;

Standard Accessories : Dew proof material;

Standard Accessories : Installation pattern;

Standard Accessories : Screws;

Standard Accessories : Clamps;

Standard Accessories : Cover;

Standard Accessories : Insulation for fitting;

Standard Accessories : Bush;

Standard Accessories : Hole protection rubber;

Standard Accessories : Bracket for installation;

Standard Accessories : Installation manual;

Standard Accessories :Operation manual;

2-1 Technical Specifications FVQ71CVEB FVQ100CVEB FVQ125CVEB FVQ140CVEB

Power input Cooling Nom. kW 0.117 0.238 0.276

Heating Nom. kW 0.117 0.238 0.276

Casing Colour Fresh White

Dimensions Unit Height/Width/

Depth mm 1,850/600/270 1,850/600/350

Packed unit Height/Width/

Depth mm 1,996/732/389 1,996/732/469

Weight Unit kg 39 47

Packed unit kg 61 70

Heat exchanger Inside length mm 476

Rows Quantity 2 3

Fin pitch mm 1.75

Passes Quantity 6 10 11

Face area m² 0.40 0.22

Stages Quantity 40 22

Empty tubeplate

hole Quantity 0 14 4

Fin Type Cross fin coil (multi louver fins and Hi-XSS tubes)

Heat exchanger 2 Rows Quantity - 3

Fin pitch mm - 1.75

Face area m² - 0.22

Stages Quantity - 22

Fan Type Sirocco fan

Quantity 1

Air flow rate Cooling High m³/min 18 28 30

Nom. m³/min 16 25 26 28

Low m³/min 14 22 24 26

Heating High m³/min 18 28 30

Nom. m³/min 16 25 26 28

Low m³/min 14 22 24 26

Fan motor Model QS33A1AM

Speed Steps 3

Output High W 64 152

Sound powerlevel Cooling High/Nom./Low dBA 55/53/50 62/59/56 63/60/58 65/63/60

Heating High/Nom./Low dBA 55/53/50 62/59/56 63/60/58 65/63/60

Sound pressurelevel Cooling High/Nom./Low dBA 43/41/38 50/47/44 51/48/46 53/51/48

Heating Super high/High/

Nom./Low dBA -/43/41/38 -/50/47/44 -/51/48/46 -/53/51/48

Refrigerant Type R-410A

Piping connections Liquid Type/OD mm Flare connection/9.52

Gas Type/OD mm Flare connection/15.9

Drain I.D. 20/O.D. 26

Heat insulation Foamed polystyrene / Foamed polyethylene

• Indoor Unit • Floor standing unit • FVQ-C

• Split - Sky Air®• Indoor Unit

2 Specifications

2-2 Electrical Specifications FVQ71CVEB FVQ100CVEB FVQ125CVEB FVQ140CVEB

Power supply Phase 1~

Frequency Hz 50/60

Voltage V 220-240/220

Current - 60Hz Nominal running current A -

• Split - Sky Air®• Indoor Unit 5

• Indoor Unit • Floor standing unit • FVQ-C

3 Safety device settings

3 - 1 Safety Device Settings

∼

−−−−

• Indoor Unit • Floor standing unit • FVQ-C

• Split - Sky Air®• Indoor Unit

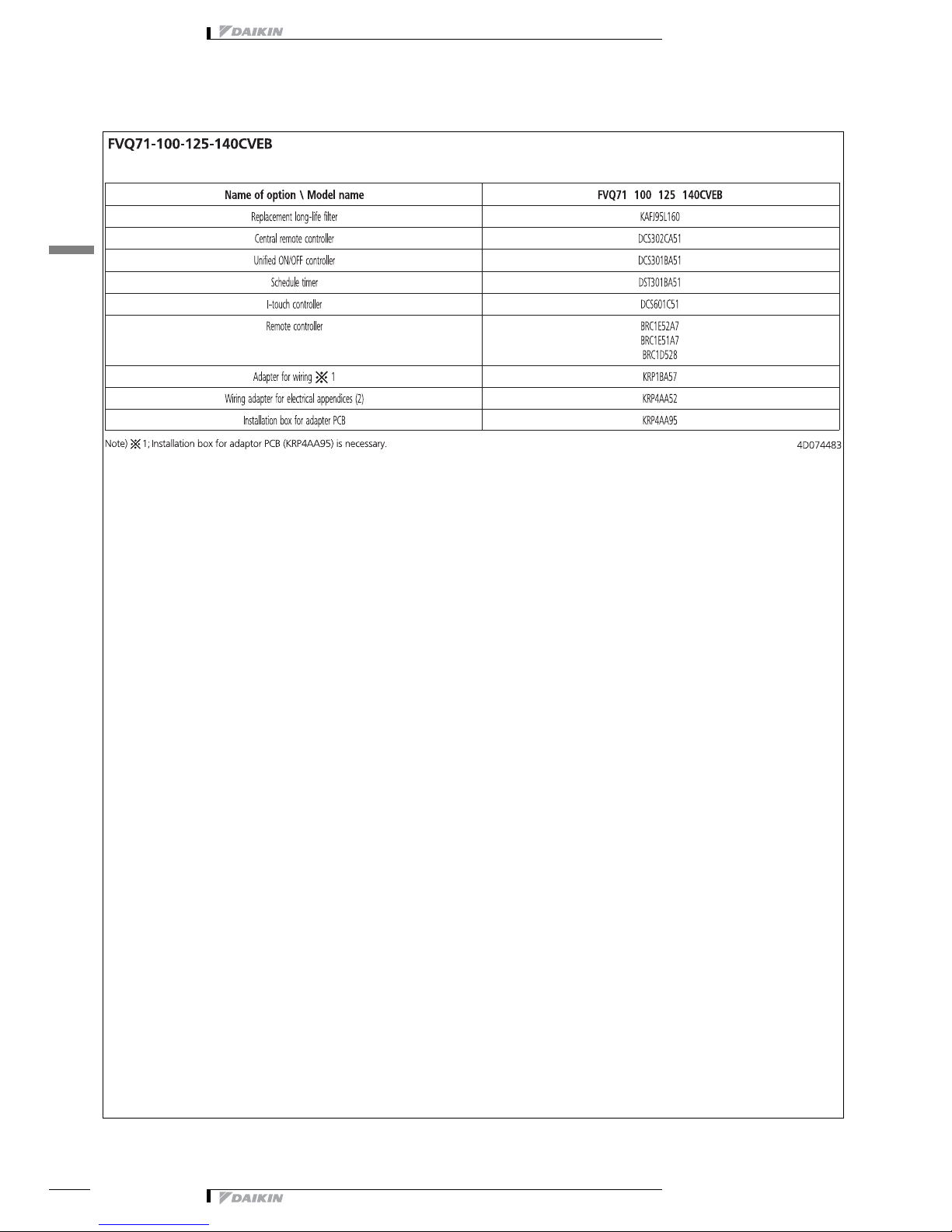

4 Options

4 - 1 Options

∼ ∼ ∼

• Split - Sky Air®• Indoor Unit 7

• Indoor Unit • Floor standing unit • FVQ-C

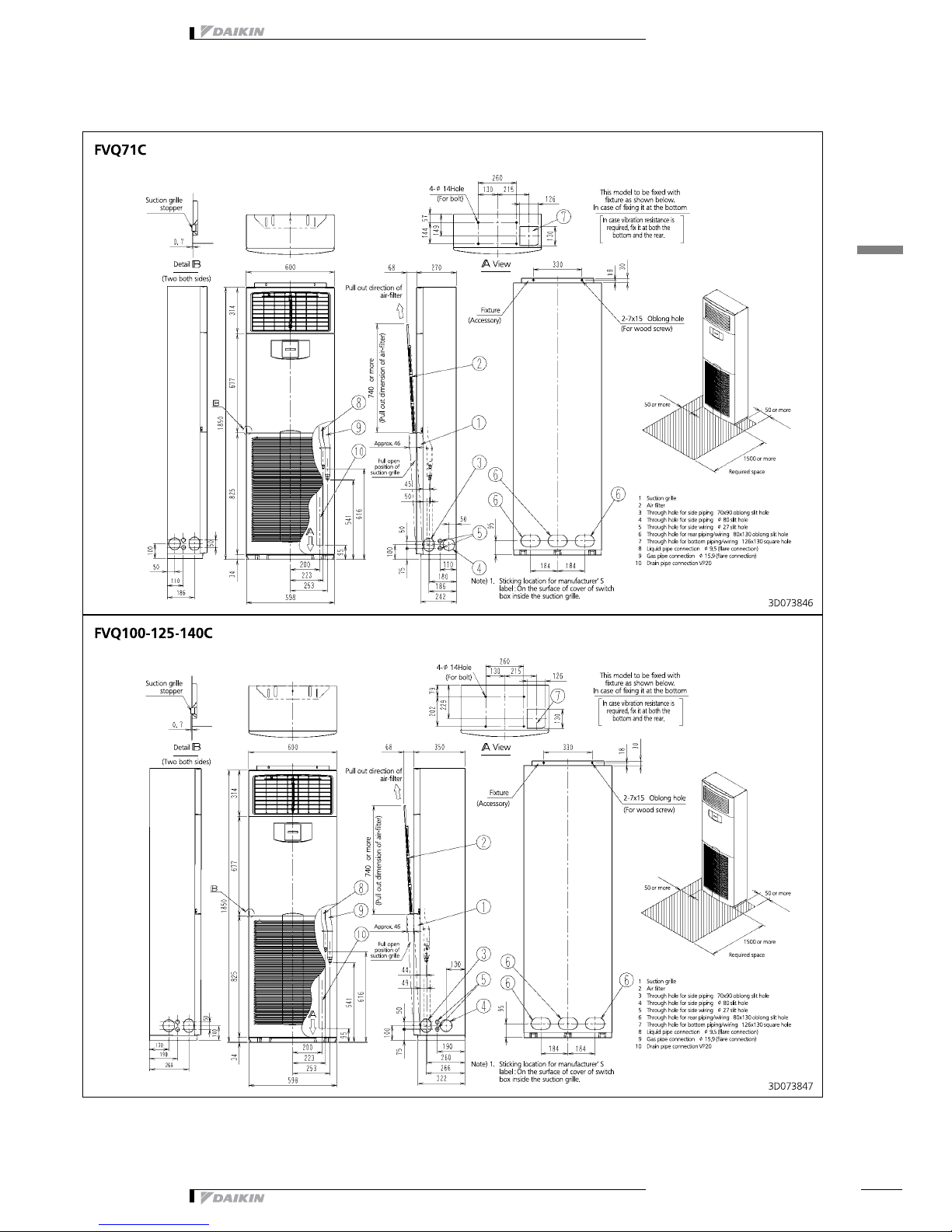

5 Dimensional drawings

5 - 1 Dimensional Drawings

• Indoor Unit • Floor standing unit • FVQ-C

• Split - Sky Air®• Indoor Unit

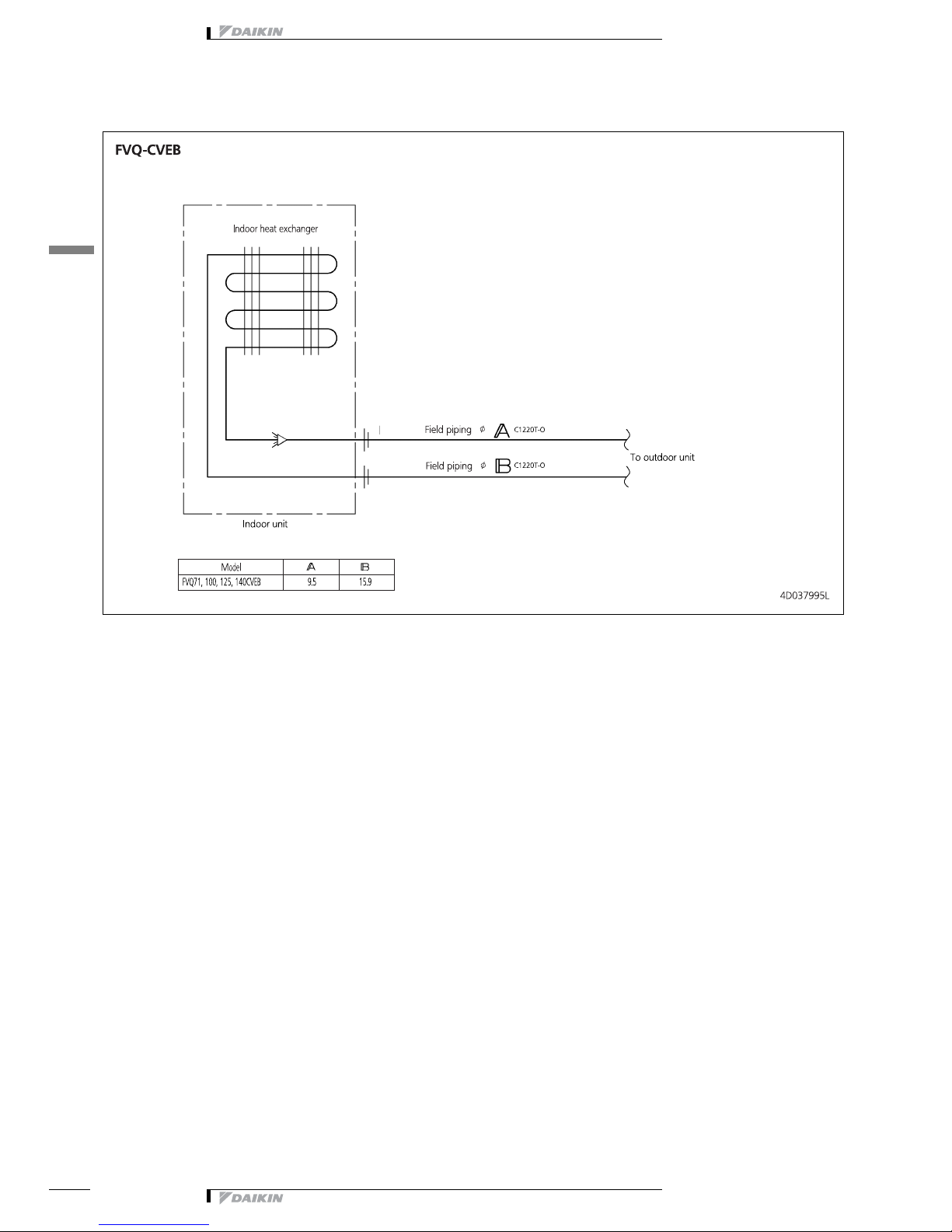

6 Piping diagrams

6 - 1 Piping Diagrams

• Split - Sky Air®• Indoor Unit 9

• Indoor Unit • Floor standing unit • FVQ-C

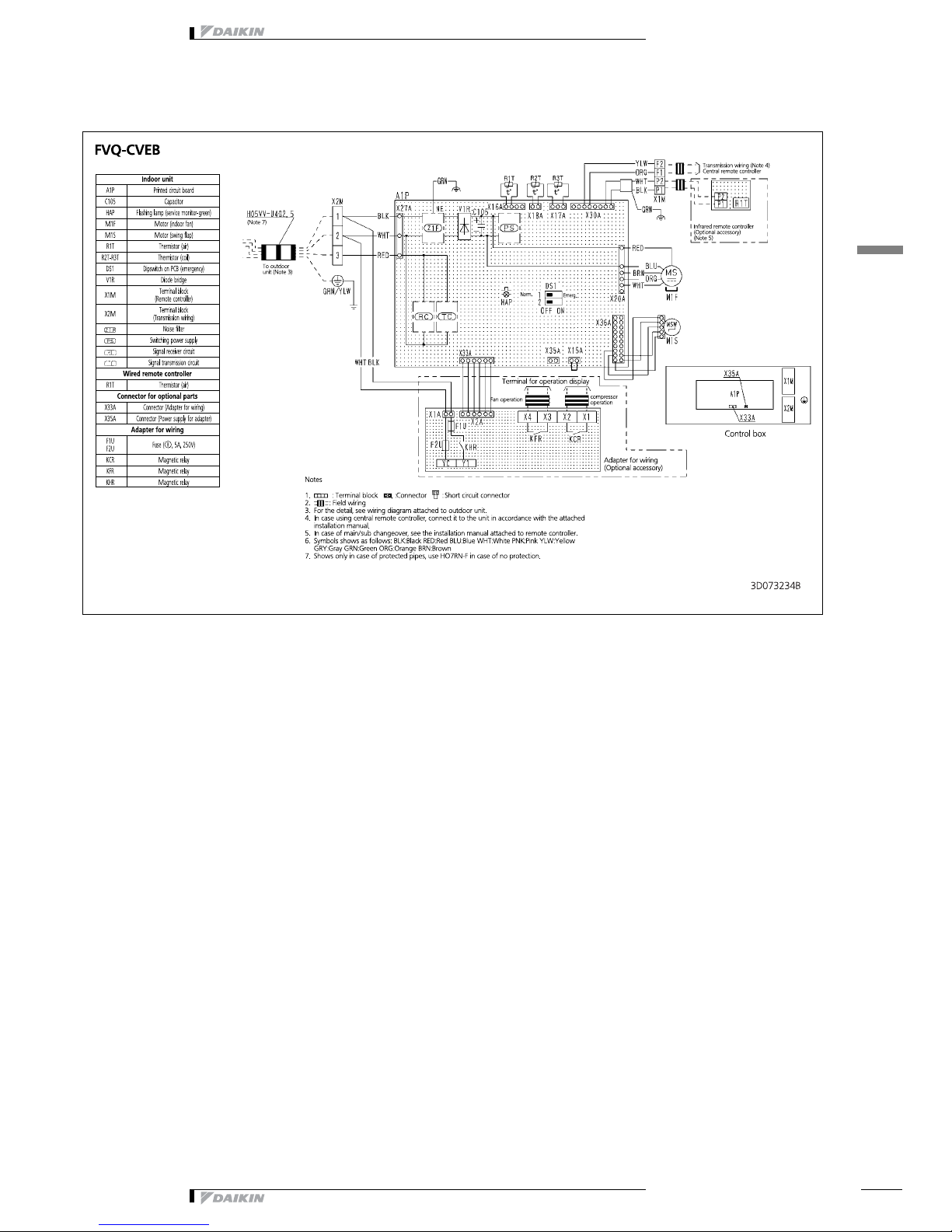

7 Wiring diagrams

7 - 1 Wiring Diagrams - Single Phase
