EEDEN15-100

MXS-E

• Split - Sky Air • MXS-E 1

• Outdoor Unit • MXS-E

TABLE OF CONTENTS

MXS-E

1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3 Electrical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5 Combination table. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6 Capacity tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Capacity Table Legend . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

8 Centre of gravity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

9 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

10 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

11 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Sound Power Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Sound Pressure Spectrum - Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Sound Pressure Spectrum - Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

12 Operation range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

• Outdoor Unit • MXS-E

• Split - Sky Air • MXS-E

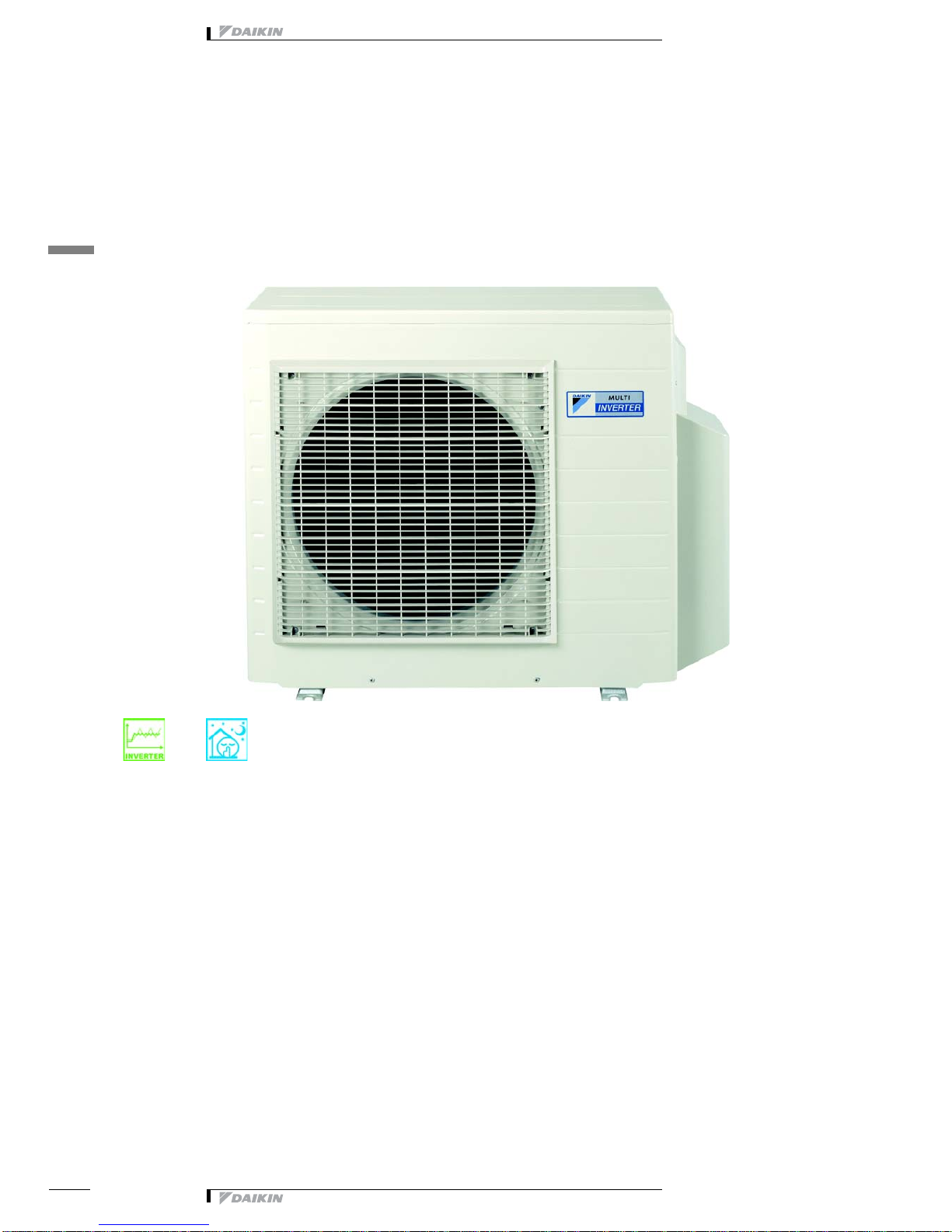

1 Features

OutdoorUni Split-Sk MXS-EMultimodel

• Outdoor units for multi model application.

• Up to 5 indoor units can be connected to 1 multi outdoor unit; all

indoor units are individually controllable and do not need to be

installed in the same room or at the same time; they operate

simultaneously within the same cooling or heating mode

• Different types of indoor units can be connected: e.g. wall mounted,

ceiling mounted cassette corner, concealed ceiling unit

• Night quiet mode automatically reduces the operation sound of the

outdoor unit by 3dBA during nighttime (multi outdoor units in cooling

mode only)

• The use of inverter type outdoor units results in an air conditioning

system with a high energy efficiency and very low sound level

• Daikin outdoor units are neat, sturdy and can easily be mounted on a

roof or terrace or simply placed against an outside wall

• Outdoorunitsarefitted withaswing compressor,renownedforits low

noise and high energy efficiency

Inverter Night quiet

mode

• Split - Sky Air • MXS-E 3

• Outdoor Unit • MXS-E

2 Specifications

2-1 Technical Specifications 3MXS52E 4MXS80E 5MXS90E

Capacity control Method Inverter controlled

Casing Colour Ivorywhite

Dimensions Unit Height mm 735 770

Width mm 936 900

Depth mm 300 320

Packed unit Height mm 797 900

Width mm 992 925

Depth mm 390

Weight Unit kg 49 72 73

Packed unit kg 56 80

Heat exchanger Length mm 845 879

Rows Quantity 2

Fin pitch mm 1.8 1.40

Stages Quantity 32 34

Tube type ø7.94 grooved tubes 24 ø8 Hi-XA

Fin Type Colgate fin WF fin

Treatment Anti-corrosion treatment -

Compressor Model 2YC36BXD 2YC63BXD#C

Type Hermetically sealed swing compressor

Output W 1,100 1,920

Fan Type Propeller fan

Air flow rate Cooling High m³/min 45 54.5 57.1

cfm 1,589 1,924 2,016

Nom. m³/min 45 - 54.5

cfm 1,589 - 1,924

Low m³/min 45 46.0

cfm 1,589 1,624

Super

low m³/min -

cfm -

Heating High m³/min 45 46.0 52.5

cfm 1,589 1,624 1,854

Low m³/min 41 14.7

cfm 1,448 519

Super

low m³/min -

cfm -

Running current Cooling Low A 0.29 0.69

Standar

dA - 0.97

High A 0.33 0.97 1.02

Heating Low A 0.29 0.05

High A 0.33 0.69 0.90

Power consumption Cooling Low W 34 55

Standar

dW- 86

High W 43 86 95

Heating Low W 34 9

High W 43 55 78

Fan motor Model KFD-380-50-8C KFD-280-66-8A

Output W 53 66.00

Speed Cooling High rpm 720 860 900

Nom. rpm - 860

Low rpm 660 730

Super

low rpm -

Heating High rpm 720 730 830

Low rpm 660 250

Super

low rpm -

• Outdoor Unit • MXS-E

• Split - Sky Air • MXS-E

2 Specifications

Standard Accessories : Installation manual; Quantity : 1;

Standard Accessories : Drain plug; Quantity : 1;

Standard Accessories : Reducer assembly; Quantity : 1;

Standard Accessories : Air direction adjustment plate; Quantity : 1;

Notes

Cooling: indoor temp. 27°CDB, 19.0°CWB; outdoor temp. 35°CDB; equivalent piping length: 7.5m

Heating: indoor temp. 20°CDB; outdoor temp. 7°CDB, 6°CWB; equivalent refrigerant piping: 7.5m

Contains fluorinated greenhouse gases

Sound power level Cooling dBA 59 62 66

Heating dBA 60 -

Sound pressure level Cooling Nom. dBA 46 48 52

Heating Nom. dBA 47 49 52

Operation range Cooling Ambien

tMin. °CDB -10

Max. °CDB 46

Heating Ambien

tMin. °CWB -15

Max. °CWB 18

Refrigerant Type R-410A

Charge kg 2.0 2.99

TCO2eq 4.2 6.2

GWP 2,087.5

Refrigerant oil Type FVC50K

Charged volume l 0.65 0.75

Piping connections Liquid Quantity 3 4 5

OD mm 6.35

Gas Quantity 2 1 2

OD mm 9.52

Drain ID mm -

OD mm 16 (innerdiameterofconnecting

hose) 25

Gas 2 Quantity 1

OD mm 12.7

Gas 3 Quantity - 2

OD mm - 15.9

Piping length OU - IU Max. m 25

Additional refrigerant charge kg/m 0.02 (for piping length exceeding 30m)

Level difference IU - OU Max. m 15

IU - IU Max. m 7.5

Heat insulation Both liquid and gas pipes

Total piping length System Actual m 50 70 75

2-2 Electrical Specifications 3MXS52E 4MXS80E 5MXS90E

Power supply Name V1 V3

Phase 1~

Frequency Hz 50

Voltage V 230

Current Starting current Cooling A 6.2 9.7 11.8

Heating A 6.2 9.7 11.8

Current - 50Hz Maximum fuse amps (MFA) A 20

Current - 60Hz Maximum fuse amps (MFA) A -

Wiring connections For power supply Remark 3 for power supply, 4 for interunit wiring (including earth wiring)

2-1 Technical Specifications 3MXS52E 4MXS80E 5MXS90E

• Split - Sky Air • MXS-E 5

• Outdoor Unit • MXS-E

3 Electrical data

3 - 1 Electrical Data

• Outdoor Unit • MXS-E

• Split - Sky Air • MXS-E

4 Options

4 - 1 Options

• Split - Sky Air • MXS-E 7

• Outdoor Unit • MXS-E

5 Combination table

5 - 1 Combination Table

• Outdoor Unit • MXS-E

• Split - Sky Air • MXS-E

5 Combination table

5 - 1 Combination Table
