REMOVAL

PROCEDURE

SERVICE MANUAL

Outdoor Unit

Non-Inverter

Pair Type

1.5/2.0/2.5 kW Class

Si011282EB

Service Manual

Removal Procedure

Outdoor Unit

zCooling Only

R15LV14

R20LV14

R25LV14

RE15LV1

RE20LV1

RE25LV1

RE20MV1V

RE25MV1V

RNE25LV1

RNE15MV1

RNE20MV1

RNE25MV1

RNE15MV14

RNE20MV14

RNE25MV14

RNE20MV1V9

RNE25MV1V9

Si011282EB

Removal Procedure 1

Table of Contents

1. Outer Panels ...........................................................................................2

2. Outdoor Fan / Fan Motor.........................................................................3

3. Electrical Components ............................................................................5

4. Capillary Tube .........................................................................................9

5. Compressor ASSY ................................................................................10

Note: The illustrations may be slightly different depending on the model.

Outer Panels Si011282EB

2Removal Procedure

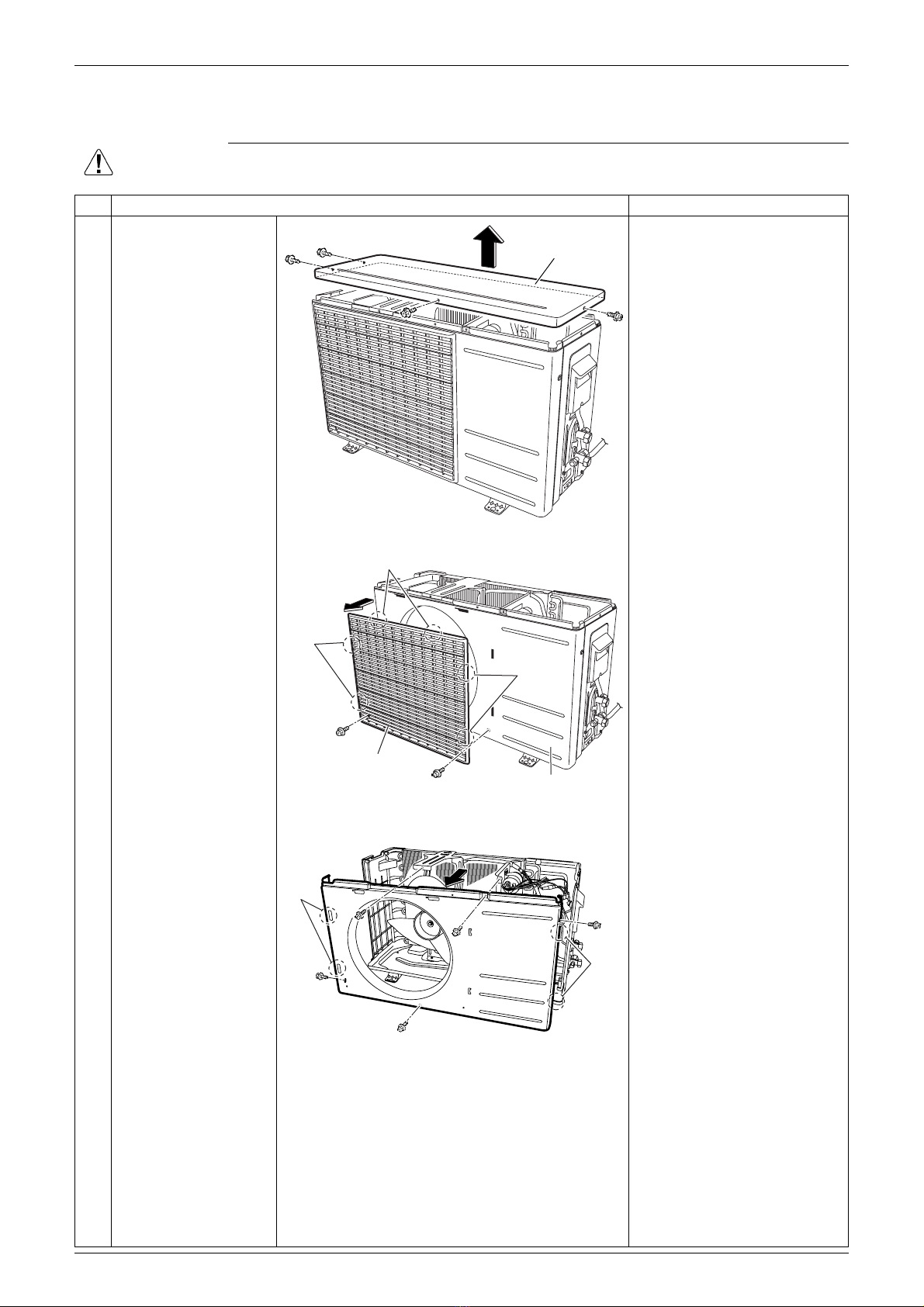

1. Outer Panels

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

1Remove the 4 screws

and remove the top

panel.

Some models have only 1

screw on the left side of the

top panel.

Remove the 2 screws

of the discharge grille.

Unfasten the 6 hooks

and remove the

discharge grille.

Remove the 5 screws

of the front panel.

Unfasten the 4 hooks

and remove the front

panel.

Top panel

(R18562)

Hook

Front panel

Discharge grille

(R18563)

Hook

(R18564)

Si011282EB Outdoor Fan / Fan Motor

Removal Procedure 3

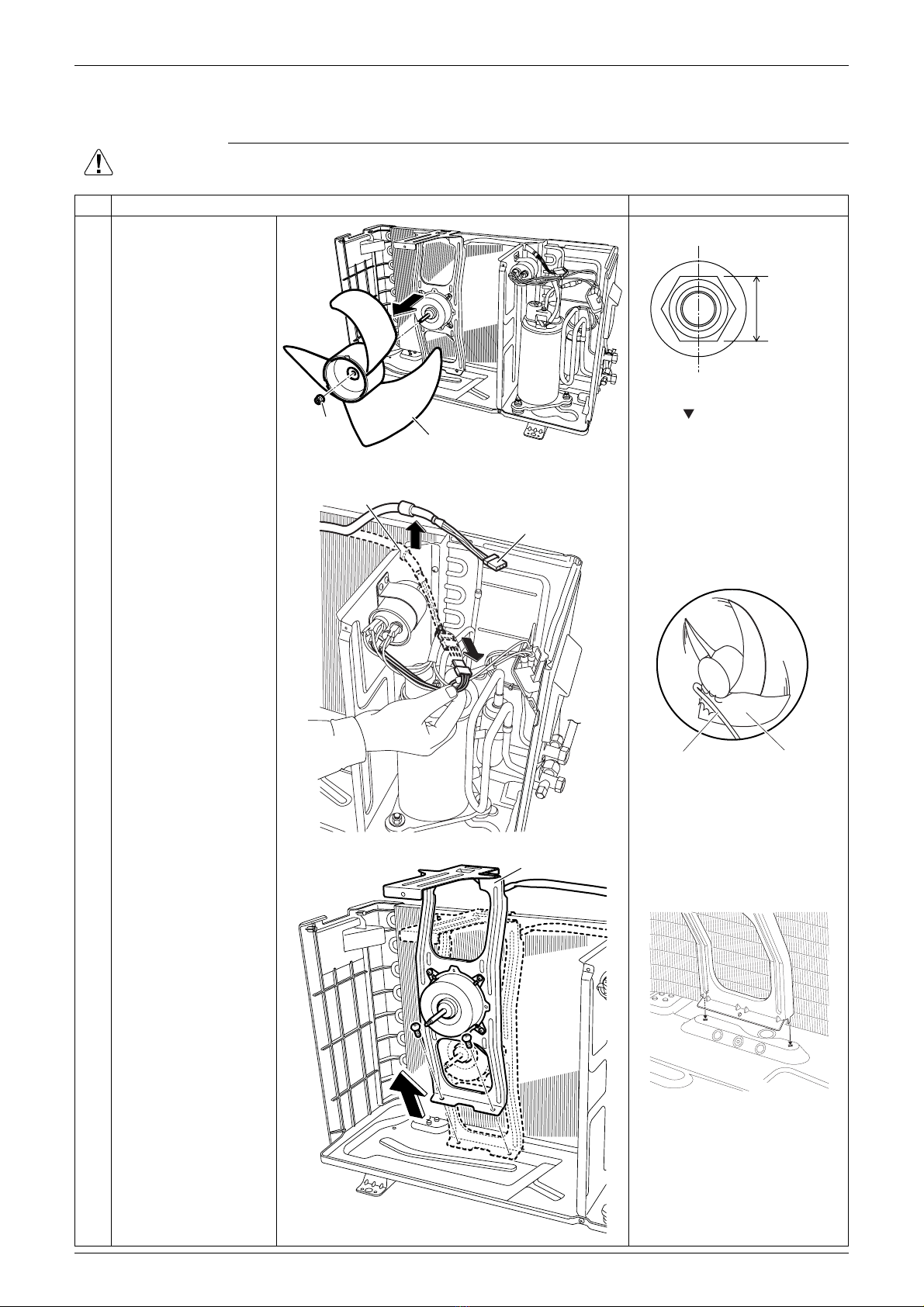

2. Outdoor Fan / Fan Motor

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

1Remove the nut and

remove the outdoor fan.

Nut size: M6

When reassembling, align

the mark of the outdoor

fan with the D-cut section of

the motor shaft.

Disconnect the relay

connector for the fan

motor.

Release the fan motor

lead wire from the hook.

When reassembling, put the

fan motor lead wire through

the back of the fan motor so

as not to be entangled with

the outdoor fan.

4Remove the 2 screws

and remove the fan

motor fixing frame.

When reassembling, fit the

lower hooks into the bottom

frame.

Nut

Outdoor fan (R18565)

10 mm

(0.39 inch)

(R18954)

Relay connector

for the fan motor

(R18566)

Hook

(R3249)

Lead wire Outdoor fan

Fan motor

fixing frame

(R18567)

(R19150)

Outdoor Fan / Fan Motor Si011282EB

4Removal Procedure

5Remove the 3 screws.

6Release the fan motor

lead wire from the 2

hooks.

7Remove the fan motor.

Step Procedure Points

(R10461)

Fan motor

(R15207)

(R15208)

Si011282EB Electrical Components

Removal Procedure 5

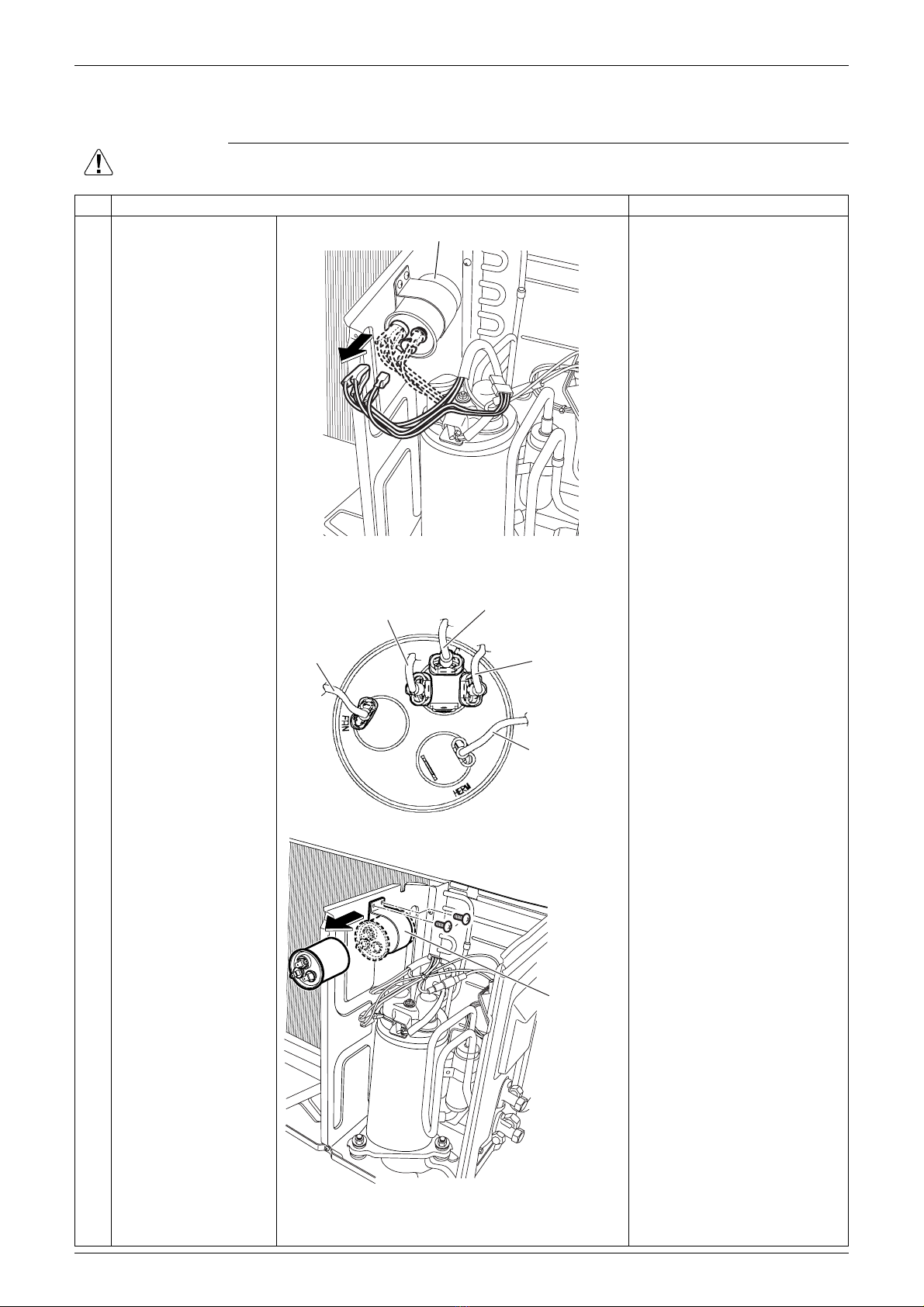

3. Electrical Components

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

1Pull out the 5 terminals

from the capacitor.

2Loosen the 2 screws of

the capacitor fixing

band and remove the

capacitor.

Capacitor

(R18568)

to compressor

(S): yellow

to compressor

(R): red

to terminal board

(2): black

to relay connector

for fan motor (1):

black

to relay

connector for

fan motor (3):

white

(R19170)

Capacitor

fixing band

(R18569)

Electrical Components Si011282EB

6Removal Procedure

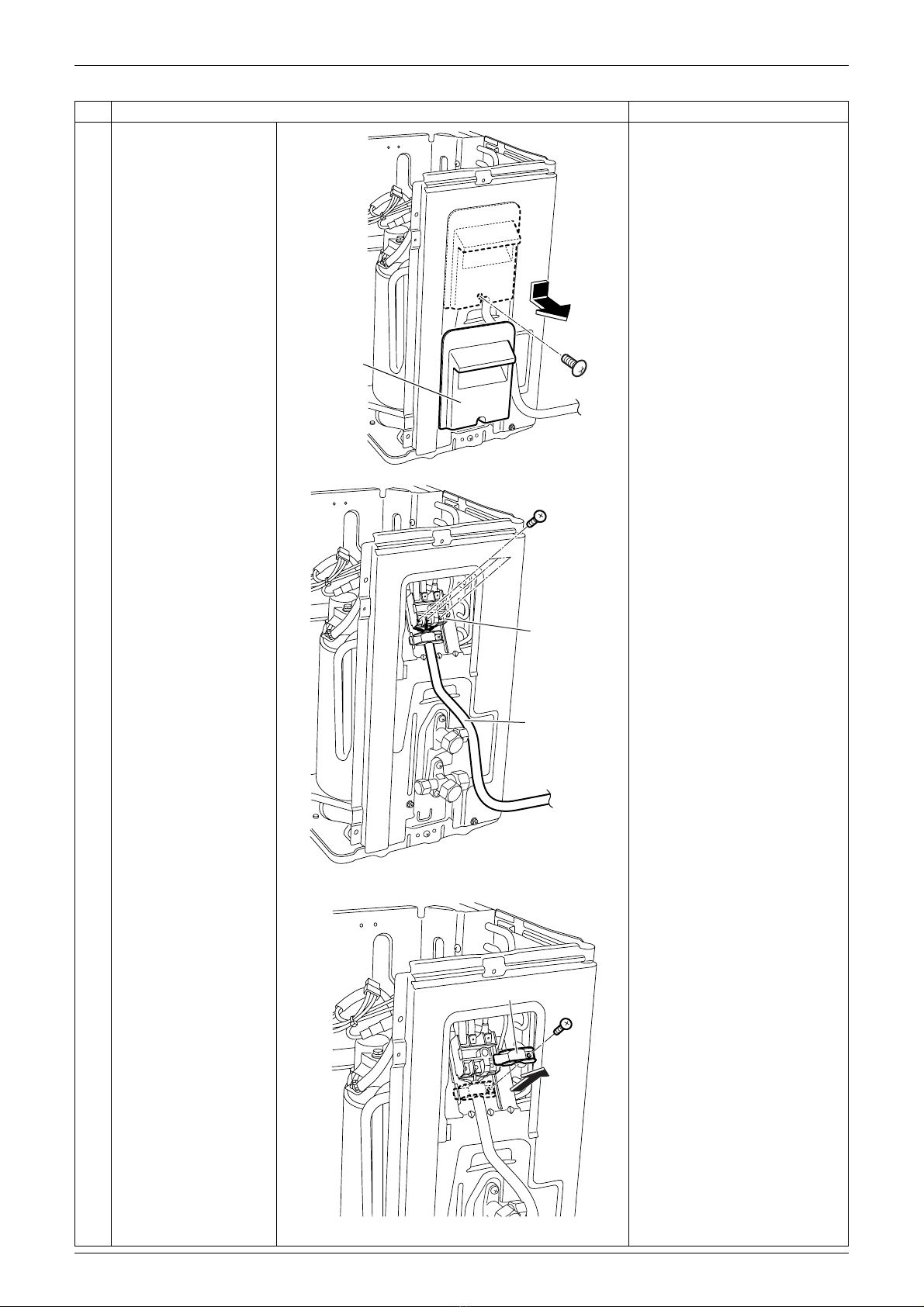

3Remove the screw and

remove the service

cover sliding

downward.

4Remove the 3 screws

on the terminal board

and disconnect the

connecting wire.

5Remove the screw and

remove the wire fixture.

Step Procedure Points

Service

cover

(R18570)

Terminal

board

Connecting

wire

(R18571)

(R18572)

Wire fixture

Si011282EB Electrical Components

Removal Procedure 7

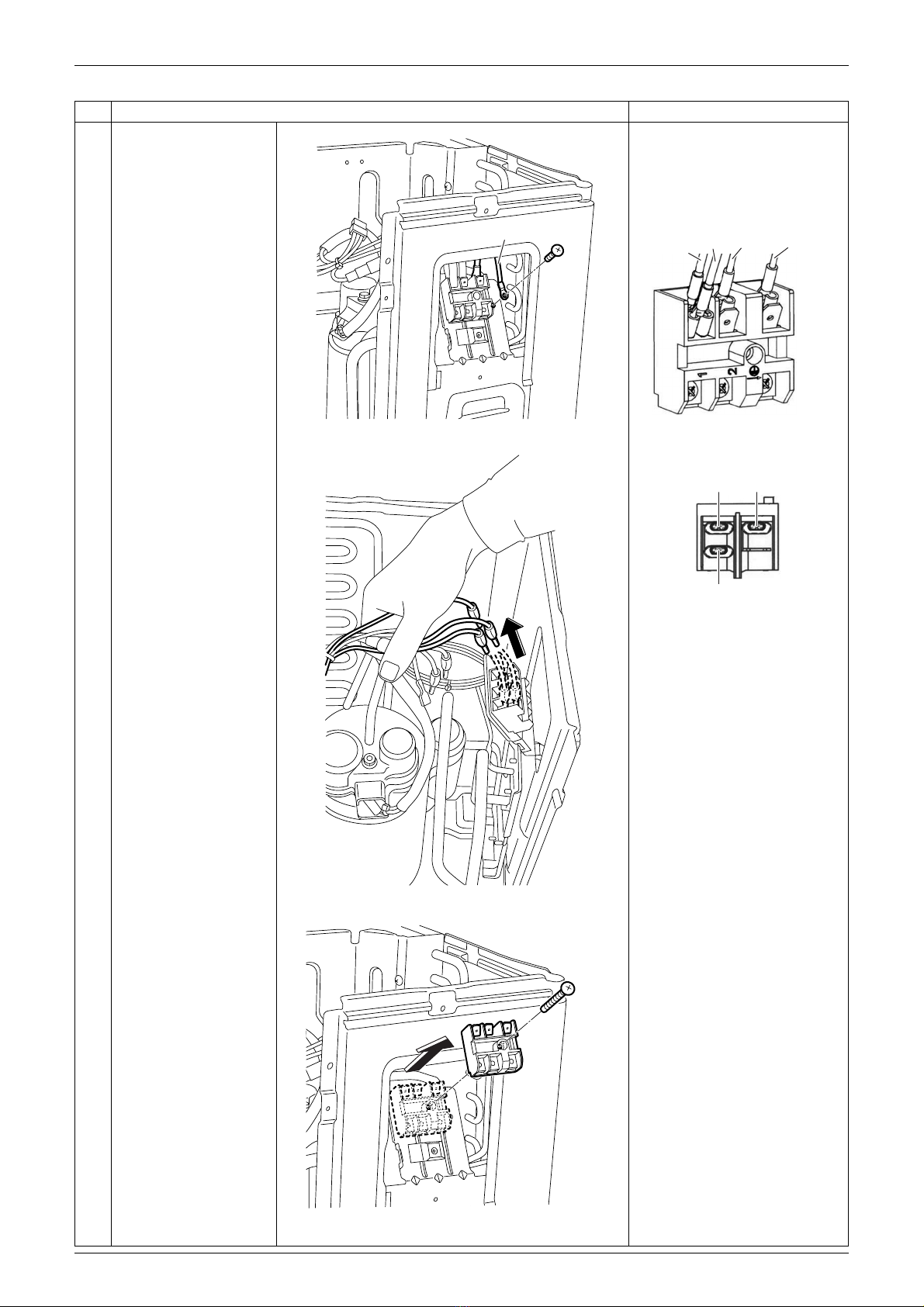

6Remove the screw and

detach the earth /

ground wire.

Some models have no earth

/ ground wire.

When reassembling, confirm

the terminal location.

7Pull out the remaining

terminals from the

terminal board.

8Remove the screw and

remove the terminal

board.

Step Procedure Points

(R18573)

Earth / ground wire Earth /

ground

wire

blackred

brown

Pattern 1

(R21471)

black

red

brown

Pattern 2

(R21472)

(R18574)

(R18575)

Electrical Components Si011282EB

8Removal Procedure

9When replacing the

fuse, open the fuse

holder.

Some models do not have a

fuse.

10 Remove the 4 screws

and remove the right

side panel.

11 Remove the 2 screws

and remove the

partition plate.

When reassembling, fit the

lower hook of the bottom

frame into the hole of the

partition plate.

Step Procedure Points

(R18576)

Fuse Fuse holder

Right side panel

(R19563)

(R18578)

Hole

(rear

side)

Partition plate
