REMOVAL
PROCEDURE
SERVICE MANUAL
2.5/3.5 kW Class
Outdoor Unit
Non-Inverter
Pair Type
Si011404EC
Service Manual
Removal Procedure
Outdoor Unit
zCooling Only
RC35PRV16 RF35PRV16 RQ35PRV16
RC25QRV16 RF35QRV16 RQ35QRV16
RC35QRV16 RF35QRV161 RQ35QRV1625
RC35QRV161 RF35QRV1625
RC35QRV1615 RQ35RRV162
RF35RRV161 RQ35RRV1625
RC25RRV162 RF35RRV1615
RC35RRV161 RQA35QRV16
RC35RRV1615 RFA35QRV16
RQA35RRV162
RCA25QRV16 RFA35RRV161
RCA35QRV16 RQD35QRV16
RFD35QRV16
RCA25RRV162 RQD35RRV162
RCA35RRV161 RFD35RRV161
RUF35RRV161
RCD25QRV16
RCD35QRV16
RCD25RRV162
RCD35RRV161
Si011404EC
Removal Procedure 1
Table of Contents
1. Outer Panels / Fan Motor / Electrical Components.................................2
2. Sound Blanket / Partition Plate ...............................................................8
3. Capillary Tube .........................................................................................9
4. Compressor ASSY ................................................................................10
Note: The illustrations may be slightly different depending on the model.
Outer Panels / Fan Motor / Electrical Components Si011404EC
2Removal Procedure
1. Outer Panels / Fan Motor / Electrical Components
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1. Remove the outer panels.
1 Remove the screw, and
then the stop valve
cover.
The stop valve cover is
united with the shield plate.
When reassembling, make
sure to fit the 5 hooks.
2 Remove the 2 screws,
and then the top panel.
(R20986)
Stop valve
cover
(R20987)
Hook
Hook
Top panel
(R16334)
Si011404EC Outer Panels / Fan Motor / Electrical Components
Removal Procedure 3
3 Remove the 4 screws,
and then the discharge
grille.
The discharge grille has 4
hooks.
4 Remove the 7 screws
of the front panel.
5 Unfasten the 4 hooks
and remove the front
panel.
The front panel has 4 hooks.
Step Procedure Points
(R16335)
Discharge
grille
Discharge
grille
(R20106)
Front panel (R20107)
Front panel
(R20108)
Outer Panels / Fan Motor / Electrical Components Si011404EC
4Removal Procedure
2. Remove the fan motor. Nut size: M6
Align the mark of the
outdoor fan with the D-cut
section of the motor shaft
when reassembling.
1 Remove the nut, and
then the outdoor fan.
2 Cut the clamp and
release the fan motor
lead wire.
3 Pull out the 2 terminals
(red, white) from the
capacitor (C1).
Capacitor (C1)
4 Pull out the terminal 3
(front, black) from the
terminal board (X1M).
Terminal board (X1M)
Step Procedure Points
Outdoor fan (R20109)
10 mm
(0.39 inch)
(R18954)
Clamp
(R20110)
(R20111)
from fan motor:
red from fan motor:
white
(R23473)
(R20112)
Terminal
board
from fan motor:
black
(R23474)
Si011404EC Outer Panels / Fan Motor / Electrical Components
Removal Procedure 5

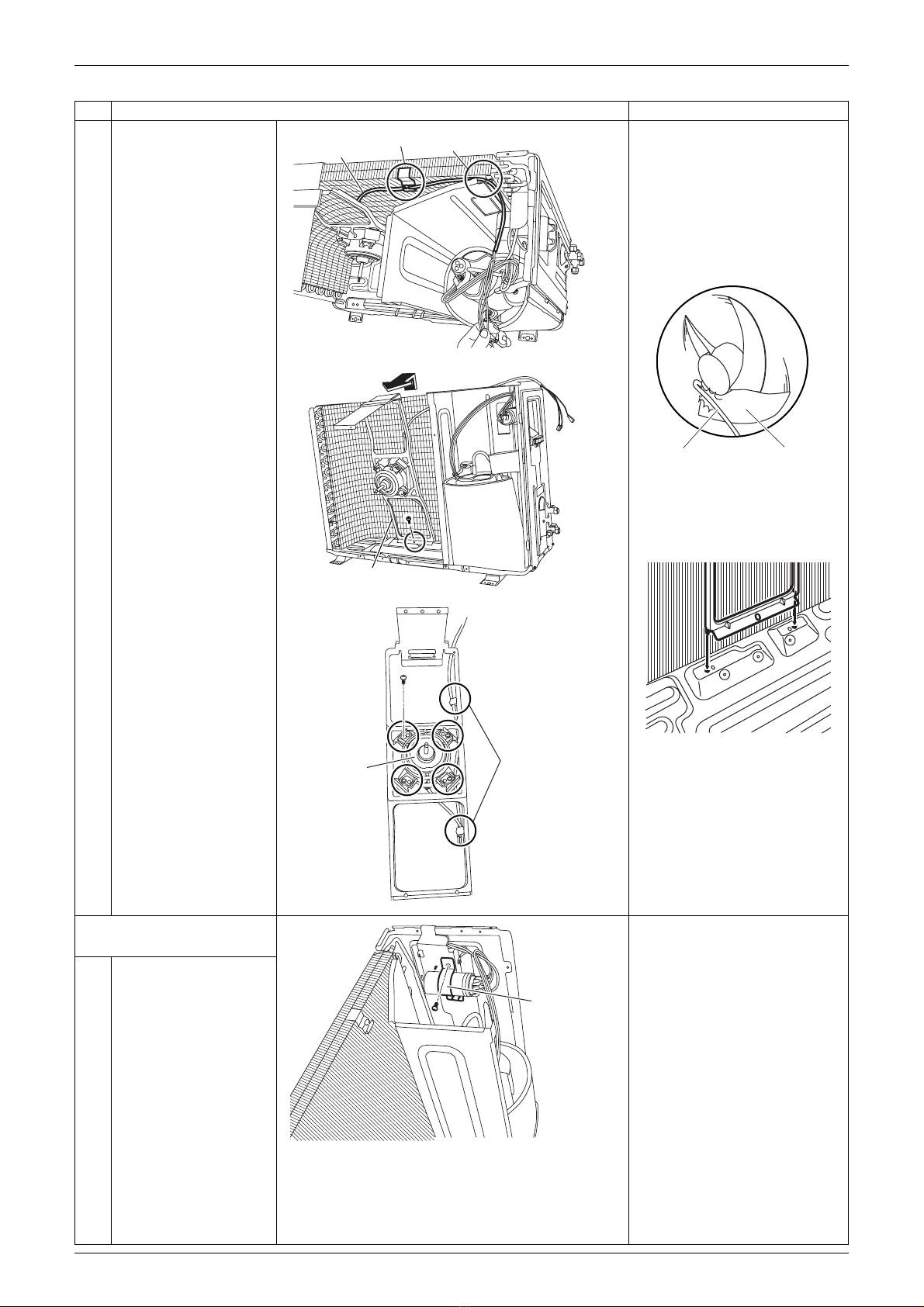

5 Release the fan motor
lead wire from the
groove and the hook.
Some models do not have a
hook.
When reassembling, put the
fan motor lead wire through
the back of the fan motor to
avoid any entanglement with
the outdoor fan.
When reassembling, fit the 2
lower hooks into the bottom
frame.
6 Remove the screw, and
then the fan motor
fixing frame.
7
8
Release the fan motor
lead wire from the 2
hooks.
Remove the 4 screws,
and then the fan motor.
3. Remove the electrical
components.
1 Remove the screw of
the capacitor fixing
band.
Step Procedure Points
Hook Groove
Fan motor
lead wire
(R22648)
(R3249)
Lead wire Outdoor fan
(R19277)
Fan motor fixing frame (R20114)
Hook
(R20115)
Fan
motor
Capacitor
fixing band
(R20116)
Outer Panels / Fan Motor / Electrical Components Si011404EC
6Removal Procedure
2 Pull out the 3 terminals
and remove the
capacitor.
3
4
Remove the 3 screws,
and then the wire
fixture.
Remove the 7 screws
on the terminal board
and disconnect the
connecting wire and the
power supply wire.
5 Remove the 2 screws,
and then the electrical
component mounting
plate.
Step Procedure Points
Capacitor
(R20117)
from compressor
(S): red
from compressor
(R): blue
from terminal
(2): blue
Capacitor (C1)
(R23475)
Wire fixture
Wire fixture
Power supply wire
Connecting wire
Terminal board
(R22649)
Electrical
component
mounting
plate
(R20119)
Si011404EC Outer Panels / Fan Motor / Electrical Components
Removal Procedure 7
6 Remove the screw, and
then the terminal board.
4. Remove the right side
panel.
1 Remove the 5 screws
and remove the right
side panel.
There are 2 hooks on the
right side panel.
When reassembling, make
sure to fit the 2 hooks.
Step Procedure Points
(R20131)
Terminal board
from capacitor (C1):
blue
from compressor (C):
white
earth/ground wire:
green/yellow
(R23476)
Terminal board (X1M)
Right side
panel
(R22650)
Hook
(R20121)
Sound Blanket / Partition Plate Si011404EC
8Removal Procedure
2. Sound Blanket / Partition Plate
Warning Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Step Procedure Points
1 Remove the sound
blanket.
Some models have sound
blanket (top).
Since the piping ports are
torn easily, remove the
sound blanket(s) carefully.
2 Remove the 2 screws,
and then the partition
plate.
Sound blanket
(R20122)
Partition plate
(R20123)
