Daikin VRV IV-S Series Dimensionsleitfaden

EDMT331529A

RXYMQ4-6AVE

RXYMQ8/9AY1

Heat Pump 50 Hz

EDMT331529A

Table of Contents 1

Introduction ................................................................................................................. 2

Part 1 General Information ............................................... ................................ 3

Part 2 Indoor Units................................................................................................... 23

Ceiling Mounted Cassette (Round Flow with Sensing) Type... ................25

Ceiling Mounted Cassette (Round Flow) Type ....................... ................43

Ceiling Mounted Cassette (Compact Multi Flow) Type........... ................61

4-Way Flow Ceiling Suspended Type..................................... ................81

Ceiling Mounted Cassette (Double Flow) Type ...................... ................93

Ceiling Mounted Cassette Corner Type.................................. ..............115

Slim Ceiling Mounted Duct Type ............................................ ..............131

Ceiling Mounted Duct Type .................................................... ..............157

Ceiling Mounted Duct Type .................................................... ..............197

Ceiling Suspended Type......................................................... ..............211

Wall Mounted Type................................................................. ..............227

Floor Standing Type / Concealed Floor Standing Type.......... ..............243

Floor Standing Duct Type ....................................................... ..............269

Part 3 Residential Indoor Units with Connection to

BP Units.................................................................. ............................ 299

Part 4 BP Units.................................................................. ............................ 347

Part 5 Outdoor Units Heat Pump 50Hz ............................. .......... 365

Part 6 Installation of Outdoor Units ................................. ............................ 435

Part 7 Option of Control .................................................... ............................ 525

Part 8 Guide Specifications .............................................. ............................ 529

FXFQ-S

FXFQ-LU

FXZQ-M

FXUQ-A

FXCQ-M

FXKQ-MA

FXDQ-PB / FXDQ-NB

FXMQ-P

FXMQ-MA

FXHQ-MA

FXAQ-P

FXLQ-MA / FXNQ-MA

FXVQ-N

RXYMQ-AVE / RXYMQ-AY1

Introduction EDMT331529A

2Introduction

1. Introduction

1.1 Publication List of Engineering Data for VRV Products

Refrigerant

Type Product Series Book No. Type, Hz Model name Area Note Published

R410A

Air

cooled

Inverter

EDMT341421A

H/P 50 Hz

High-COP type

(Energy Saving Type)

RXYQ12-50THY1(E)

Standard type

(Space saving type)

RXYQ6-20TY1(E)

RXYQ22-50TSY1(E)

RXYQ52-60TNY1(E)

Argentina,

Chile,

Uruguay

and other

50 Hz

countries

of Latin

America

- Revision for

EU Biocidal

Product

Regulation

Aug. 2017

EDMT371515

H/R 50 Hz

High-COP type

REYQ16-32THY1(E)

Standard type

REYQ8-60TY1(E)

Argentina,

Chile,

Uruguay

and other

50 Hz

countries

of Latin

America

- Addition of

indoor and BS

units

May 2015

Inverter

EDMT331529

H/P 50 Hz RXYMQ4-6AVE

RXYMQ8/9AY1

Argentina,

Chile,

Uruguay

and other

50 Hz

countries

of Latin

America

- New lineup of

outdoor units Sep. 2015

EDMT331529A

H/P 50 Hz RXYMQ4-6AVE

RXYMQ8/9AY1

Argentina,

Chile,

Uruguay

and other

50 Hz

countries

of Latin

America

- Revision for

EU Biocidal

Product

Regulation

- Update of

FXVQ-N

Aug. 2017

Inverter

ED341014 H/P 50 Hz RQYQ8-48PY1 General - Outdoor unit

only Dec. 2010

ED341207 C/O 50 Hz RQQ8-48PY1 General - Outdoor unit

only Jul. 2012

Water

cooled

Inverter

PED30-942

H/P,H/R 50 Hz

H/P,H/R 60 Hz

RWEYQ8-30PY1

RWEYQ10-30PYL

RWEYQ10-30PTL

General

- New lineup of

Centralized BS

units

Dec. 2009

Option for all type OH14-01 50/60 Hz For indoor and outdoor

units General Option

handbook Apr. 2014

Heat Reclaim Ventilator (VAM) GJ

EDMT711618

50/60 Hz VAM150-2000GJVE General Feb. 2017

Heat Reclaim Ventilator (VKM) GA(M) ED71-440B 50 Hz VKM50-100GAMV1

VKM50-100GAV1 General

-WithDXcoil

and humidifier

(VKM-GAM)

-WithDXcoil

(VKM-GA)

Mar. 2012

EDMT331529A as shown by .

H/P: Heat Pump

H/R: Heat Recovery

C/O: Cooling Only

EDMT331529A

General Information 3

Part 1

General Information

1. Model Names of Indoor/Outdoor Units....................................................4

1.1 Indoor Units ..............................................................................................4

1.2 Outdoor Units ...........................................................................................5

1.3 Air Treatment Equipment .........................................................................5

2. External Appearance...............................................................................6

2.1 Indoor Units ..............................................................................................6

2.2 Outdoor Units ...........................................................................................8

2.3 Air Treatment Equipment .........................................................................8

3. Nomenclature..........................................................................................9

4. Capacity Range.....................................................................................12

4.1 Capacity Range for VRV Indoor Units Only ...........................................12

4.2 Capacity Range for Mixed Combination of VRV and

Residential Indoor Units .........................................................................13

5. Selection Procedure..............................................................................14

5.1 Selection Procedure for VRV Indoor Units Only.....................................14

5.2 Selection Procedure for Mixed Selection of VRV and

Residential Indoor Units .........................................................................18

Model Names of Indoor/Outdoor Units EDMT331529A

4General Information

1. Model Names of Indoor/Outdoor Units

1.1 Indoor Units

VRV Indoor Units

Note: FXDQ has following 2 series, as shown below.

FXDQ-PBVET, NBVET: without a Drain Pump

FXDQ-PBVE, NBVE: with a Drain Pump

V1: 1 phase, 220-240V, 50Hz

VE: 1 phase, 220-240/220V, 50/60Hz

VM: 1 phase, 220-240/220-230V, 50/60Hz

Y1: 3 phase, 380-415V, 50Hz

Capacity range

2.2kW 2.8kW 3.6kW 4.5kW 5.6kW 7.1kW 8.0kW 9.0kW

11.2kW 14.0kW 16.0kW 22.4kW 28.0kW

Power

supply,

Standard

0.8HP

1HP

1.25HP

1.6HP

2HP

2.5HP

3HP

3.2HP

4HP 5HP 6HP 8HP 10HP

Capacity index 20 25 31.25 40 50 62.5 71 80 100 125 140 200 250

Ceiling

Mounted

Cassette

(Round Flow

with Sensing)

Type

FXFQ — 25S 32S 40S 50S 63S — 80S 100S 125S — — — VM

Ceiling

Mounted

Cassette

(Round Flow)

Type

FXFQ — 25LU 32LU 40LU 50LU 63LU — 80LU

100LU 125LU

——— V1

Ceiling

Mounted

Cassette

(Compact

Multi Flow)

Type

FXZQ 20M 25M 32M 40M 50M — — — — — — — — VE

4-Way Flow

Ceiling

Suspended

Type

FXUQ — — — — — — 71A — 100A — — — — VEB

Ceiling

Mounted

Cassette

(Double

Flow) Type

FXCQ 20M 25M 32M 40M 50M 63M — 80M — 125M — — —

Ceiling

Mounted

Cassette

Corner Type

FXKQ —

25MA 32MA 40MA

—

63MA

———————

Slim Ceiling

Mounted

Duct Type

FXDQ-

PBVE 20PB 25PB 32PB — — — — — — — — — —

FXDQ-

PBVET

20PB 25PB 32PB — — — — — — — — — —

FXDQ-

NBVE — — — 40NB 50NB 63NB — — — — — — —

FXDQ-

NBVET

— — — 40NB 50NB 63NB — — — — — — —

Ceiling

Mounted

Duct Type

FXMQ 20P 25P 32P 40P 50P 63P — 80P 100P 125P 140P — —

FXMQ———————————

200MA 250MA

Ceiling

Suspended

Type FXHQ — —

32MA

——

63MA

——

100MA

————

Wall Mounted

Type FXAQ 20P 25P 32P 40P 50P 63P — — — — — — —

Floor

Standing

Type FXLQ

20MA 25MA 32MA 40MA 50MA 63MA

———————

Concealed

Floor

Standing

Type

FXNQ

20MA 25MA 32MA 40MA 50MA 63MA

———————

Floor

Standing

Duct Type FXVQ — — — — — — — — — 125N — 200N 250N

EDMT331529A Model Names of Indoor/Outdoor Units

General Information 5

Residential Indoor Units with Connection to BP Units

Heat Pump

Note: BP Units are necessary for residential indoor units.

Residential Indoor Units can be connected with only Single Outdoor Units.

VM: 1 phase, 220-240/220-230V, 50/60Hz

BP Units

1.2 Outdoor Units

VE: 1 phase, 220-230/220V, 50/60Hz

Y1: 3 phase, 380-415V, 50Hz

1.3 Air Treatment Equipment

Heat Reclaim Ventilator (VAM series)

Note: For details, refer to Engineering Data ED71-613.

VE: 1 phase, 220-240/220V, 50/60Hz

Capacity range 2.0kW 2.5kW 3.5kW 5.0kW 6.0kW 7.1kW

Power

supply,

Standard

Capacity index 20 25 35 50 60 71

Slim Ceiling

Mounted Duct Type

CDXS — 25EA 35EA — — —

VMA

FDXS — 25C 35C 50C 60C —

Wall Mounted Type

FTXJ — 25N 35N 50N — — VMVW

— 25N 35N 50N — — VMVS

FTXS

20D—————

VMA— 25E 35E — — —

— — — 50F 60F 71F

Type Model name

BP Units 3 Ports BPMKS967A3

2 Ports BPMKS967A2

Series Model name

Power supplyCapacity range 4 HP 5 HP 6 HP 8 HP 9 HP

11.2 kW 14.0 kW 16.0 kW 22.4 kW 24.0 kW

Capacity index 100 125 150 200 215

Heat pump RXYMQ 4A 5A 6A — — VE

———8A9A Y1

Series Model name Power supply

Heat Reclaim

Ventilator VAM 150GJ 250GJ 350GJ 500GJ 650GJ 800GJ

1000GJ 1500GJ 2000GJ

External Appearance EDMT331529A

6General Information

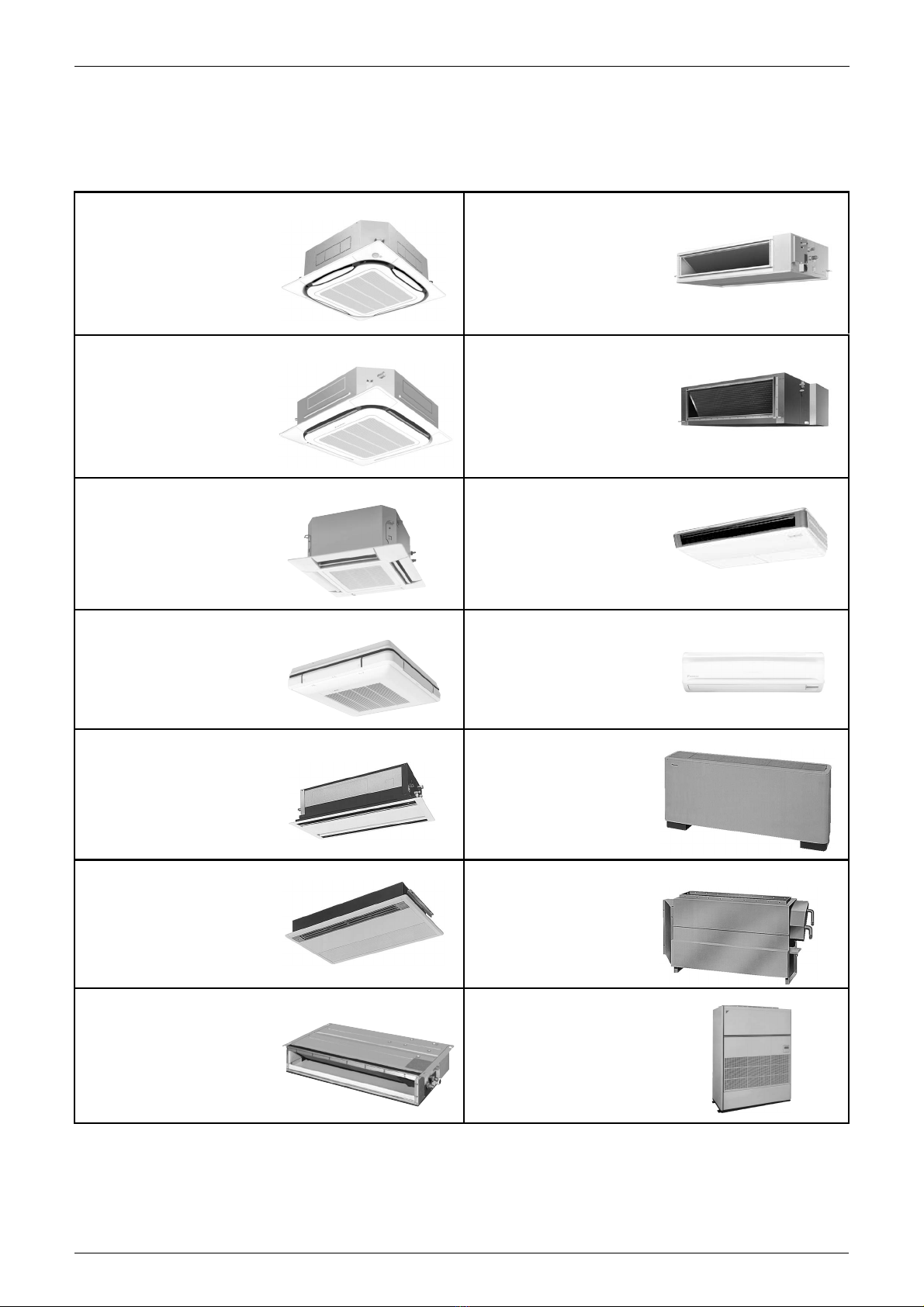

2. External Appearance

2.1 Indoor Units

VRV Indoor Units

Ceiling mounted cassette (Round flow with sensing) type

FXFQ-S

Ceiling mounted duct type

FXMQ-P

Ceiling mounted cassette (Round flow) type

FXFQ-LU

Ceiling mounted duct type

FXMQ-MA

Ceiling mounted cassette (Compact multi flow) type

FXZQ-M

Ceiling suspended type

FXHQ-MA

4-way flow ceiling suspended type

FXUQ-A

Wall mounted type

FXAQ-P

Ceiling mounted cassette (Double flow) type

FXCQ-M

Floor standing type

FXLQ-MA

Ceiling mounted cassette corner type

FXKQ-MA

Concealed floor standing type

FXNQ-MA

Slim ceiling mounted duct type

FXDQ-PB

FXDQ-NB

Floor standing duct type

FXVQ-N

EDMT331529A External Appearance

General Information 7

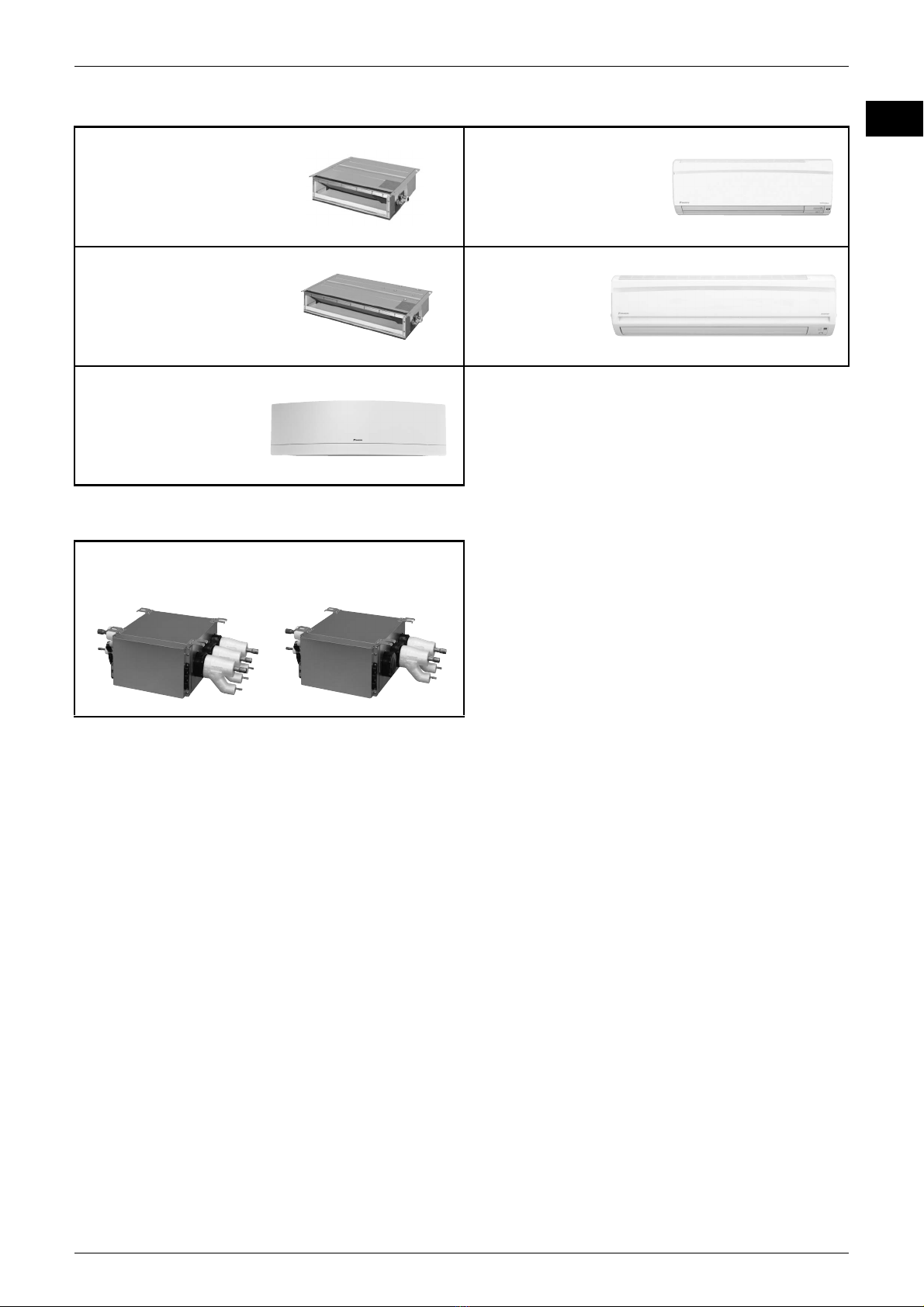

Residential Indoor Units with Connection to BP Units

BP Units

Slim ceiling mounted duct type

(700 mm width type)

CDXS-EA

Wall mounted type

FTXS-D

FTXS-E

Slim ceiling mounted duct type

(900/1,100 mm width type)

FDXS-C

Wall mounted type

FTXS-F

Wall mounted type

FTXJ-N

BPMKS967A3 (3 ports)

BPMKS967A2 (2 ports)

External Appearance EDMT331529A

8General Information

2.2 Outdoor Units

2.3 Air Treatment Equipment

RXYMQ4/5AVE RXYMQ6AVE

RXYMQ8/9AY1

Heat reclaim ventilator (VAM series)

VAM-GJ

Andere Handbücher für VRV IV-S Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Daikin Wärmepumpe Handbücher

Daikin

Daikin FNQ25A2VEB Bedienungsanleitung

Daikin

Daikin Altherma 3 R F Anleitung zur Verwendung

Daikin

Daikin ETVH12S18E 6V Series Bedienungsanleitung

Daikin

Daikin Altherma 3 H W Bedienungsanleitung

Daikin

Daikin ETBX16DF6V Bedienungsanleitung

Daikin

Daikin RXL12QMVJU Bedienungsanleitung

Daikin

Daikin altherma EJHA04AAV3 Bedienungsanleitung

Daikin

Daikin EWYT021CZI-A1 Handbuch

Daikin

Daikin EKHBX030BA Bedienungsanleitung

Daikin

Daikin ERSQ011AAV1 Bedienungsanleitung

Daikin

Daikin Altherma EBLQ05CAV3 Produktinformationsblatt

Daikin

Daikin EHVH08S18CB Bedienungsanleitung

Daikin

Daikin EKHBX016BA Bedienungsanleitung

Daikin

Daikin VRV Aurora RXLQ-TATJU Series Bedienungsanleitung

Daikin

Daikin Altherma EHVZ08S18DA6V Bedienungsanleitung

Daikin

Daikin ETBH16E9W Anleitung zur Verwendung

Daikin

Daikin Altherma ETBH16DA6V Bedienungsanleitung

Daikin

Daikin Altherma 3 R MT F Series Anleitung zur Verwendung

Daikin

Daikin Altherma EBBH11DF9W Produktinformationsblatt

Daikin

Daikin ETSH12P50EF Produktinformationsblatt

Daikin

Daikin Super Multi NX 3MXS-G Series Dimensionsleitfaden

Daikin

Daikin BEV2 Anleitung zur Verwendung

Daikin

Daikin Altherma EDLQ05CAV3 Bedienungsanleitung

Daikin

Daikin Enfinity VFC Handbuch

Beliebte Wärmepumpe Handbücher anderer Marken

MICROWELL

MICROWELL HP 1000 GREEN Bedienungsanleitung

Sanyo

Sanyo SAP120FCH Bedienungsanleitung

Panasonic

Panasonic WH-SDF03E3E5 Leitfaden

Bryant

Bryant 544B Bedienungsanleitung

Airxcel

Airxcel 45000 Series Handbuch

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Bedienungsanleitung

Dimplex

Dimplex LI 16I-TUR Benutzerhandbuch

Carrier

Carrier WSHP Open v3 Kurzanleitung zur Einrichtung

TGM

TGM CTV14CN018A Bedienungsanleitung

Carrier

Carrier 38MGQ Series Bedienungsanleitung

Kokido

Kokido K2O K880BX/EU Fehlerbehebungshandbuch

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Kurzanleitung

Carrier

Carrier 48EZN Bedienungsanleitung

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Betriebsanleitung

Ariston

Ariston NIMBUS Bedienungsanleitung

Weishaupt

Weishaupt WWP L 7 Benutzerhandbuch

GE Zoneline AZ85H09EAC Bedienungsanleitung

Bryant

Bryant Preferred Series Bedienungsanleitung
