OWNER'S MANUAL

AIR CONDITIONER

ONE-TWIN SPLIT TYPE

Thank you very much for purchasing our air conditioner, please read this owner's

manual carefully before using your air conditioner, save this manual in a safe place

for future reference.

CONTENTS

IMPORTANT SAFETY INFORMATION.............................................................

HINTS FOR ECONOMICAL OPERATION.........................................................

PARTS NAMES..................................................................................................

NAMES AND FUNCTIONS OF INDOOR UNIT CONTROLS............................

ADJUSTING AIR FLOW DIRECTION................................................................

HOW THE AIR CONDITIONER WORKS...........................................................

TEMPORARY OPERATIONS.............................................................................

MAINTENANCE..................................................................................................

AIR CONDITIONER OPERATIONS AND PERFORMANCE.............................

INSTALLATION..................................................................................................

TROUBLES AND CAUSES................................................................................

TROUBLES AND CAUSES (CONCERNING REMOTE CONTROLLER).........

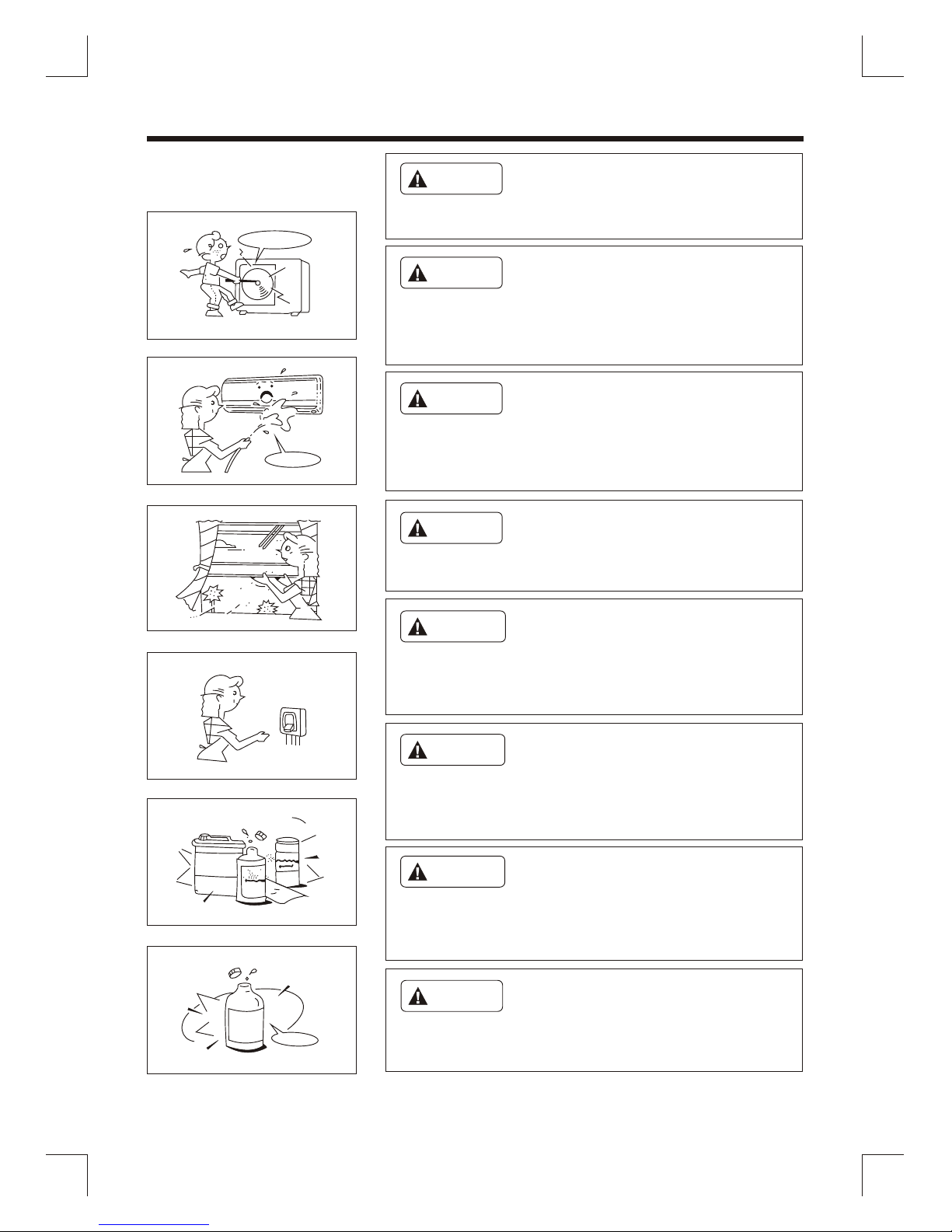

IMPORTANT SAFETY INFORMATION

Thinner

Household

Drain

Cleaner

Dangerous

Do not attempt to install this unit yourself. This unit should

be installed by qualified persons.

To avoid the risk of serious electrical shock, never

sprinkle or spill water or other liquids on the unit.

Do not attempt to service the unit yourself. This unit has

no user serviceable components, opening or removing the

cover will expose you to dangerous voltage. Turning off

the power supply will not prevent potential electric shock.

Ventilate the room occasionally while the air conditioner

is in use, especially if there is also a gas appliance in use

in this room. Failure to follow these directions may result

in a loss of oxygen in the room.

Never put hands or objects into the air outlet of indoor

and outdoor units. These units contain a fan running at

high speed. Touching the moving fan will cause serious

injury.

To prevent electric shock, turn off the power or

disconnect the power supply plug before beginning any

cleaning or other routine maintenance. Follow the

directions for cleaning in the Owner's Manual.

Do not use liquid cleaners or aerosol cleaners, use a soft

and dry cloth for cleaning the unit. To avoid electric

shock, never attempt to clean the unit by sprinkling water

on it.

Do not use caustic household drain cleaners in the unit.

Drain cleaners can quickly destroy the unit components

(drain pan and heat exchanger coil etc.)

CAUTION

WARNING

CAUTION

DANGER

Control

Gee chilly

Clean please

Please close

Cool and dry air

TIMER

Air flow adjustment

NOTE

For proper performance, operate the unit under the usable

operating temperature and humidity conditions indicated in

this owner's manual. If the unit is operated beyond these

conditions, it may cause malfunctions of the unit or dew

dripping from the unit.

A clogged air filter would reduce cooling efficiency.

Clean it once two weeks.

The appliance is not intended for use by children or the disables without supervision.

Children should be supervised to ensure that they do not play with the appliance.

Set moderate temperature, especially when there are children, old men or the disables in the

room.

In cooling, close the curtains to avoid direct sunlight.

Set the timer for the desired operation time.

Adjust air flow direction for even circulation of room

air.

To keep cool or warm air in the room, never open

doors and windows more often than necessary.

Maintain room temperature at a comfortable level.

Clean air filter

Window curtains

Use the timer effectively

Get uniform circulation of room air

Never open doors and windows more often than

necessary.

HINTS FOR ECONOMICAL OPERATION

IMPORTANT SAFETY INFORMATION

TEMP

CLOCK

SPEED

MODE

FAN

SPEED

OFF

TEMP

PARTS NAMES

Indoor unit

Outdoor unit

Display panel

1 Room temperature sensor

2 Front panel

3 Air inlet

4 Air filter

5 Air outlet

6 Vertical air flow louver

7 Horizontal air flow grille

8 Display panel

9 Infrared signal receiver

10 Remote Controller

11 Control panel

12 Drain hose, refrigerant connecting pipe

and electric wiring.

13 Air inlet (side and rear)

14 Air outlet

Indoor unit

Outdoor unit

OPERATION

AUTO. TIMER

1 2 3

ECON. PRE-DEF

Display panel

The operating conditions are indicated below.

Operation Lamp

Automatic Lamp

Timer Lamp

Economic Lamp

Pre-defrost Lamp (Cooling only type without)

Infrared signal receiver

Above 4.5cm

Above 100cm

Air Out

Above 60cm

Above 10cm

NAMES AND FUNCTIONS OF INDOOR UNIT CONTROLS

Lift the front panel to perform control

panel settings.

Normally set this switch to remote control.

If you miss the remote controller or its

batteries are exhausted, set this switch

to the Auto/Cool Position for temporary

operation.

Opening the front panel

Pull up from two ends of the front panel.

Open the panel and lift the panel up to

an angle where it remains fixed. Do not

lift the panel any further when it stops

with a clicking sound.

Closing the front panel

Lower ends of the front panel, push the

ends on both sides. Close the panel firmly.

Control panel

Temporary

Auto/Cool

Temporary

operation

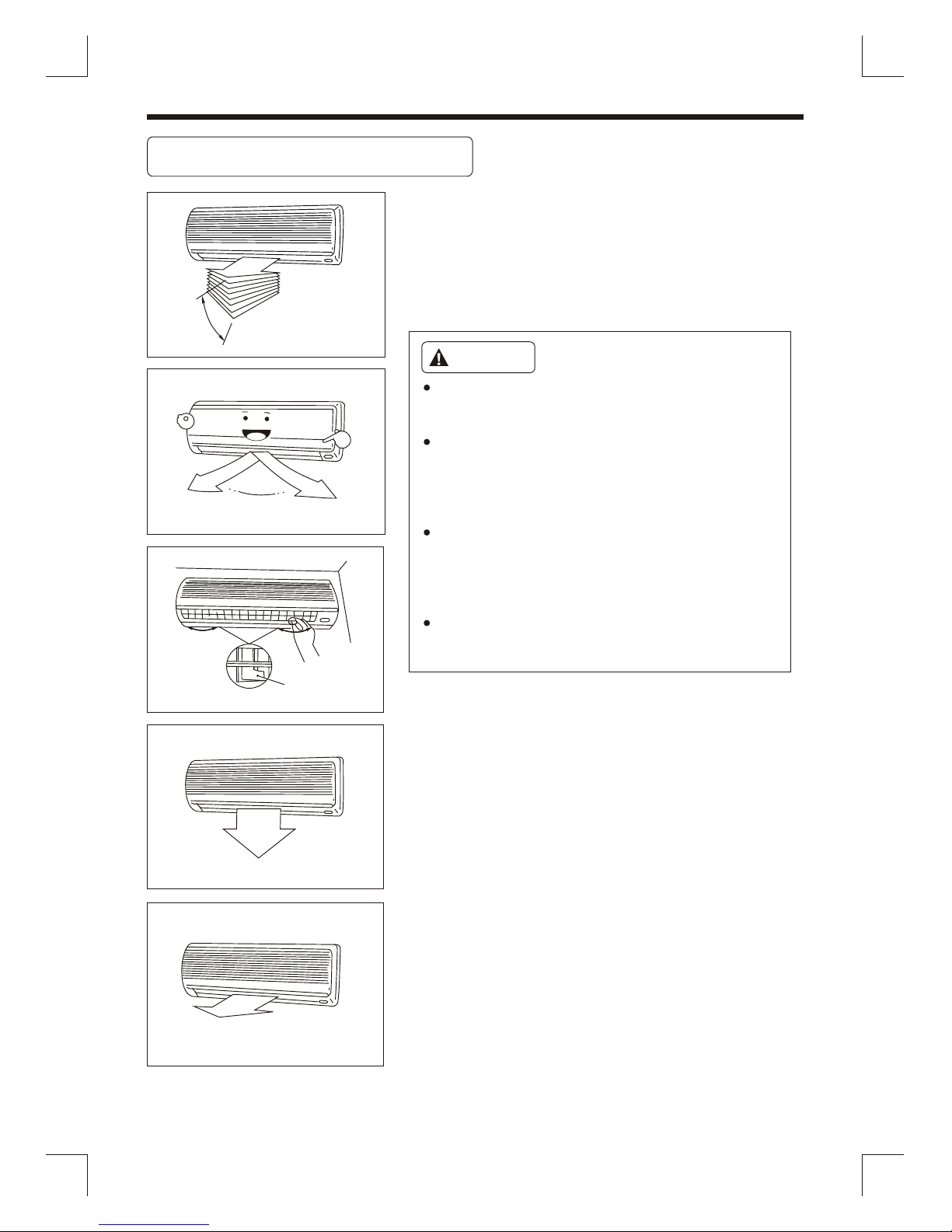

ADJUSTING AIR FLOW DIRECTION

Perform this function while the air conditioner is in

operation. Push the SWING button on the

remote controller.

To stop the function, push the SWING button again.

To change the swing direction, push the AIR

DIRECTION button.

For the cooling or dry operation, move the vertical air

flow louver downward using the AIR DIRECTION

button on the remote controller.

If your use the AIR DIRECTION button to set the

vertical air flow direction, the direction will move

downward at first, then turn automatically to the direction

as you desire.

When you stop operating with the remote controller, the

vertical air flow louver will shut automatically.

Take hold of the lever on the horizontal air flow grilles

and move them to adjust the air flow direction as

required.

For the cooling or dry operation, return the vertical air

flow louver to the original position using the AIR

DIRECTION button on the remote controller.

The AIR DIRECTION and SWING buttons will

be disabled when the air conditioner is not in

operation (including when the ON TIMER is set).

Do not operate the air conditioner for long hours

with the air flow direction set downward during the

cooling or dry operation. Otherwise, condensation

may occur on the surface of the vertical air flow

louver and cause dew dripping.

Do not move the vertical louver manually. Always

use the AIR DIRECTION button. If you move the

louver manually, it may malfunction during

operation. If the louver malfunctions, stop the air

conditioner once and restart it.

When the air conditioner is started immediately

after it was stopped, the vertical air flow louver

might not move for 10 seconds or so.

To automatically swing the air flow direction

Adjusting the Horizontal Air Flow Direction

Preparation:

CAUTIONS

Hold

HOW THE AIR CONDITIONER WORKS

TEMPORARY OPERATIONS

The air conditioner selects and operates in one of the

operating modes of cooling, heating (cooling only

type without) or fan only, depending on the room

temperature.

The air conditioner will control room temperature

automatically round the temperature point set by you.

If the Auto mode is uncomfortable, you can select the

desired conditions manually.

Set the TEMPORARY switch to the AUTO position in order

to start the automatic operation.

The COOL position is provided for test runs of the unit, and

automatic temperature control is cut off at this position.

Never use the position for ordinary operation.

When your push ECONO button during cooling, heating

(cooling only type without), or AUTO operation, the air

conditioner will start following operation. The fan speed

will be automatically controlled. In the operation suppression

zone where capacity is kept to the minimum, overcooling is

¡£

prevented by raising the temperature setting by 1 C after 1

¡£

hour and by 2 C after 2 hours of operation. The room

temperature is thus regulated between the operation

suppression zone and the set temperature. (It depends on

the outdoor temperature.)

The dry mode will automatically select the cooling dry

operation based on the difference between the set

temperature and the actual room temperature.

This function is used to operate the unit temporarily in case

you misplace the remote controller or its batteries are

exhausted.

The temperature is regulated while dehumidifying by

repeating turning on and off of the cooling operation or fan

only.

The fan speed indicator will display AUTO and low speed

will be used.

AUTOMATIC OPERATION

ECONOMIC OPERATION

DRY OPERATION

Temporary Operation

Cooling Cooling

Time

Dry

Indoor unit

I cannot find the

remote controller

A temporary

operation

feature

is provided

TEMPORARY Switch

Room

temperature

Set temperature

Cooling

Operation suppression zone

2 hours

Set temperature

1 hours

¡£

ECONOMIC Operation

Operation starts

Fan only

AUTO/COOL

MAINTENANCE

WARNING

Before you clean the air conditioner, be sure to

disconnect the power supply plug.

If you do not plan to use the unit for at least 1 month.

(1) Operate the fan for about half a day to dry the inside

of the unit.

(2) Stop the air conditioner and disconnect power.

(3) Remove the batteries from the remote controller.

Before you clean the air conditioner be sure to disconnect

the power supply plug.

1. Pull up from two ends of panel. Open the panel and

lift the panel up to an angle where it remains fixed.

Do not lift the panel any further when it stops with a

clicking sound.

2. Take hold of the left and right handles of the air filter

and lift it up slightly to take it out from the filter holder.

Use a dry cloth to wipe the indoor unit and remote

controller.

A cloth dampened with cold water may be used on

the indoor unit if it is very dirty.

Never use a damp cloth on the remote controller.

Do not use a chemically-treated duster for wiping

or leave such materials on the unit for long. It may

damage or fade the surface of the unit.

Do not use benzine, thinner, polishing powder, or

similar solvents for cleaning.

These may cause the plastic surface to crack or

deform.

CAUTIONS

Cleaning the indoor unit and the remote

controller

Check that the wiring is not broken off or is not

connected.

Check that the air filter is installed.

Check that the outdoor unit air outlet or inlet is not

blocked.

CAUTIONS

Checks before operation

Cleaning the air filter

Thinner

Use a dry cloth to wipe

Select fan only mode

Air Filter Handle

MAINTENANCE

3. Take hold of the handles and pull the air filter

downward.

4. Remove the AIR FILTER from the indoor unit.

Clean the AIR FILTER once two weeks.

Clean the AIR FILTER with a vacuum clearer

or water, then dry it up in cool place.

5. Remove the ACTIVE CARBON FILTER/ELECTRO

STATIC FILTER from the indoor unit and take it out

from its support frame.

Clean the filter every month, immerse the filter in

the water with the mild detergent for 20 minutes

and wash it slightly (do not rub), then expose it in

the sun to dry it out for more than 3 hours. (put

the black side face up)

6. Install the filters into their support frames and set

the support frames back in position. The black side

of the filters be at the outsides.

7. Insert the AIR FILTER from the top side into the

unit until it is fixed thoroughly and close the front

panel of the indoor unit tightly.

Optional filter

Inhaltsverzeichnis

Andere Daitsu Klimaanlage Handbücher

Daitsu

Daitsu DS-9UIDN Bedienungsanleitung

Daitsu

Daitsu DOSF-28UIEE Bedienungsanleitung

Daitsu

Daitsu DS-18UIAK Bedienungsanleitung

Daitsu

Daitsu APD-9CR Bedienungsanleitung

Daitsu

Daitsu APD 9AM Bedienungsanleitung

Daitsu

Daitsu ASD18UI-DA Bedienungsanleitung

Daitsu

Daitsu DSM-9UIDN Bedienungsanleitung

Daitsu

Daitsu ASD12UI-DA Bedienungsanleitung

Daitsu

Daitsu APD-9CR Bedienungsanleitung

Daitsu

Daitsu DS-12UIDN Bedienungsanleitung

Daitsu

Daitsu DS-9KIDR Bedienungsanleitung

Daitsu

Daitsu ACD 18U Bedienungsanleitung

Daitsu

Daitsu DS-18KIDB Bedienungsanleitung

Daitsu

Daitsu 3NDA8405 Bedienungsanleitung

Daitsu

Daitsu APD09-AL Bedienungsanleitung

Daitsu

Daitsu M3OA-27HRN1 Bedienungsanleitung

Daitsu

Daitsu AQUATANK MB 300L Bedienungsanleitung

Daitsu

Daitsu DOS-9UIDA Bedienungsanleitung

Daitsu

Daitsu ASD 129U11 Bedienungsanleitung

Daitsu

Daitsu ASD 9UI-DB Bedienungsanleitung

Daitsu

Daitsu DOS-12TAI Bedienungsanleitung

Daitsu

Daitsu DOS-12UIDA Bedienungsanleitung

Daitsu

Daitsu ADP 9AM Bedienungsanleitung

Daitsu

Daitsu APD12-AN Bedienungsanleitung

Beliebte Klimaanlage Handbücher anderer Marken

Spheros

Spheros CC 355 Bedienungsanleitung

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Bedienungsanleitung

Panasonic

Panasonic CS-E12HKEW Bedienungsanleitung

nedis

nedis ACMB1WT7 Bedienungsanleitung

Samsung

Samsung AR KV Series Leitfaden

Daikin

Daikin FCFV50A Bedienungsanleitung

Fujitsu

Fujitsu Inverter ASBA30JFC Bedienungsanleitung

Toshiba

Toshiba RAS-M10SMUV-E Bedienungsanleitung

Daikin

Daikin FXLQ20MAVE Bedienungsanleitung

Hitachi

Hitachi RAS-E24CAK Bedienungsanleitung

CIAT

CIAT Magister 2 Series Leitfaden

Bestron

Bestron AAC6000 Bedienungsanleitung

Hisense

Hisense 7K Technisches Handbuch

Frigidaire

Frigidaire FFRE0533S1E0 Bedienungsanleitung

Samsung

Samsung AS09HM3N Bedienungsanleitung

Frigidaire

Frigidaire CRA073PU11 Betriebsanleitung

Soleus Air

Soleus Air GB-PAC-08E4 Bedienungsanleitung

McQuay

McQuay MCK020A Bedienungsanleitung
